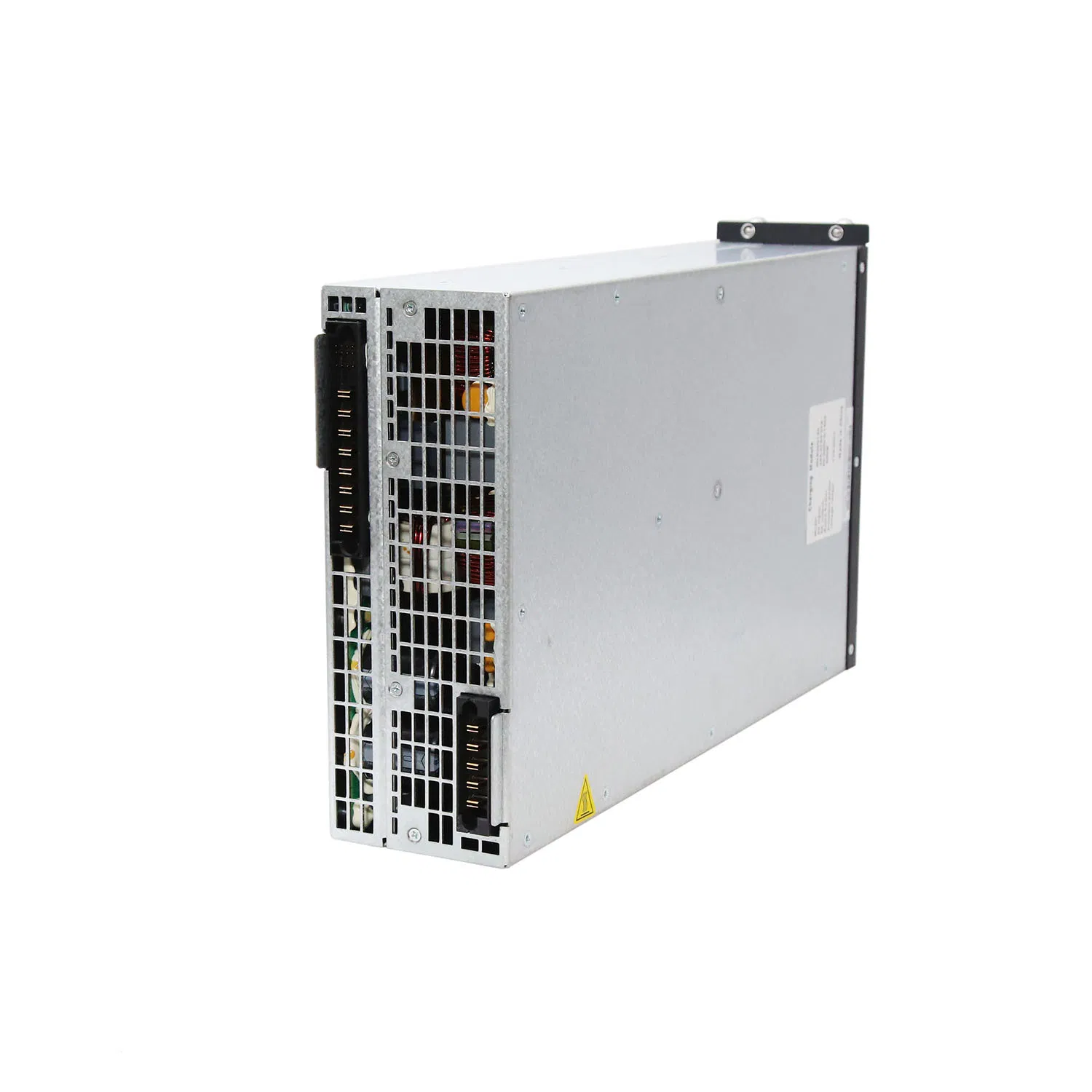

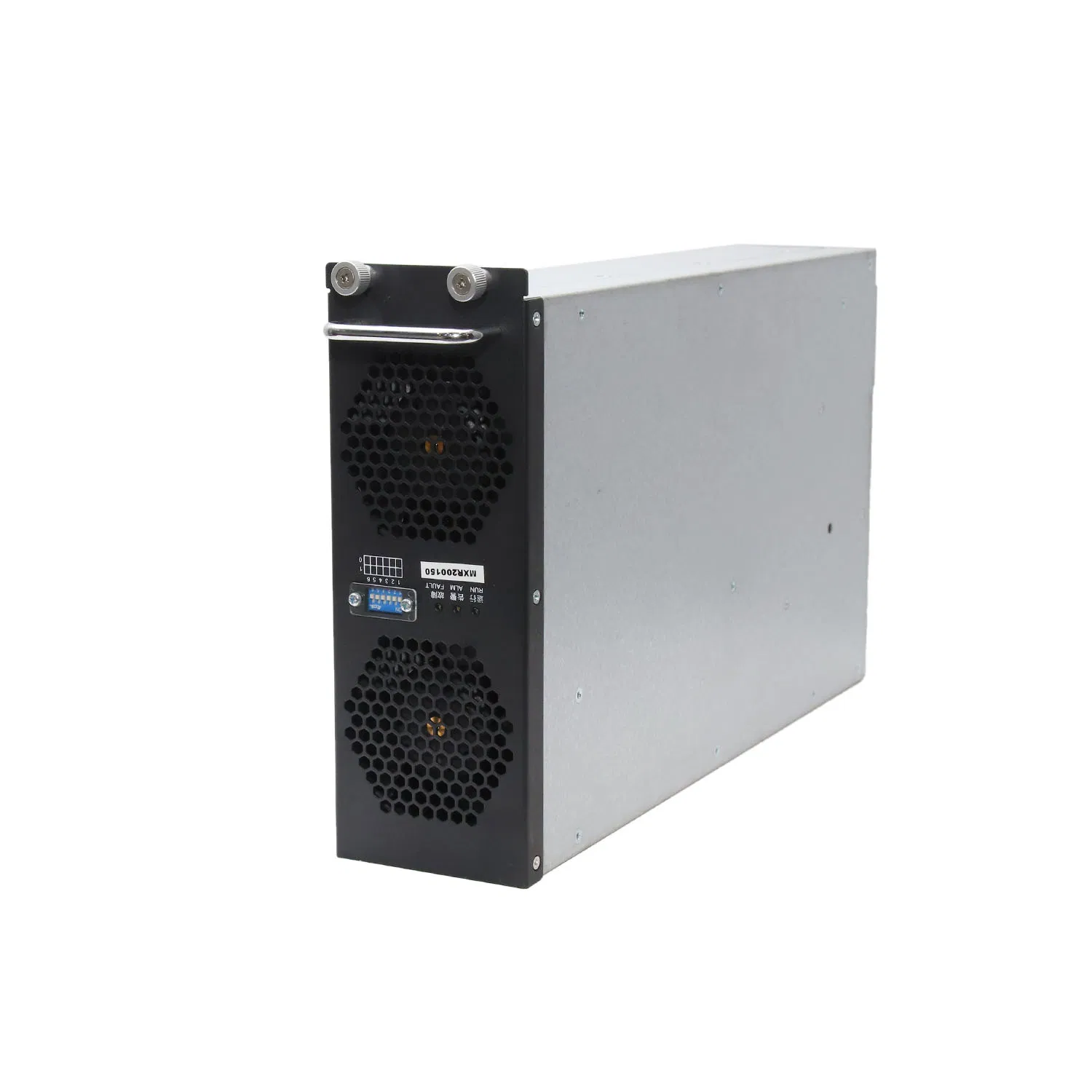

20kw@200V Converter Power Module for EV Charging Station

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview

MXR 200150 is a high-performance power supply designed specifically for electric vehicles. It facilitates quick and safe battery recharging for various applications including public charging stations, residential areas, and commercial workplaces. Engineered with advanced safety features such as overcurrent protection and real-time temperature monitoring, it supports industry-standard communication protocols for seamless charging management.

Model NO.
Mxr200150
Output Voltage
20-200VDC
Output Current
0-150A
Input Voltage
260-475VAC
Communication
Can Bus
Efficiency
>95.5%
Cooling Mode
Forced Air Cooling
Certification
ISO, RoHS

Advantages

  • Ultra-Wide Voltage Range: Output voltage range from 20V to 100V, specifically optimized for low voltage charging requirements.
  • Super Charging Current: A robust 150A output current significantly reduces overall charging time for improved user efficiency.
  • High Reliability: Built with residual pressure relief loops to enhance system stability and reduce long-term maintenance costs.

Key Features

  • Wide operating temperature range at full power: -40ºC to 50ºC.
  • Full load efficiency higher than 95%, ensuring energy savings across the entire working range.
  • Ultra-low standby power consumption controlled within 8W.
  • Consistent current in low-voltage areas to maintain maximum charging speeds.
  • Suitable for low-speed electric vehicles (EVs).

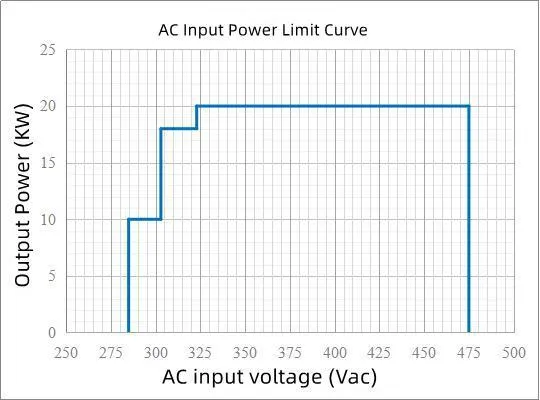

Converter Power Module

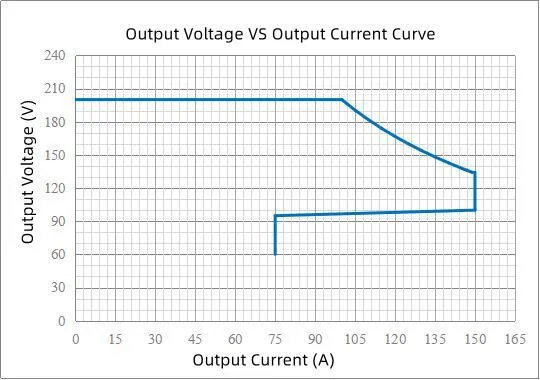

Power Module Detail

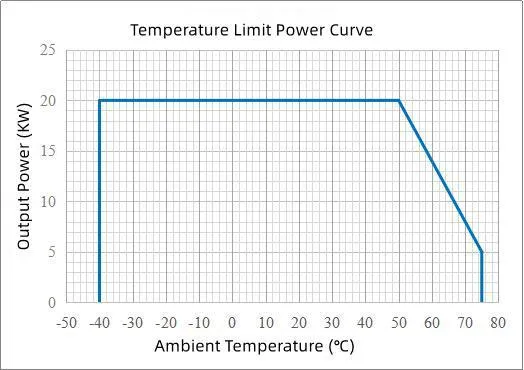

Charging Module

Detailed Photos

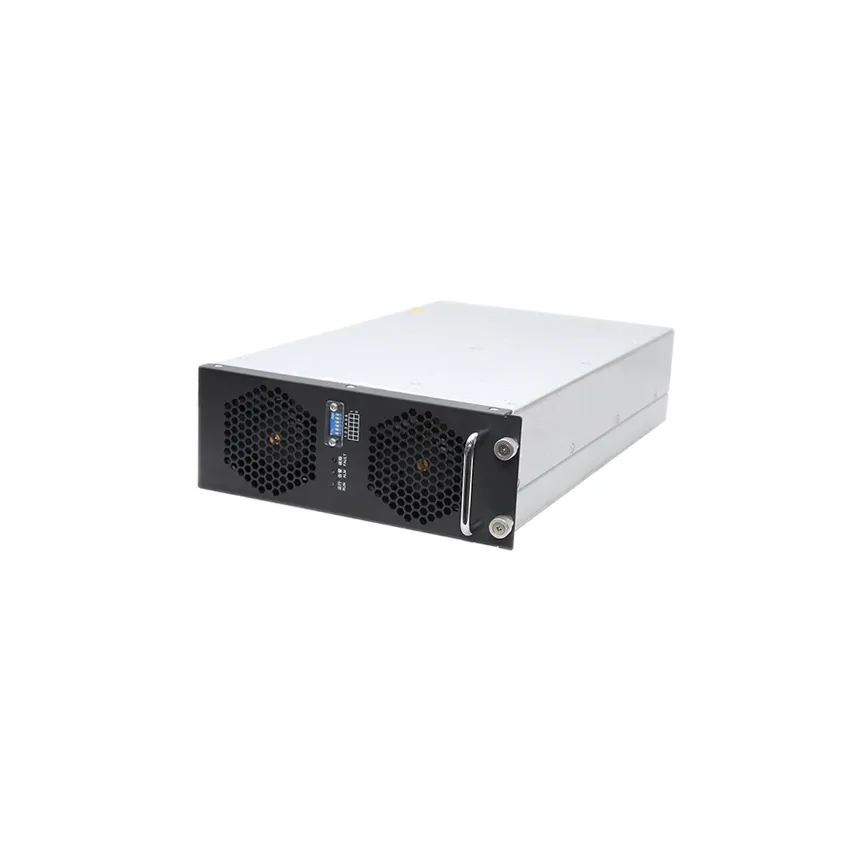

Front View
Side View
Internal Structure

Certifications

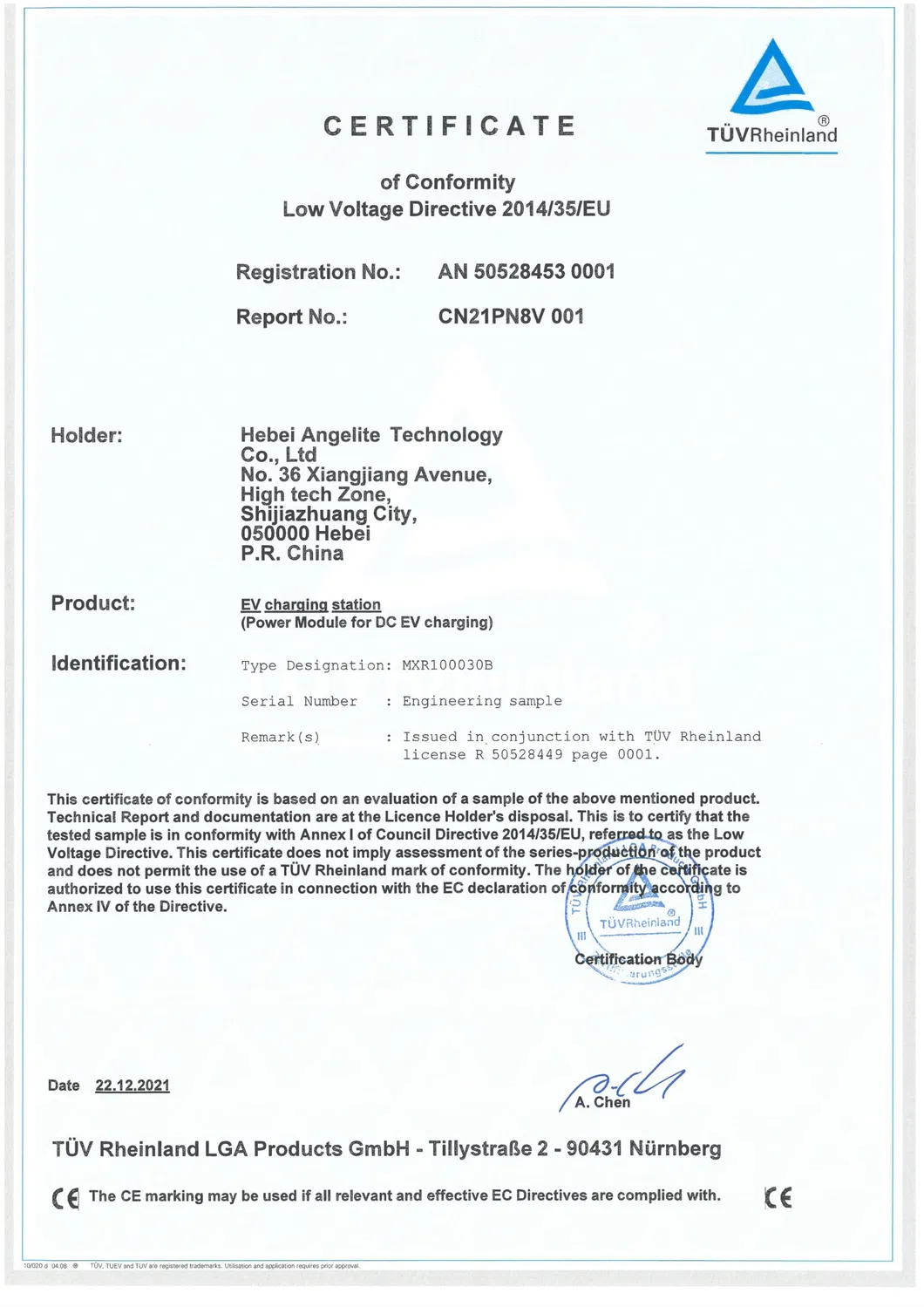

Certification 1

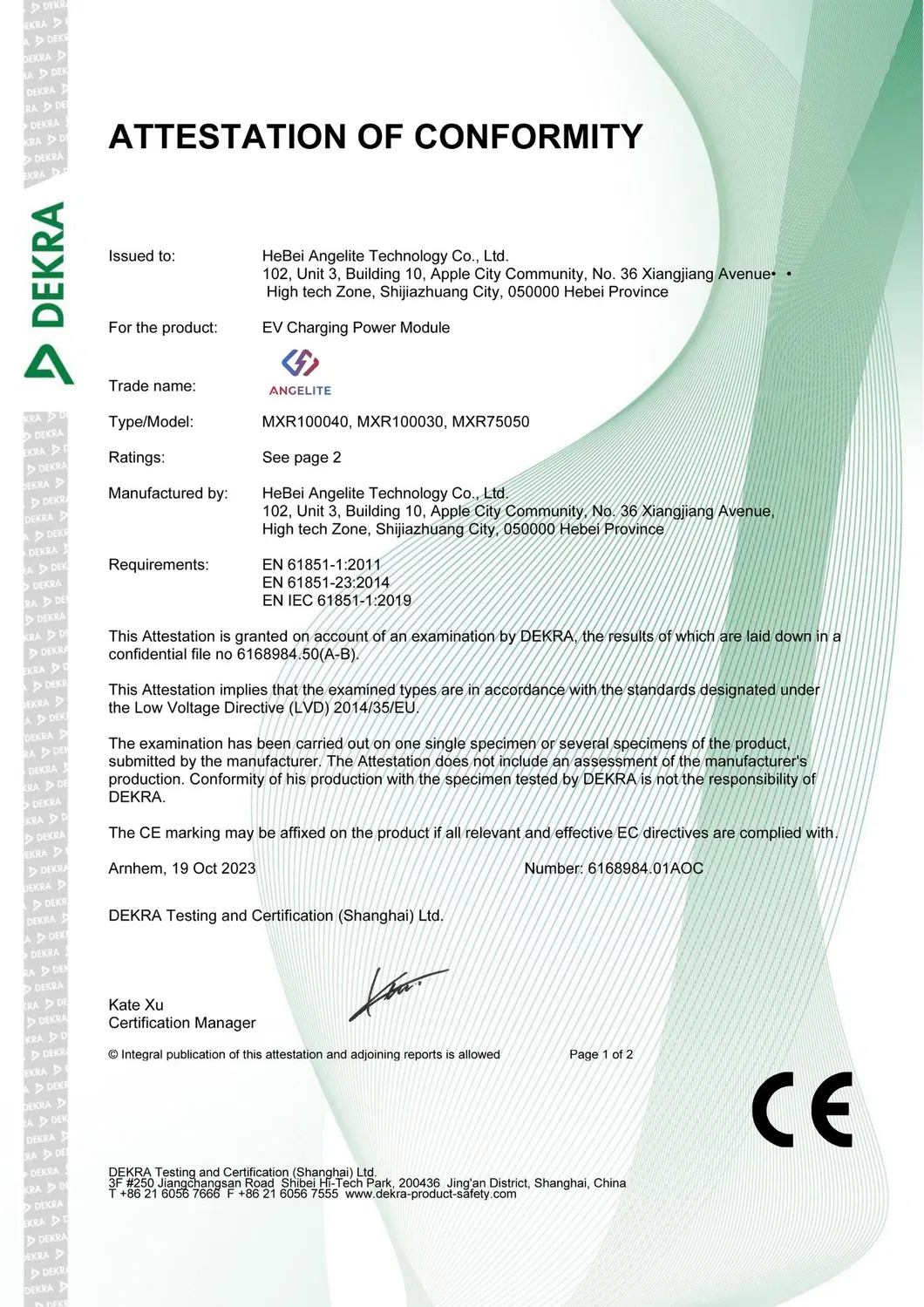

Certification 2

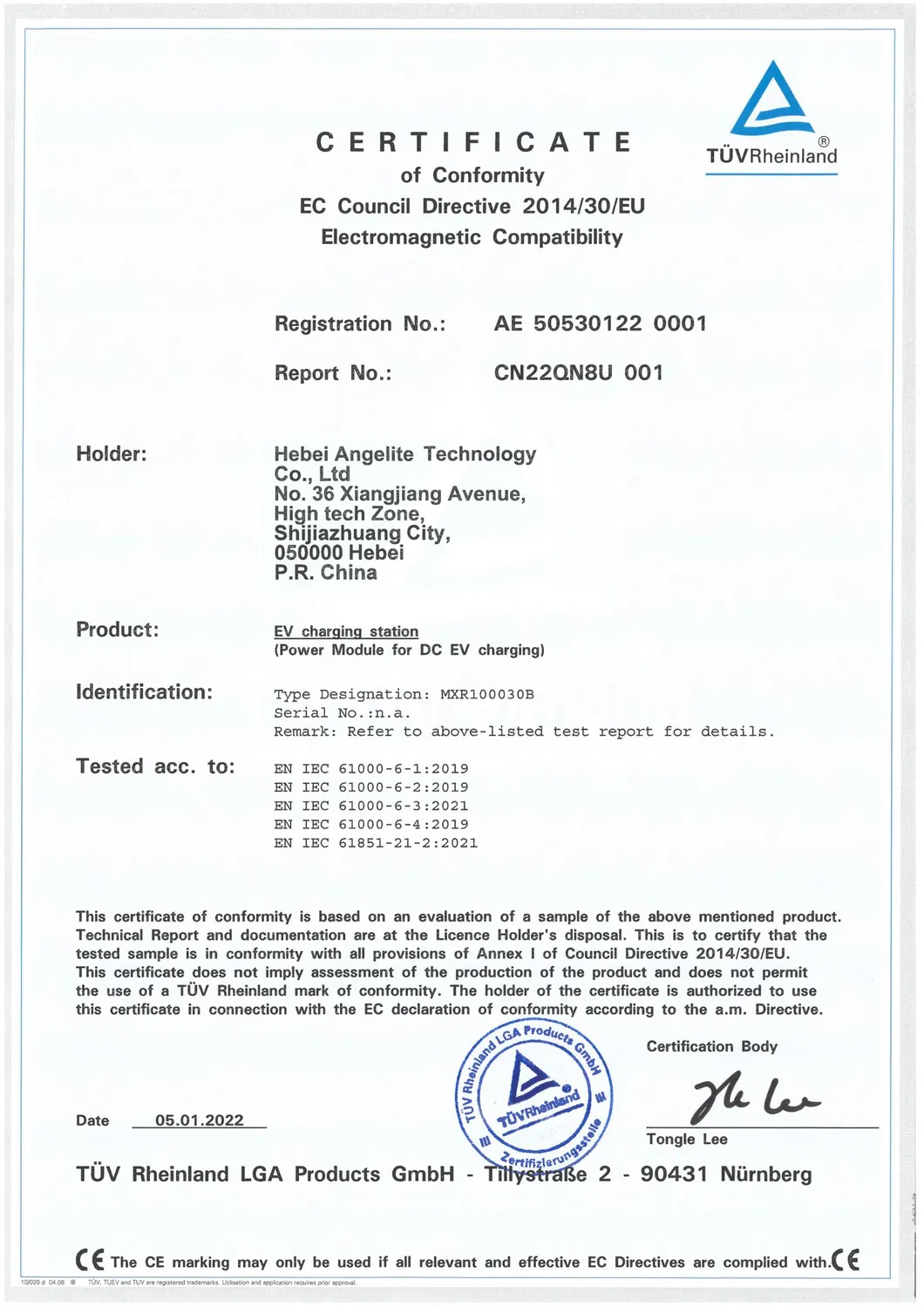

Certification 3

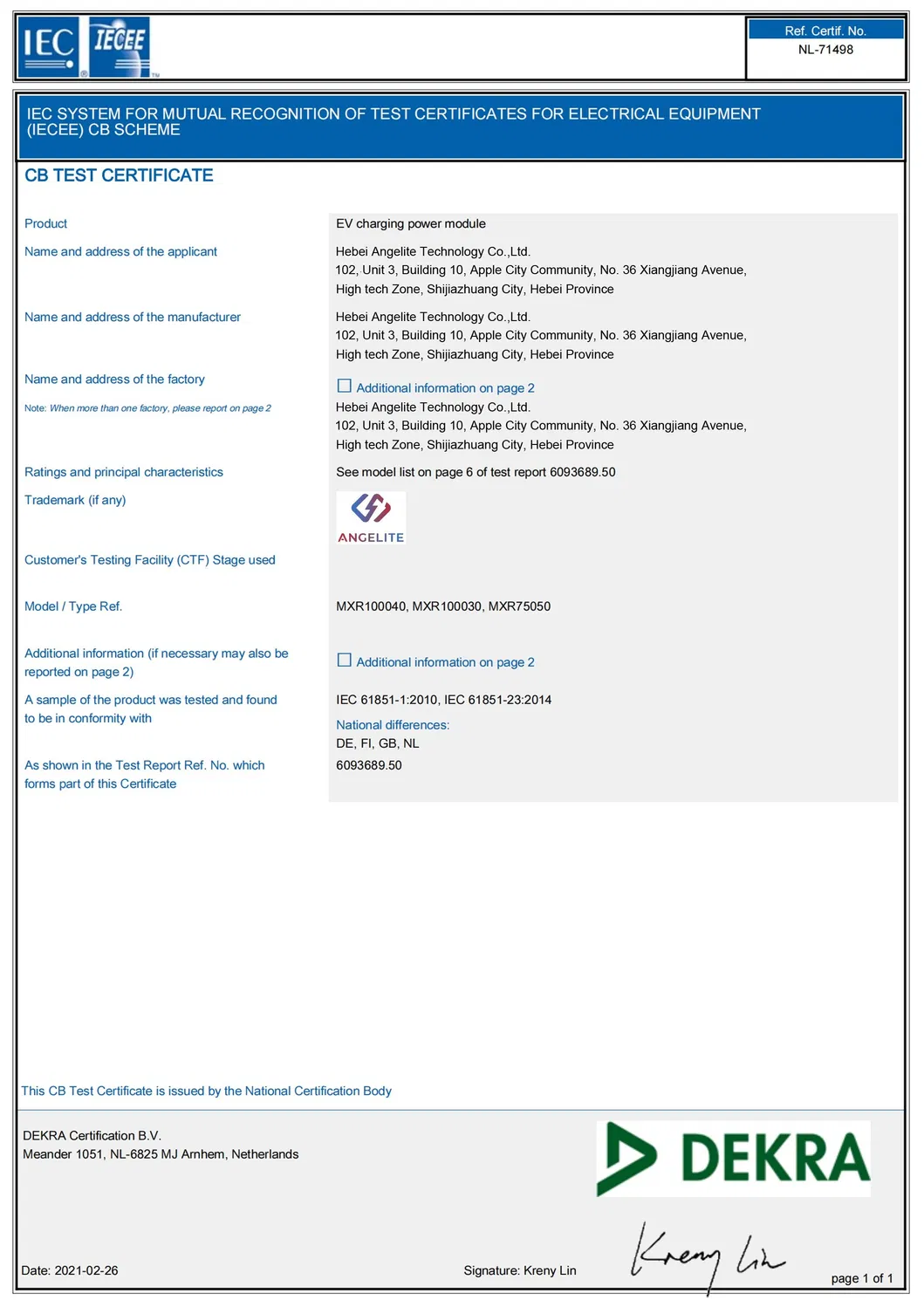

Certification 4

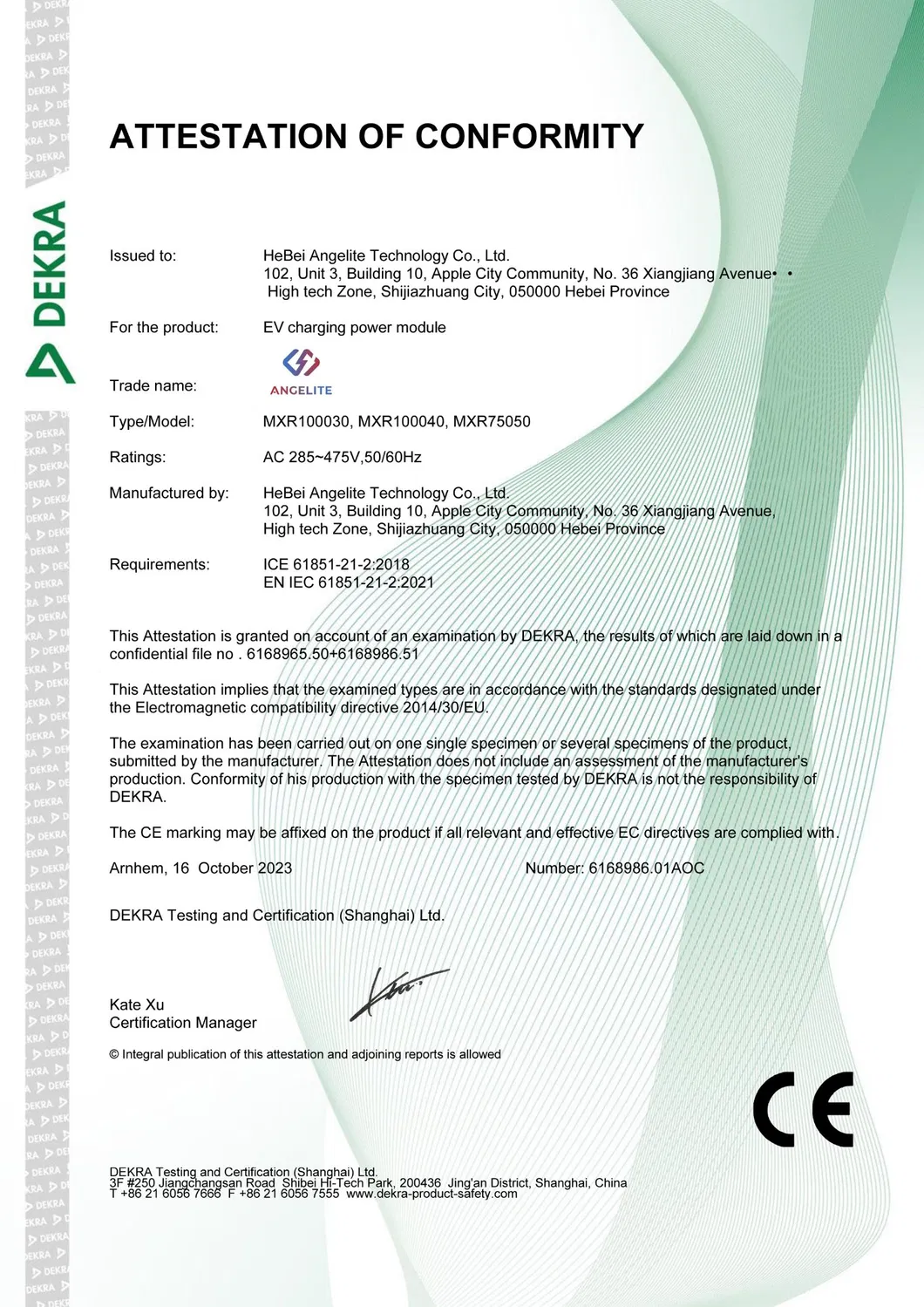

Certification 5

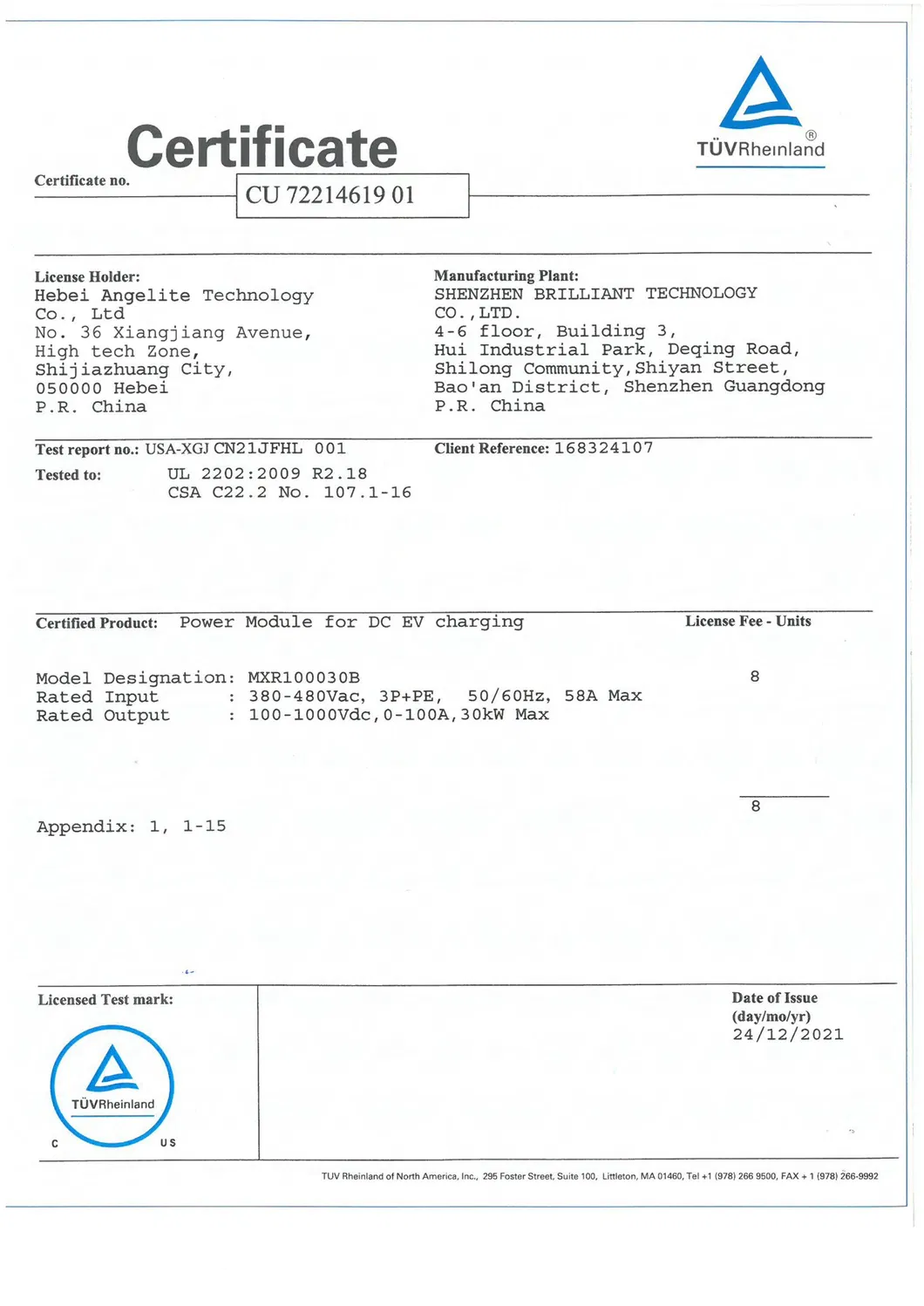

Certification 6

Packaging & Shipping

Packaging Process 1
Packaging Process 2

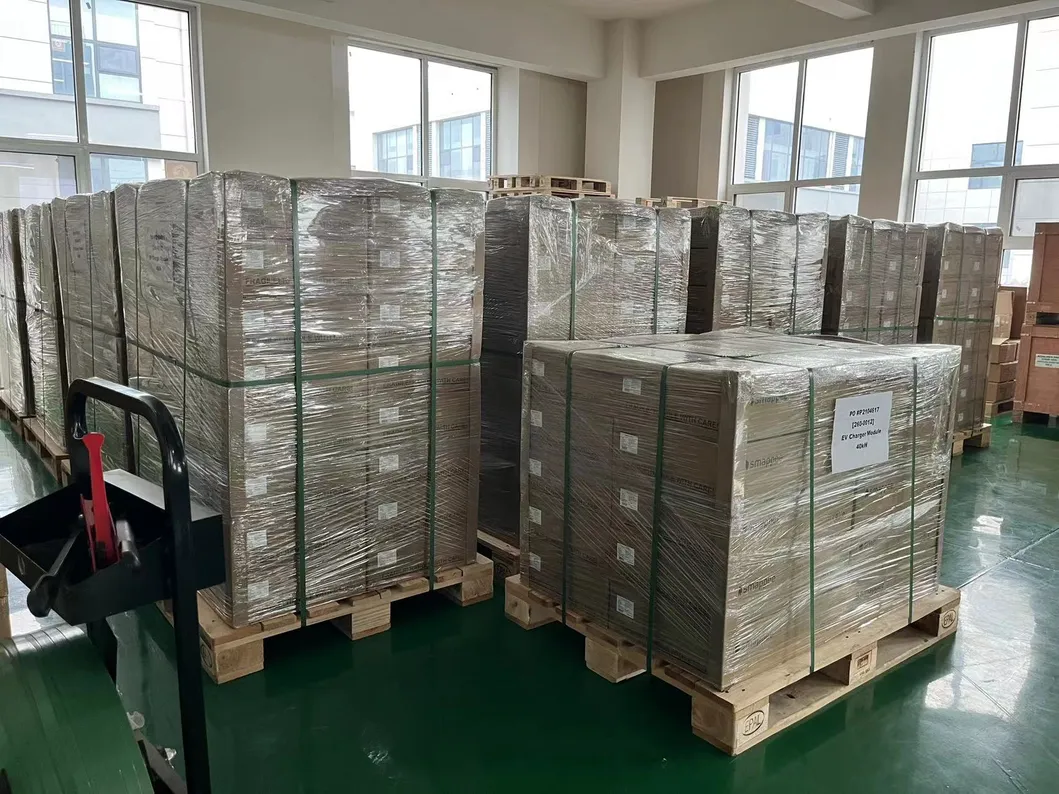

Packaging Process 3

Company Profile

Production Facility

We focus on the research, development, production, and sales of power electronic products, providing specialized DC power supply systems for mid-to-high-end manufacturers. By maintaining independent intellectual property rights and prioritizing technological innovation, we deliver exceptional equipment support and value to our global clientele.

Currently, our solutions are widely utilized across automotive, electric power, railway, metallurgy, and communications sectors, with performance cases established both domestically and internationally.

Frequently Asked Questions

What is the output voltage range for the MXR 200150 module?
The module supports an ultra-wide output voltage range of 20VDC to 200VDC, making it ideal for low-voltage electric vehicle charging applications.
How efficient is this power supply module?
The MXR 200150 offers a full-load efficiency higher than 95.5%, ensuring high energy savings across its entire working range.
What are the environmental operating conditions?
The module is designed to operate at full power within a temperature range of -40ºC to 50ºC, suitable for diverse outdoor and indoor environments.
How many modules can be connected in parallel?
The system supports the parallel connection of up to 60 module pieces, allowing for scalable power configurations.
What cooling method does the module use?
The module utilizes forced air cooling to maintain optimal operating temperatures and ensure long-term reliability.
What communication protocol is supported?
It uses the CAN Bus communication protocol for monitoring and managing the charging process efficiently.
