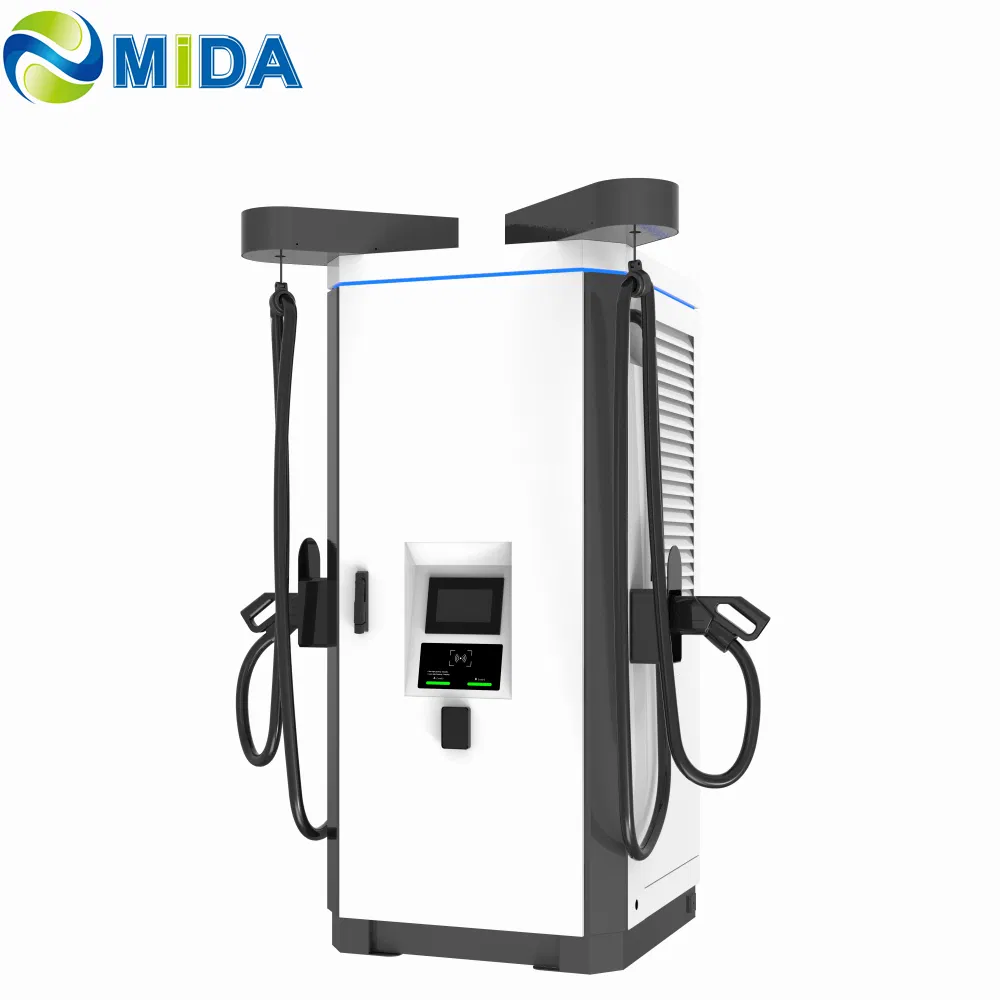

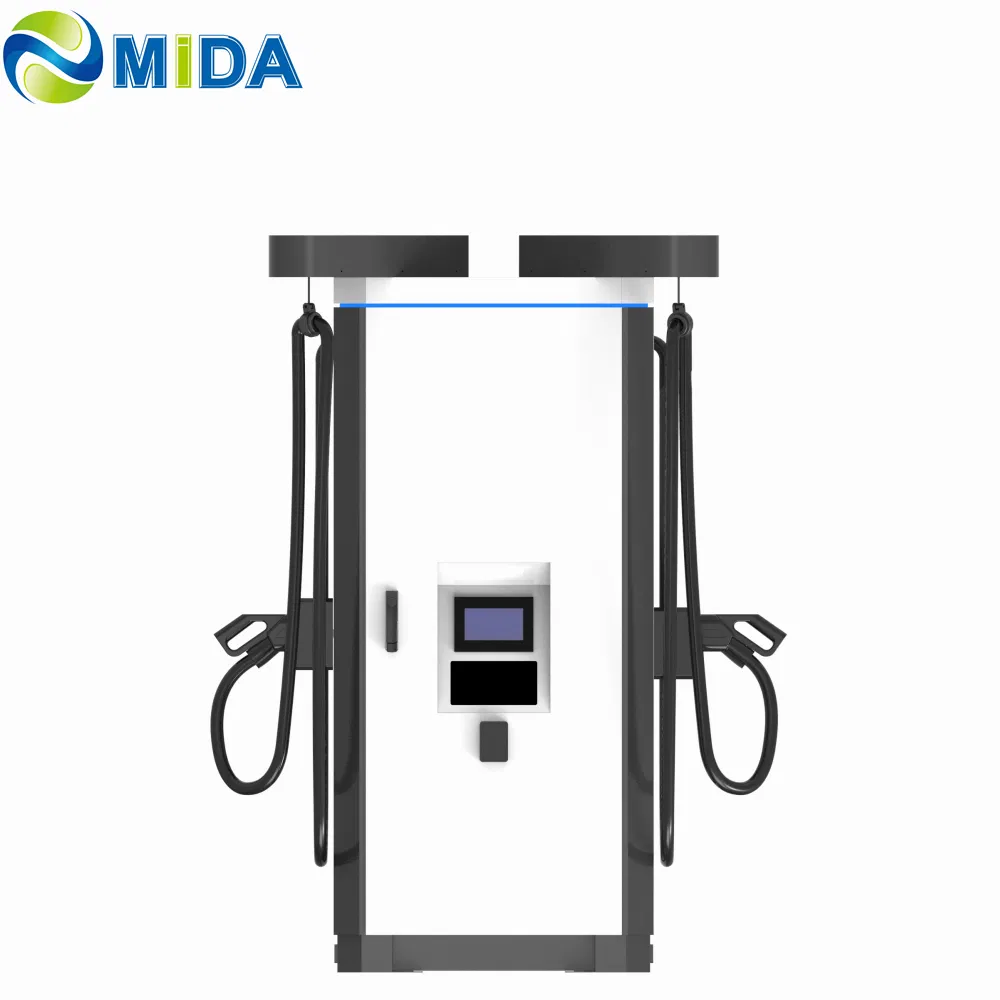

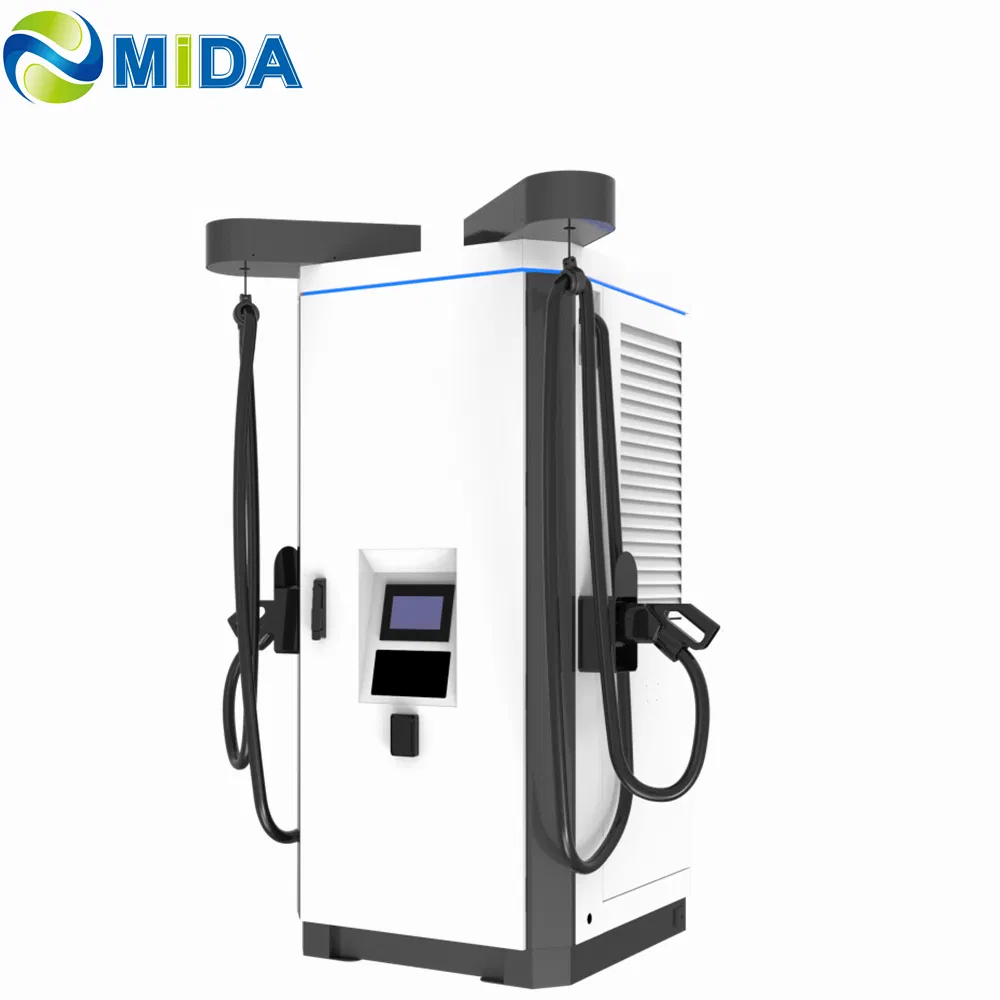

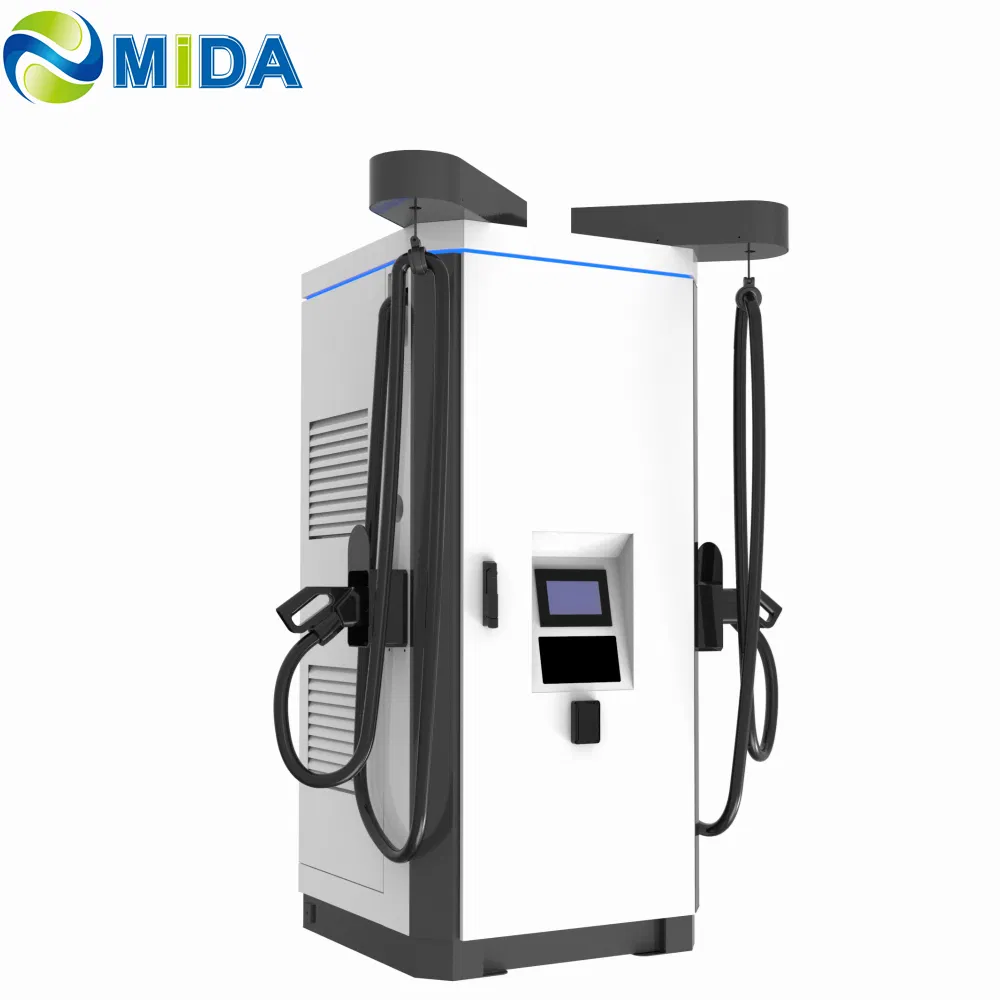

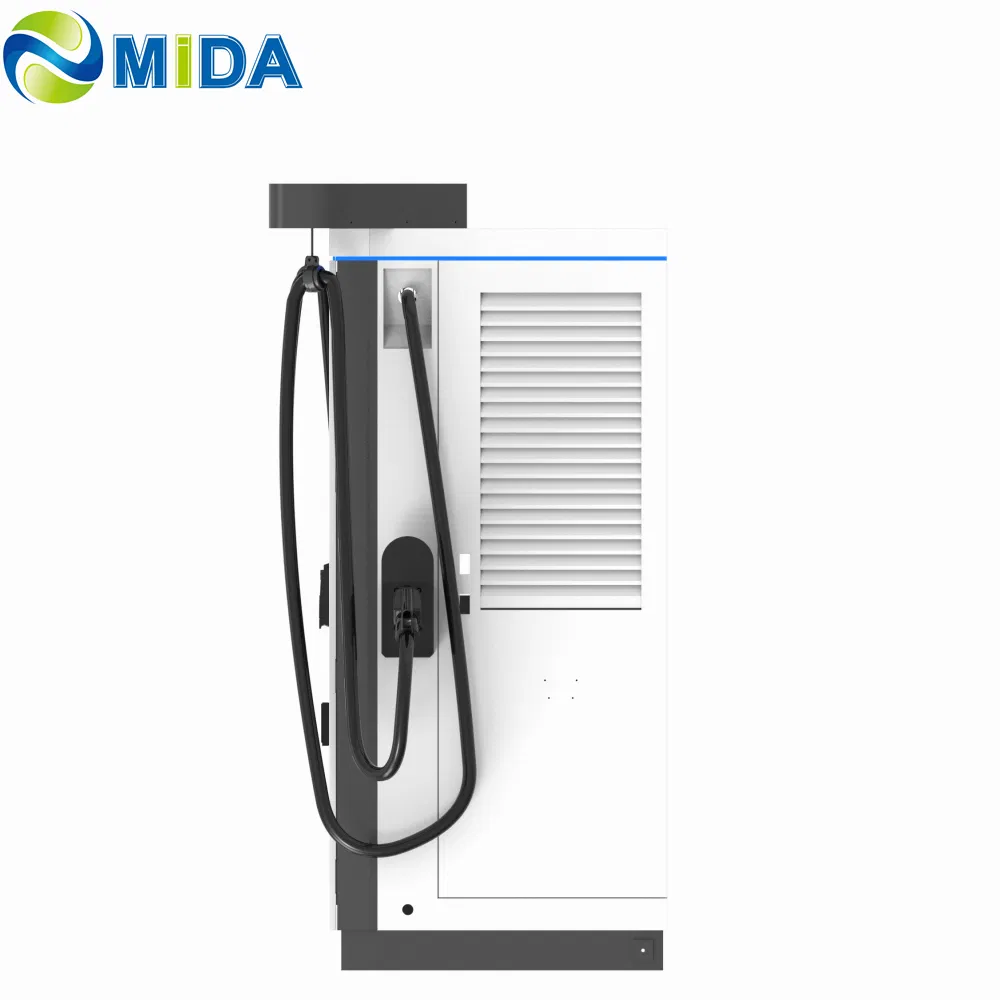

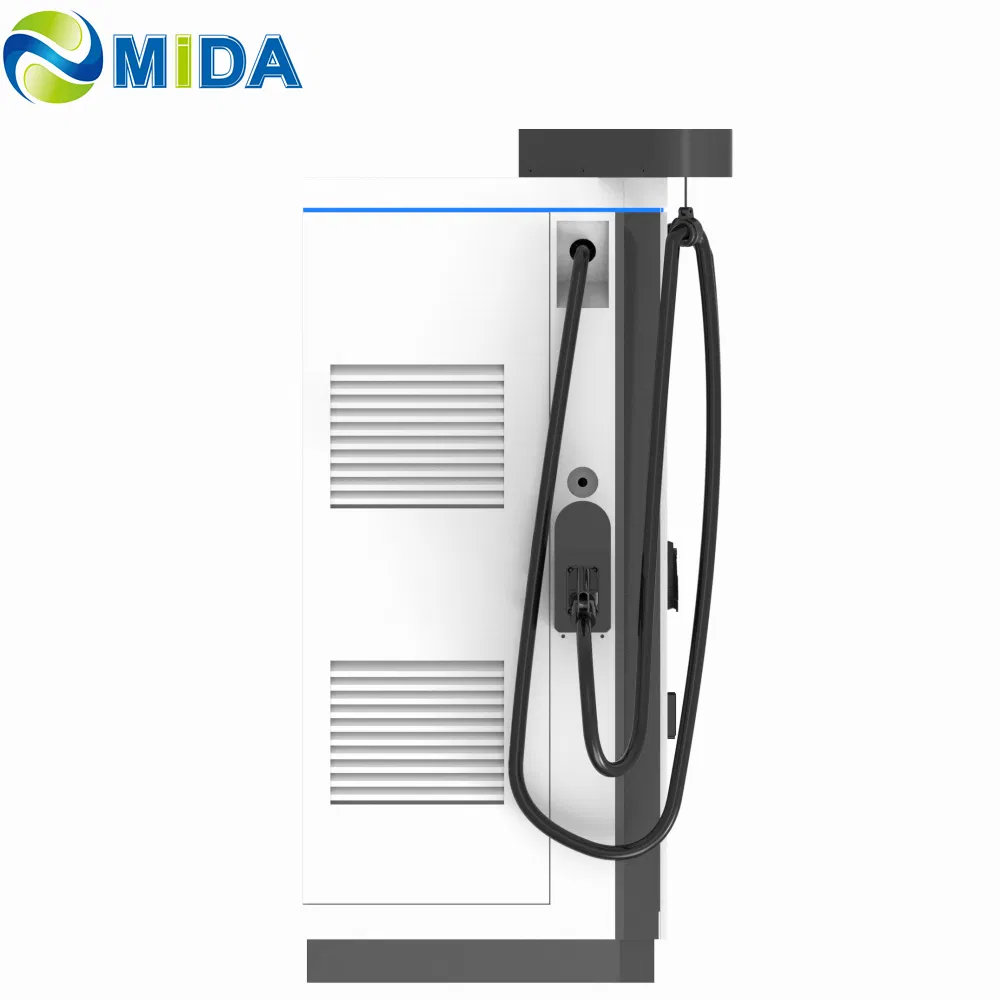

320kw 400kw DC Power Station with Advanced Display Screen Technology

1 / 5

320kw 400kw DC Power Station with Advanced Display Screen Technology

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

MD-300KW

Product Name

DC EV Charging Station

Output Power

60kw/ 120kw/ 150kw /180kw

Output Voltage

200~750V DC; 150~1000V DC

Max Output Current

Chademo 125A, CCS 200A

Connection

CCS, Chademo, GB/T, AC Type2

Interface Standard

2 CCS/ 2gbt/ 1 CCS+ 1 Chademo/ 1 CCS +1 Gbt

Network Connection

4G/Ethernet

Frequency

45~65Hz

Condition

New

📸

Product Presentation

⚙️

Technical Parameters

Item Description	Value / Parameter
Purpose	Replacement/Repair & Commercial Use
Model Range	60kW to 180kW Variants
Input Voltage	3-phase 400V±15% AC
Output Voltage Range	200~750V DC; 150~1000V DC
Max Efficiency	≥94%
Charging Interface	Dual CCS / Dual GBT / Combined Options
Connectivity	4G / Ethernet Support
Application	Public Parking Lot, Fleet, Retail Centers

📦

Packaging & Logistics

Package Size

150.00cm * 150.00cm * 300.00cm

Package Gross Weight

110.000kg

Carton Details

20PCS/Carton (40CM*40CM*26CM), 18KG

❓

Frequently Asked Questions

What power outputs are available for this DC EV charging station?

This series offers multiple power options including 60kW, 120kW, 150kW, and 180kW to suit different charging speed requirements.

Which charging interface standards does the station support?

The station is highly compatible, supporting CCS, CHAdeMO, GB/T, and AC Type 2 connectors. Configurations like dual CCS or 1 CCS + 1 CHAdeMO are available.

What is the input voltage requirement for installation?

The equipment requires a 3-phase 400V ±15% AC input voltage with a frequency range of 45~65Hz.

Can the charging station be connected to a network for remote management?

Yes, it supports network connectivity via 4G or Ethernet, allowing for integration with management software and monitoring.

What are the primary applications for this DC charger?

It is designed for high-traffic environments such as public parking lots, commercial fleets, and retail locations that require fast and reliable DC charging.

How efficient is the charging process?

The station operates with a high energy efficiency of ≥94%, ensuring minimal energy loss during the power conversion process.
