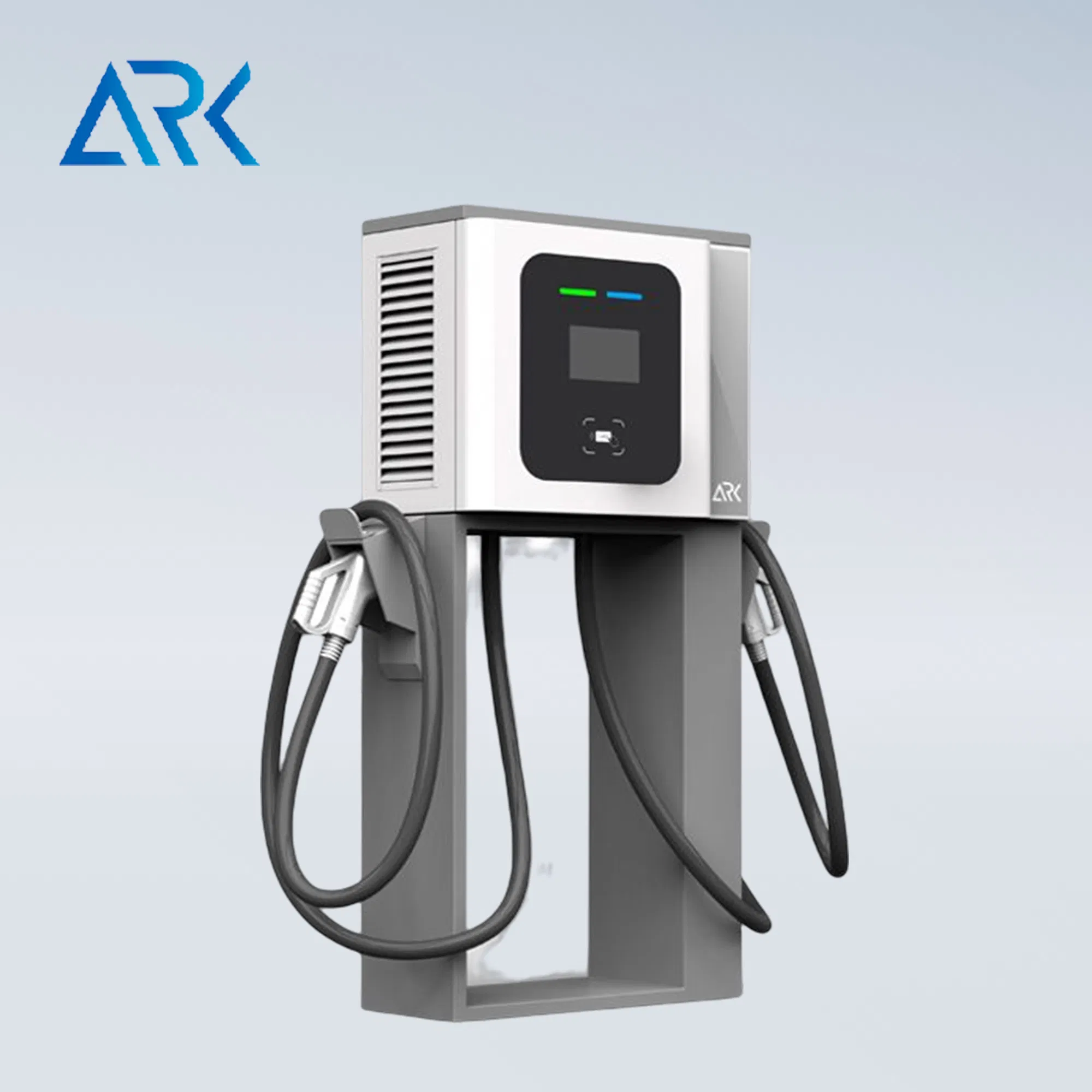

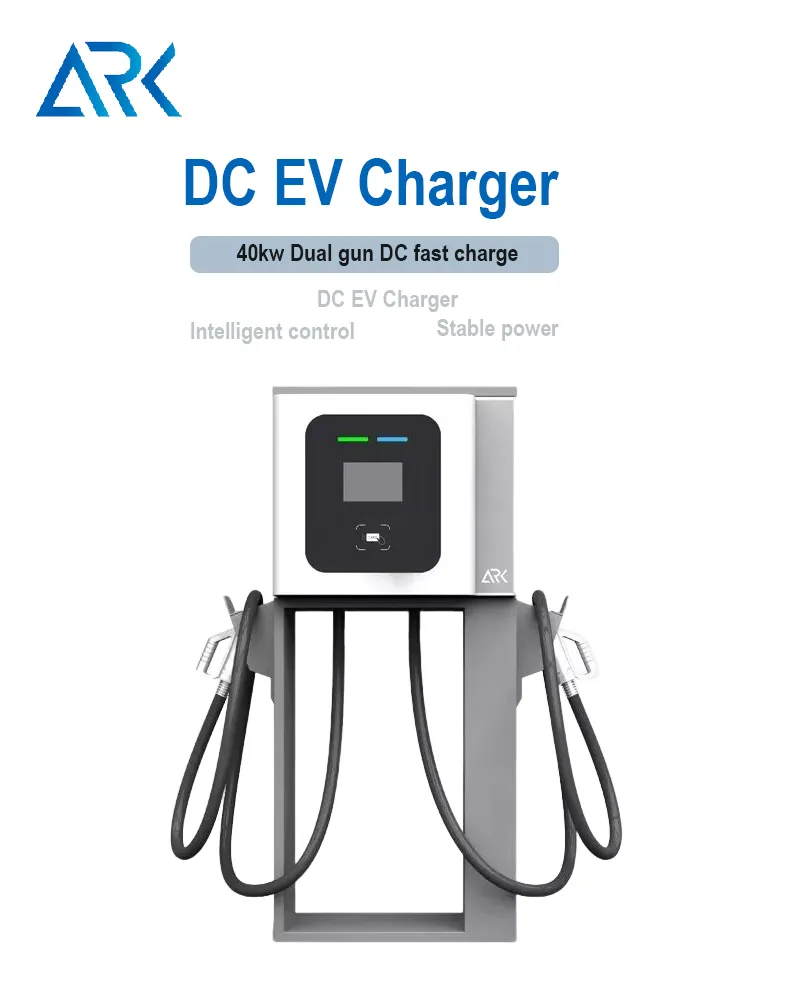

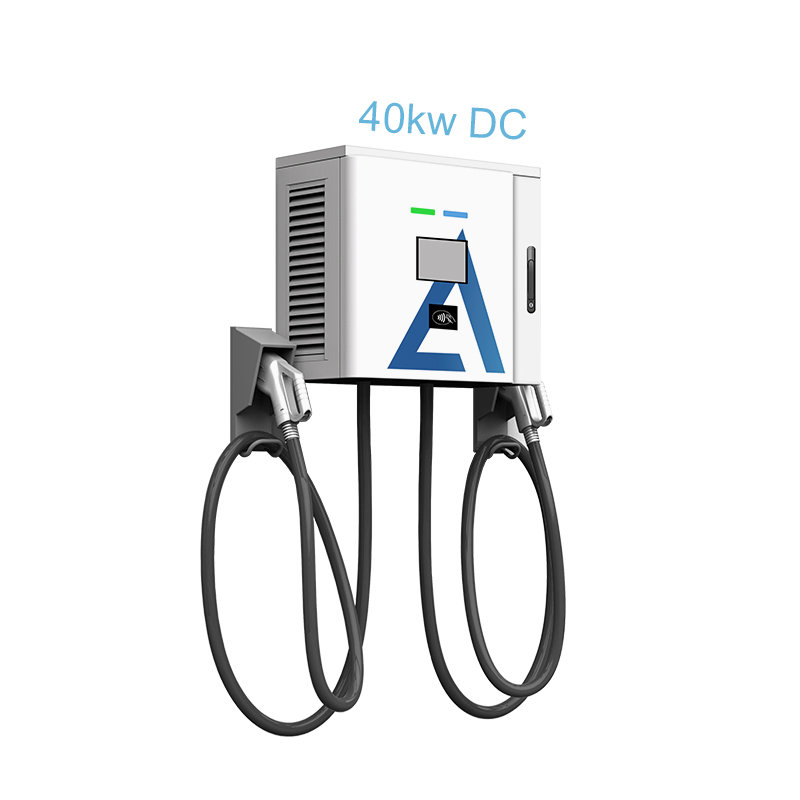

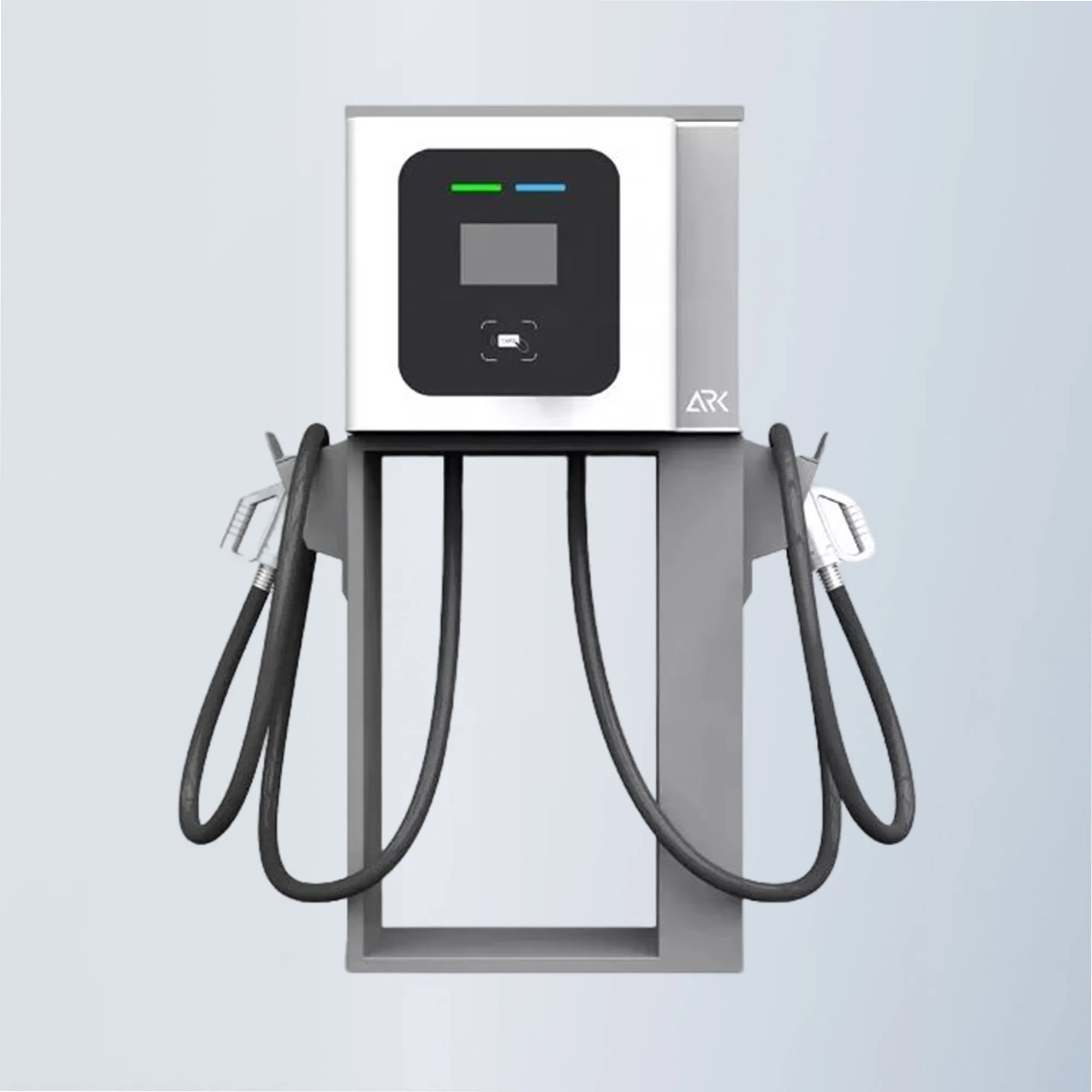

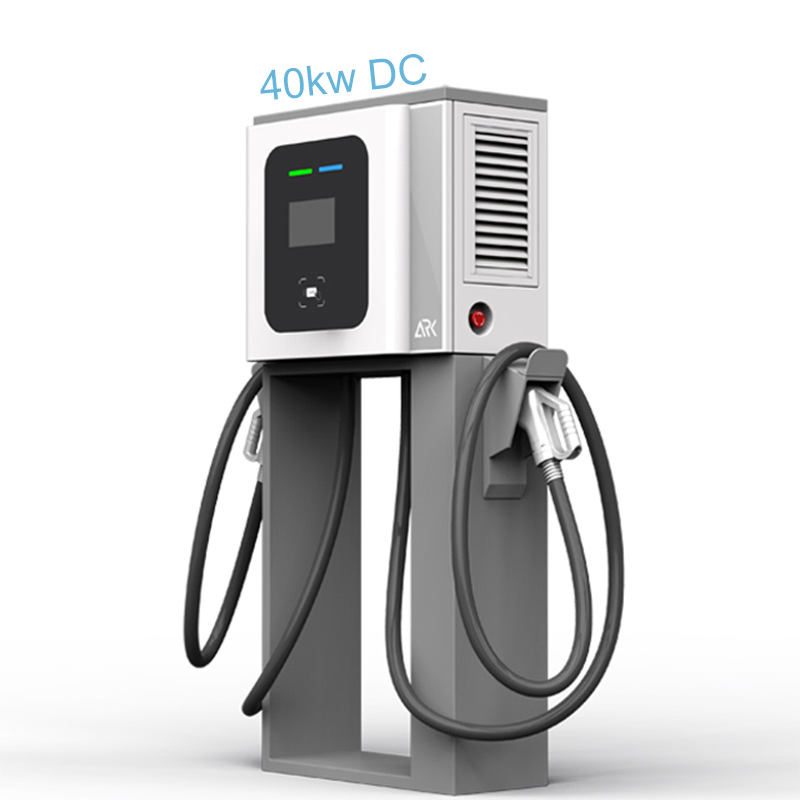

40kw Workplace EV Charger 380V Fast Floor Stand Electric Car Charging

📋 Basic Information

Model NO.

EF040

Ocpp

Ocpp1.6j Supported

Screen

7 Inch Touch Screen

Protection Grade

IP54, Ik10

Charging Type

Mode 4

Charging Standard

IEC 61851-1, IEC 61851-23, Chademo

Type

Fast EV Charging Station

Certification

CE, TUV

Warranty

12 Months

Capacity

1000 Units Per Month

🔍 Product Description

📊 Product Parameters

Specification		EF040 CJ040
Structure	Application scenes	Commercial/Public charging station
	Housing material	Metal case
	Dimension	600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal)

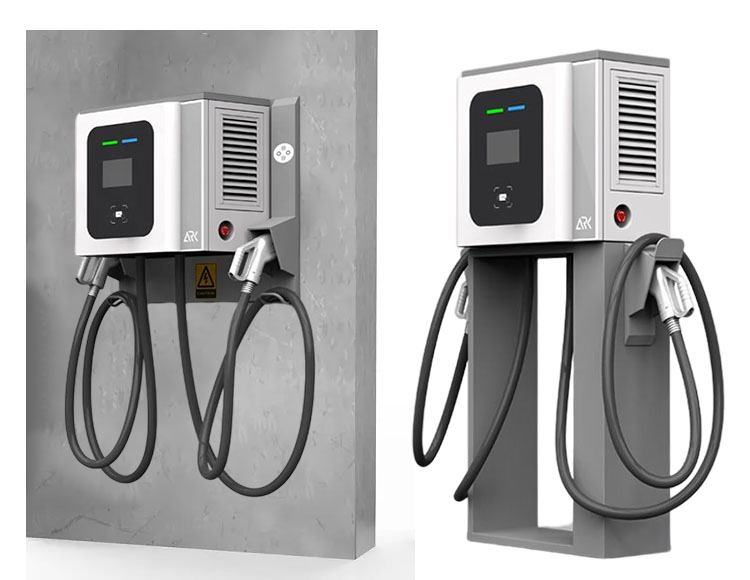

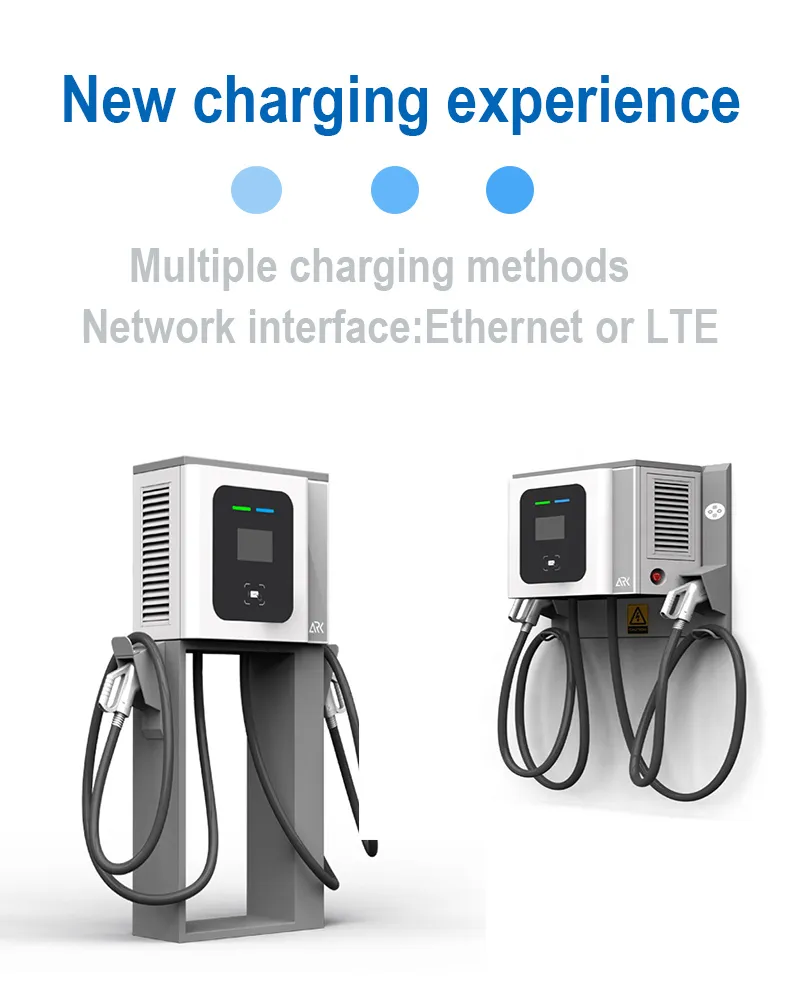

	Installation	Wall-mount, Pedestal-mount
Electrical	Input voltage	400Vac +/-10%, 50Hz, 3-phase + N + PE
	Output voltage	200 - 1000V
	Output current	125A max
	Efficiency	≥ 95%

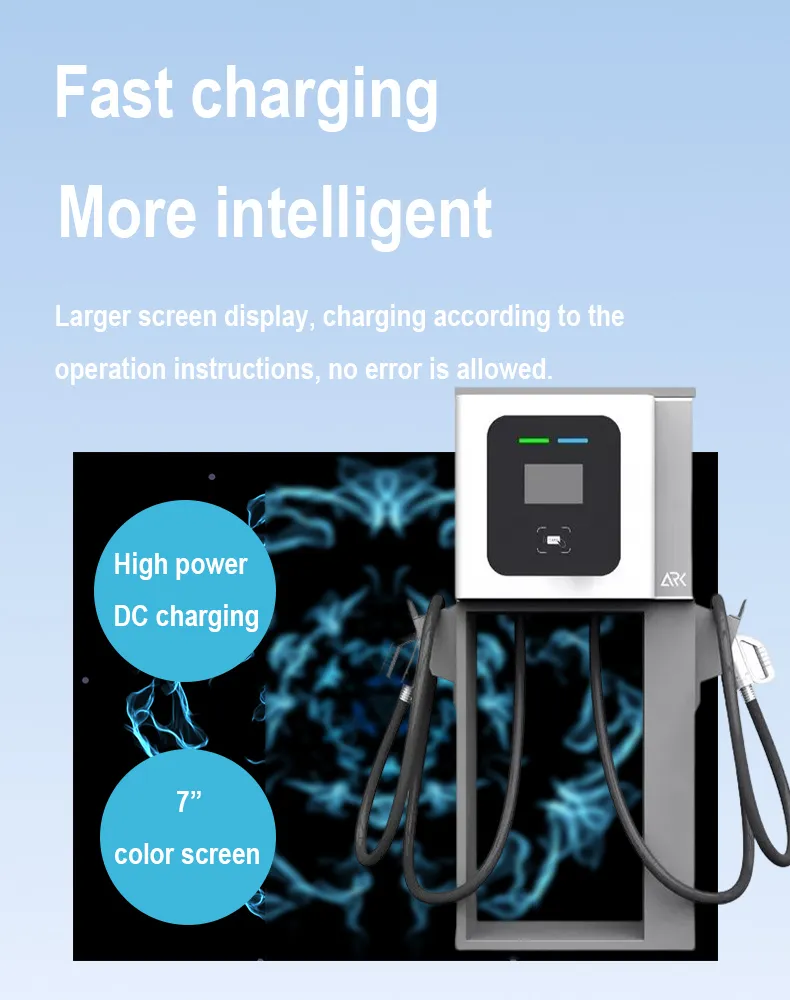

Function	User interface	Emergency button, LED indicator, RFID, 7" Touch screen
Function	Communication	PLC, CAN, Wifi, 3g, 4g, OCPP 1.6
Environment	Working temp	-25°C - +50°C
	Protection	IP54
	Safety Standards	IEC 61851-1, IEC 61851-22, IEC 61851-23, IEC 15118-3

🏭 Service & Strength

📦 Packaging & Shipping

❓ Frequently Asked Questions

1 Why choose us as your preferred EV Charger supplier?

Our professional technical team and long-term industry vision ensure leading position. We offer a wide range of charging standards, international design, and smart back-end services. Our products pass rigorous laboratory tests, and we are capable of providing both CE and UL certified solutions.

2 Is there any experience in implementing overseas charging station projects?

Yes, we are pioneers in overseas projects. We have cooperated with UK power companies for PV integration, US operators for freeway DC charging networks, and major automakers to provide fast charging services for their electric fleets.

3 What are the advantages of your products?

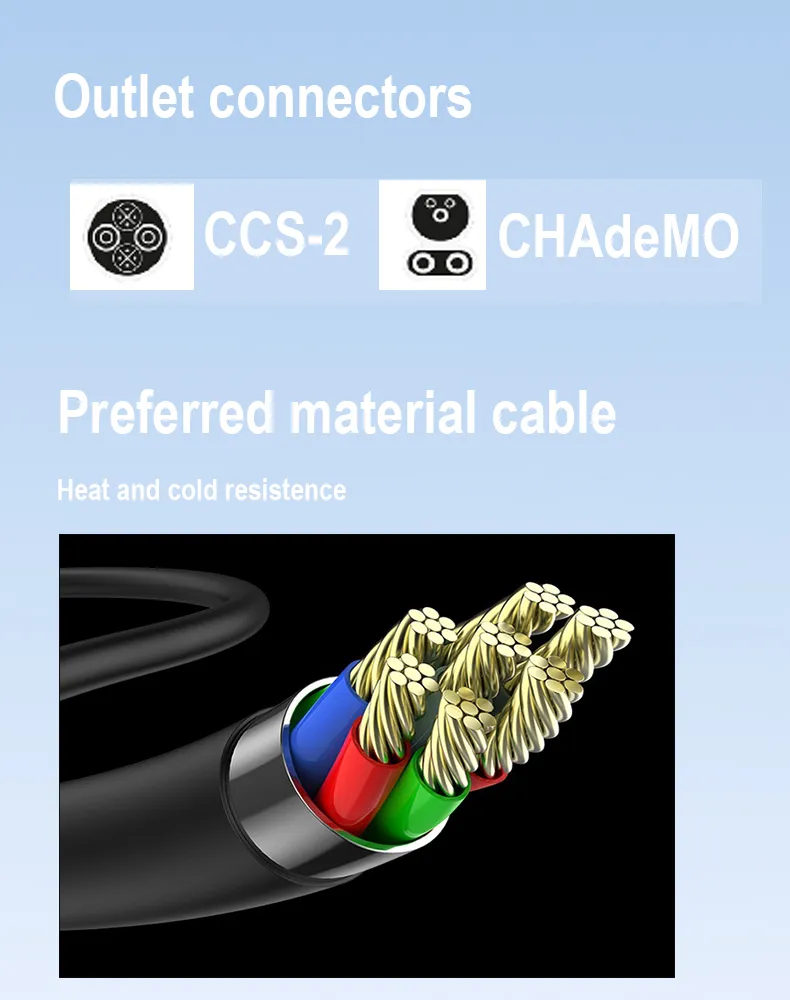

Our products feature telecom-level design, supporting multiple standards (CCS-1/2, CHAdeMO, GB/T). We prioritize quality with wide voltage ranges, advanced modular design, high protection grades, and rapid technical support.

4 What are the differences between global DC fast charging standards?

There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. We provide solutions that can accommodate these varied global requirements.

5 Does higher output power always mean faster charging speed?

Not necessarily. Charging speed is limited by the vehicle battery's intake capacity. However, high-power chargers are significant as they can support dual connectors to charge two vehicles simultaneously and provide future-proofing for next-generation batteries.

6 How do we receive after-sales support?

We provide comprehensive technical training, including written materials and videos, to help customers master maintenance and parts replacement. For urgent situations, professional technicians are available to provide support.
