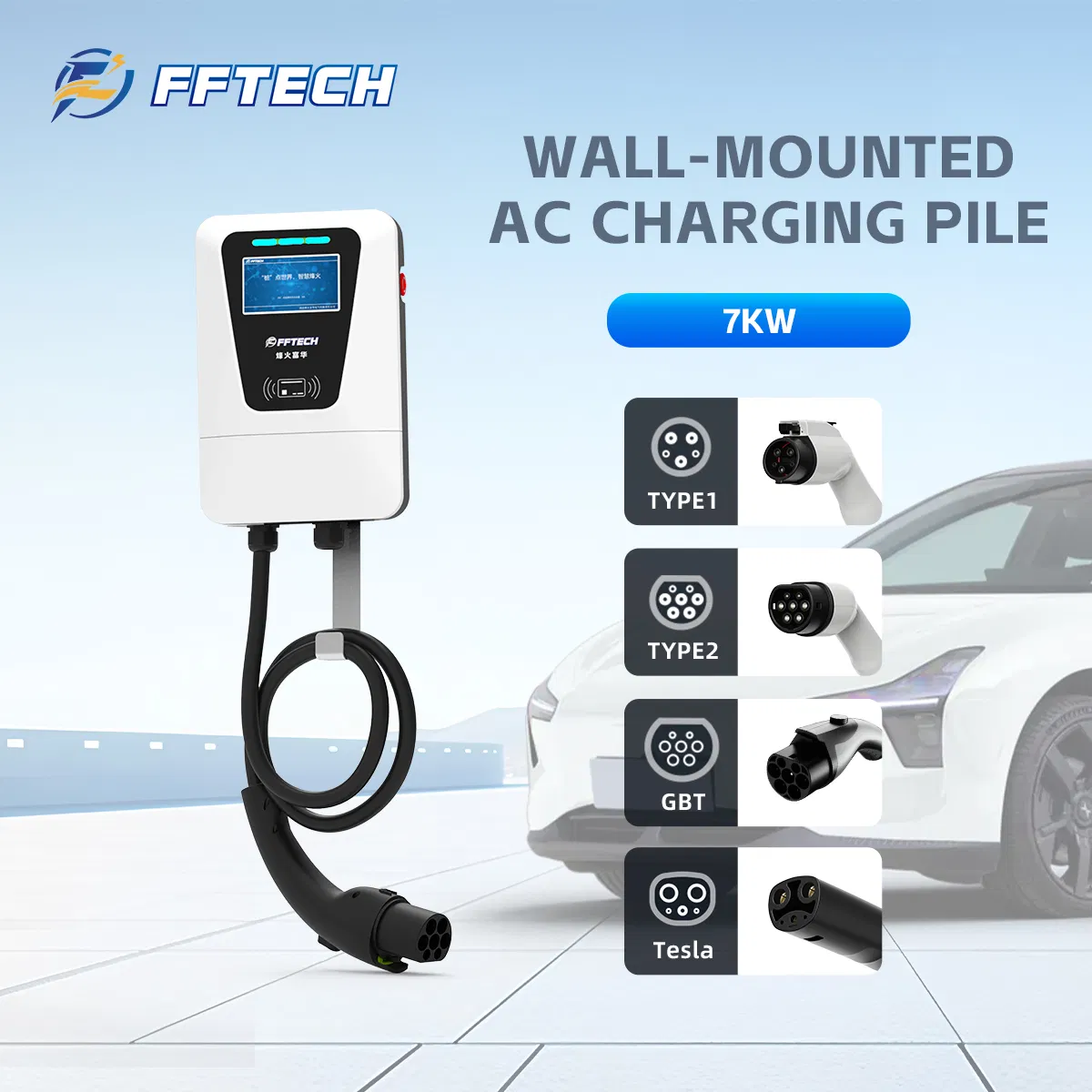

This series of products is suitable for private villas, residential areas, commercial office buildings, urban complexes and other parking lots or urban public charging stations where slow charging can be performed for a long time. It is also ideal for energy vehicle showrooms, workshop commissioning areas, and road rescue occasions where portable or temporary charging is required.
| Titles | AC Charging Pile Details | ||
|---|---|---|---|
| Category | 7kW AC | 11kW AC | 22kW AC |
| Model No. | FH-EA-7kW | FH-EA-11kW | FH-EA-22kW |
| Input Voltage | 220VAC±15% | 380VAC±15% | |
| Output Power | 7kW | 11kW | 22kW |
| Output Current | 32A | 16A | 32A |
| Grid Connection | L+N+PE | 3P+N+PE | |

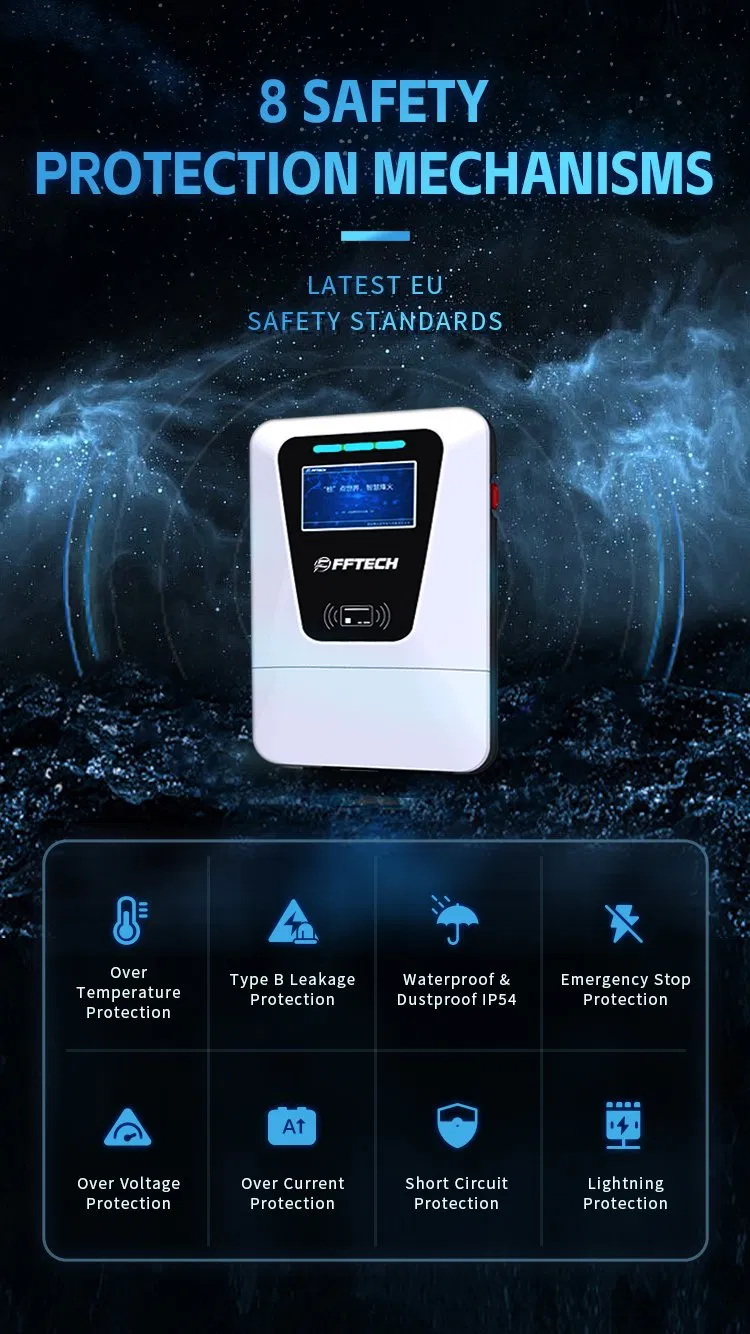

| Protection | IP54 | ||
| Dimensions | 250*180*400mm | 295*200*415mm | 295*200*415mm |
| Protocol | 4G / Ethernet / OCPP (Optional) | ||

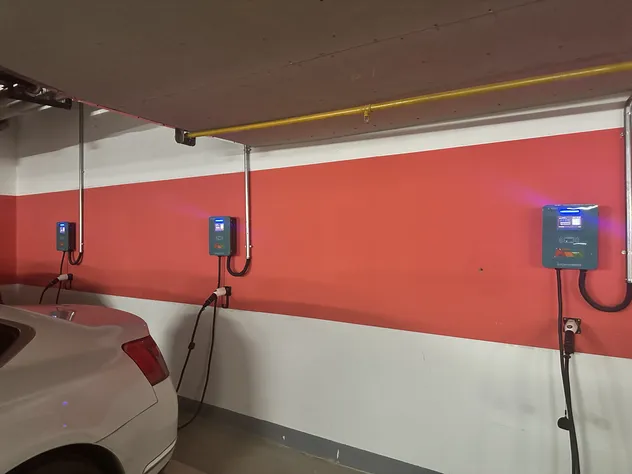

Deployment in residential areas and workplaces, providing full charges in 6-8 hours. Ideal for overnight parking facilities.

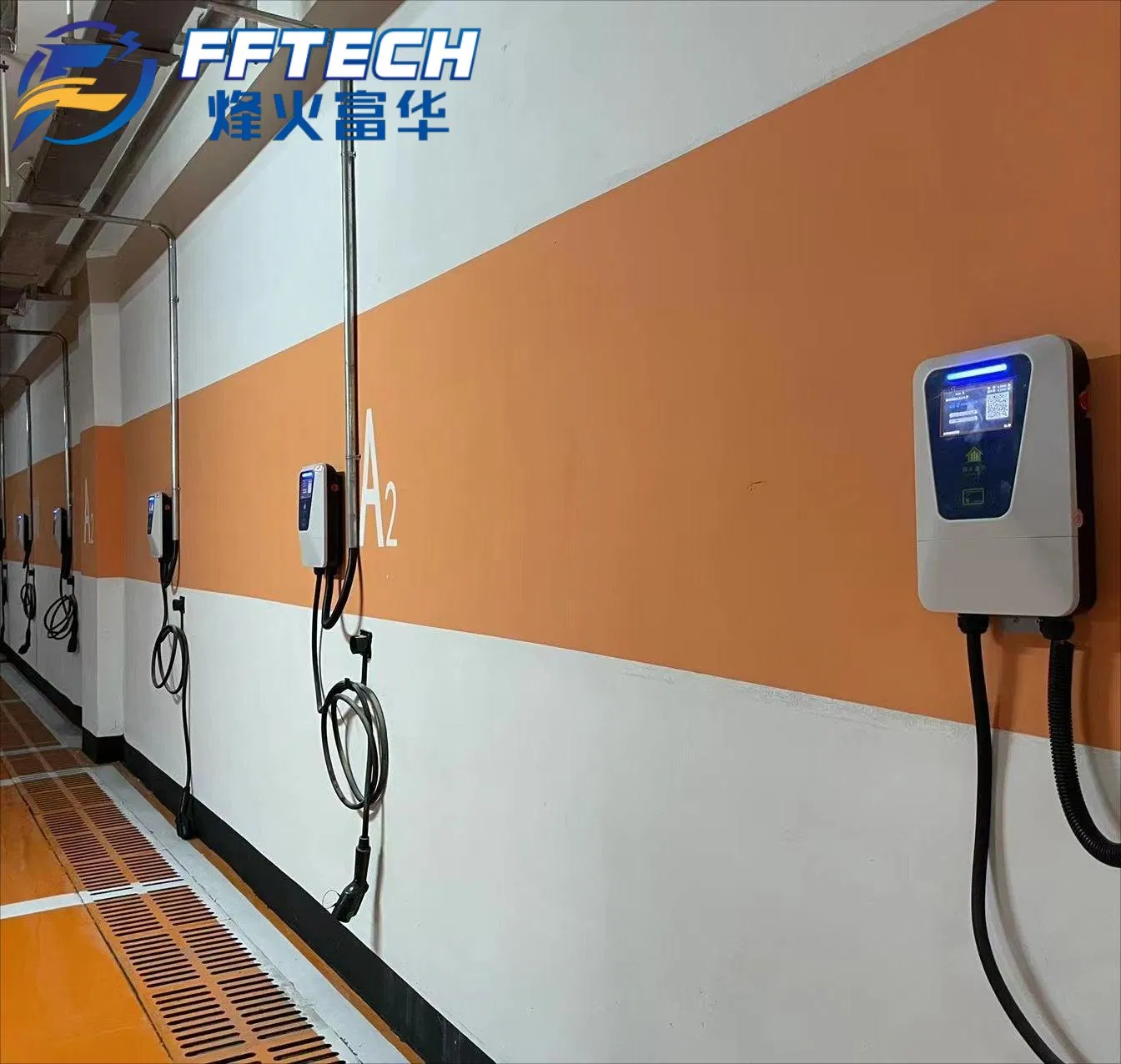

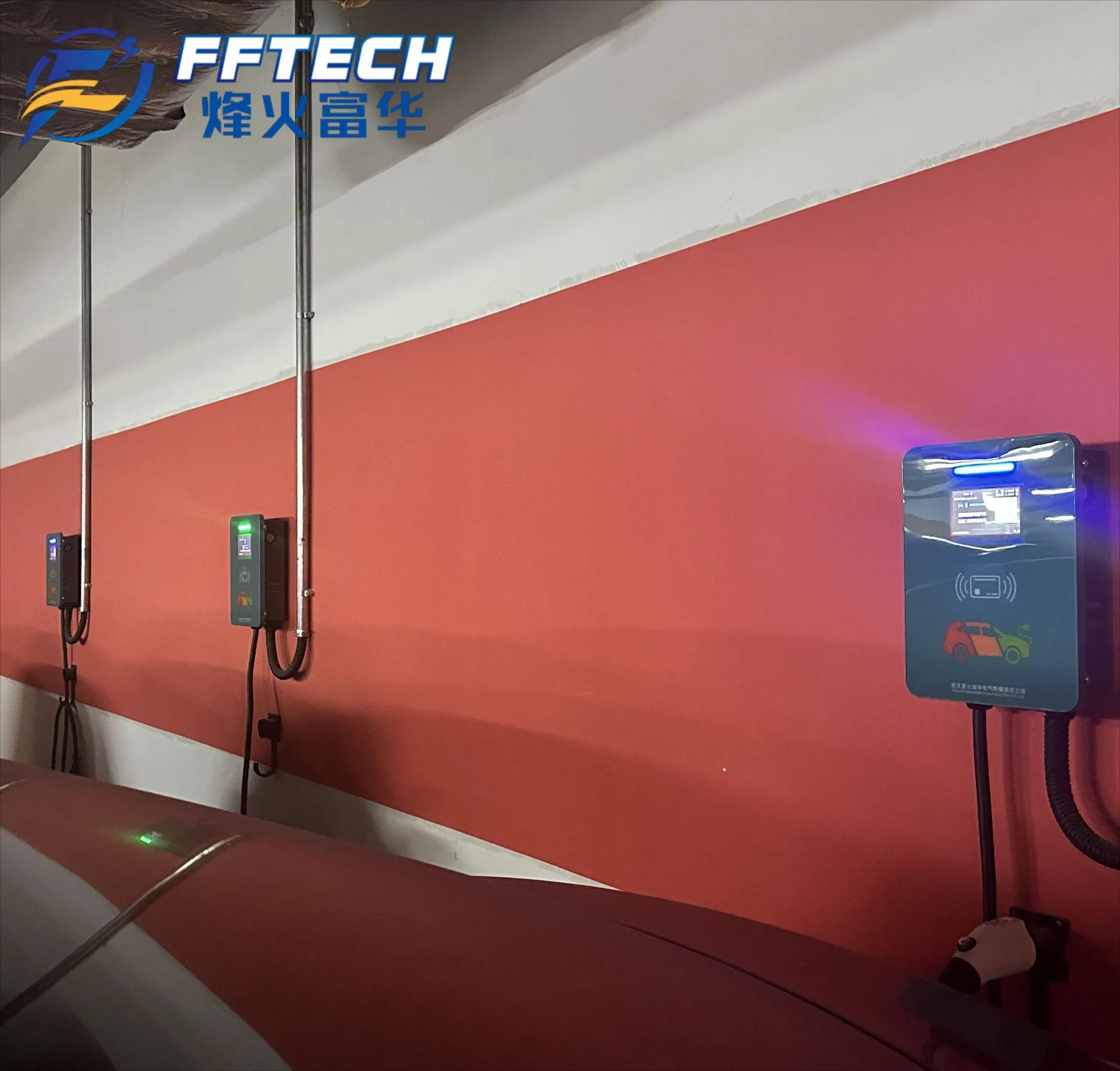

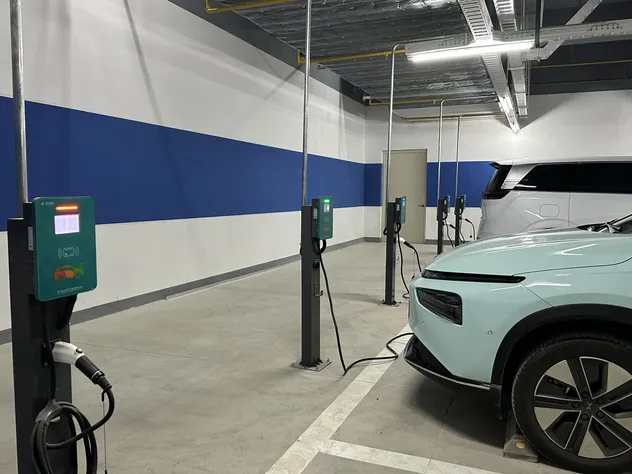

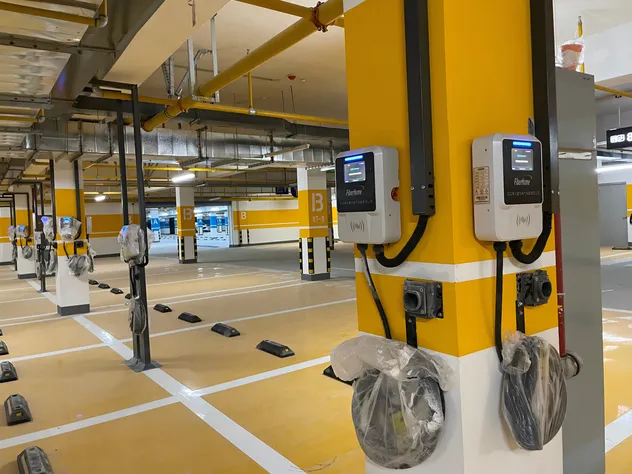

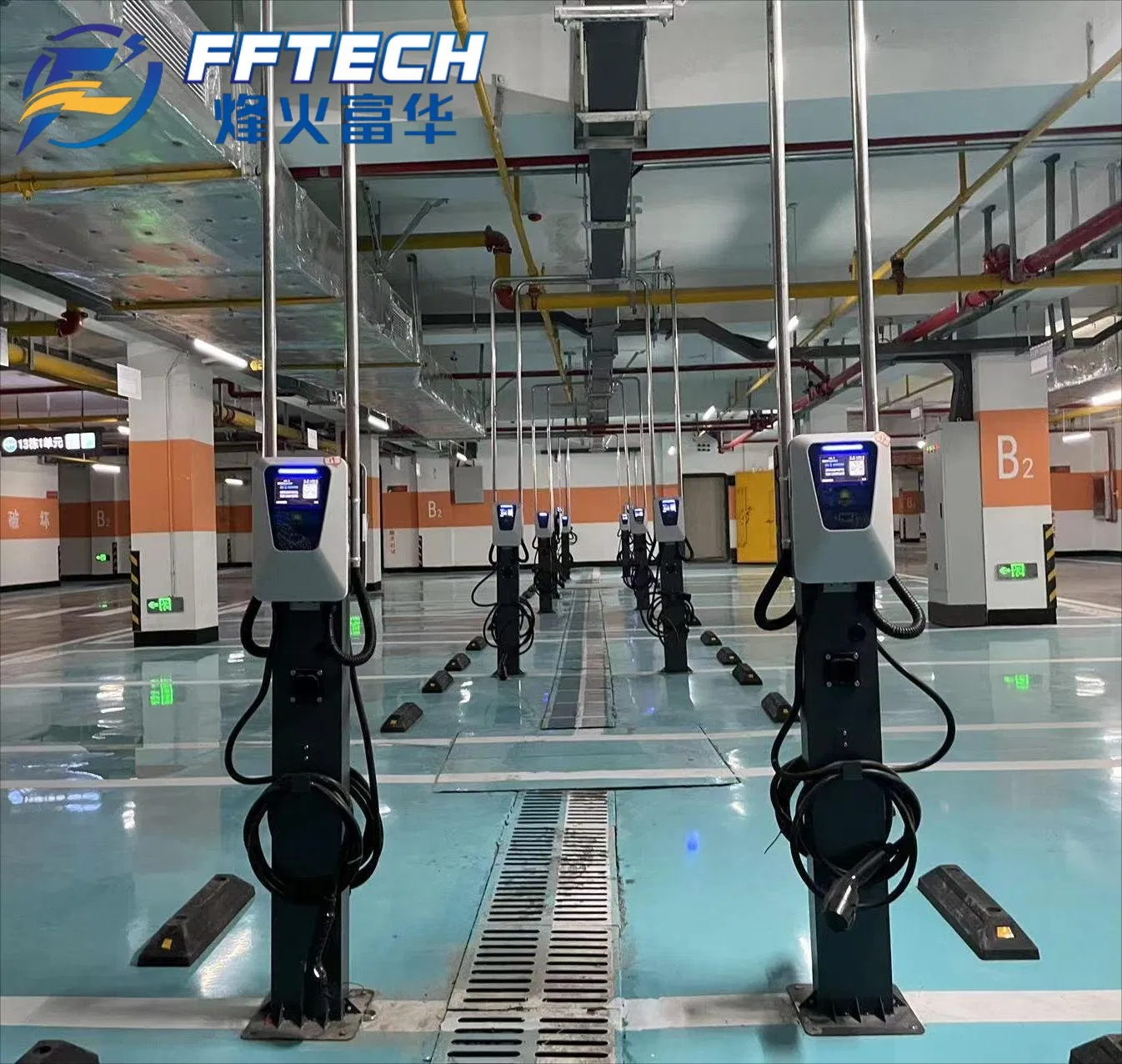

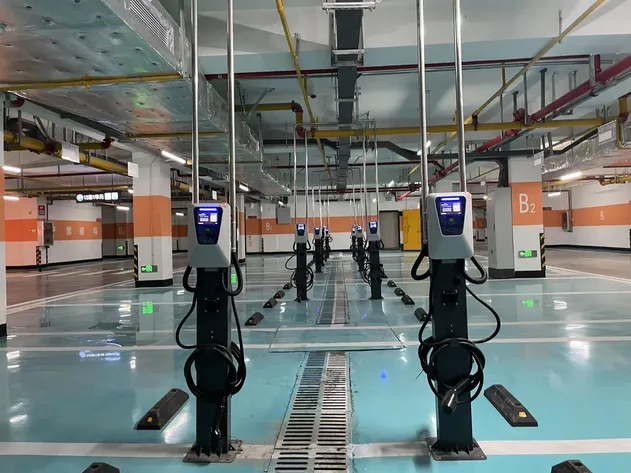

Location: Underground parking lots. Turnkey solutions including design, supply, and professional installation.

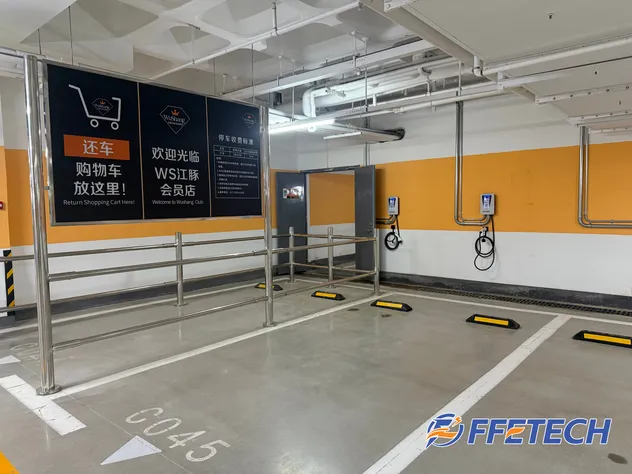

Implemented in shopping mall parking lots with user-fee models, achieving full cost recovery within 3 years.
