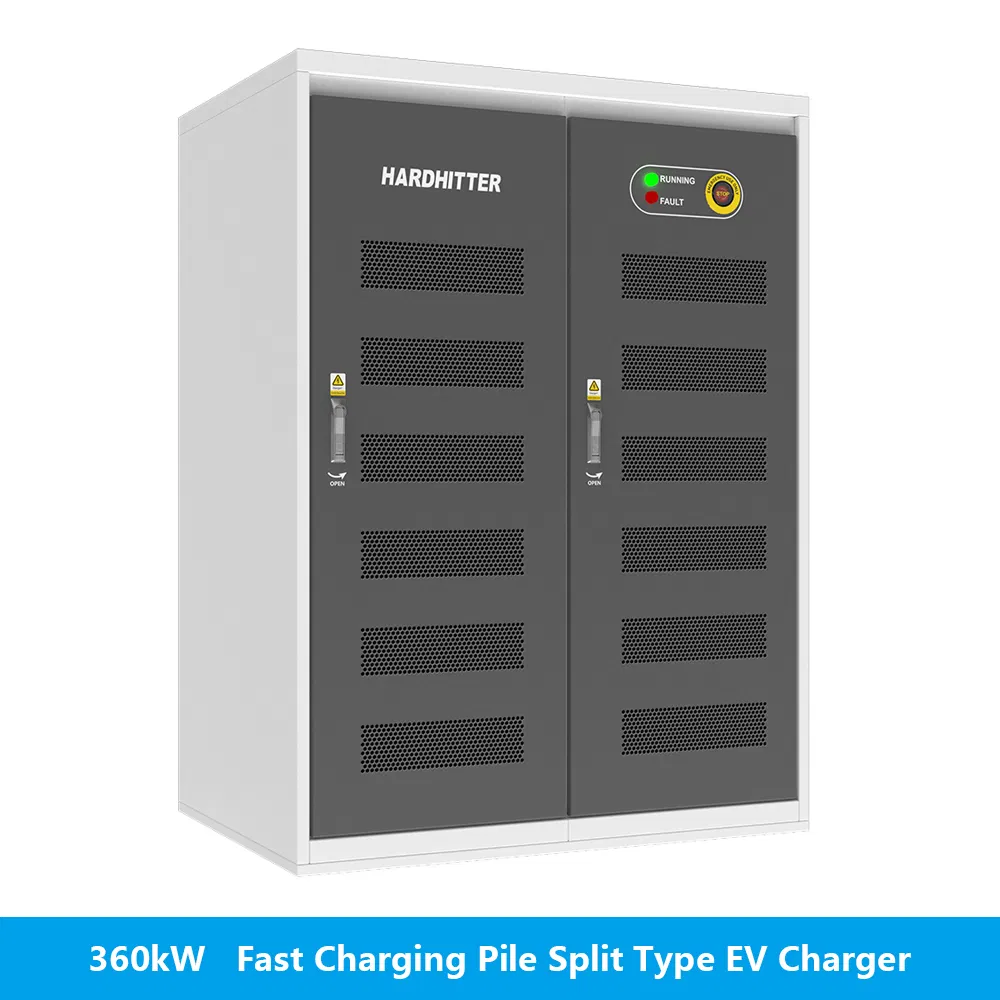

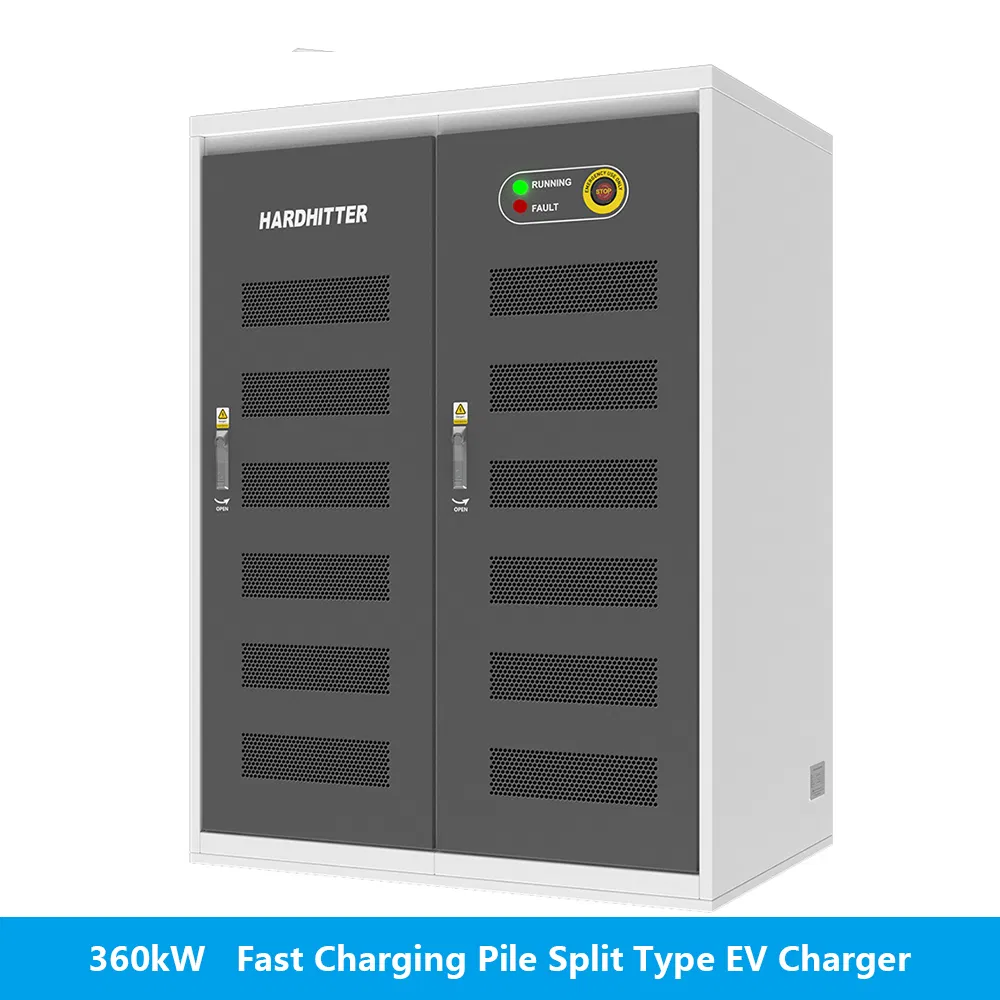

CE Certified CCS2 Gbt 360kw DC Fast EV Charging Stations with Commercial Floor Mounted Terminals

1 / 5

CE Certified CCS2 Gbt 360kw DC Fast EV Charging Stations with Commercial Floor Mounted Terminals

Customization:	Available
Connector Type:	CCS2
Start Mode:	APP Control

Send Inquiry

Product Description

Basic Information

Model NO.

HQC22-360/1000/1200-F08

Interfaces

One Pile with Multiple Charges

Location

Public Use

Installation

Floor Type

Charge Method

Quick Charge

Output Voltage

200~1000V

Output Current

250A(GB/T), 250A(CCS2), 125A(Chademo)

Protection Level

IP55

Operation Temp

-40°c~+60°c

Gun Cable Length

Car: 4.5m / Bus: 6m

Weight

≈130kg

Specification

600mm*1495mm*290mm

Product Specifications

Parameter	Detail Specification
Output Voltage	200~1000V
Output Current	250A (GB/T), 250A (CCS2), 125A (CHAdeMO)
Charging Interface	GB/T, CCS1, CCS2, CHAdeMO
User Interface	4.3 Inch Touch Screen, LED Indicator
Start Mode	Swipe Card, Scan Code, Plug and Charge, Remote Platform, Button Start
Altitude	≤2000m
Communication	CAN Interface
Wiring Method	Bottom Incoming

Product Features

✦

Supports GB/T, CCS2, and CHAdeMO charging interfaces, with customizable combinations.

✦

Equipped with a 4.3-inch true color touch screen and supports card readers or POS machines.

✦

Multiple startup methods including scan-to-charge, RFID, plug-and-play, and timed charging.

✦

Supports dual-gun simultaneous charging for buses and heavy truck vehicles.

✦

Front-door maintenance design allows for wall-adjacent installation to save space.

✦

Available 32-inch advertising screen and speakers for multimedia playback.

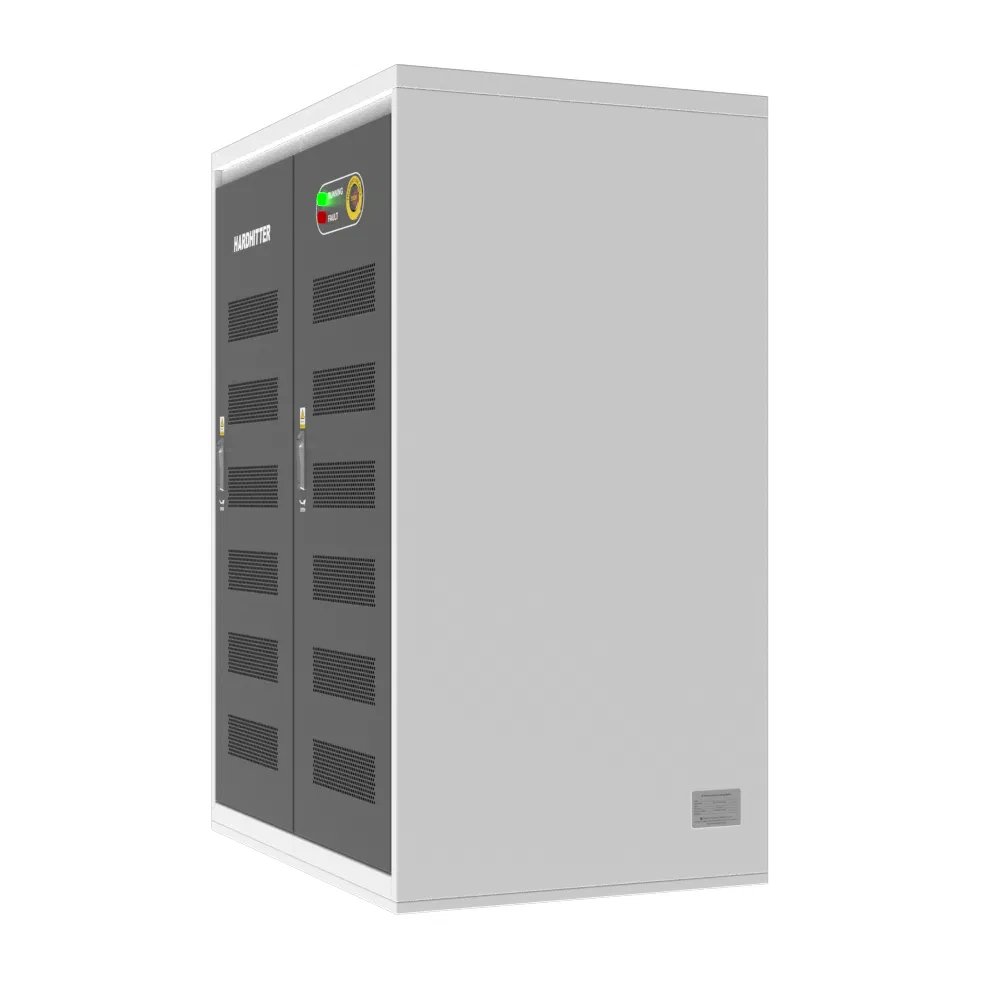

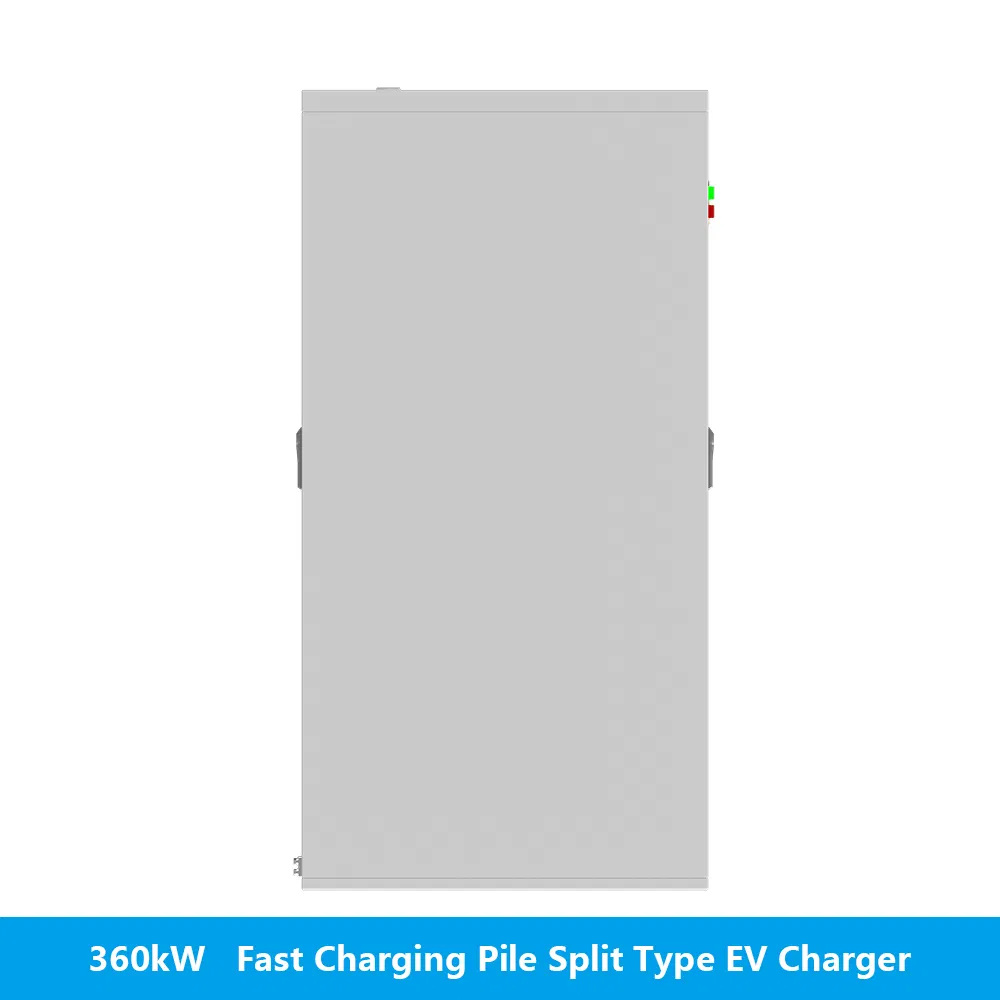

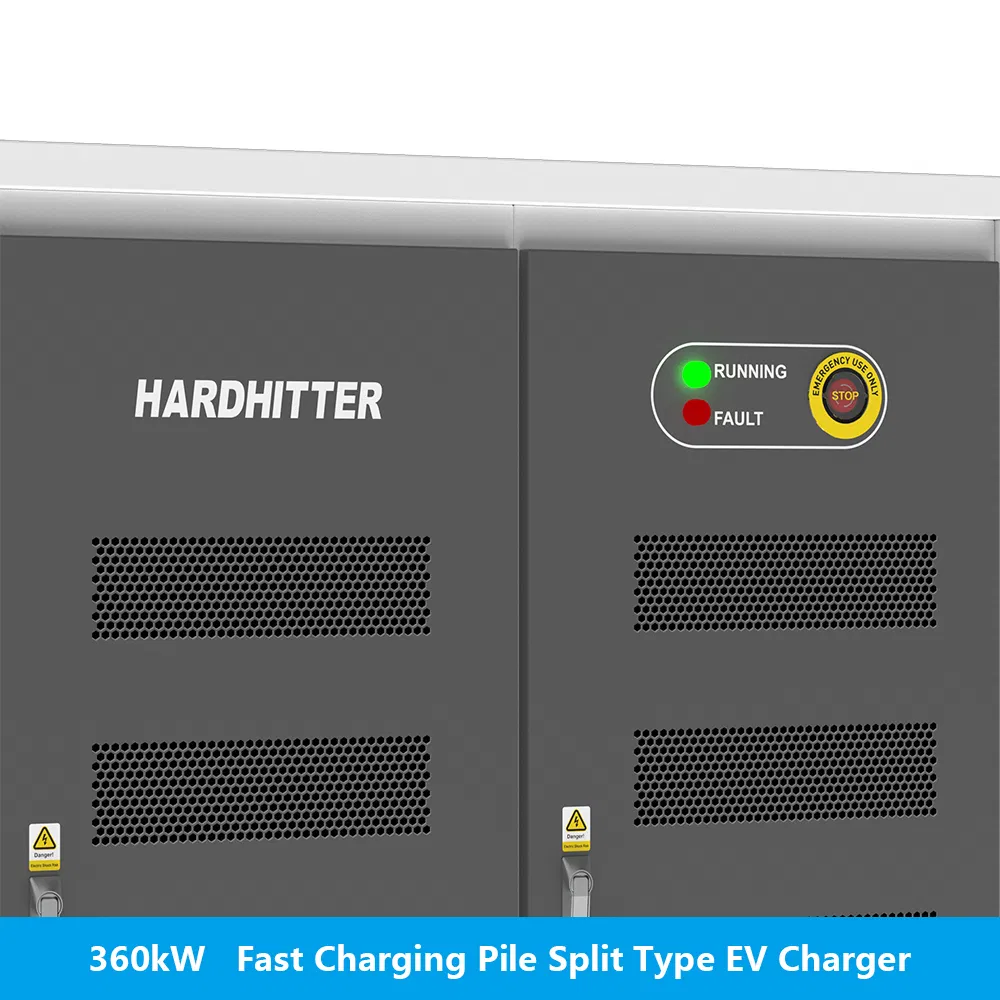

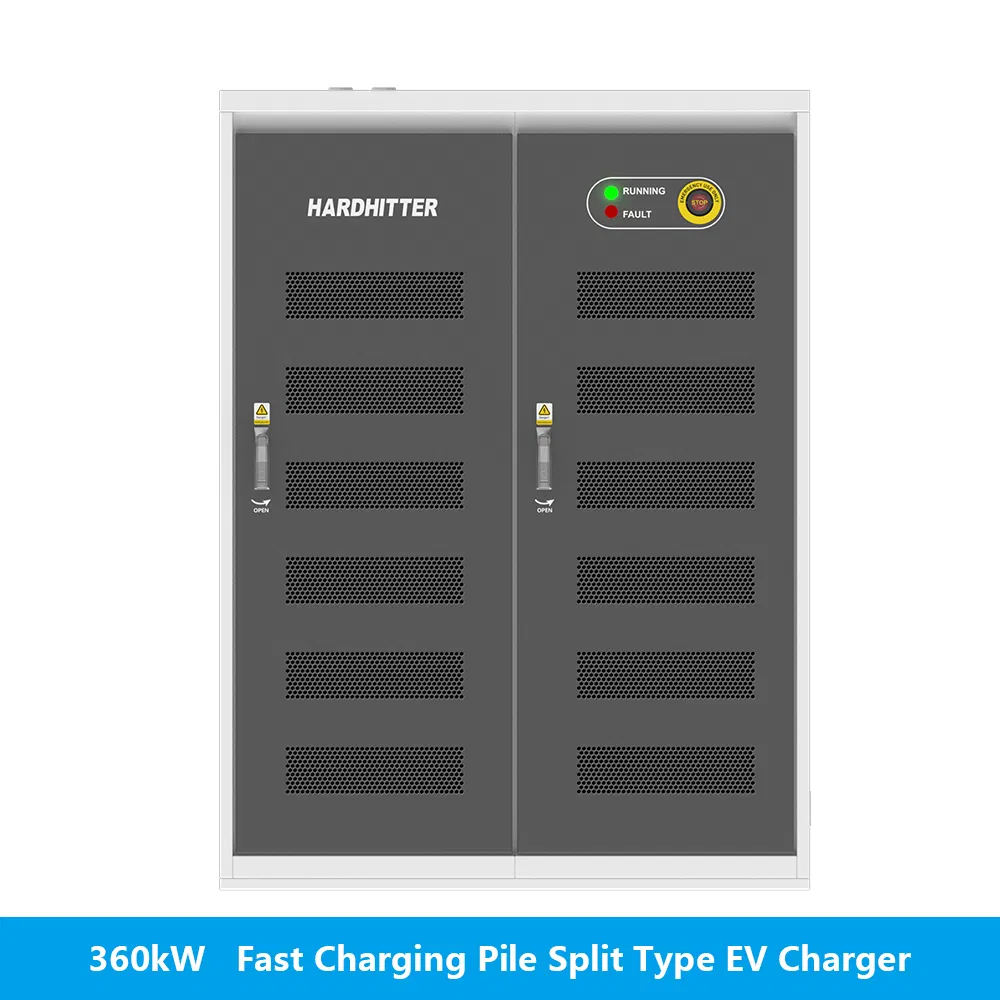

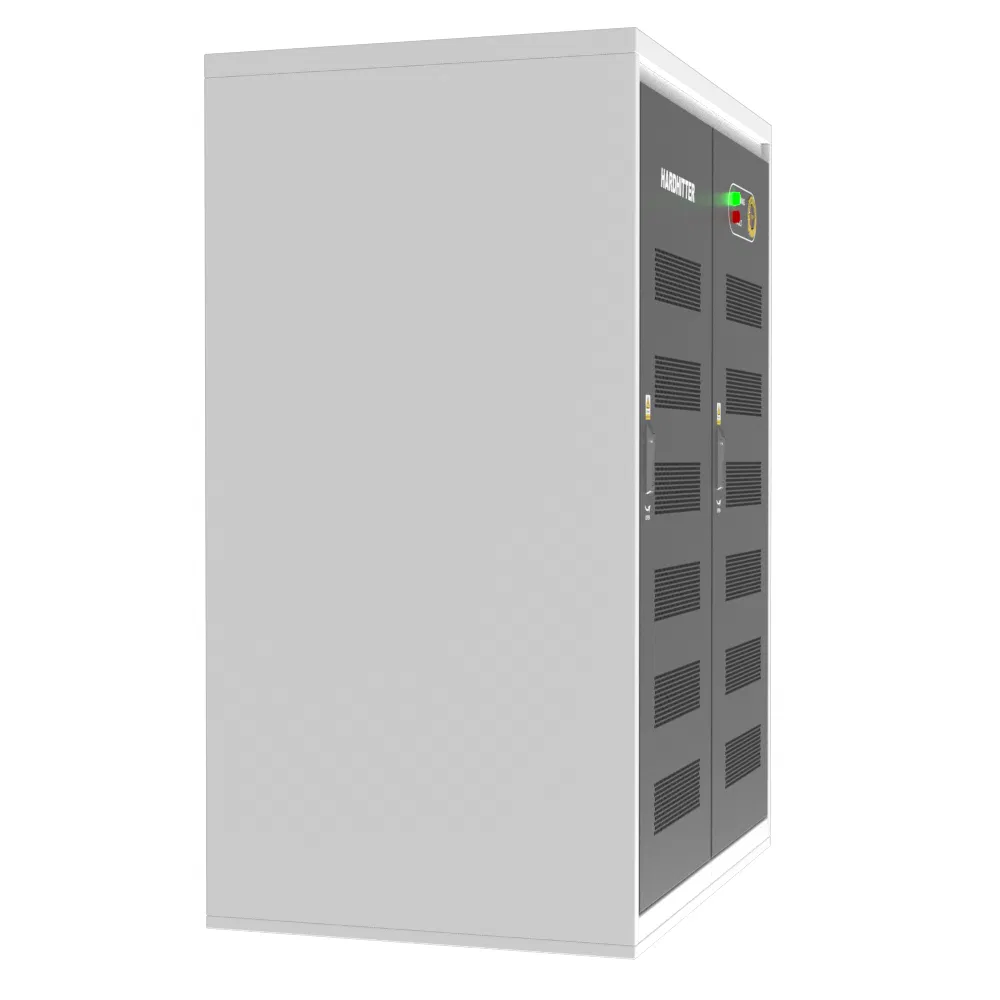

Product Gallery

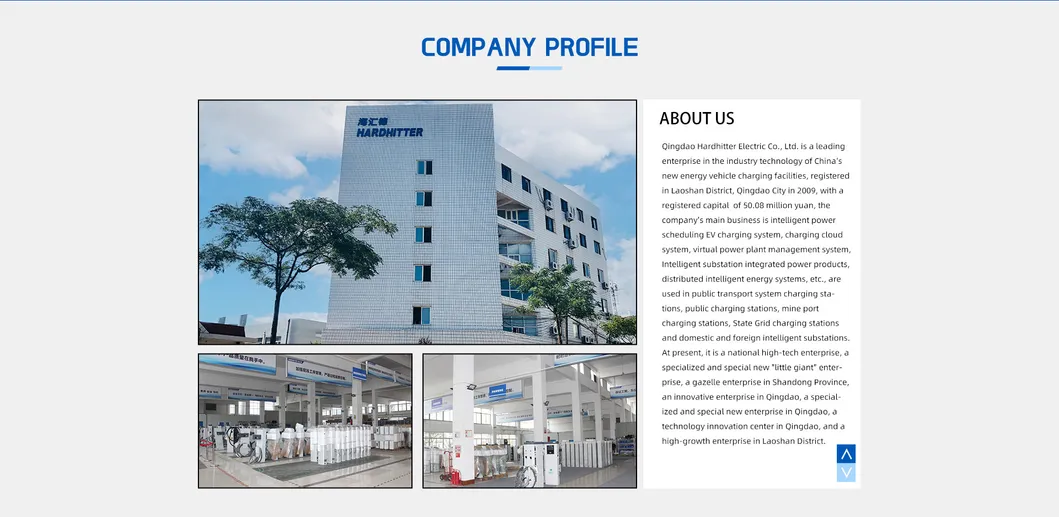

Manufacturing & Facility

Frequently Asked Questions

How about your lead time for delivery?

Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Do your products have quality certification?

Yes, we have a strict quality control system. Our EV charging products have passed CE and TUV certifications, ensuring the highest safety standards.

How long is the warranty period?

The warranty for our products is 12 months upon the receipt of your shipment under normal operating circumstances.

Can you provide customized (OEM/ODM) services?

Yes, we have been involved with OEM and ODM projects since 2012, providing professional customized services for diverse client needs.

Can this EV charger charge all electric vehicles?

Yes, all models of our EV Charger work with all Electric Vehicles. Note that Tesla vehicles require a J1772 to Tesla adapter to work with our chargers.

Does the EV Charger require an APP or internet connection?

Some models are standalone (using RFID cards or plug-and-play), while others are Wi-Fi connected and compatible with Apps and OCPP 1.6j applications.
