Basic Information
Model NO.
ZW-EV-CPDC-Series
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Production Capacity
3000 PCS/ Month
★
Product Description & Specs

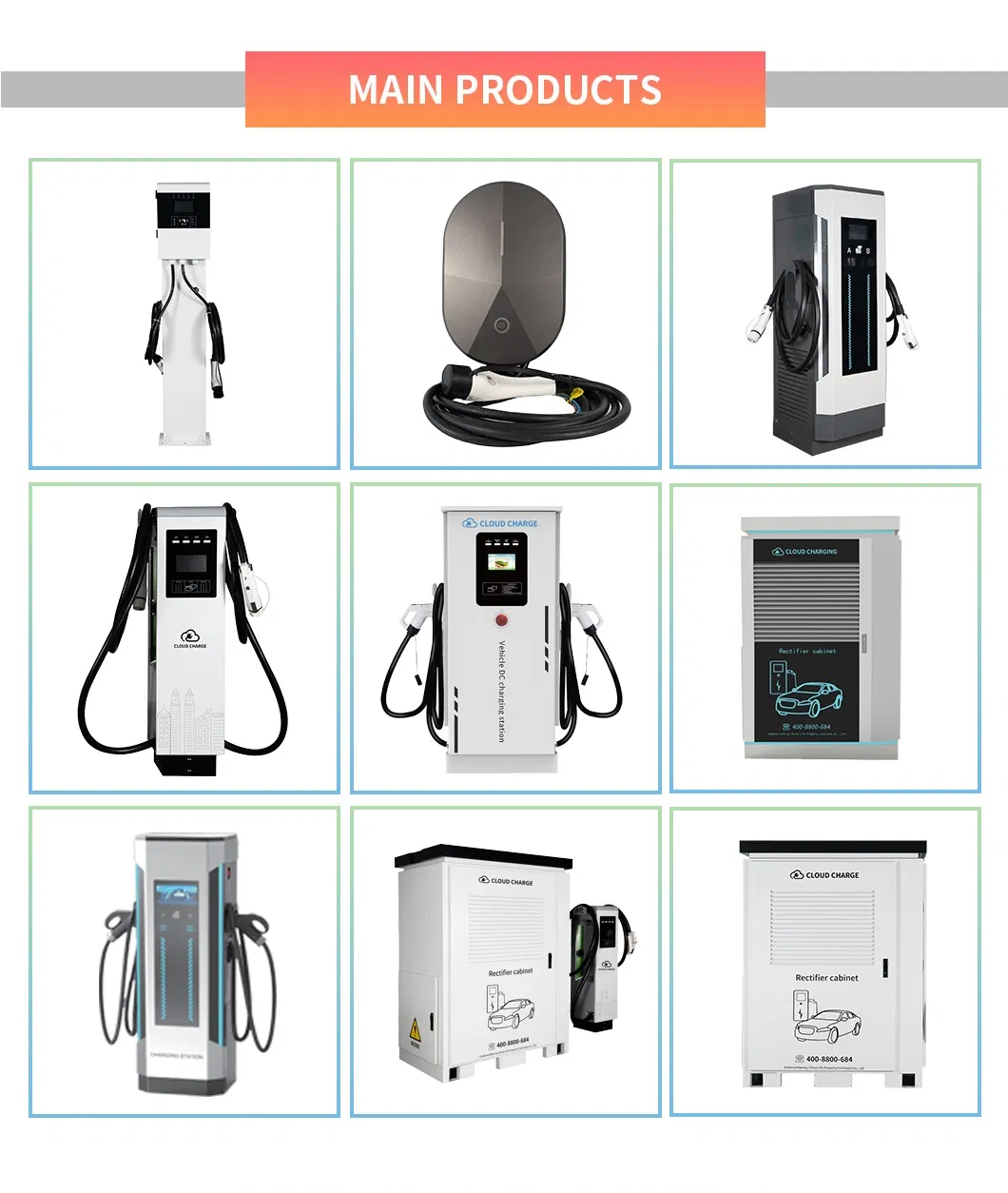

A leading high-tech enterprise with over a decade of expertise in the EV charging station industry. Specialized in developing and producing a wide range of cutting-edge electric vehicle charging stations and solutions for both cars and two-wheelers. The portfolio includes AC EV chargers, DC EV chargers, split EV chargers, and advanced liquid-cooled chargers, as well as portable EV chargers.
| Model | ZW-EV-CPDC Series |
| Rated Power | 240KW/360KW/480KW/600KW |
| Output Voltage Range | DC200V-1000V (Optional) |
| Input Voltage | AC380V±20% |
| Efficiency | ≥95% (50%-100% Full Load) |
| Protection Grade | IP54 |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | -20°C to 50°C |
| Dimensions | 1460mm x 960mm x 1960mm |

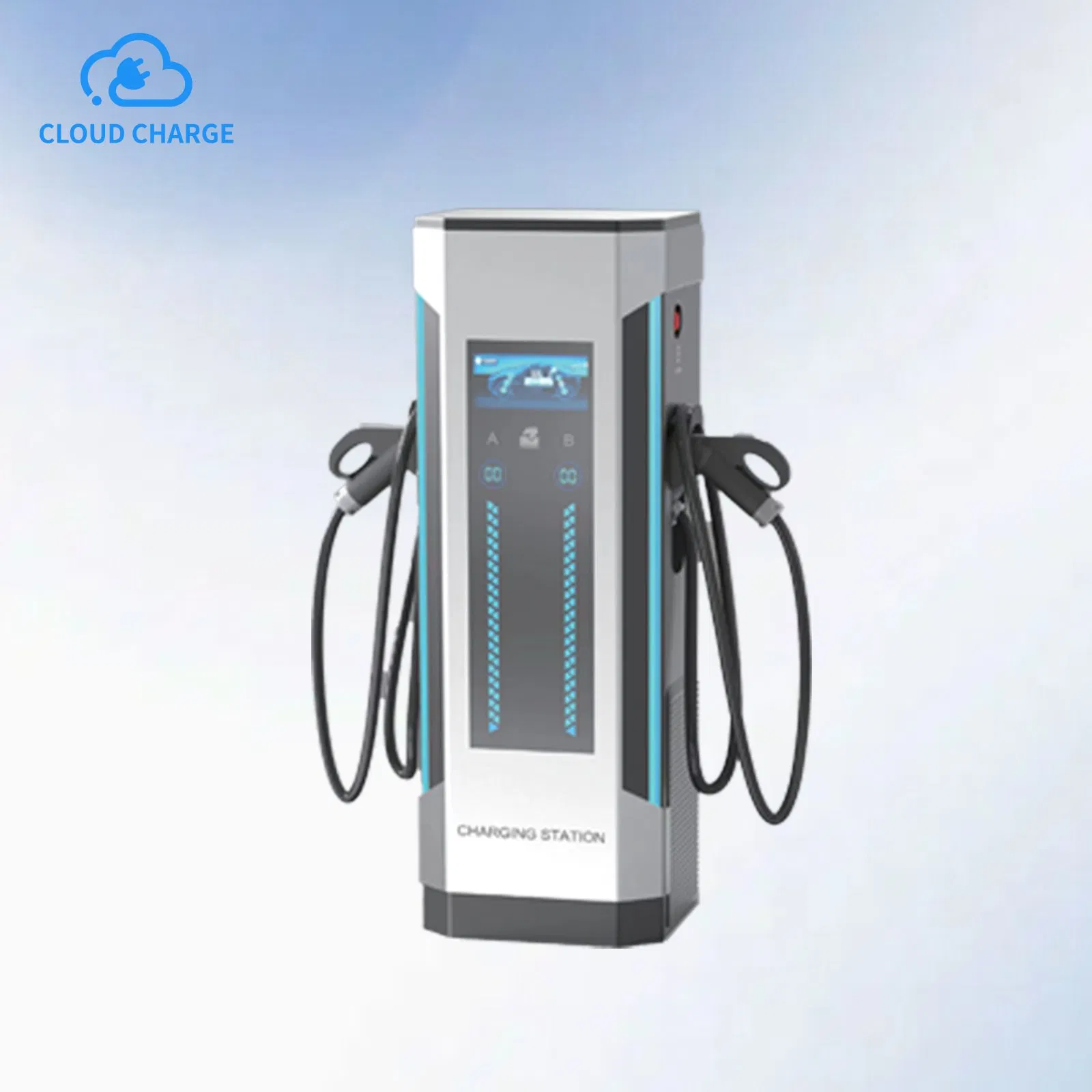

| Model (Terminal) | ZW-EV-CPDC-ZDD / ZDS |
| Rated Output Power | 60KW - 240KW |
| Charging Modes | Automatic Full Charge, By Time, By Energy, By Amount |
| Starting Methods | Card Swipe, Scan Code, Password, VIN |
| Display Mode | 10.1-inch Screen (ZDS Model) |
| Networking Mode | 4G |
| Protection Functions | Short Circuit, Over-temperature, Over-current, Leakage, Over-voltage |
?
Frequently Asked Questions
1. What power ratings are available for the ZW-EV-CPDC series?
The series supports a wide range of power options, including 240KW, 360KW, 480KW, and 600KW, making it suitable for high-speed charging requirements.
2. Does the charging station support different start methods?
Yes, users can start charging via credit card payment, mobile remote operation, RFID authentication, scan code, password, or VIN.
3. What is the protection rating for outdoor installation?
The system features an IP54 protection grade, ensuring durability and safety against dust and water splashes in public use environments.
4. Can I customize the charging stations with my brand?
Absolutely. We offer comprehensive OEM and ODM services, allowing for trademark customization (Cloudcharge or your own) and tailored technical requirements.
5. What charging standards and certifications are met?
Our products are engineered to meet global standards and carry CE, FCC, and UL certifications for international safety compliance.
6. How is the system cooled to maintain efficiency?
The units utilize forced air cooling or advanced liquid-cooled technology (depending on the specific configuration) to maintain optimal performance and ≥95% efficiency.
