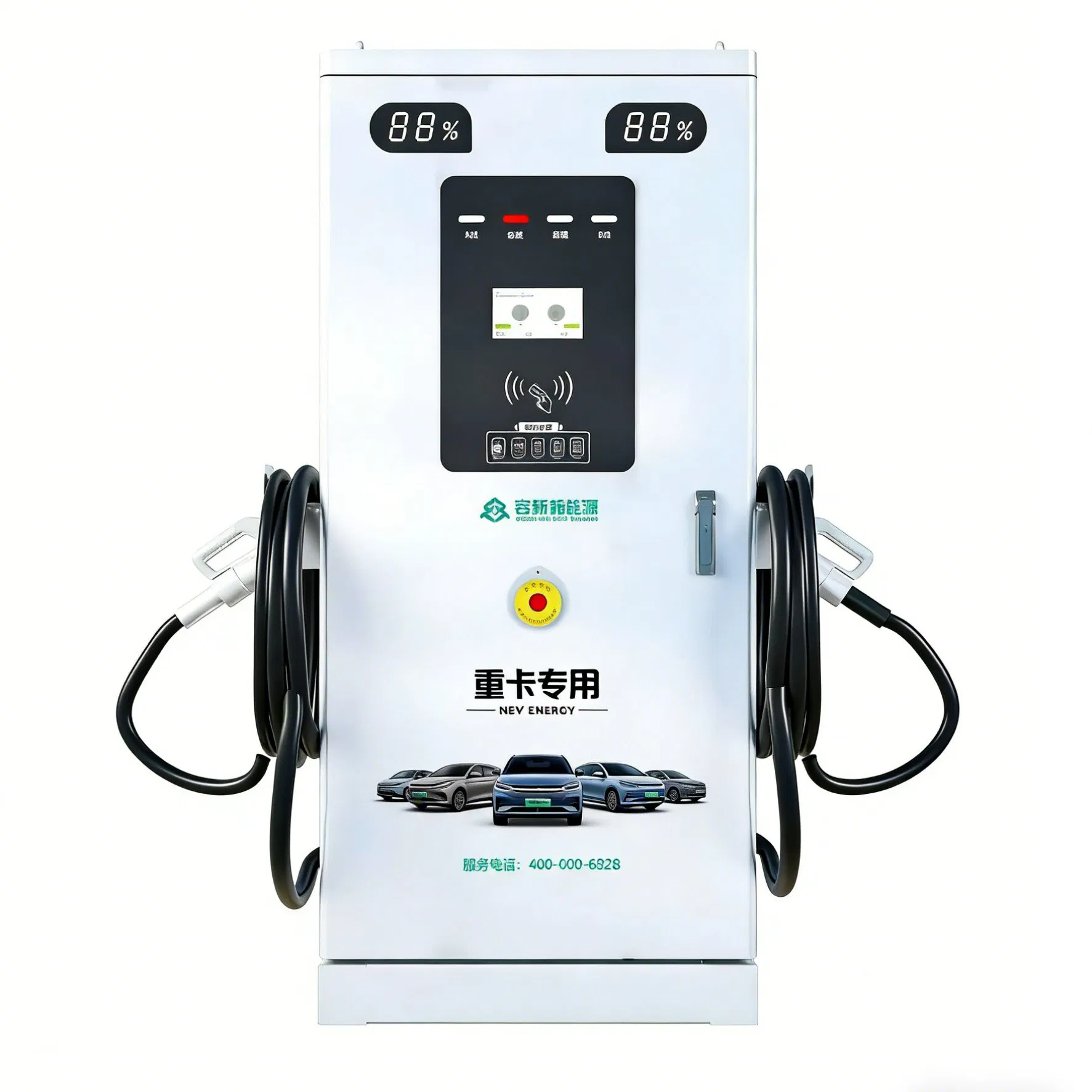

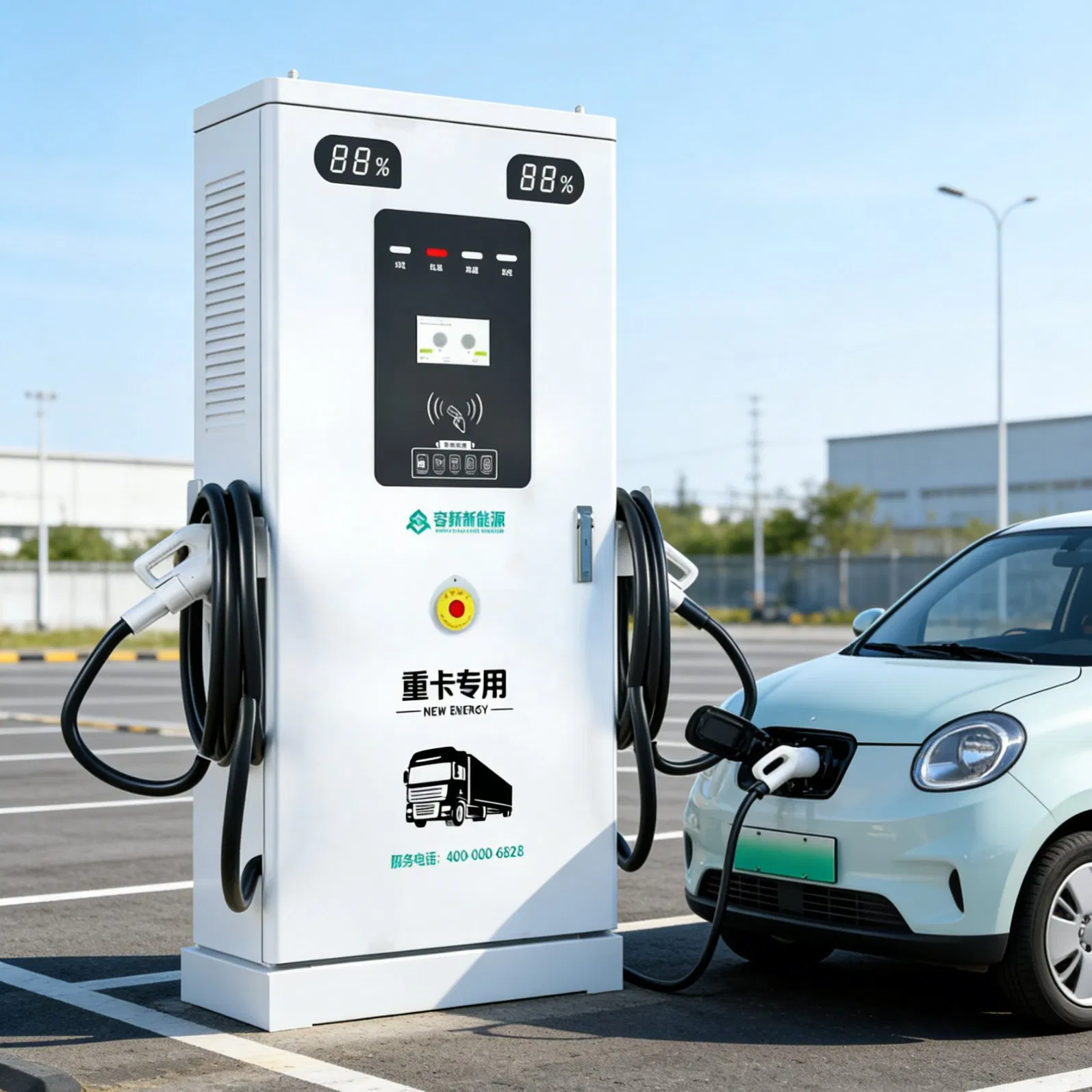

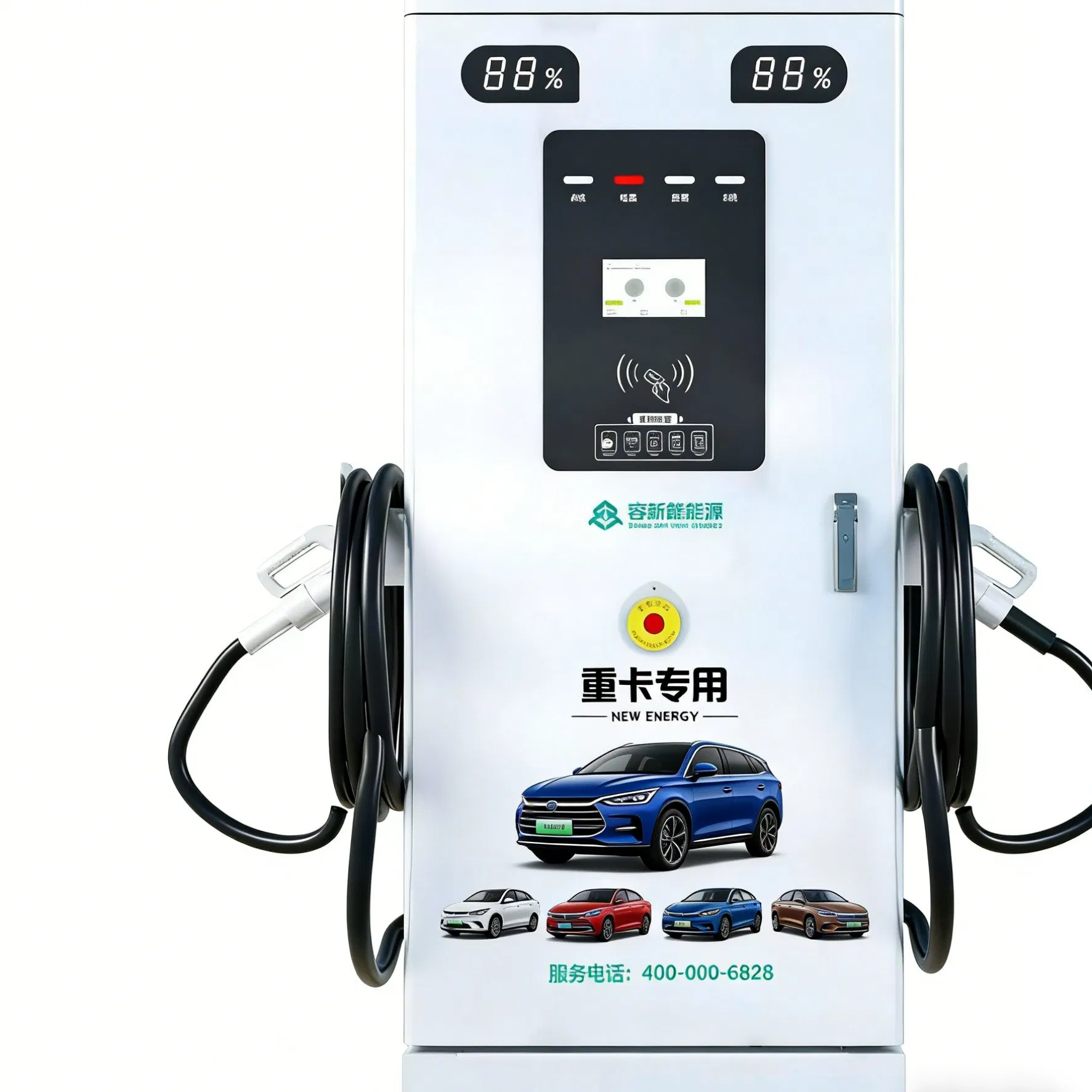

Commercial Grade EV Charger Shopping Mall Charging Station

⚡ Basic Information

Model Range

80KW - 600KW

Connector Type

CCS1, CCS2, Chademo, GB/T

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Weight

194kg - 274kg

Dimensions

750 x 410 x 1700 (mm)

Control Panel

7-Inch LCD Touch Screen + LED

Connectivity

4G All-Network / Ethernet

📘 Product Introduction

Our DC fast charging stations provide a power range from 40KW to 600KW, supporting global standards including OCPP protocol, CCS1, CCS2, and GB/T. Designed for high-efficiency energy replenishment, these units feature an IP54 waterproof rating and a continuous adjustable voltage range of 50-1000V.

Constant power voltage range: 200-1000V.
Supports simultaneous charging with dual guns.
Advanced DC fast charging technology to shorten waiting time.
Comprehensive protection: Gun temperature monitoring, short circuit, over-temperature, over-current, leakage, and lightning protection.
Plug-and-play: Fully debugged before leaving the factory for immediate use.

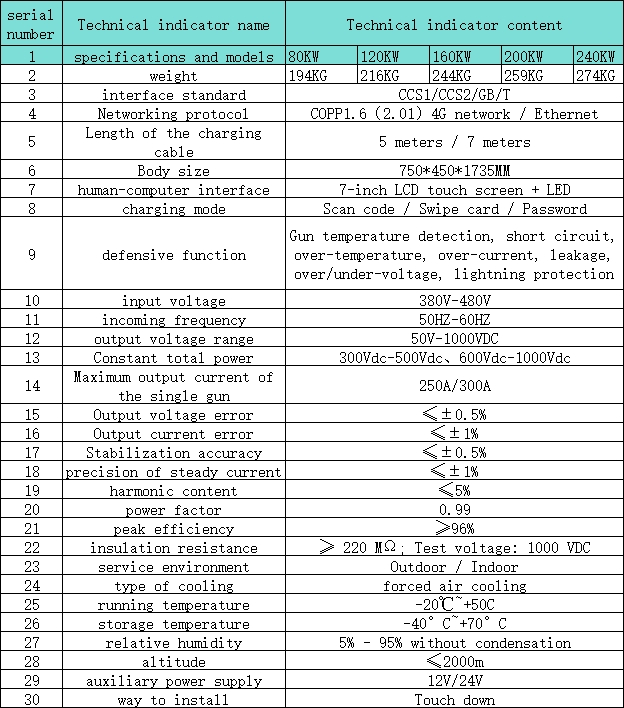

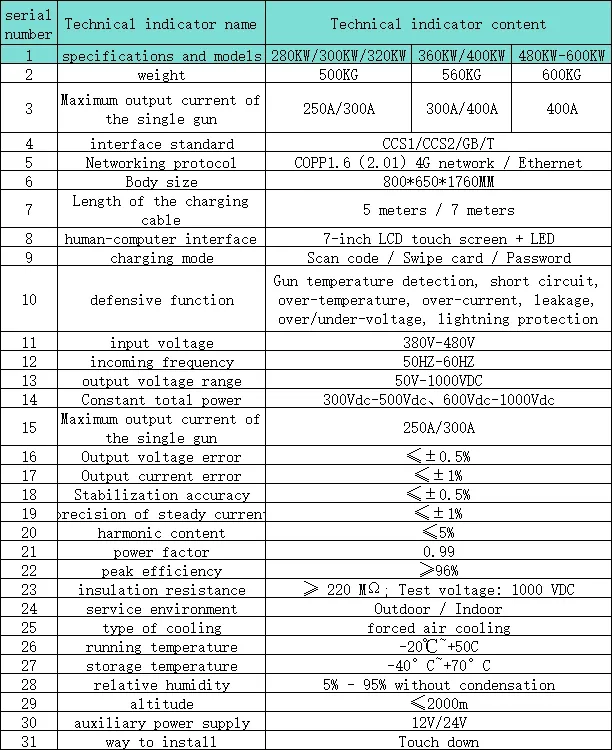

📋 Technical Specifications

Parameter		Details
Product Model	40KW-600KW	External Dimension	750x410x1700(mm)
Rated Power	40KW-600KW	Weight	194KG-274KG
Design Criterion	CCS1, CCS2, GB/T	Gun Barrel Length	5 Meters / 7 Meters
Charging Mode	Scan code, Swipe card, VIN code, Password	Start Method	Swiping card / Scanning code
Level of Protection	IP54	Cloud Platform	OCPP 1.6 / 2.0.1
Defensive Function	Short circuit, over-temperature, leakage, over/under-voltage, lightning protection, gun temperature detection

🎬 Operation & Display

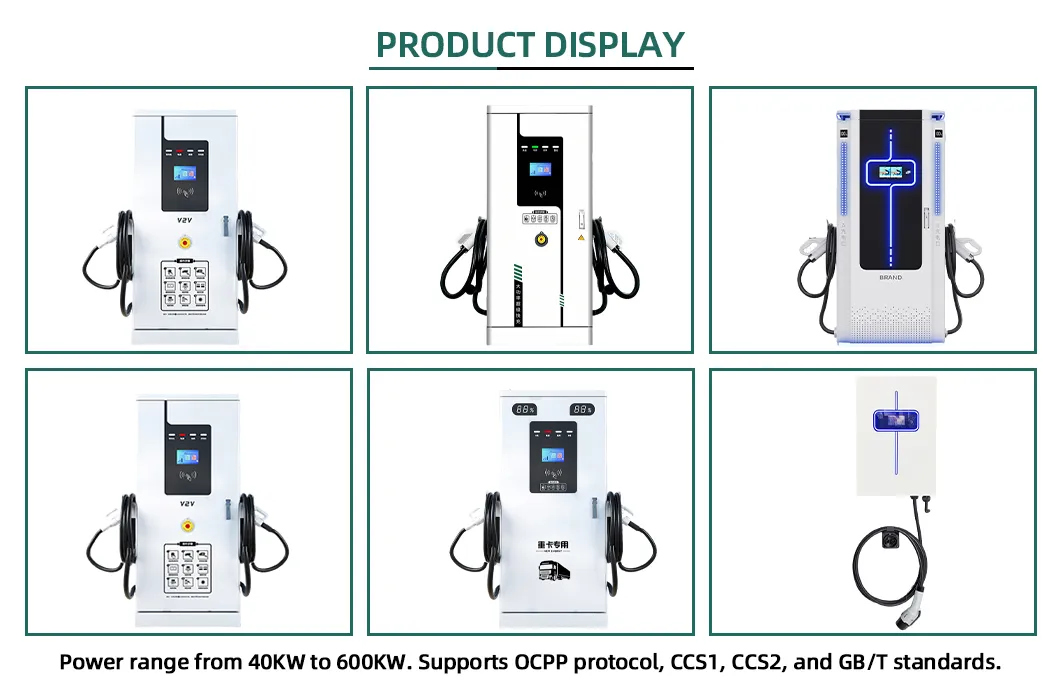

🖼️ Detailed Display

🏆 Quality & Certifications

We are an AAA-rated credit enterprise, strictly adhering to international quality standards. Our equipment is backed by numerous software copyrights and third-party inspection reports.

ISO9001, ISO14001, and ISO45001 Certified.
Third-party equipment inspection reports available.
Partnerships with numerous renowned global enterprises.
Regular participation in large-scale international energy exhibitions.

📦 Packaging & Shipping

We prioritize equipment safety during transit. Our packaging methods are robust enough to withstand long-distance logistics.

Supported Modes: Sea Transportation | Air Transportation | Land Transportation

❓ Frequently Asked Questions

Are you a factory or a trading company?

We are a professional manufacturer. You are welcome to visit our production facilities at any time.

What types of EV chargers do you provide?

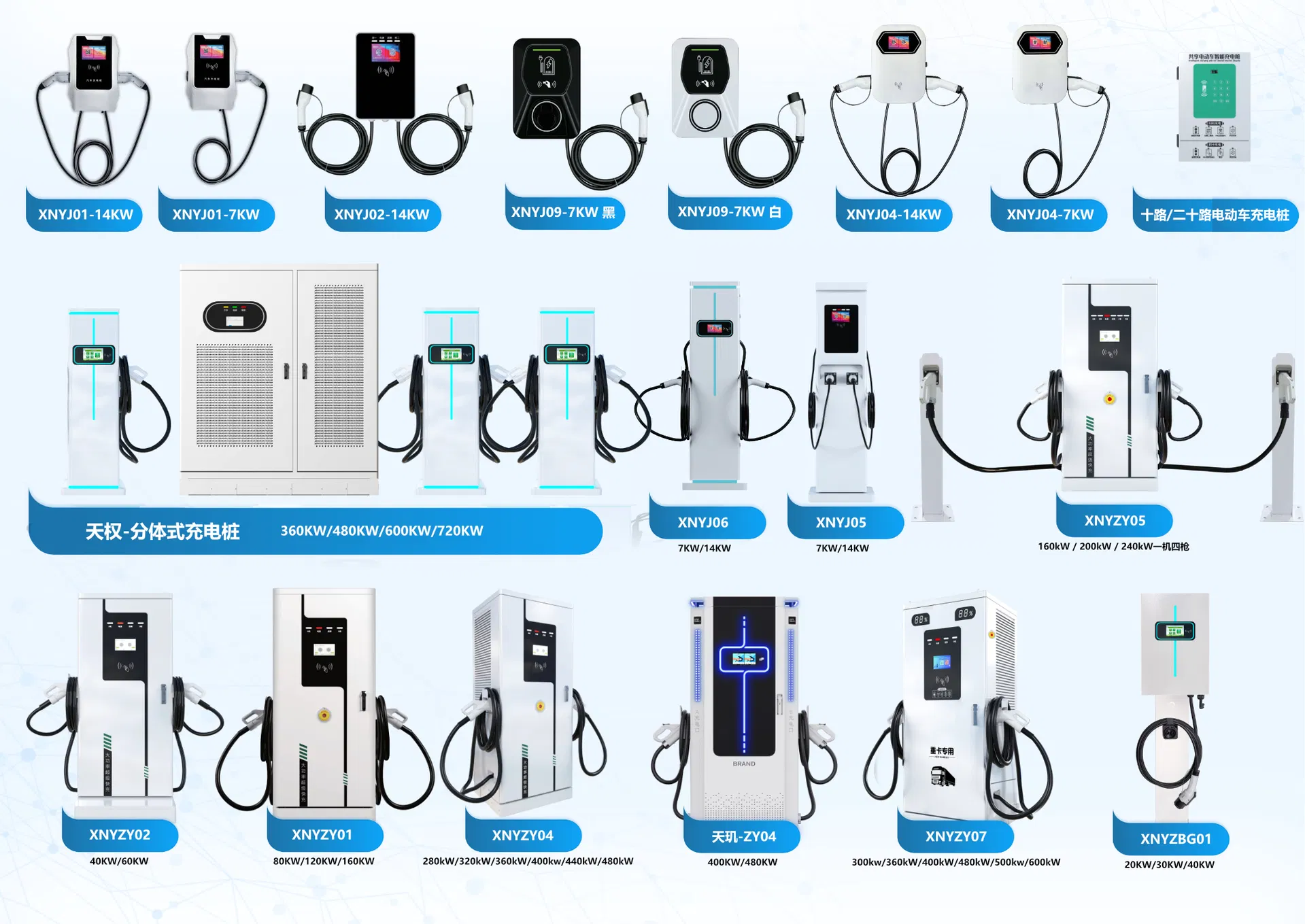

We offer Wallbox and Portable AC chargers (3.5kw-44kw), floor-mounted fast DC Charging stations (30kw-480kw), mobile chargers with energy storage, and solar system products.

Do you support custom branding and design?

Yes, we provide OEM/ODM services, including placing your logo on products and customizing designs based on your requirements.

What is the typical delivery time?

Generally, it takes 7 to 35 days after receiving advance payment. The specific time depends on the items and the quantity of your order.

Do you test the equipment before delivery?

Yes, we perform 100% final inspection and rigorous testing on all goods before they leave the factory to ensure quality.

What are your payment and trade terms?

We accept T/T, PayPal, and Credit Cards. Trade terms include EXW, FOB, CIF, DDP, and DDU. Usually, a 30% deposit is required, with the balance paid before delivery.
