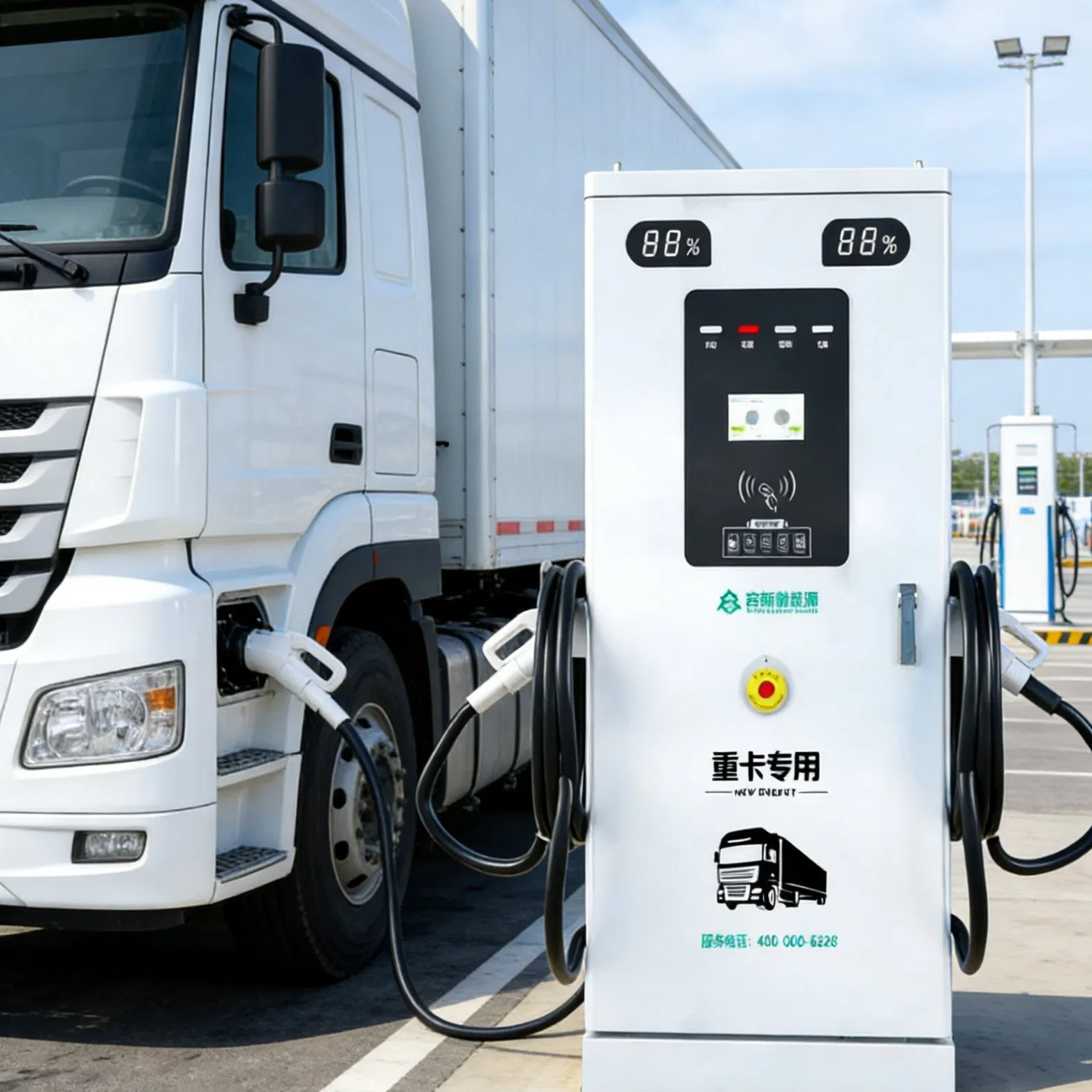

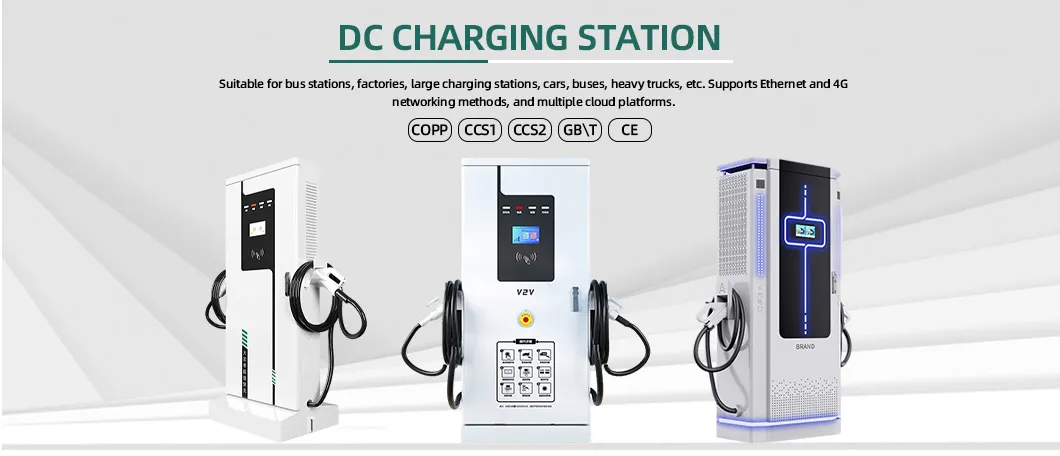

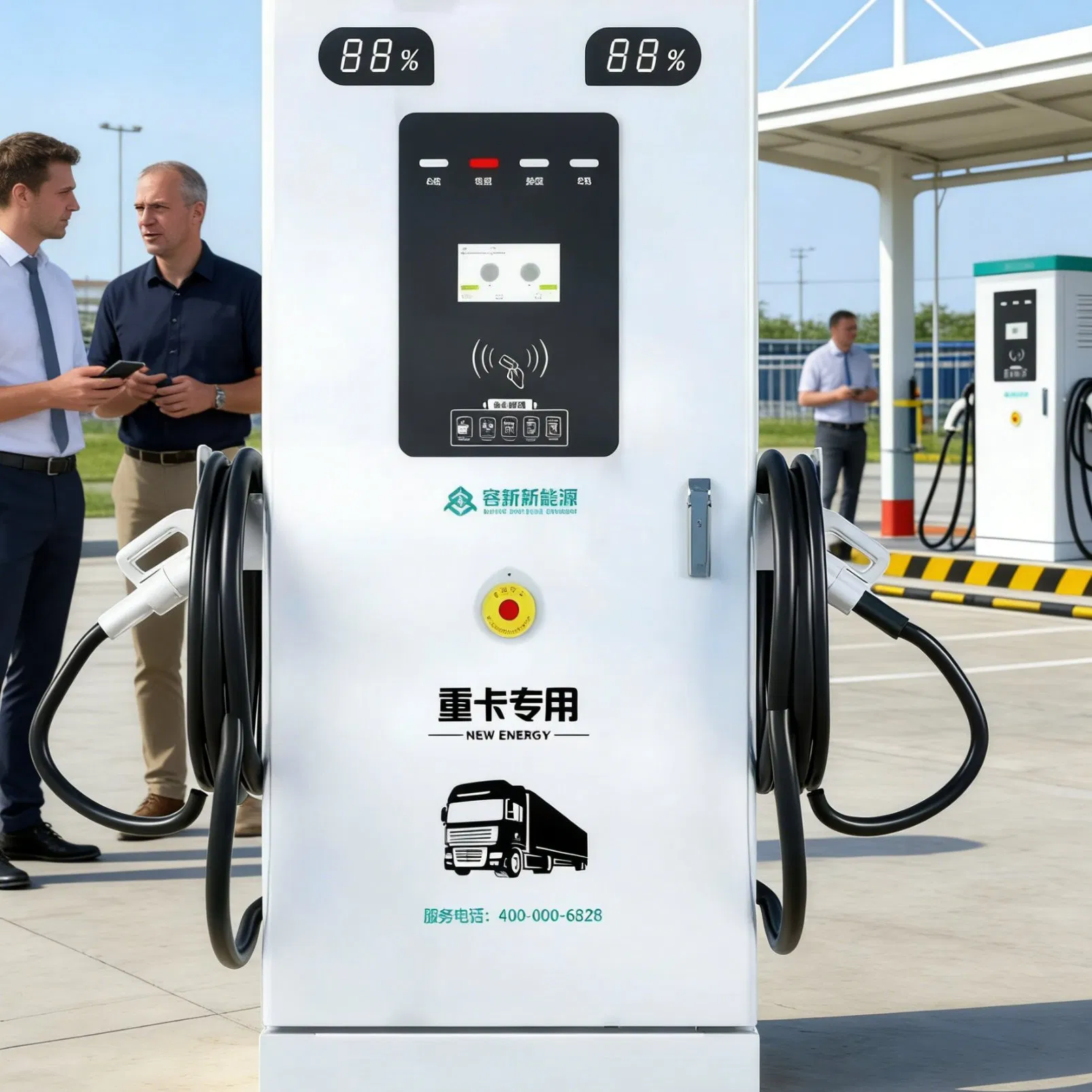

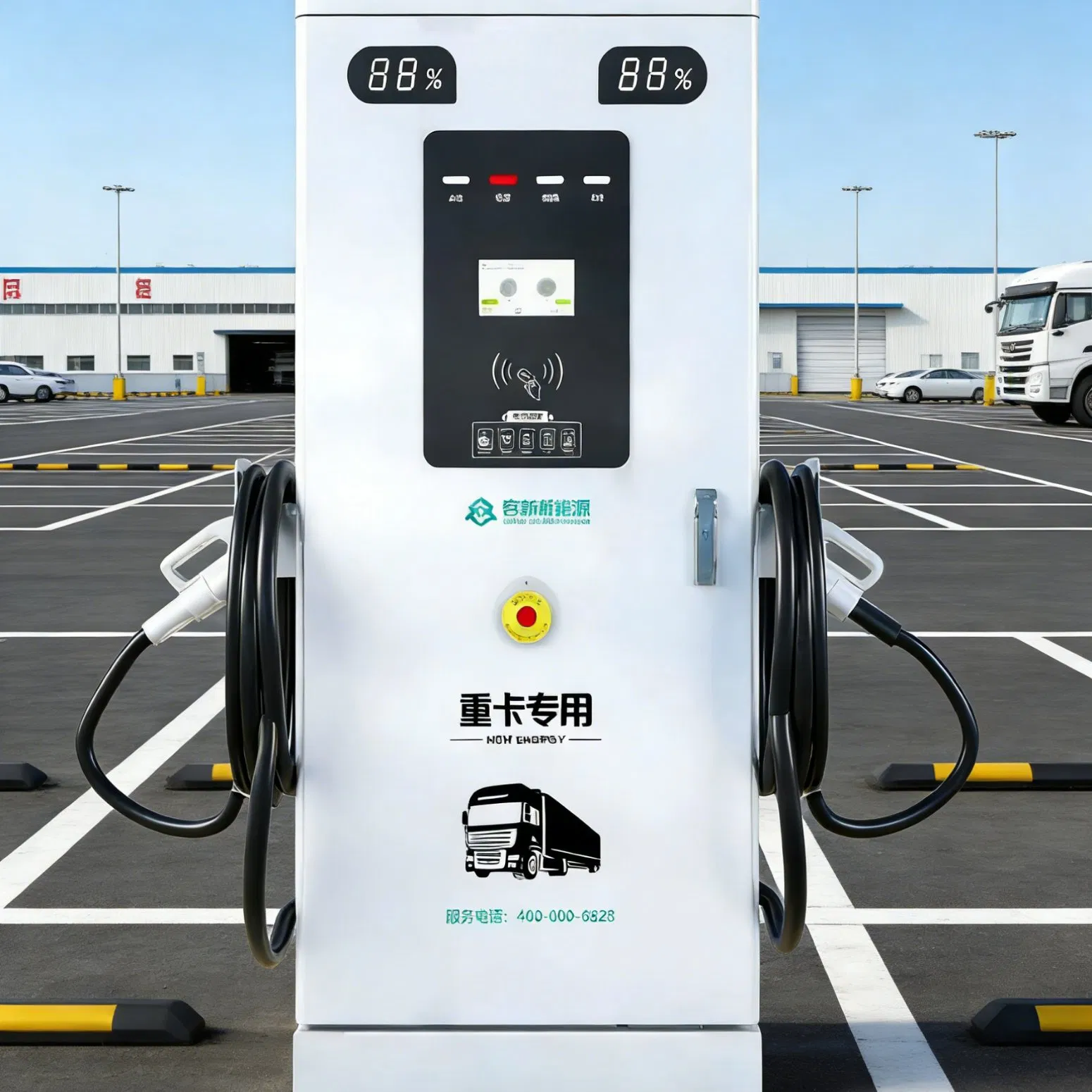

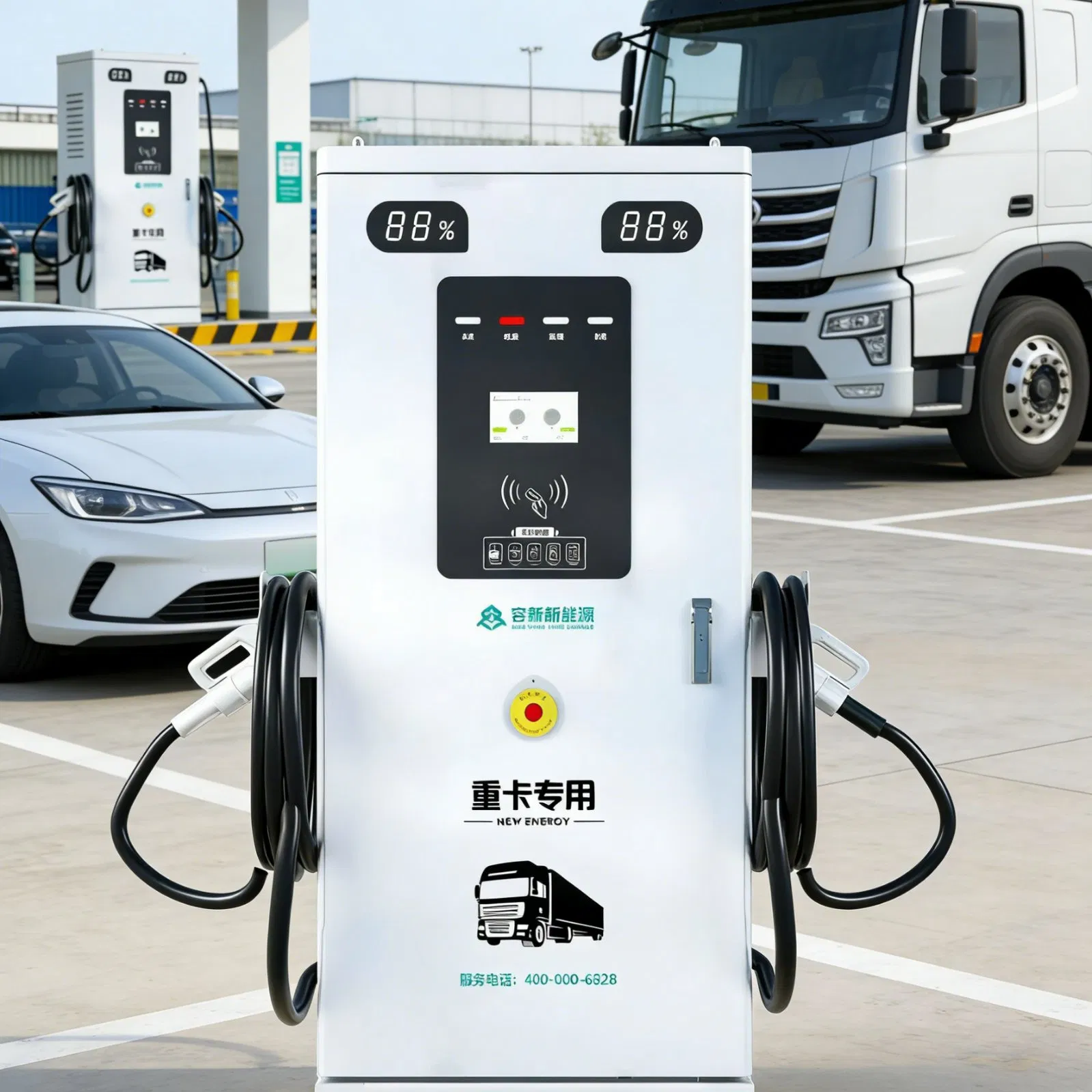

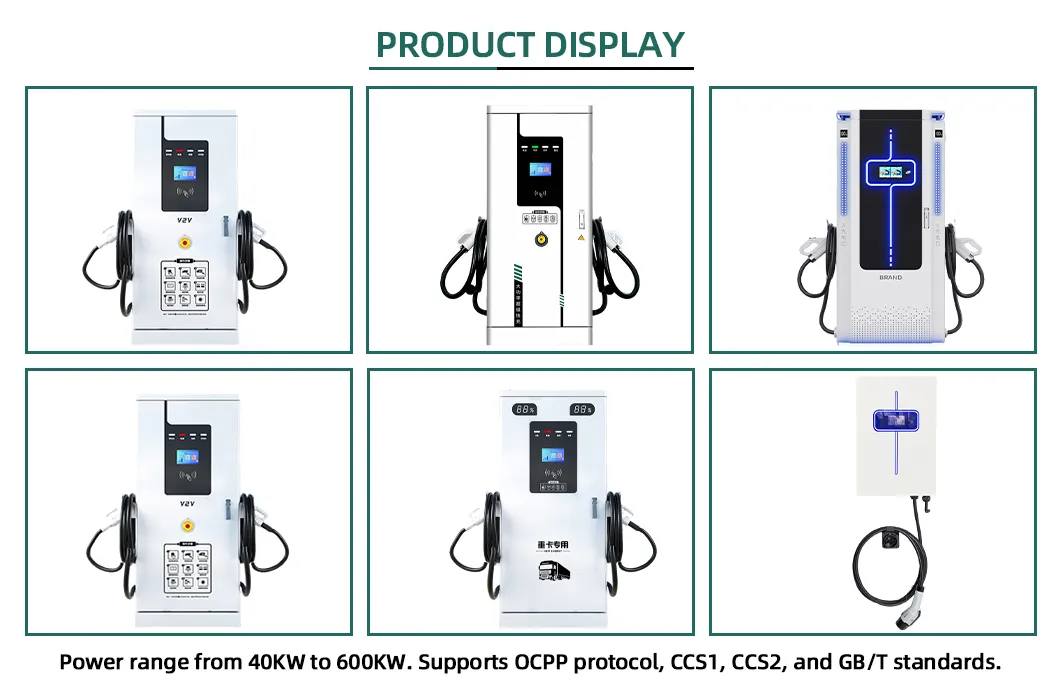

Product Introduction: Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection.

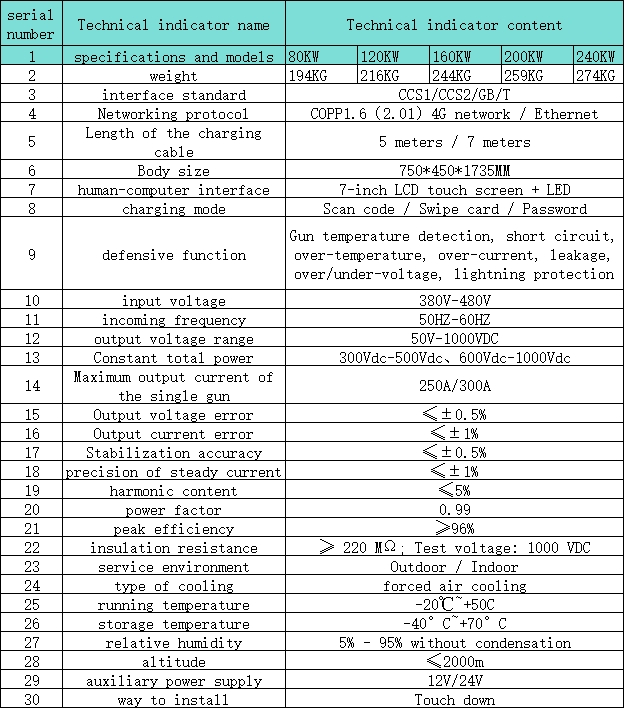

| Product model | 40KW-600KW | External dimension | 750x410x1700(mm) |
| Rated power | 40KW-600KW | Weight | 194KG-274KG |
| Design criterion | CCS1, CCS2, GB/T | Gun barrel length | 5 meters |
| Human-computer interface | 7-inch LCD touch screen + LED | ||
| Defensive function | Gun temperature detection, short circuit, over-temperature, over-current, leakage, over/under-voltage, lightning protection | ||
Holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises.
We adopt packaging methods that are sufficient to protect the equipment, and they support sea transportation, air transportation and land transportation.
