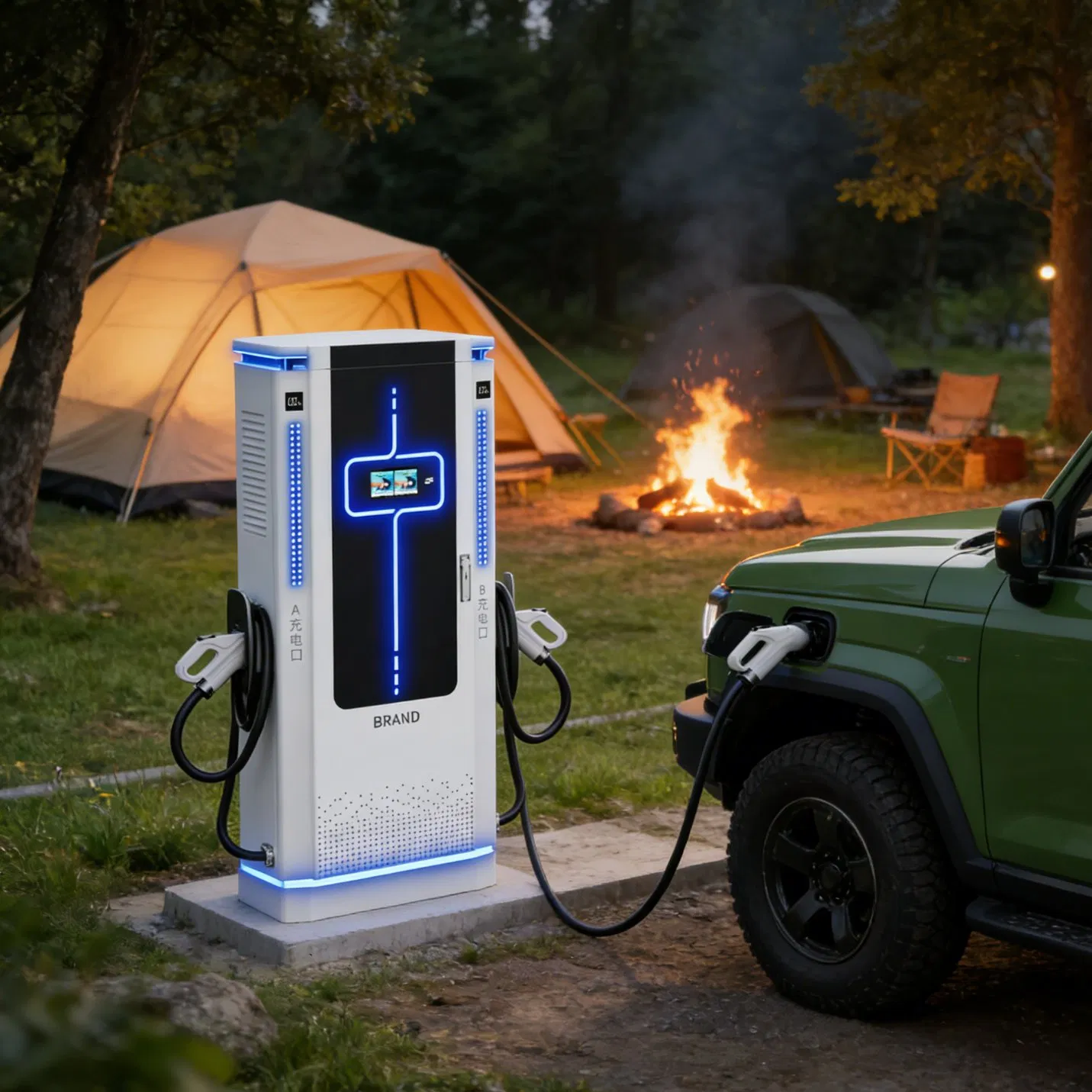

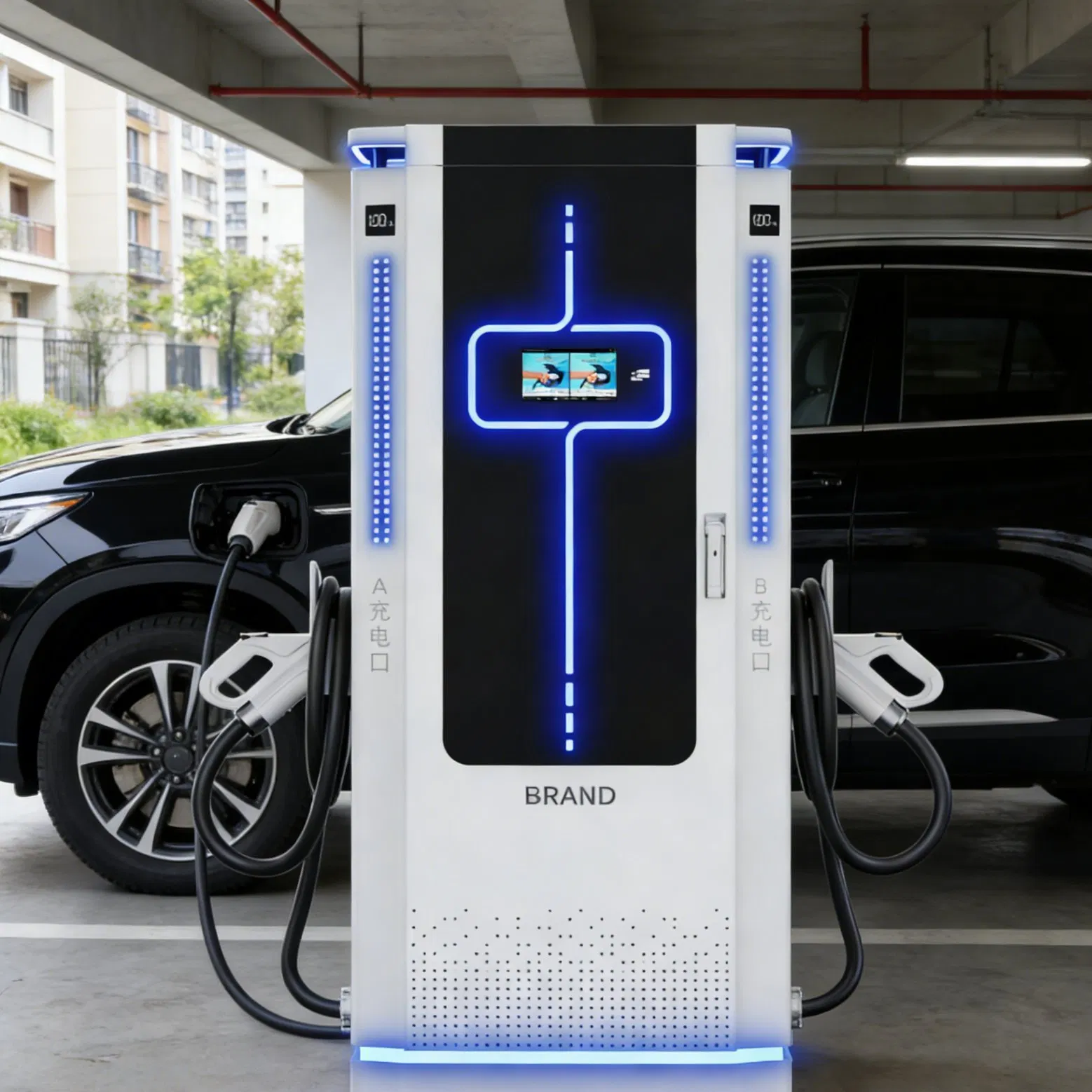

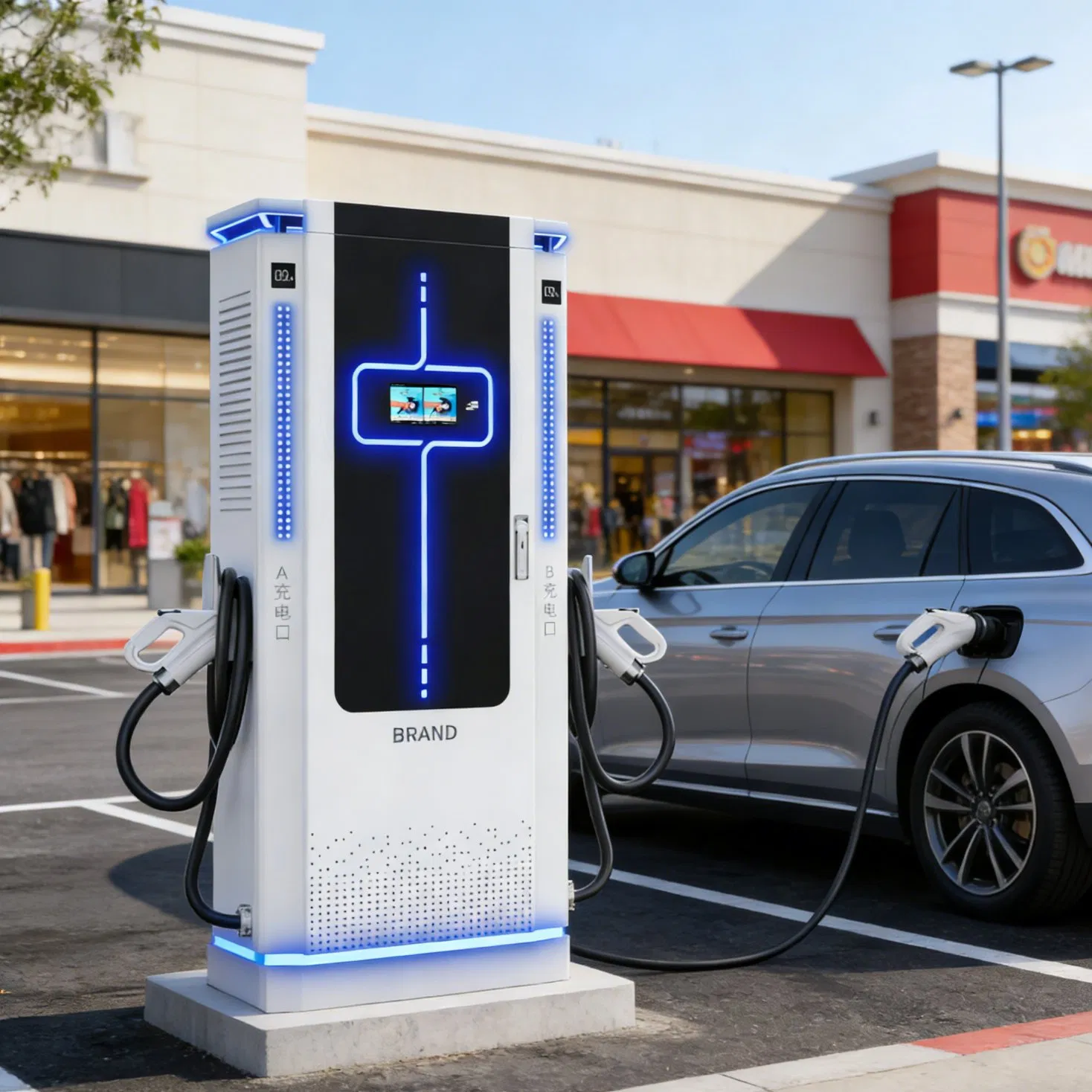

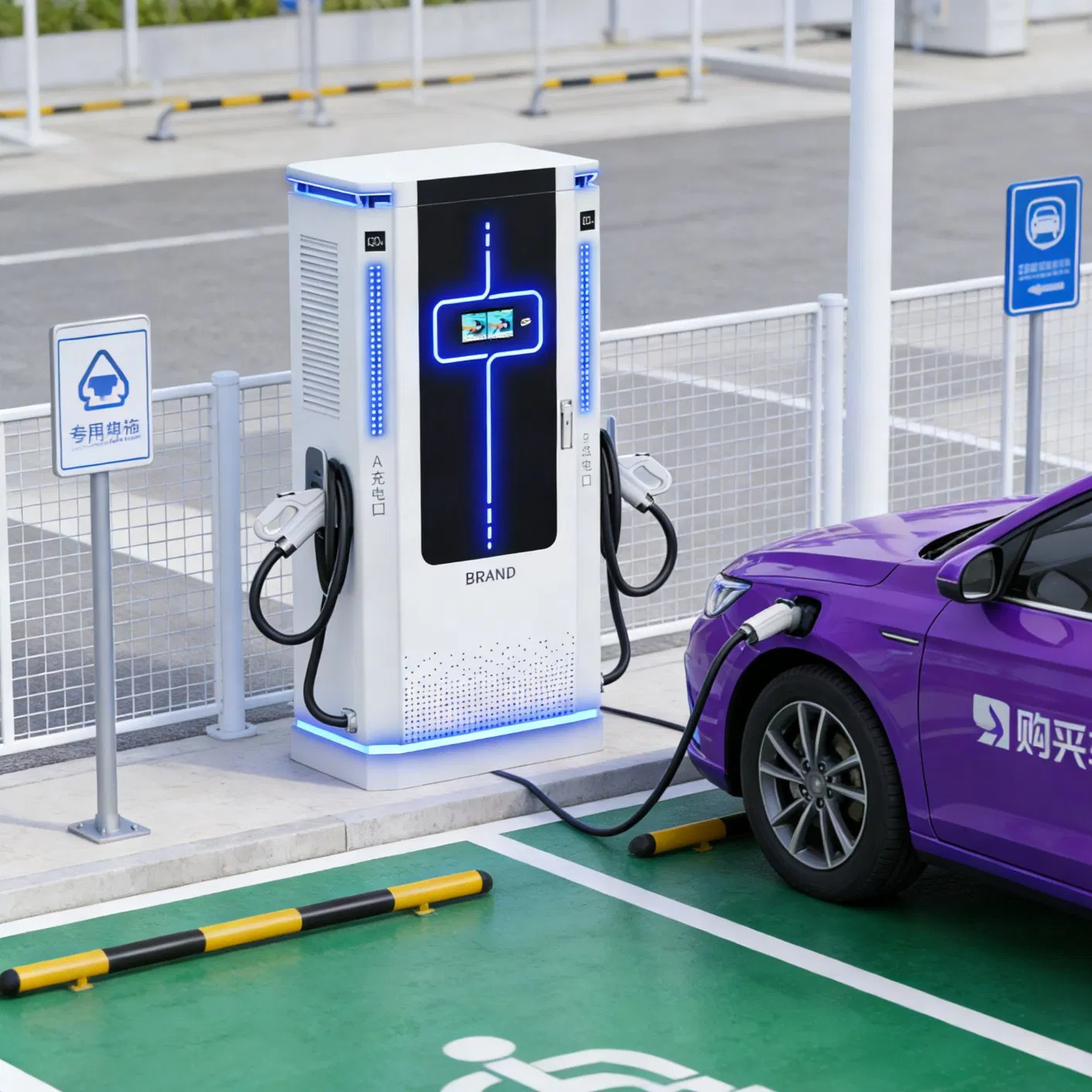

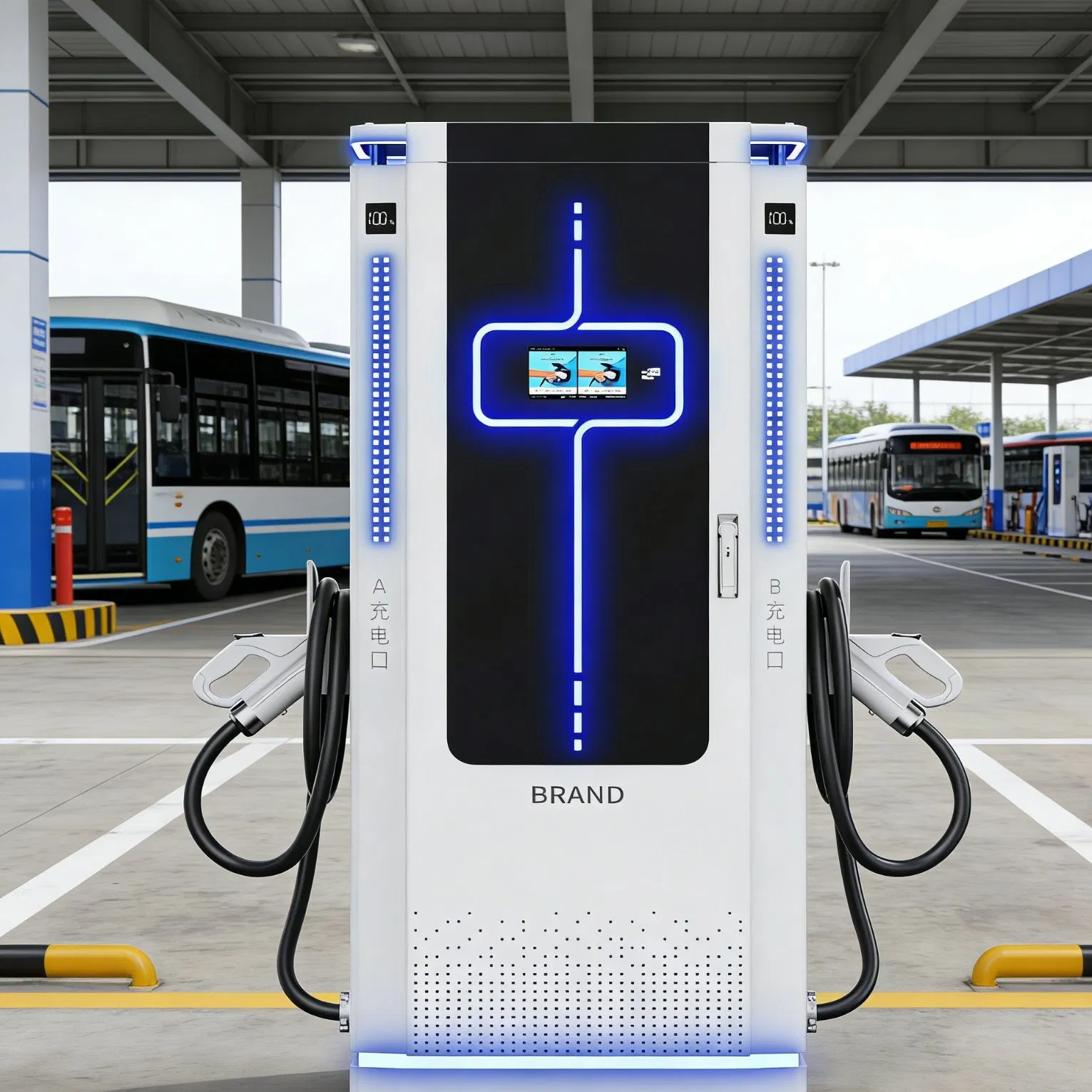

Compact Kiosk EV Charger for Urban Squares Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

EV Charger
EV Station
📊

Basic Specifications

Model NO.:80KW-600KW
Start Mode:RFID, Mobile Remote, Card
Rated Power:40kw To 600kw
Charging Guns:2 Units
Body Size:750X410X1700(mm)
Protection:IP54

Product Introduction

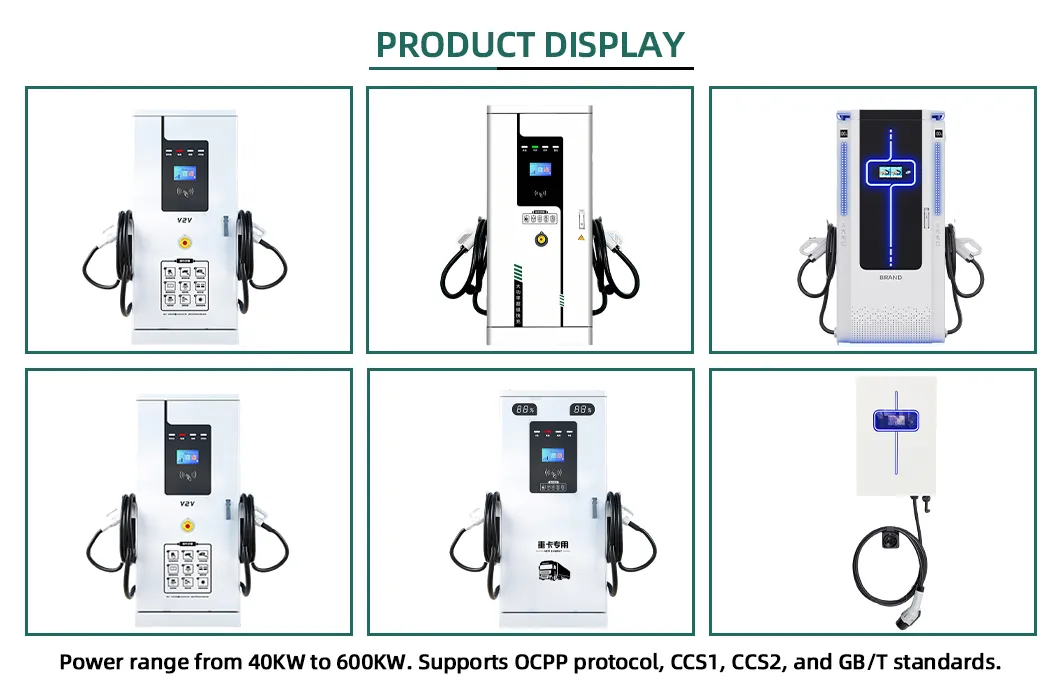

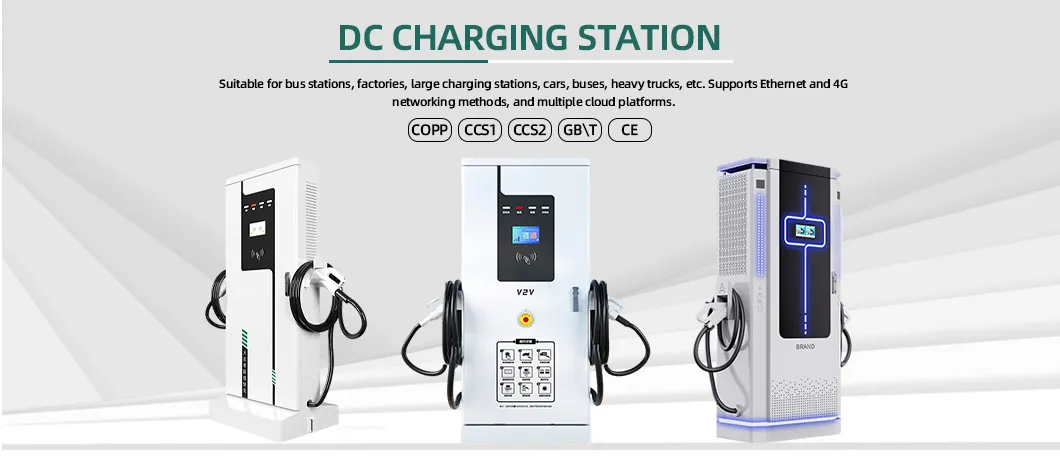

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection.

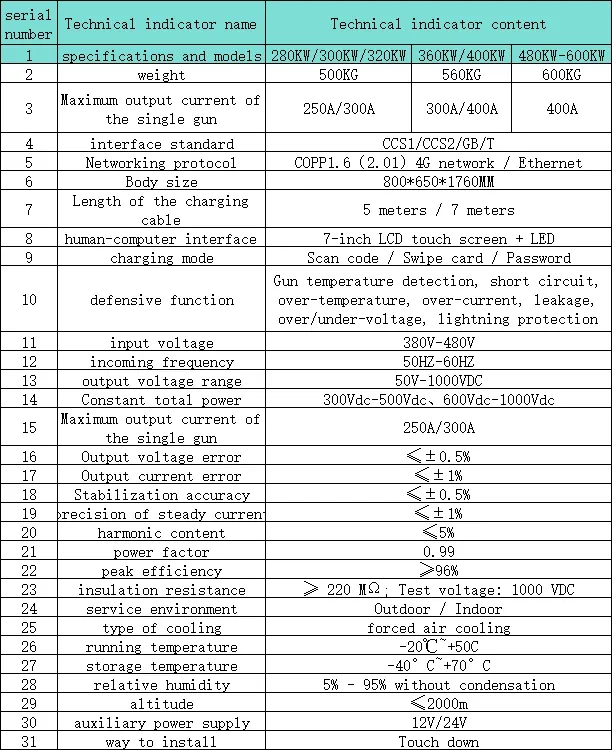

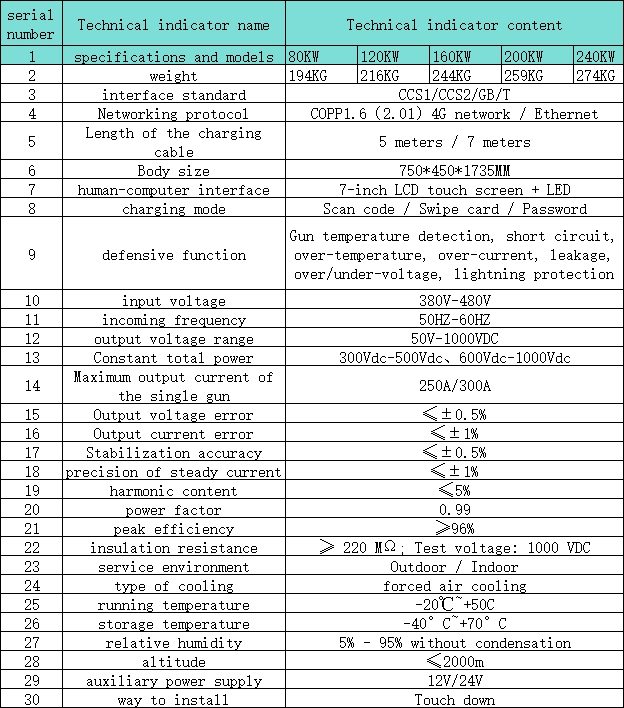

Technical Details
Internal view
Back view
Design CriterionCCS1, CCS2, GB/TInterface7-inch LCD Touch Screen
Gun Length5 MetersCharging ModeScan Code, Card, VIN, Password
Connection4G / EthernetCloud PlatformOCPP 1.6 / 2.0.1
ProtectionGun temperature, short circuit, over-temperature, leakage, lightning protection
🎬

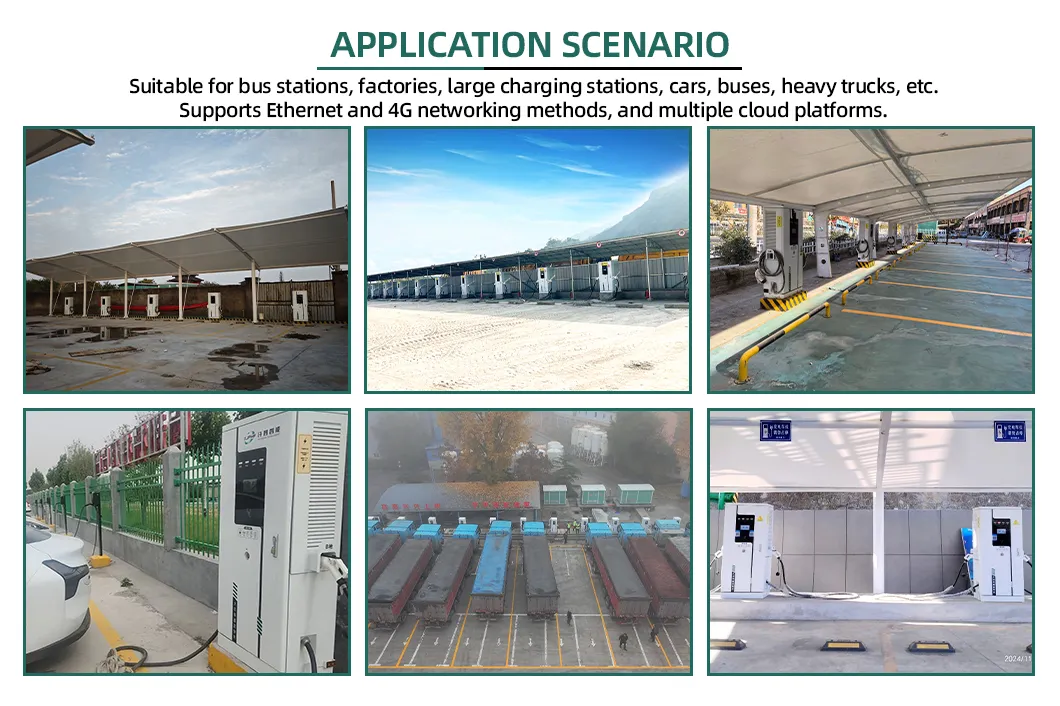

Application Demo

🏆

Qualification & Strength

Holding ISO400, ISO900, ISO1400, ISO500 certifications. We possess numerous software copyrights and various third-party inspection reports for our equipment. Established partnerships with numerous renowned enterprises both at home and abroad.

Certificate 1
Certificate 2
Exhibition
📦

Packaging & Delivery

We adopt packaging methods that are sufficient to protect the equipment, supporting sea, air, and land transportation.

Packing process
Shipping

Frequently Asked Questions

What products can I purchase from you?
We offer Wallbox/Portable AC chargers (3.5kw-44kw), floor-mounted fast DC Charging stations (30kw-480kw), mobile chargers with energy storage, and Solar System products.
Can I customize the products with my own logo?
Yes, we provide OEM services to make your design and place your logo on the products and packaging, provided the MOQ is met.
What is the typical delivery time?
Generally, it takes 7 to 35 days after receiving your advance payment, depending on the specific items and order quantity.
Do you test all products before delivery?
Yes, we conduct a comprehensive final inspection of all goods before they leave the factory to ensure quality and performance.
What payment methods are supported?
We accept various methods including T/T (30% deposit, 70% before delivery), PayPal, Credit Card, Western Union, and Bank Transfer.
What are the trade terms?
We support EXW, CFR, CIF, FOB, DDP, and DDU terms.
