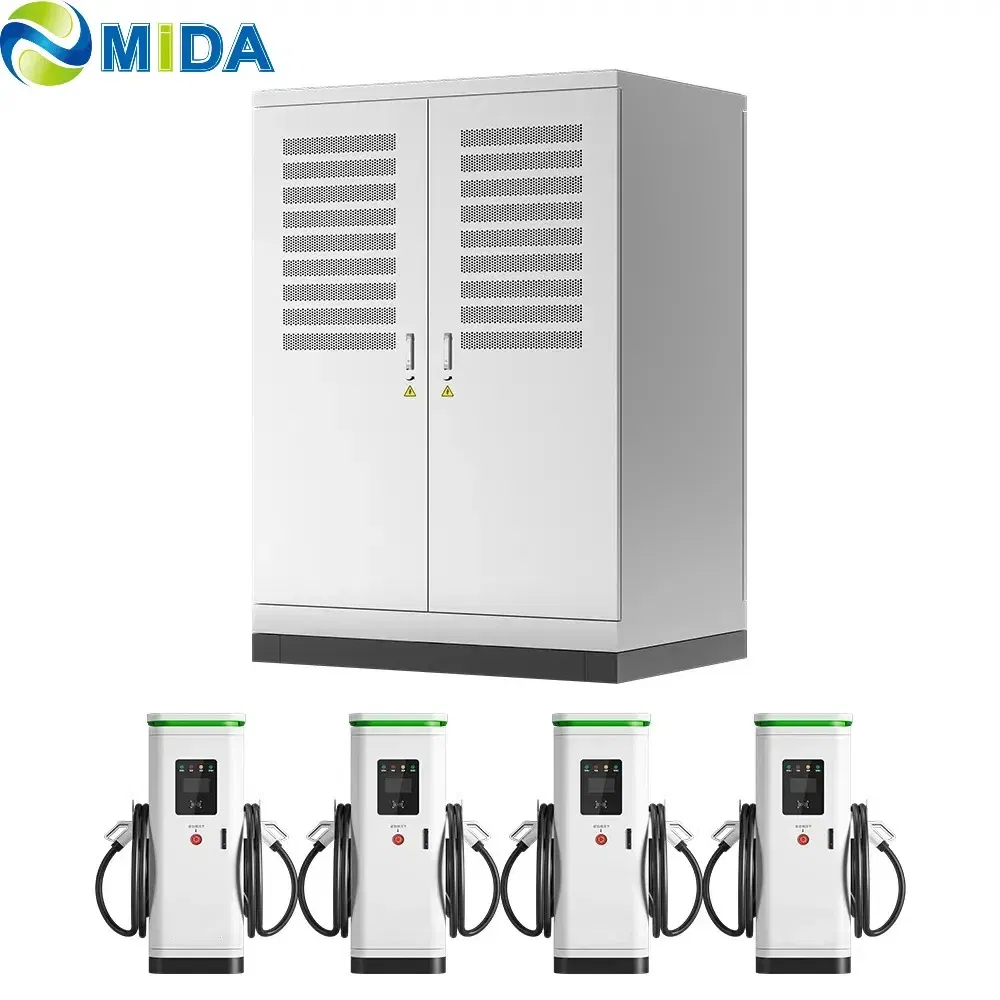

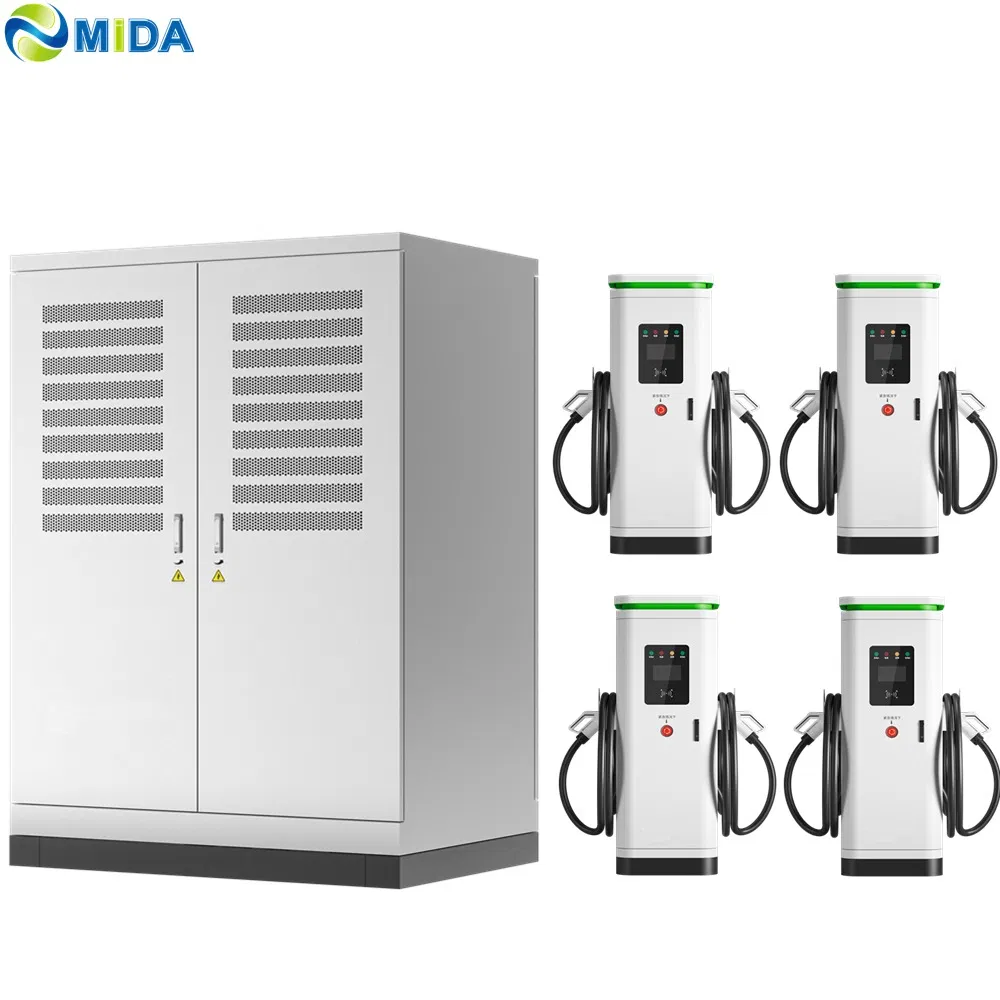

DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
1 / 5
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations
DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations

DC Fast Charger 480kw 720kw Split Flexible Charging Stack Urban Public Charging Stations

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T
Installation: Floor Type
Send Inquiry

Product Description

Basic Information
Model NO.
MD-WSP-480KW/720KW
Location
Public Use
Charging Interfaces
Multiple Piles with Multiple Chargers
Start Mode
Credit Card, Mobile Remote, RFID
AC Input
400VAC±15%/ 480VAC (3p+N+PE)
Output Voltage
DC 150V~1000V
Connectors
CCS1/ CCS2/ Gbt/ Chademo/ Nacs
Cooling
Liquid Cooled
Protection
IP55
Operating Temp
-25°C~+75°C
Product Description

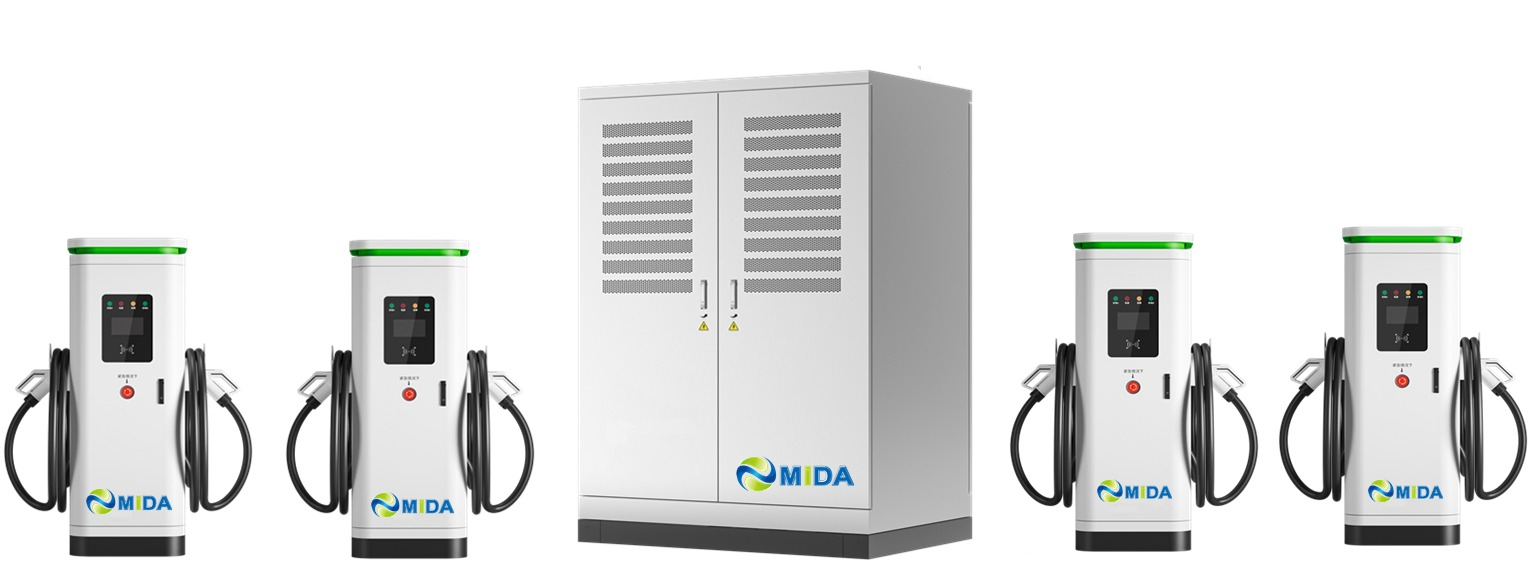

DC Fast Charger 480kW 720kw Split Flexible Charging Stack

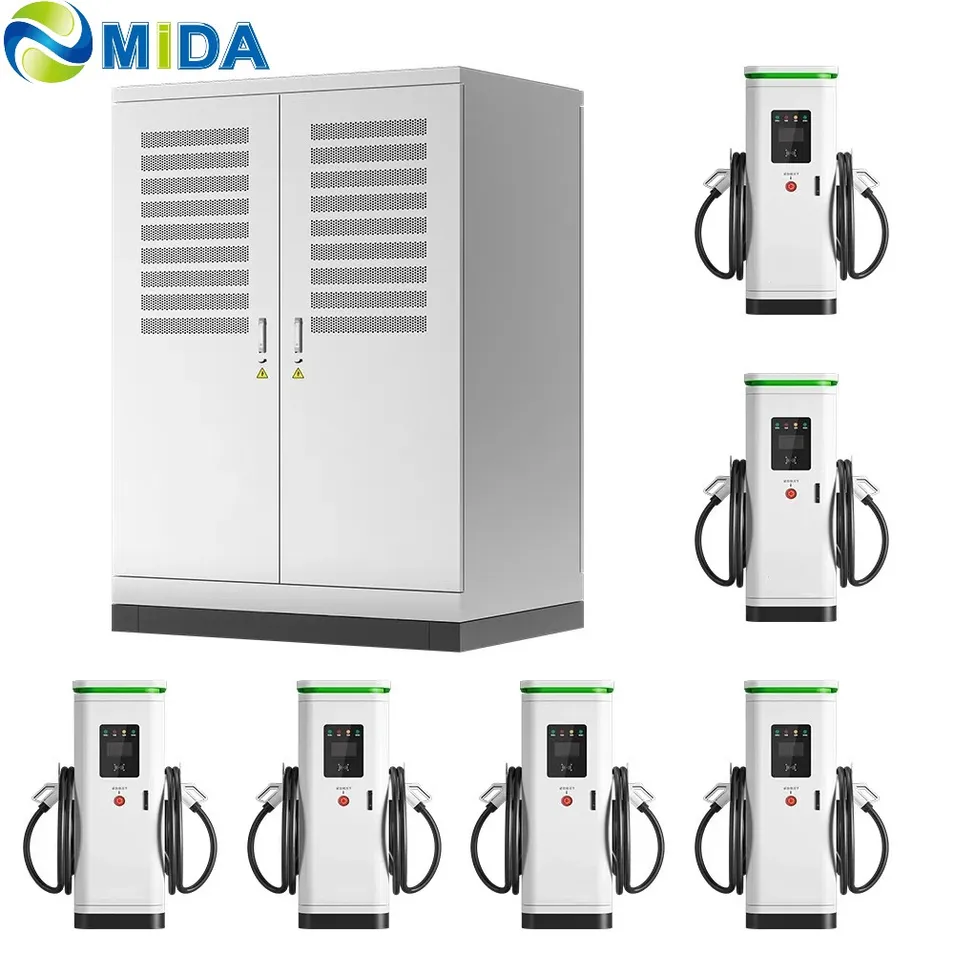

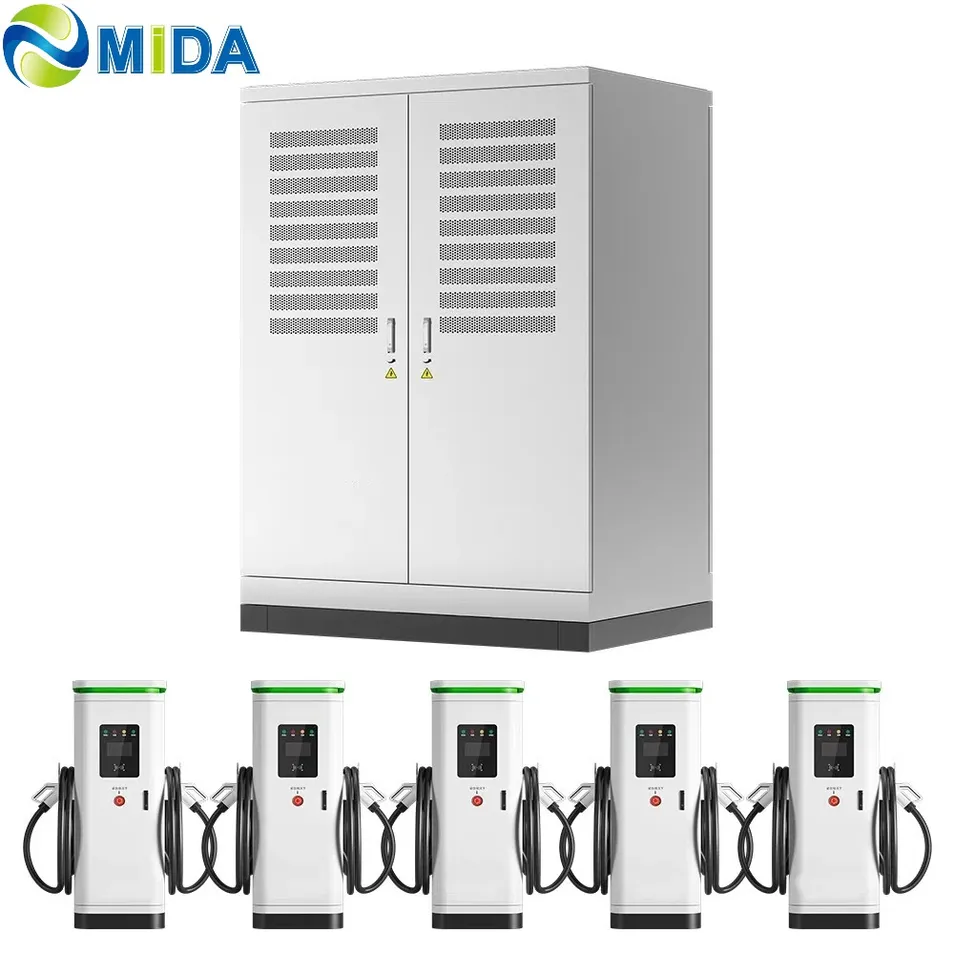

DC Fast Charger Stack DC EV Charging Station
Guaranteed Security & Flexibility
- Simultaneously charging up to 3 EVs
- Flexible configurations: 240kw to 720kw
- Supporting CCS, CHAdeMO, GB/T, and NACS Plus
- Smart charging with dynamic load balancing
- OCPP 1.6J & 2.0 connectivity
Technical Specifications
Feature Specification Details
InputVoltage3-phase 400V ±15% AC (TN-S)
Frequency45~65Hz
Efficiency≥94%
OutputRated VoltageDC: 500Vdc - 1000Vdc (Liquid Cooled)
Max CurrentGBT 250A / CCS 200A / CHAdeMO 125A
ControlDisplay8'' LCD Touchscreen
PaymentMobile APP / RFID / POS
MechanicalProtectionIP54 / IP55
Dimensions700*1900*650mm
After Sales Service

Standard Warranty: 2 years.

Service Support: Professional advice for configuration, installation, and investment planning. We provide progress tracking during production and free instructions for installation and troubleshooting. Replacement parts are available within the warranty period.

Professional Production & Certification

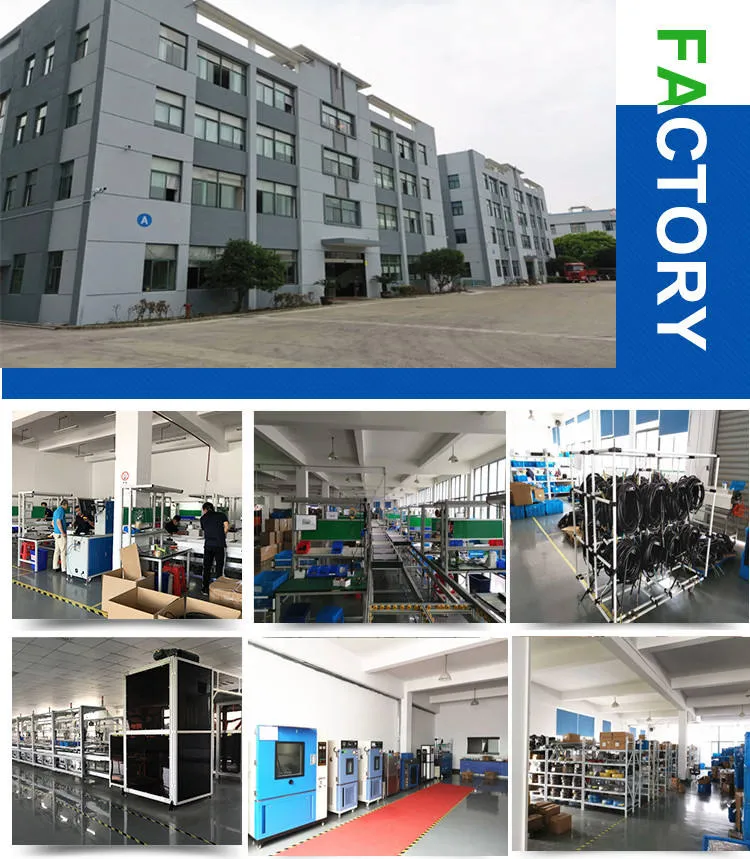

Production Line Testing Facility EV Solution
Frequently Asked Questions
What is the maximum output of this charging stack?
The split flexible charging stack can be configured for 480kW, 600kW, or up to 720kW, allowing for ultra-fast charging across multiple vehicles.
Which charging standards are supported?
The station is multi-standard and supports CCS1, CCS2, GB/T, CHAdeMO, and NACS connectors to ensure compatibility with all major EV models.
Is the system suitable for outdoor public use?
Yes, with an IP55 protection rating and an operating temperature range of -25°C to +75°C, it is designed for durable performance in various urban environments.
Does it support remote management and monitoring?
Absolutely. The station supports OCPP 1.6J and 2.0 protocols via Ethernet, Wi-Fi, or 4G for remote operation, monitoring, and smart load balancing.
How long is the product warranty?
We provide a standard 2-year warranty with free technical instructions for installation and troubleshooting.
What payment methods can users use?
Users can authenticate and pay via RFID cards, mobile applications, or integrated POS systems for a seamless user experience.
