📋 Overview - Basic Info
Model NO.ANDCE1-120KW/1000V-Y11
LocationPublic Use
Charging InterfacesOne Pile with Multiple Charges
Start ModeRFID, Credit Card, Mobile Remote
Input Power3pH+N+PE

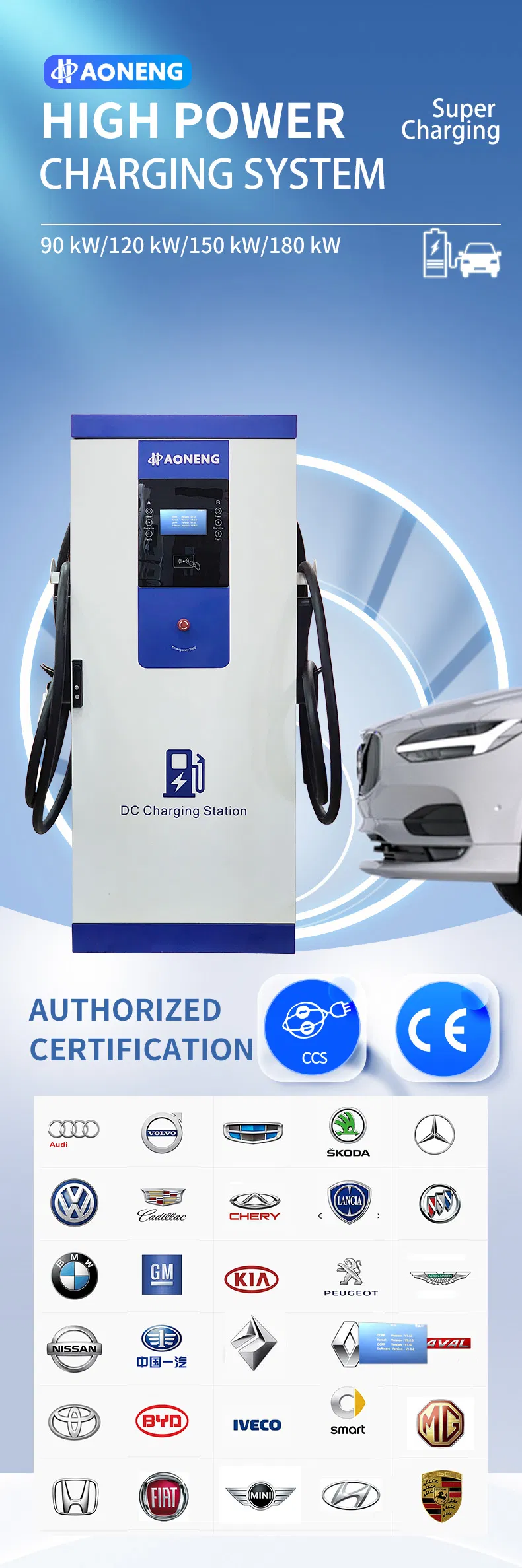

Rated Power90kw--180kw

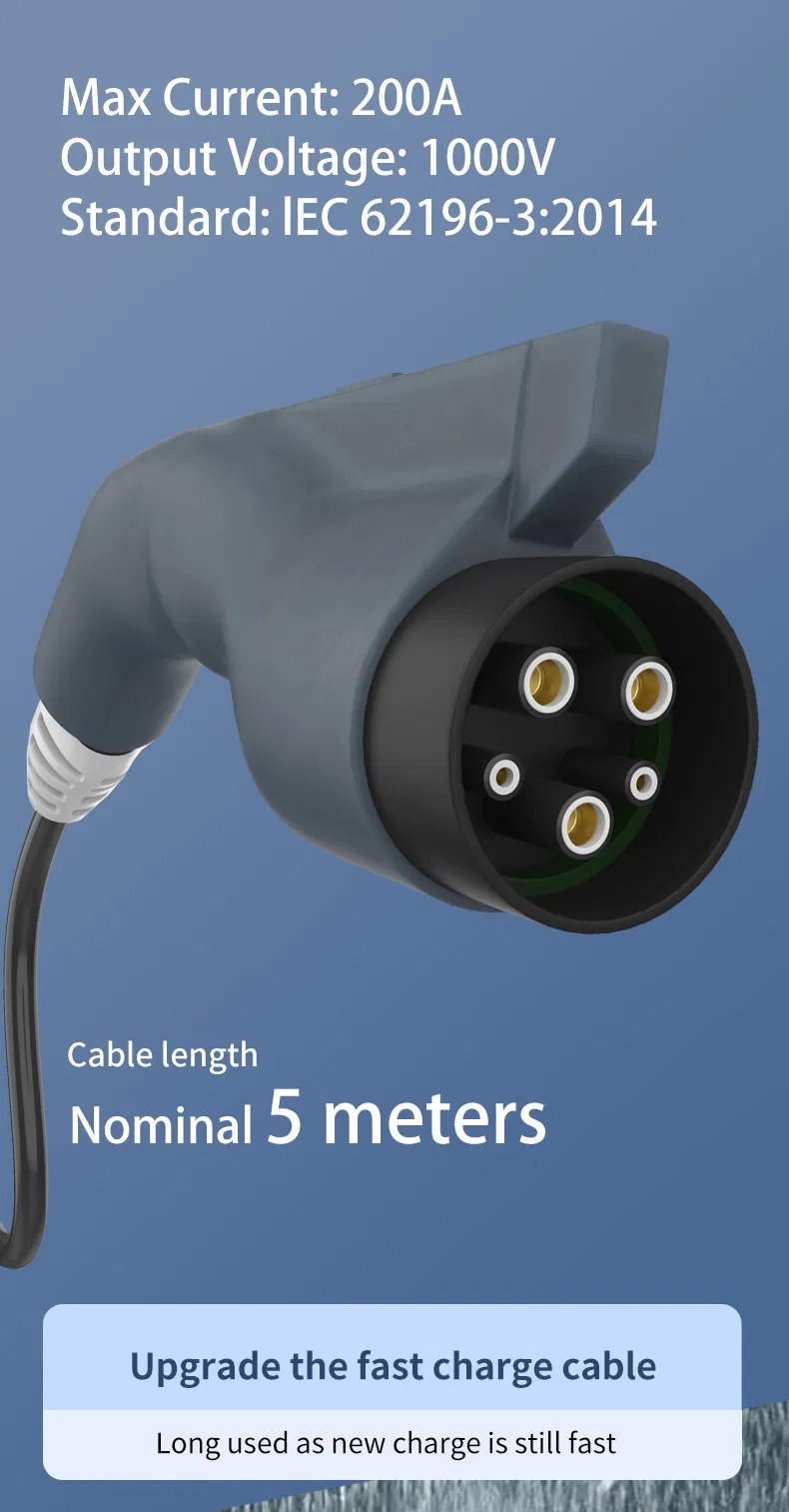

ConnectorCCS2*2 (IEC 62196)
Cable Length5 Meters
CertificationCE
ProtocolOCPP 1.6
Dimensions750×750×1800 mm
Weight405kgs
📦 Packaging & Delivery
Package Size75.00cm * 75.00cm * 180.00cm
Package Gross Weight400.000kg
🚗 Product Description
⚙ Technical Parameters

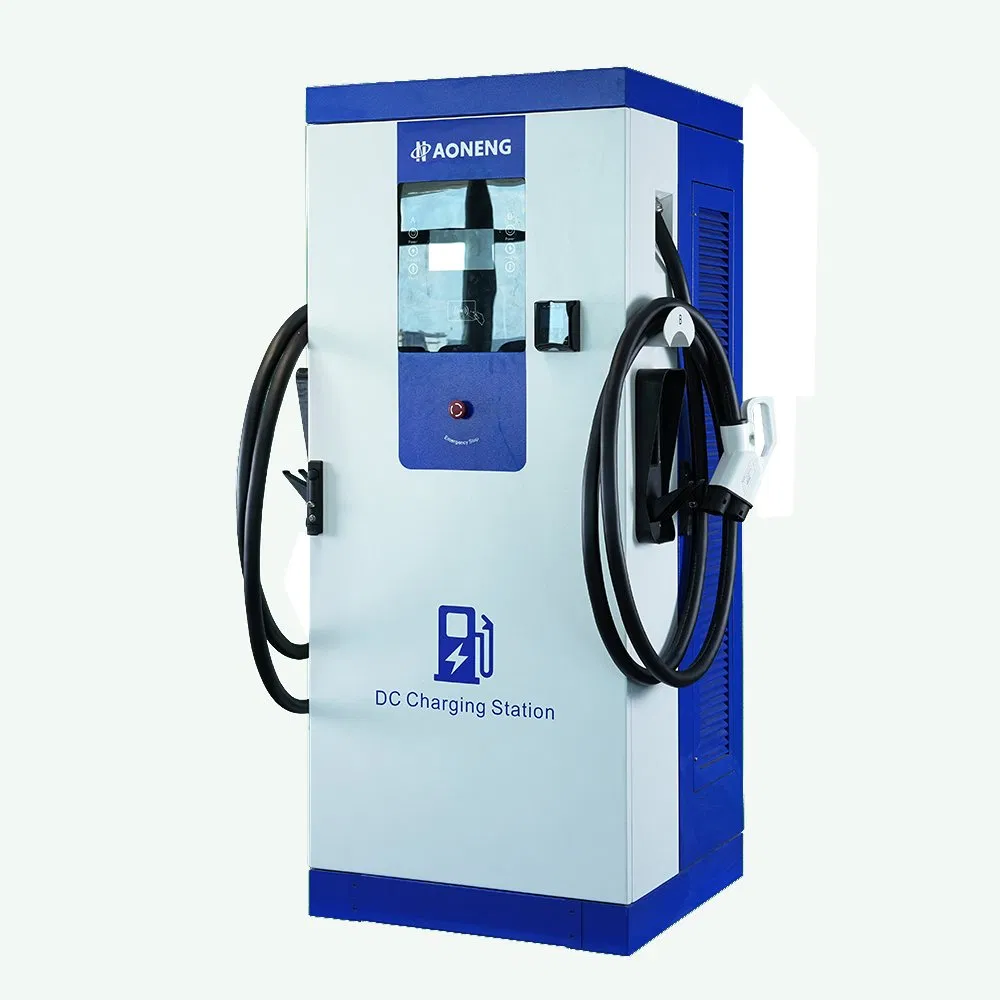

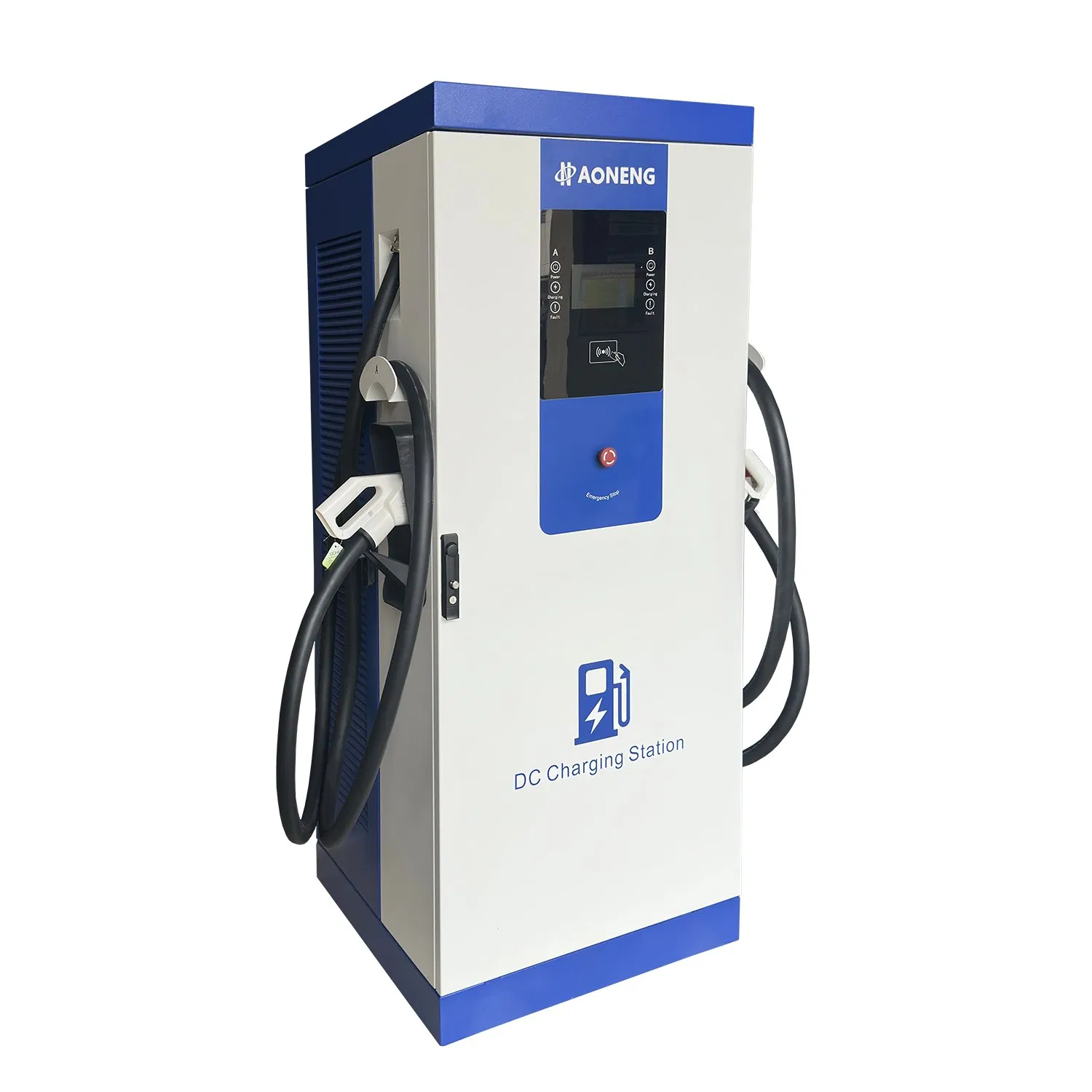

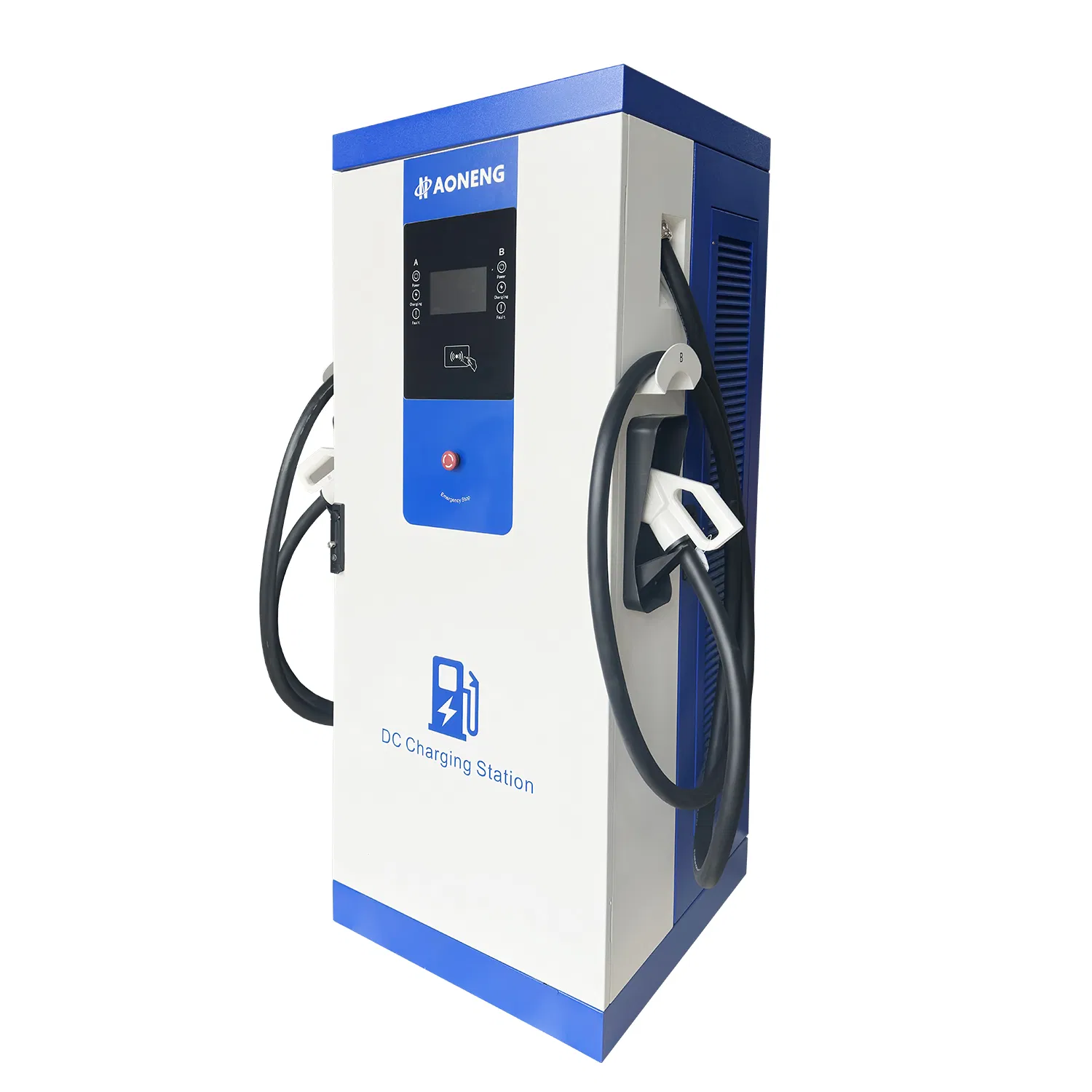

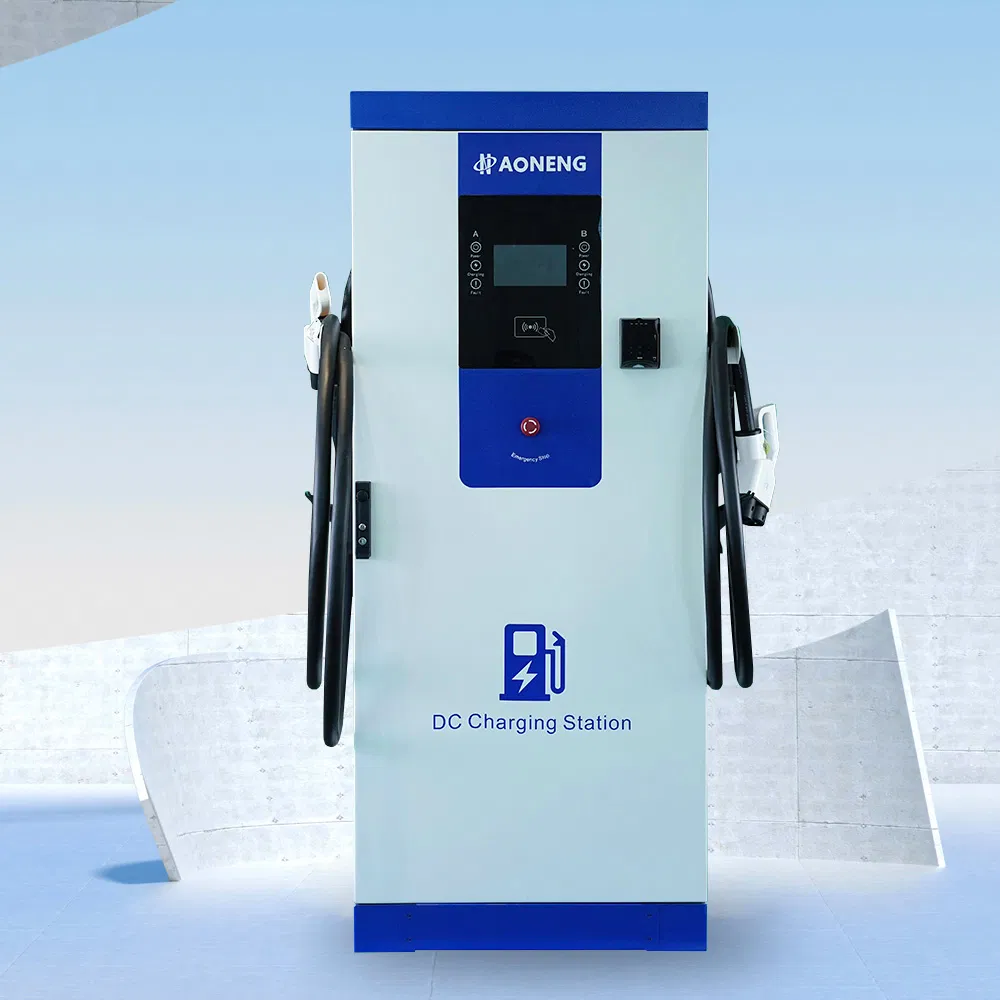

| Product Name | DC 90KW 180KW Integrated DC Fast EV Charger (CCS2) |
| AC Input Voltage | 400 VAC ± 10% |
| AC Input Frequency | 50 / 60 Hz |
| Efficiency | 95% (full load) |
| Output Voltage | 200 ~ 1000 VDC |
| Max Output Current | 200A |

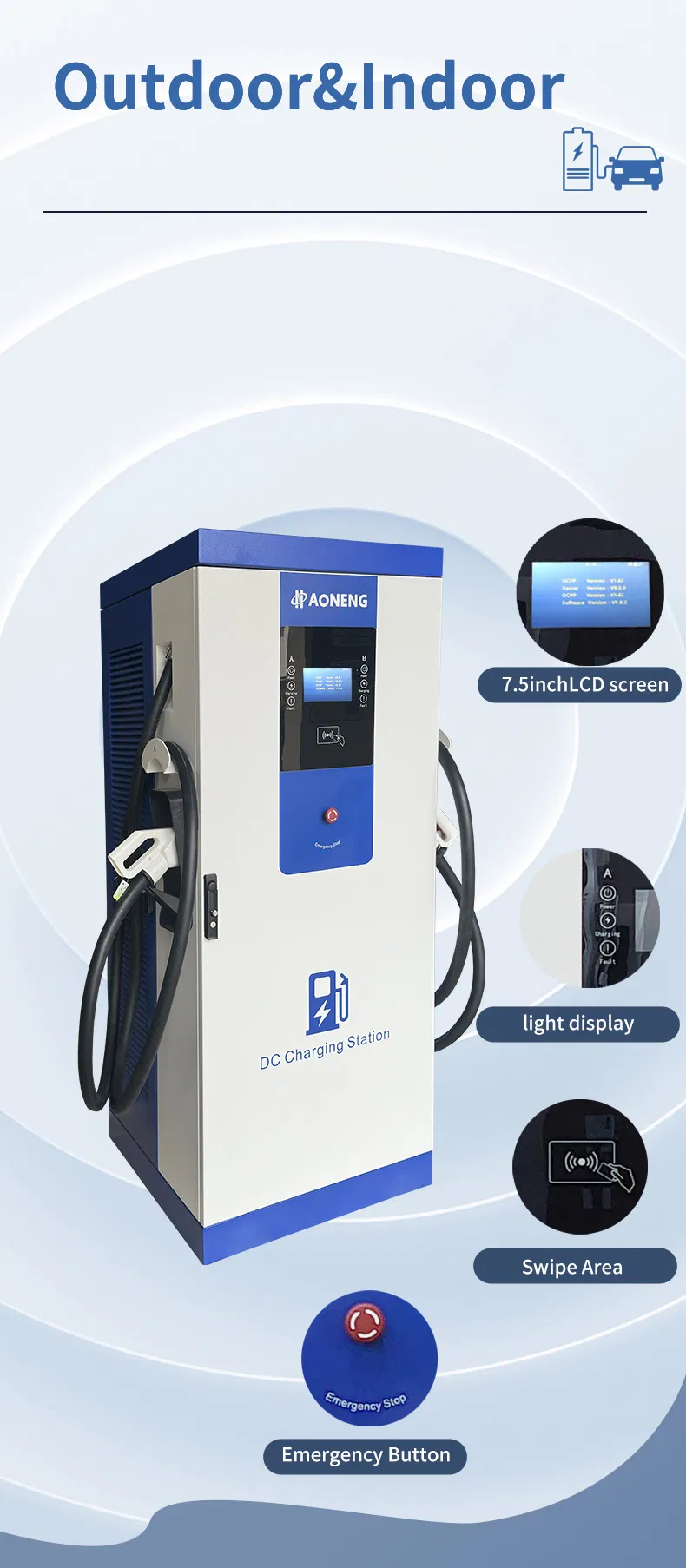

| HMI | 7 inch LCD Touch screen |
| Safety Standards | EN 61851-23: 2014 & EN 61851-1: 2010 / IEC 61851-1: 2017 |
| RFID System | ISO 14443A, MIFARE DESFire Ev1 |

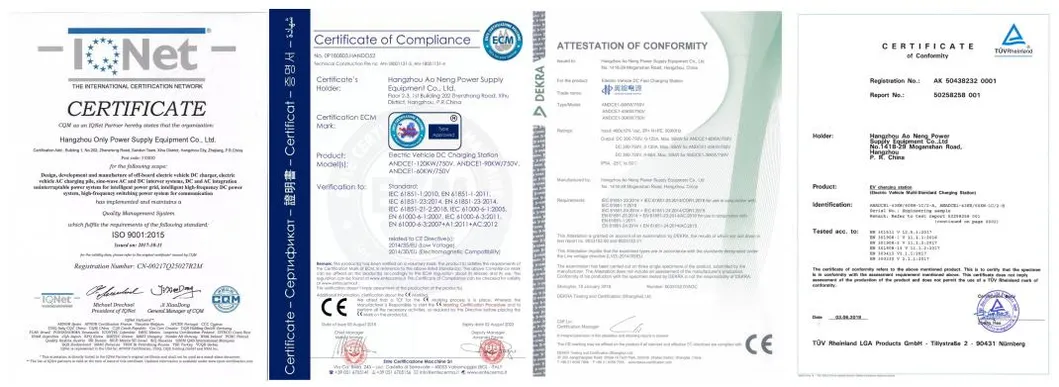

📜 Certifications

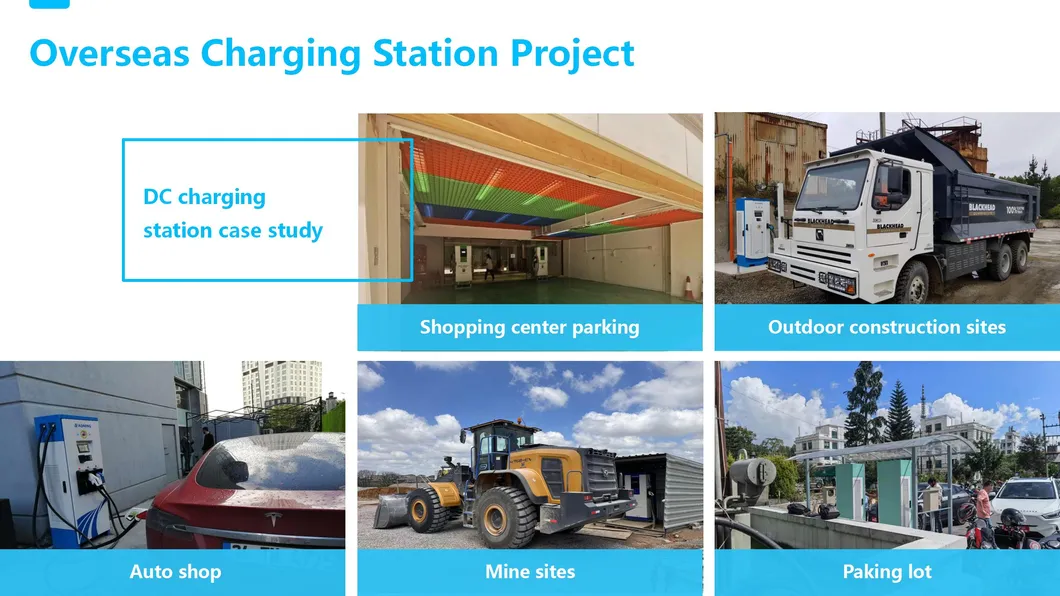

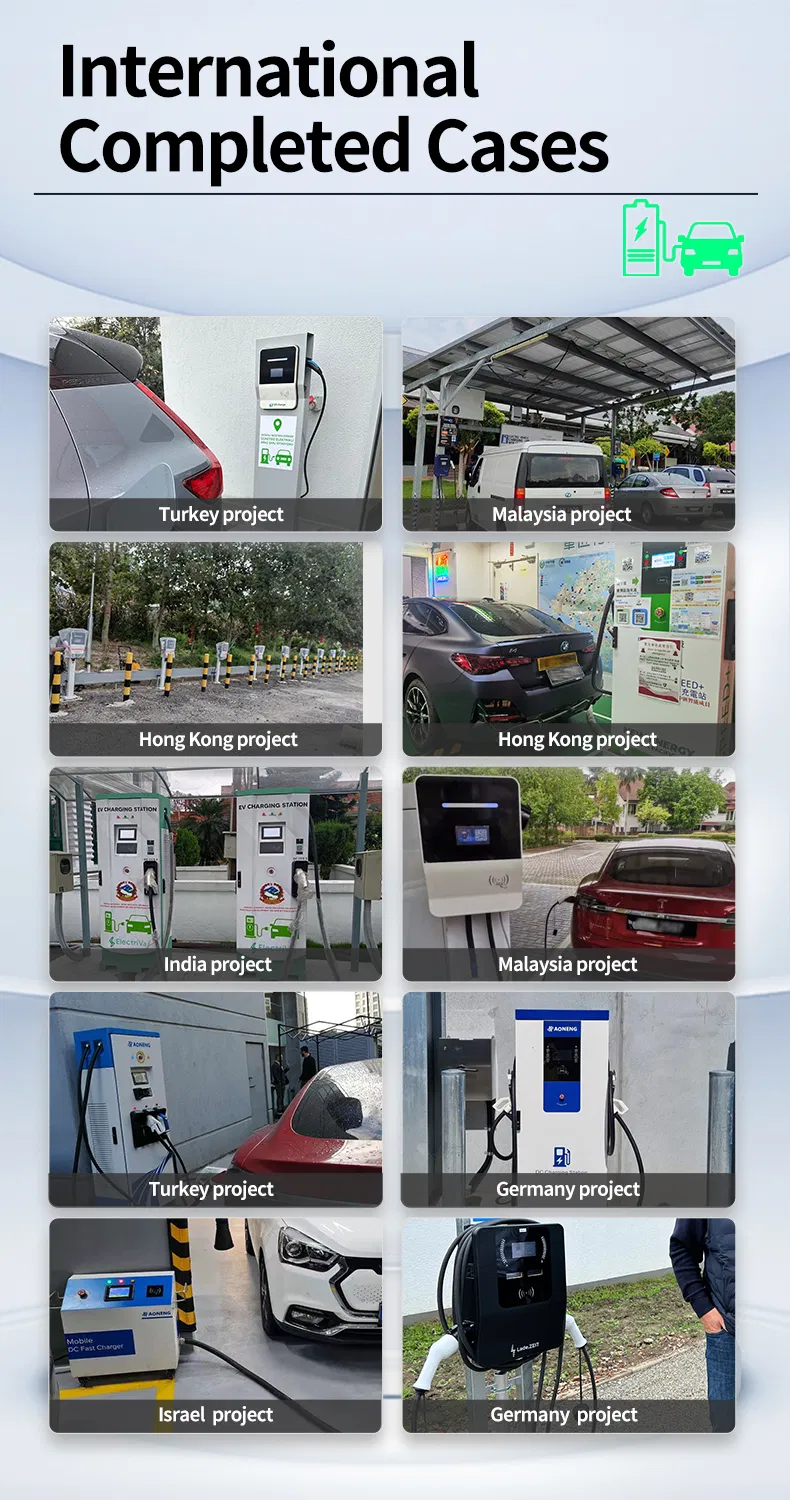

🏛 Case Show
❓ FAQ
Q: Are you a factory or trading company?
A: We are a factory with more than 24 years in the field of new energy. We warmly welcome your visit.
Q: What is the estimated delivery time?
A: Generally, delivery takes between 7-30 days after receiving payment. Precise timing depends on the specific products and quantity.
Q: Do you have a Minimum Order Quantity (MOQ)?
A: Our MOQ is 1 PC. We also have a team of over 100 technicians to meet full customization requirements.
Q: How long does it take to fully charge an electric car?
A: It depends on the car's Battery Capacity (kWh) divided by the lower power rating of either the On-Board Charger (OBC) or the Charging Station. For example: 40kWh battery / 7kW charger = approx 5.7 hours.
Q: Do you provide OEM/ODM or customized services?
A: Yes. We have been involved in OEM and ODM projects since 2004, providing professional customized services for our global clients.
Q: What is your after-sales service policy?
A: We provide a 2-year warranty. Our dedicated after-sales engineering team offers support via video or phone calls whenever needed.
