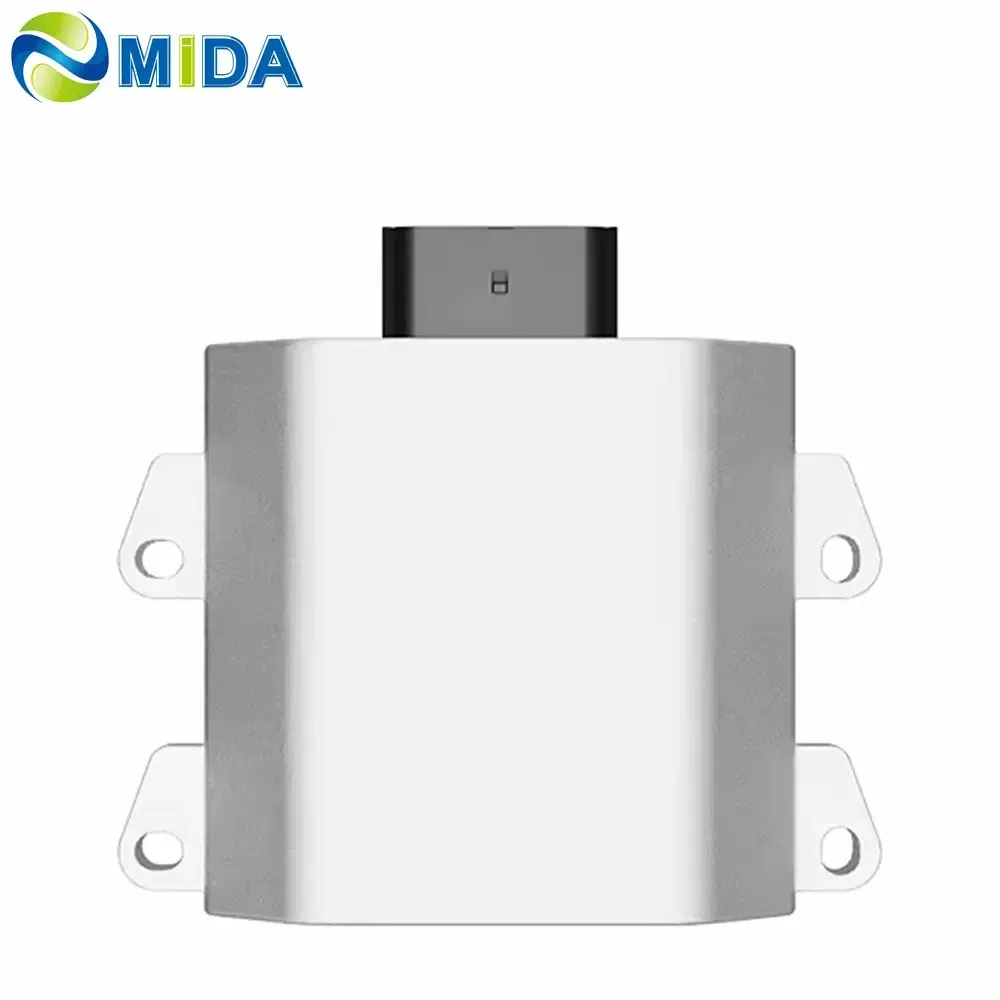

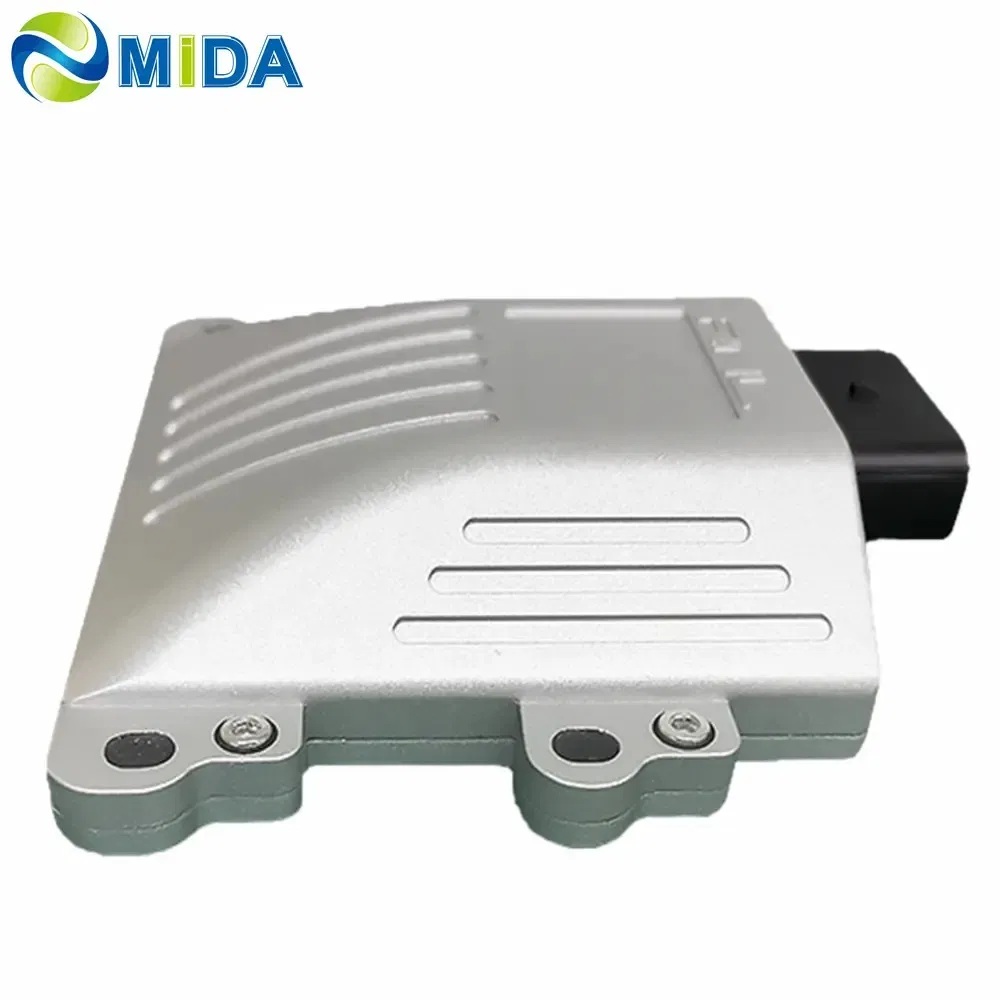

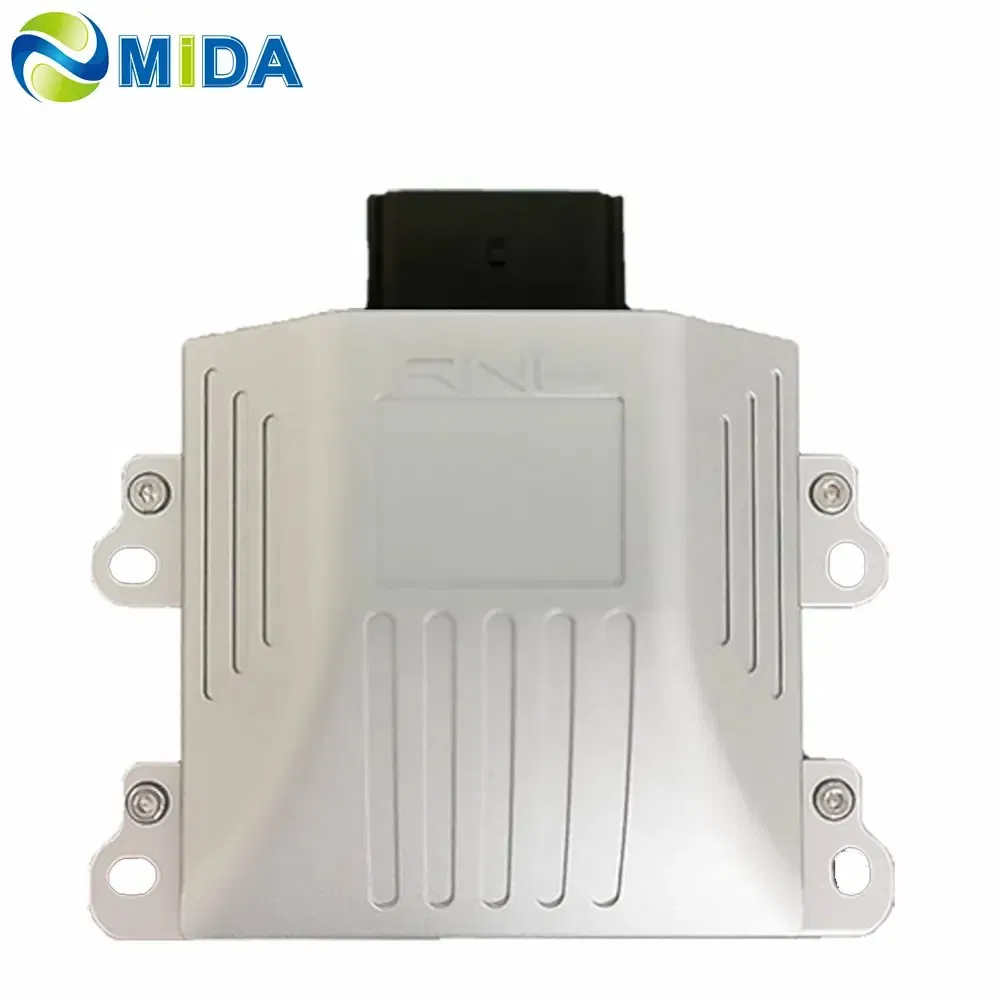

Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
1 / 5
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller
Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller

Evcc Module CCS V2g Nacs Protocols PLC to Can EV Car Charger Controller

Customization: Available
Usage: Electric Vehicles
Type: Wireless
Send Inquiry

Product Description

📋

Basic Information

Model NO.
EVCC
Certification
CE / ROHS
Charging Mode
CCS (AC and DC)
Input Voltage
DC 9V~28V
Serial Port
GB/T27930 CAN Interface
Wake-up
CP (Control Pilot)
Op. Temperature
-40~+85°℃
Specification
151.5x135x35.3 mm
🚗

Product Description

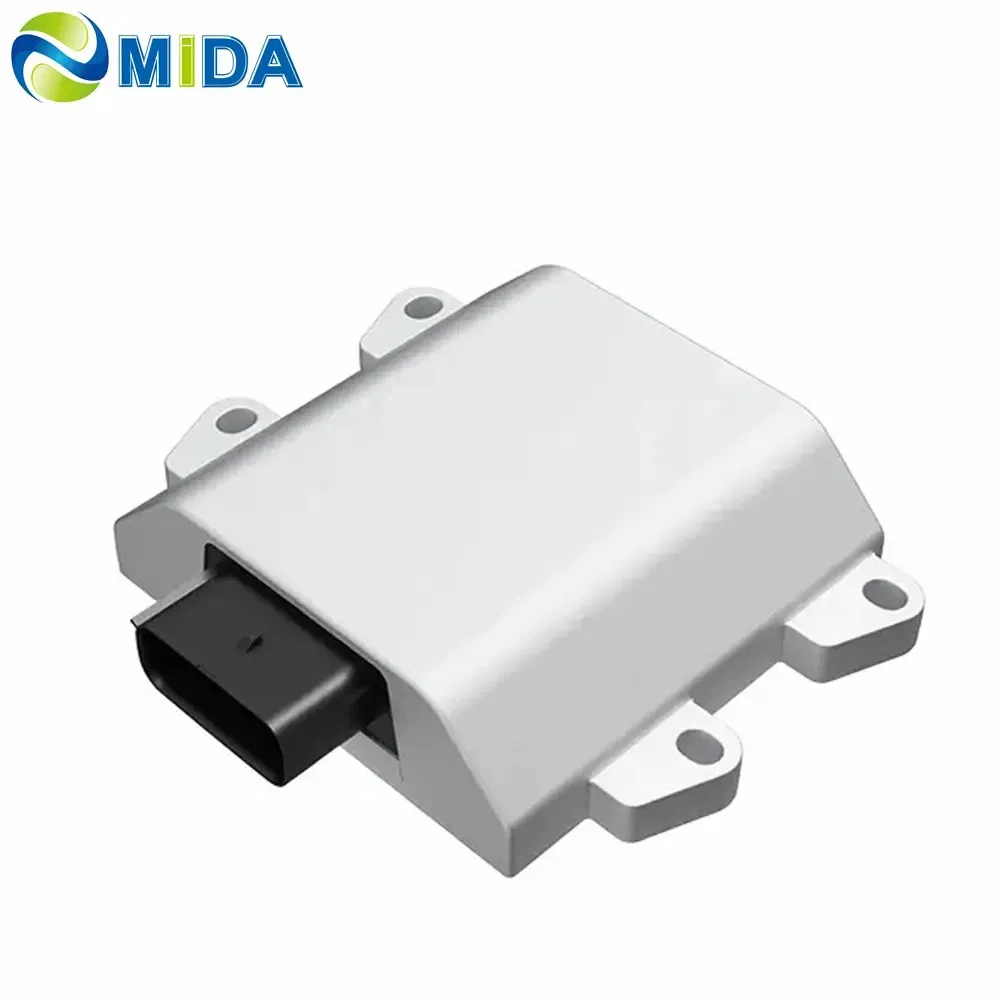

EVCC Module CCS V2G NACS Protocols PLC TO CAN EV Car Charger Controller

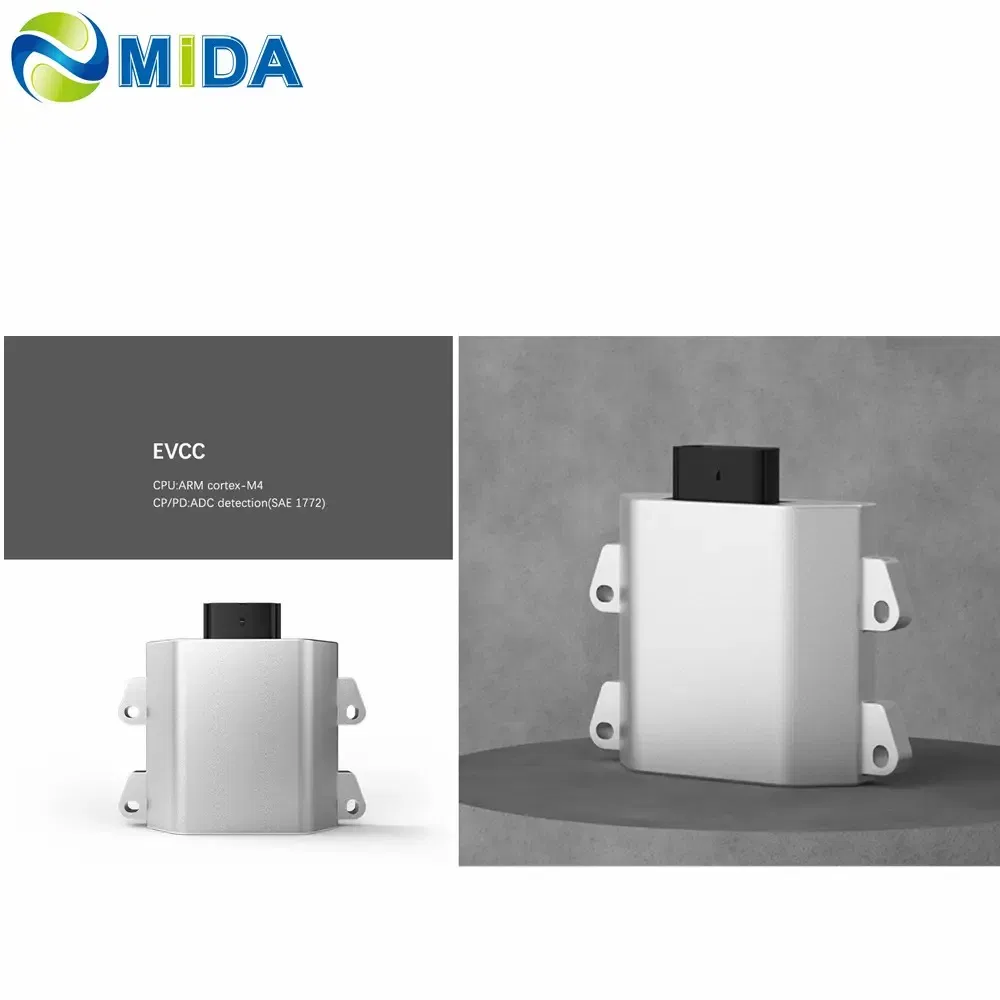

EVCC Module

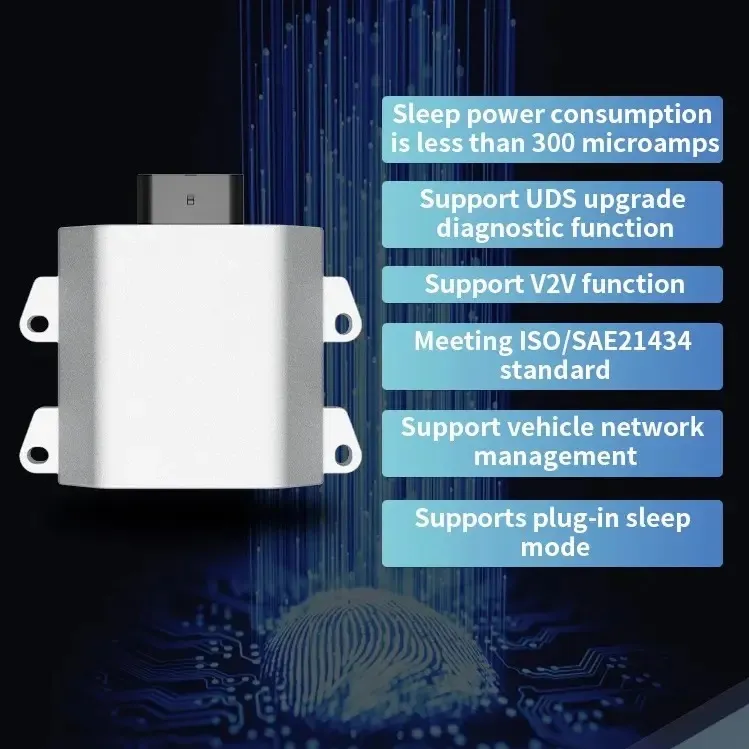

Product Features

EVCC is a communication modem for electric vehicle charging communication supporting CCS (V2G), AC, and NACS protocols. It serves as a PLC to CAN gateway, ensuring safe and compliant communication between electric vehicles and charging stations according to international standards such as DIN SPEC 70121 and ISO 15118.

⭐ Core Functions:
• Communication Bridge: Converts EV protocols to station-recognized protocols.
• International Compatibility: Enables national standard vehicles to use overseas charging networks.
• Monitoring: Tracks battery capacity, controls power/time, and records data.
• Versatile Support: Compatible with CCS1, CCS2, GBT, and CHAdeMO inlets.

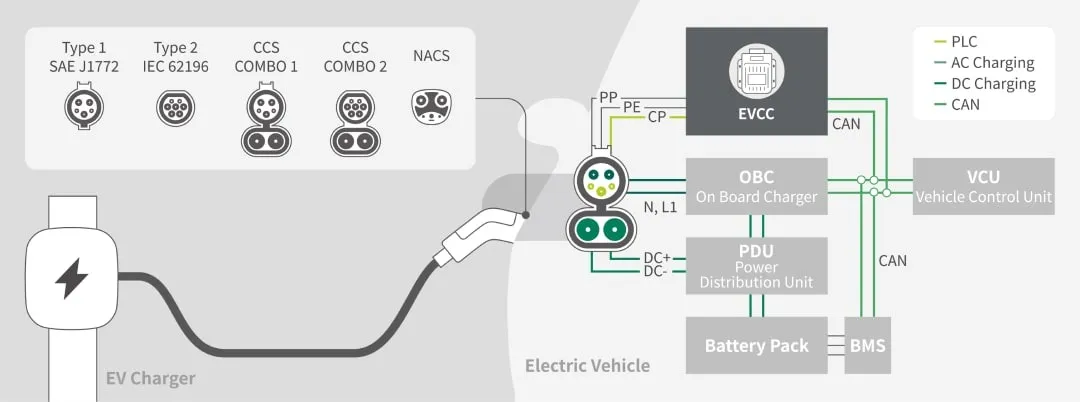

Technical Workflow
⚙️

Technical Specification

Item Description
Input Voltage DC 9V~28V (Typical DC24V, DC12V)
Serial Port GB/T27930 CAN interface with BMS
Inlet Lock Motor DC12V 3-Wire / DC24V 4-Wire for Phoenix Inlet Actuator
Power Consumption Active: <95mA | Standby: <1mA
Compliance ISO/IEC15118, DIN70121, SAE2847.2, SAE J2931-4
🛡️

Quality & Capability

Our solutions include all types of EV components with CE, PSE, TUV, and UL certifications. We focus on being industry leaders in new energy automotive communication technology.

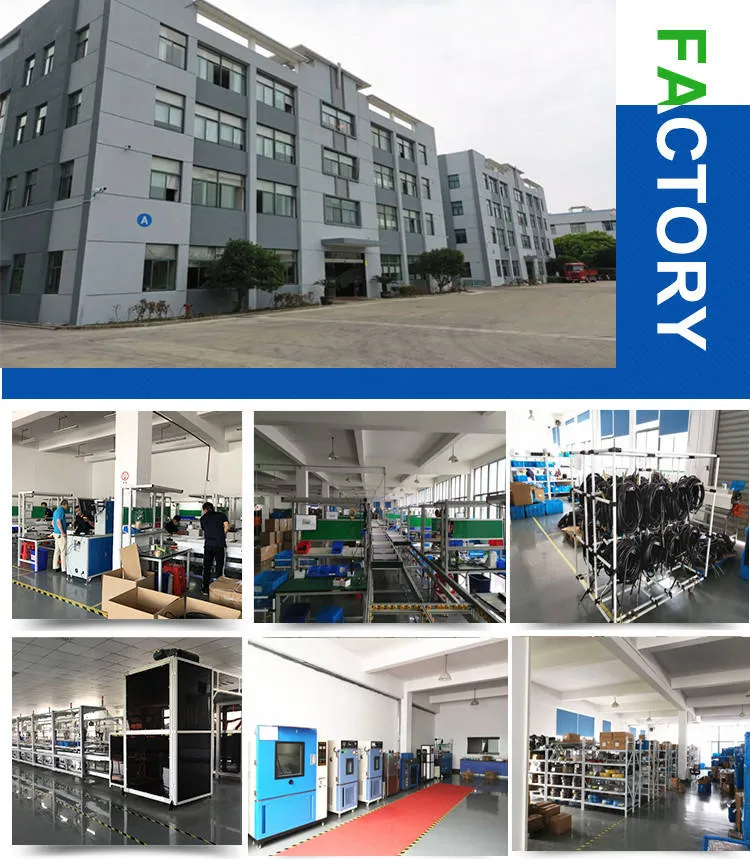

Production
Testing
Certifications
Frequently Asked Questions
What charging protocols does the EVCC support?
It supports international standards including DIN SPEC 70121, ISO 15118 (AC/DC), and NACS protocols, enabling communication via PLC.
Does this module support V2G (Vehicle-to-Grid)?
Yes, the EVCC supports Bidirectional Power Transfer Communication in accordance with ISO 15118-2 and ISO 15118-20.
Is the module suitable for harsh environments?
The controller has an operating temperature range of -40°C to +85°C and features an IP67 protection degree.
How is the EVCC woken up?
The module is designed to be woken up via the CP (Control Pilot) signal, ensuring efficient power management.
Can it convert GB/T standard vehicles for export?
Yes, it acts as a gateway converting Chinese CAN communication to international PLC communication standards (CCS1/CCS2).
What are the power consumption levels?
It consumes less than 95mA when active (at 24V) and less than 1mA during standby mode.
