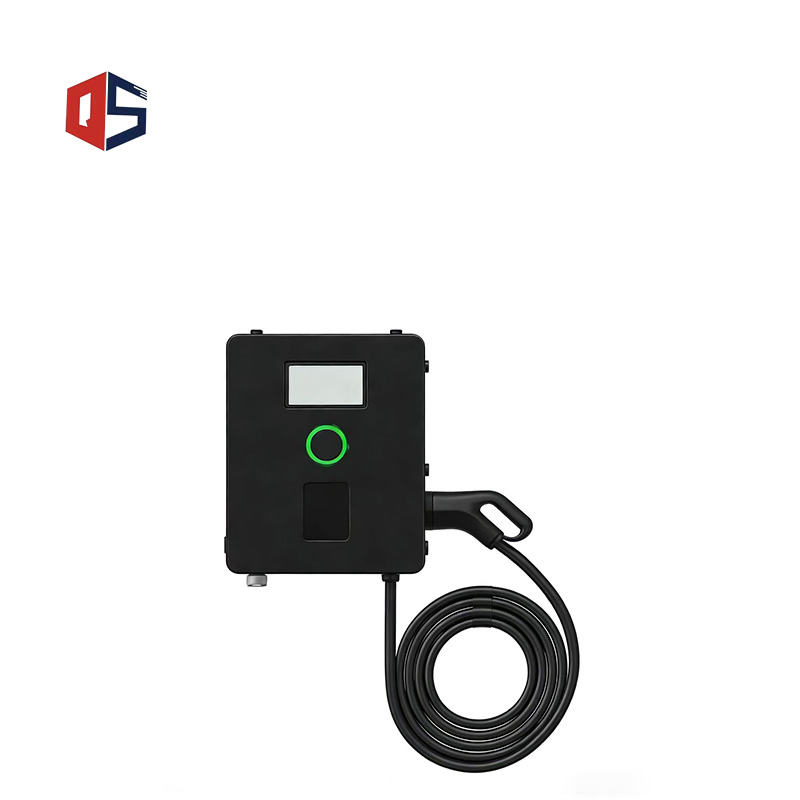

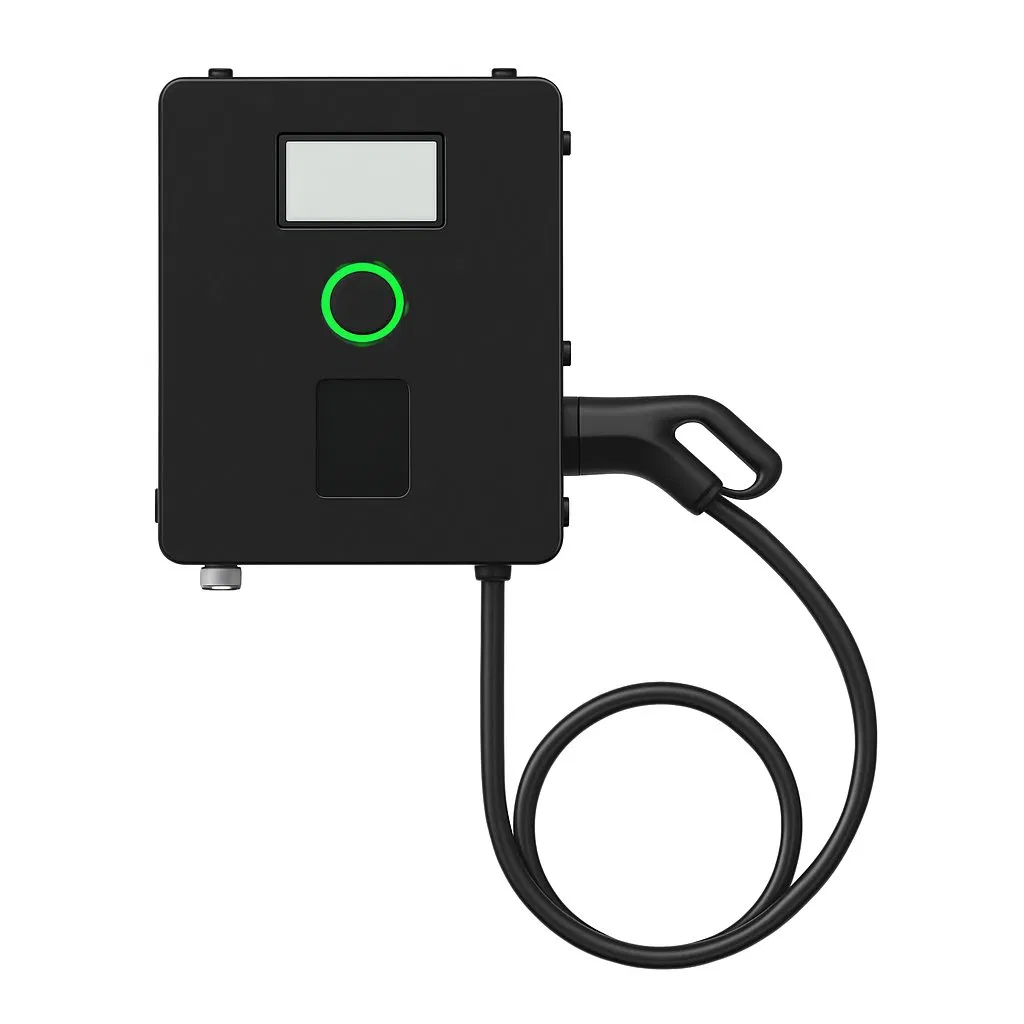

Fast Deployment EV Charger for Urban Charging Expansion

Basic Information

Model NO.: QSCDZ

Rated Current: 2A; 63A; 100A; 200A; 300A

Rated Power: 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw

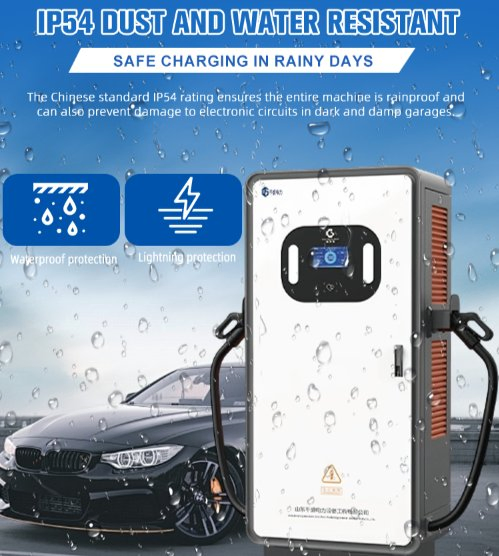

Protection Grade: IP54 / IP65

Service Life: 8-10 Years

Charging Type: AC, DC, AC&DC Integrated

Charging Efficiency: ≥93% (AC); ≥95% (DC)

Power Factor: ≥0.95

Package Size: 120.00cm * 45.00cm * 155.00cm

Gross Weight: 60.000kg

Product Description

Fast Deployment EV Charger for Urban Charging Expansion

Flexible Expansion & Wide Compatibility | Certified Safety & Rock-Solid Reliability | Effortless Operation & Low-Maintenance Design | Consistently Stable Performance

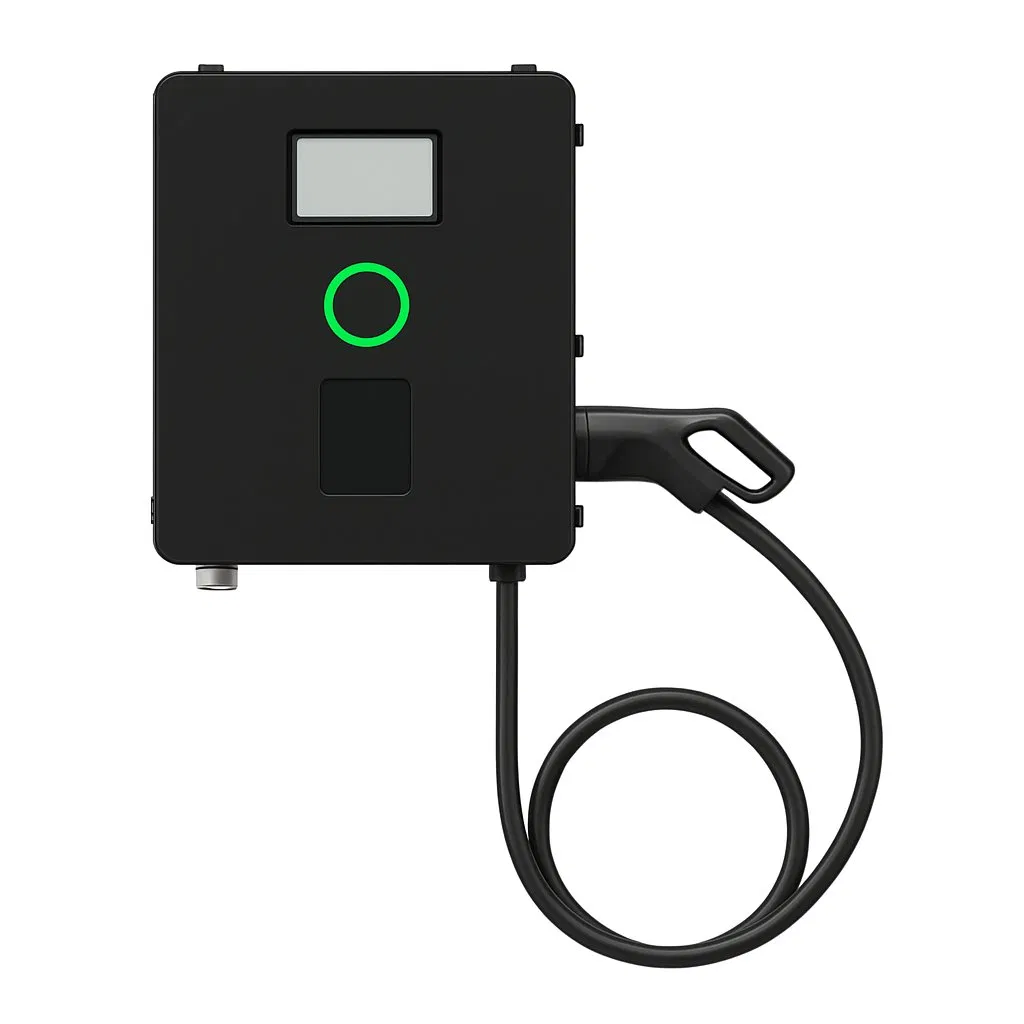

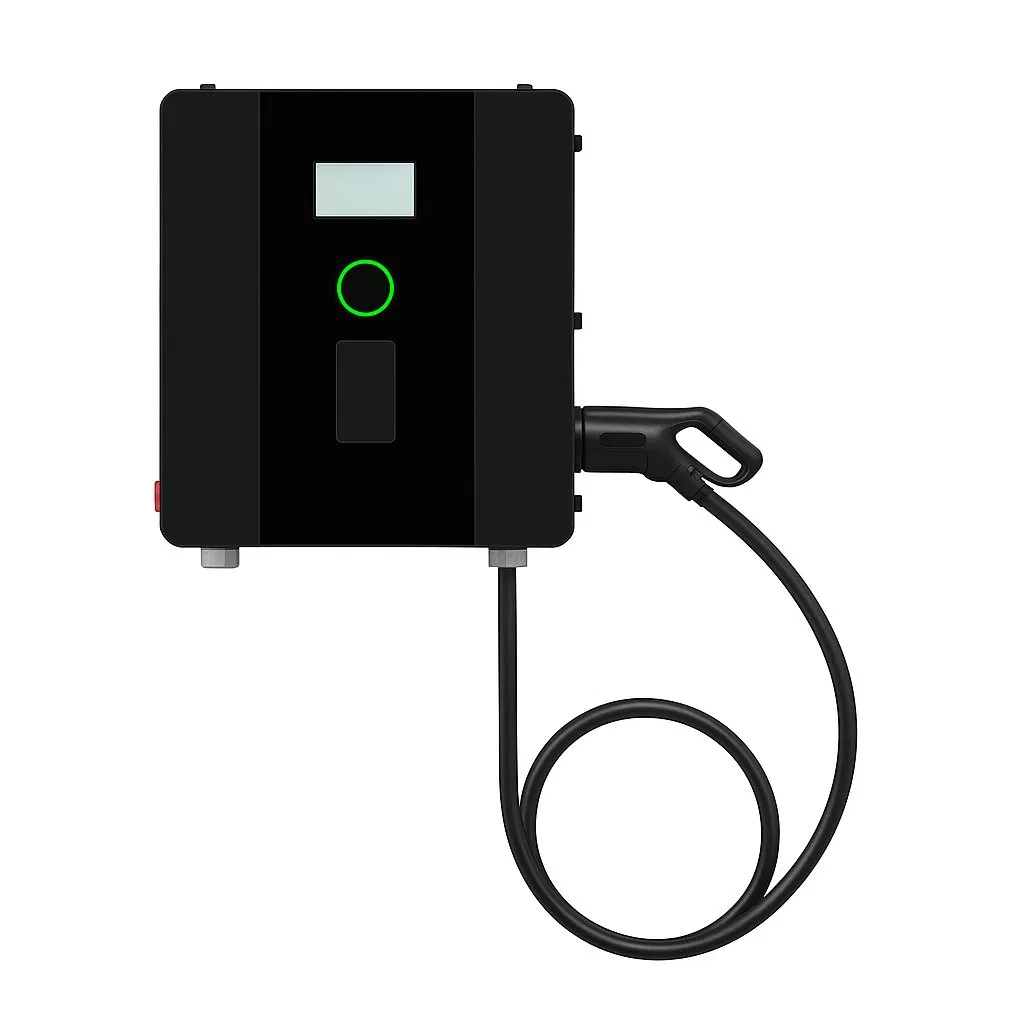

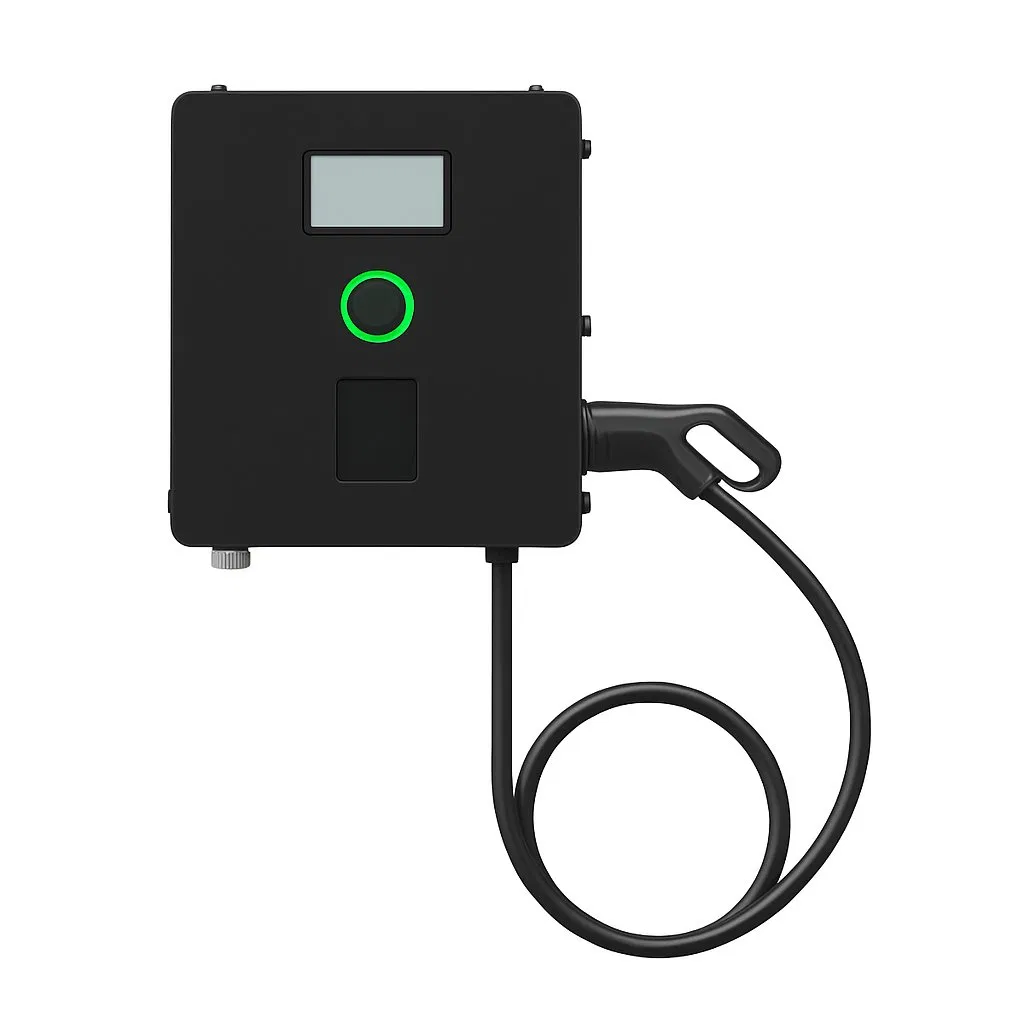

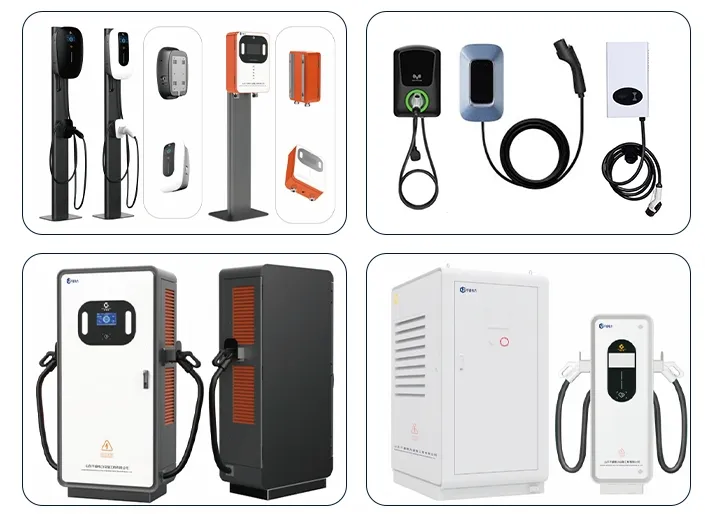

Our charging pile series includes multiple models, with two options: wall mounted and floor standing, to meet different installation needs. Stylish designs, stable frameworks, and modular power configurations make them easy to maintain. Suitable for residential and commercial use.

Technical Specifications

Parameter	Details
Type	EV charging station
Power Range	20KW, 40KW, 120KW, 160KW, 240Kw
Input Rating	110V/220V/380V±15%
Working Frequency	50/60±10%
Output Voltage	200~1000V

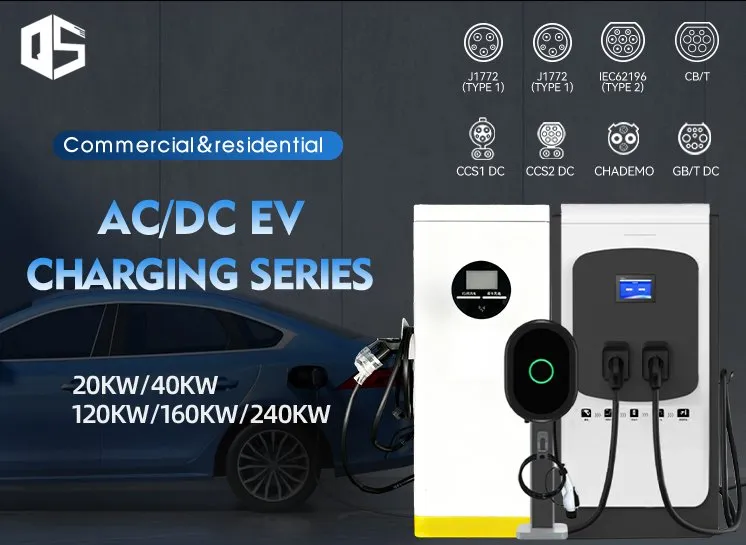

Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Network	4G / Ethernet
Communication	OCPP1.6J (OCPP2.0 upgradable)
Protection	IP55

Best Selling Models

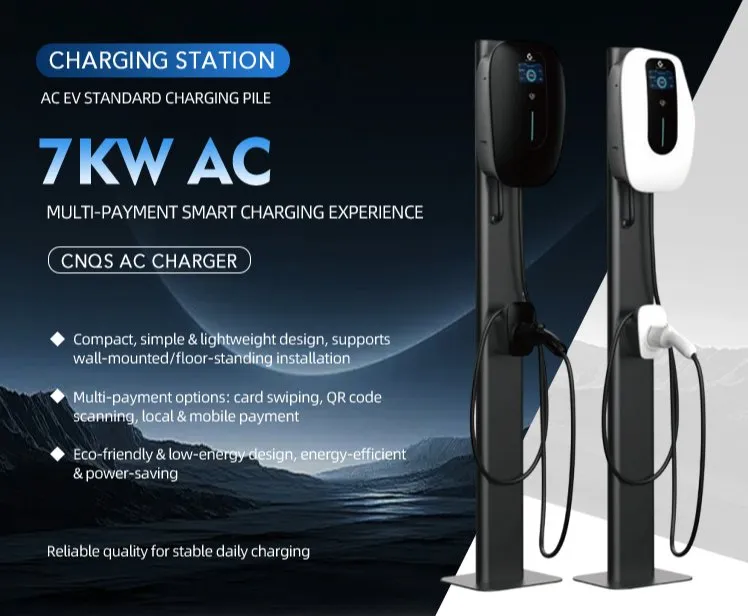

7KW AC Charger

Compatible with global certifications (CE/UL/PSE/KC).
ISO 15118-20 standard + PNC Plug & Charge.
V2G vehicle-to-grid protocol support.
MID/UL 2735 metrology certification.

20KW-40KW DC Charger

22kW EU-standard AC fast charging, 80% power in 30 mins.
IP65 dustproof & waterproof (-30℃ to 60℃).
Supports Apple Pay/Google Pay/credit card.
Remote diagnosis of 40 core parameters.

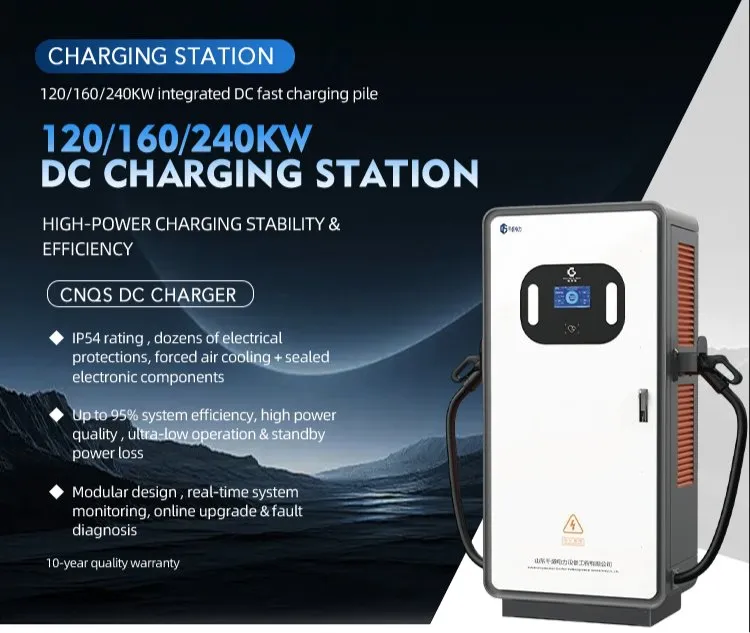

120/160/240KW DC Station

Dual-gun simultaneous charging + modular design.
300+km range replenished in 30 mins (120kW).
Ultra-fast 240kW: 80% battery in 15 mins.
Industrial-grade protection for flagship stations.

Product Details

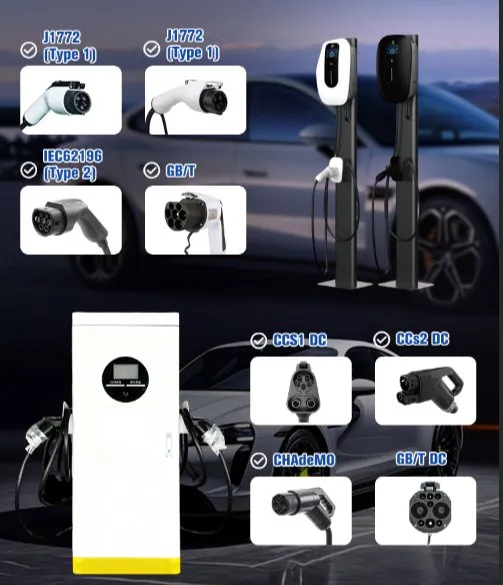

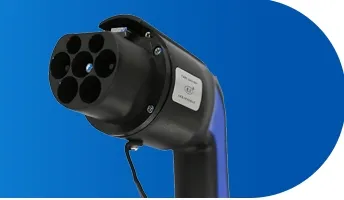

⚡ Connector Standards: Multi-standard fast charging connectors compatible with CCS2/Type2/CHAdeMO.

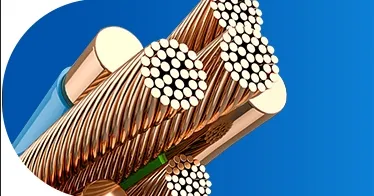

🛡️ High-Quality Cables: Thickened high-temperature resistant cables, anti-aging & anti-stretching.

🔧 Customizable: Flexible cable lengths and self-locking connectors for various scenarios.

Product Features

Packaging & Shipping

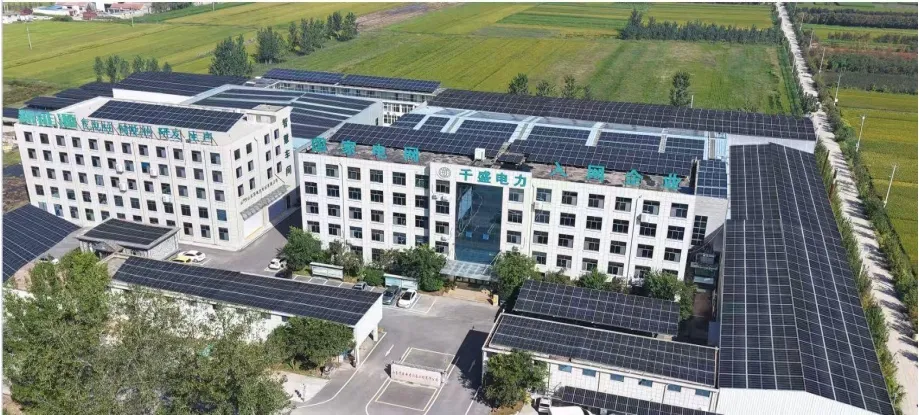

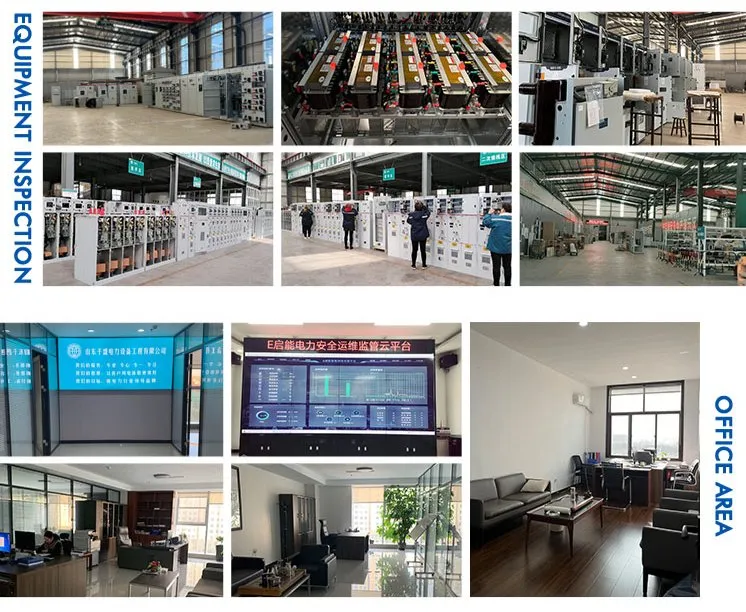

Power Equipment Expertise

An experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions. Product range includes ring main units, distribution cabinets, transformers, photovoltaic panels, energy storage systems, and inverters.

Certifications: ISO9001:2000, Environmental Management, Occupational Health and Safety, CCC and CQC product certifications.

Frequently Asked Questions

What situations are not covered by the warranty?

Includes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation/maintenance, external voltage abnormalities, force majeure (fire, earthquake, etc.) and non-functional appearance wear.

Is regular maintenance service provided? What is the frequency?

Provides free annual inspection including electrical safety testing, mechanical part tightening, cleaning and software updates; quarterly maintenance packages are available for commercial chargers.

Does the after-sales service comply with local regulations?

Fully compliant with EU GDPR, local safety certifications (CE/UL/PSE, etc.) and industry standards; maintenance data is encrypted and stored to protect user privacy.

Can the warranty period be extended?

Paid warranty extension is available: 2-year extension for residential chargers, 1-3-year extension for commercial chargers, covering main unit and core parts.

Is after-sales service universal when used across regions?

Global warranty system covers major markets in Europe, America, Asia-Pacific, Middle East, etc.; unified standard services are available locally with equipment serial number.

What types of vehicles are compatible?

Our chargers feature multi-standard connectors compatible with CCS1, CCS2, GB/T, J1772, and CHADEMO, covering nearly 99% of electric vehicles globally.
