| Model NO. | 80KW-600KW | Installation | Floor Type |
| Location | Public Use | Charging Interfaces | One Pile with Multiple Charges |
| Connector Type | CCS1, CCS2, Chademo, GB/T | Rated Power | 40kw To 600kw |
| Gun Length | 5 Meters / 7 Meters | Human-Computer Interface | 7-Inch LCD Touch Screen + LED |
| Protection | IP54 / Lightning Protection | Origin | China |

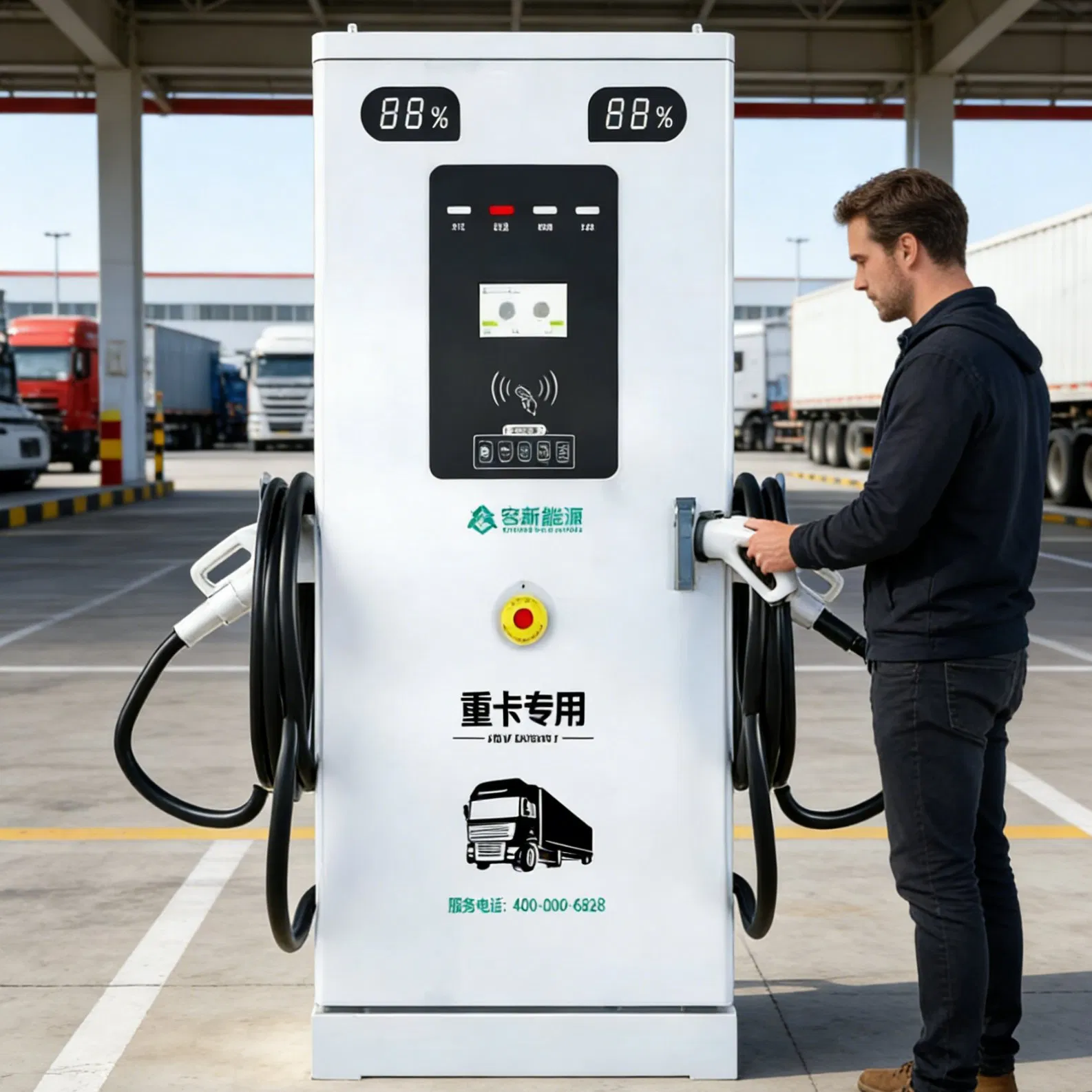

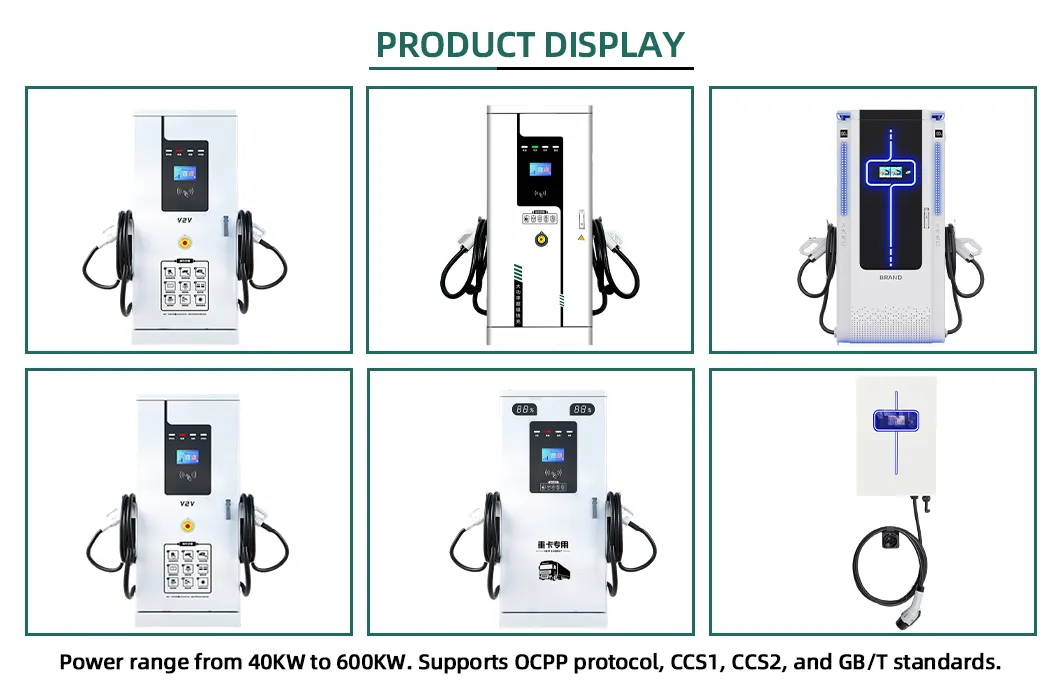

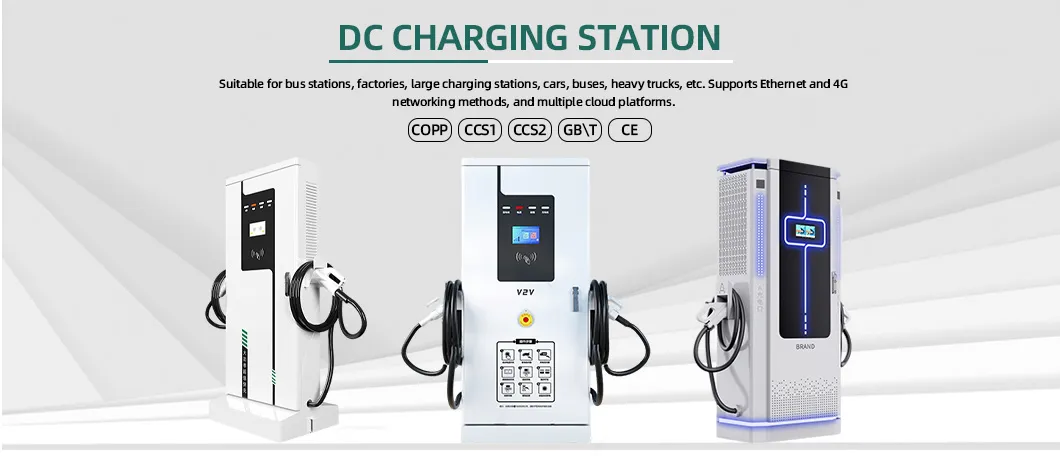

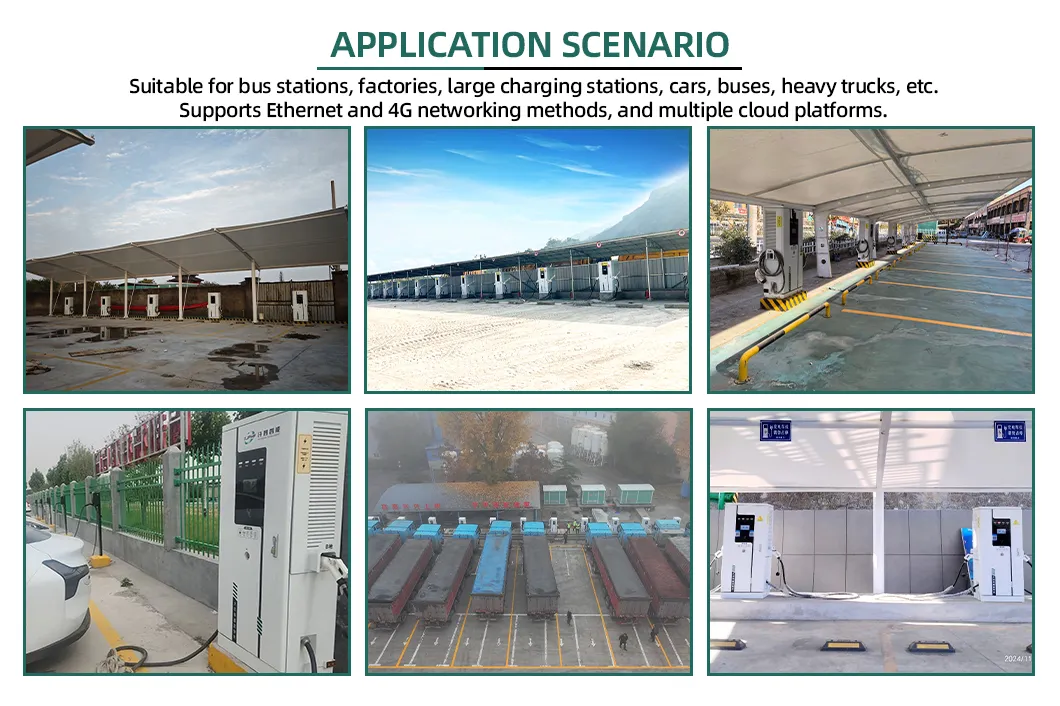

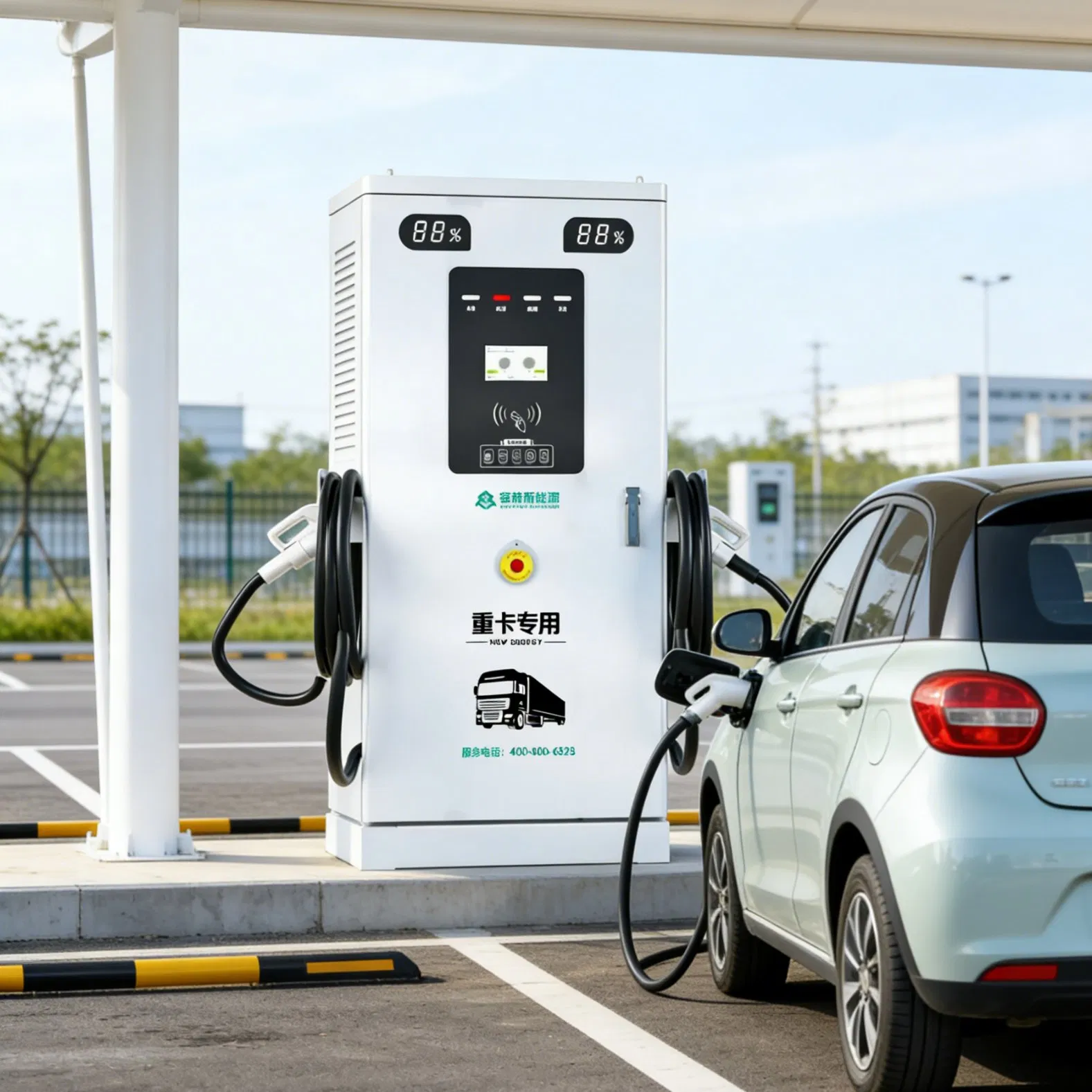

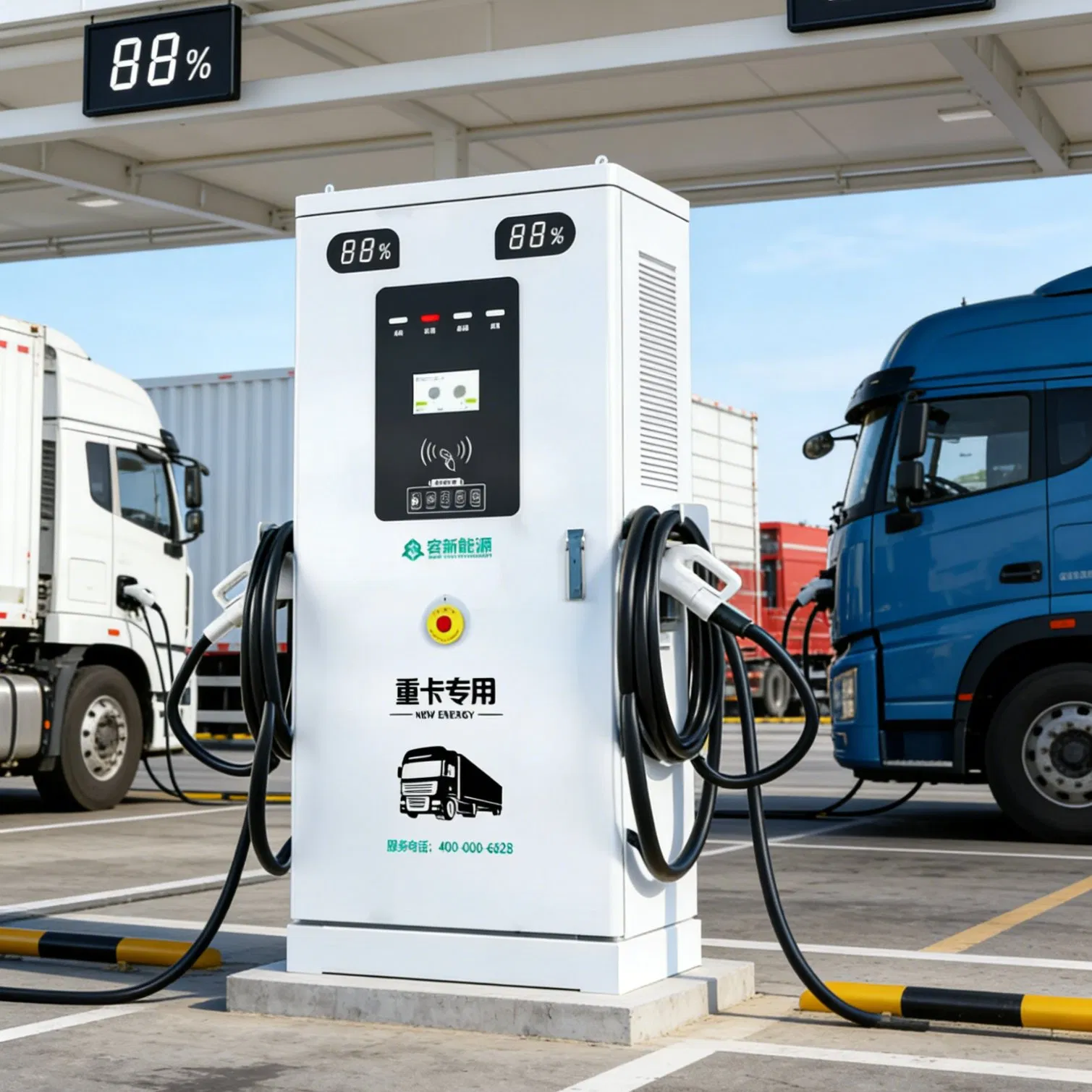

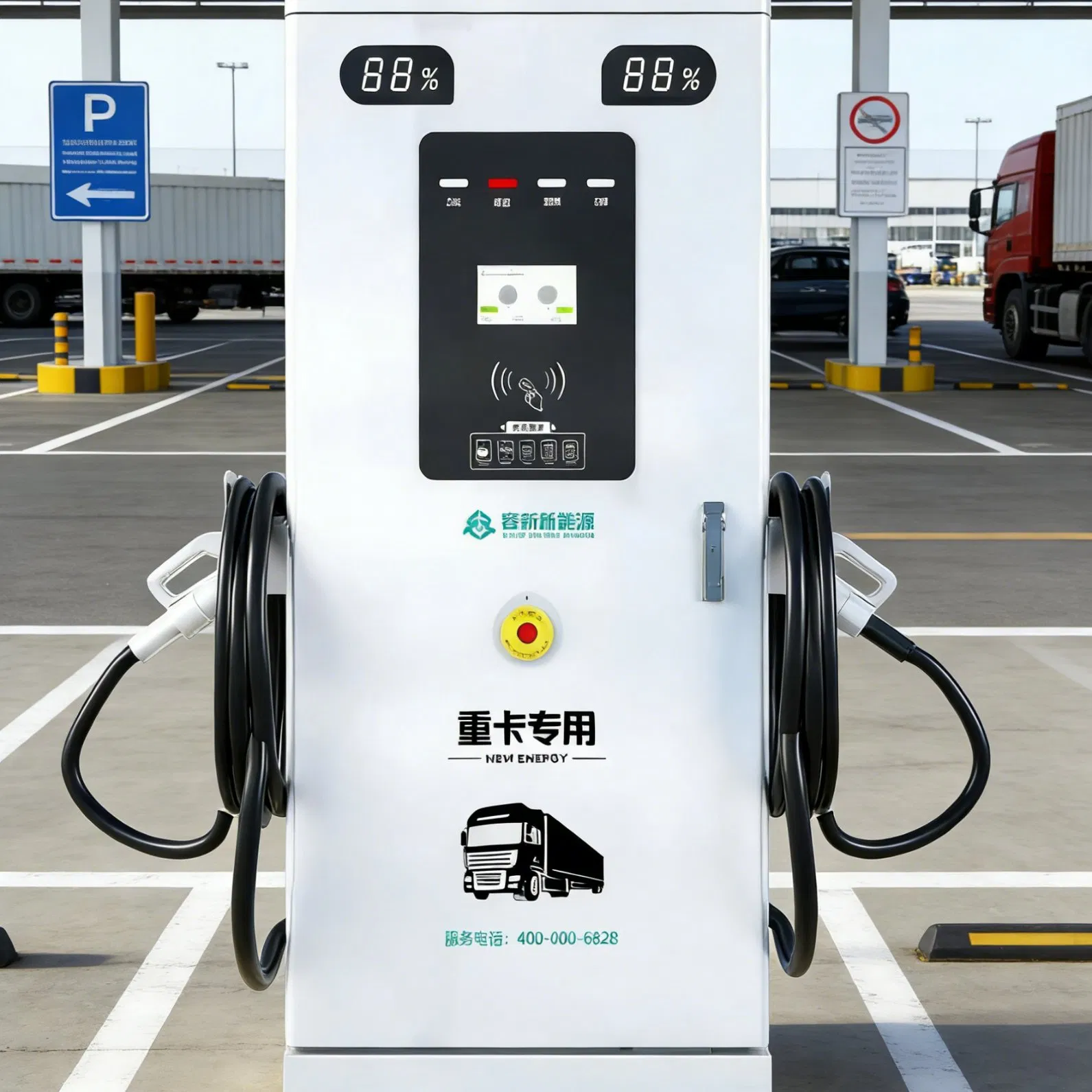

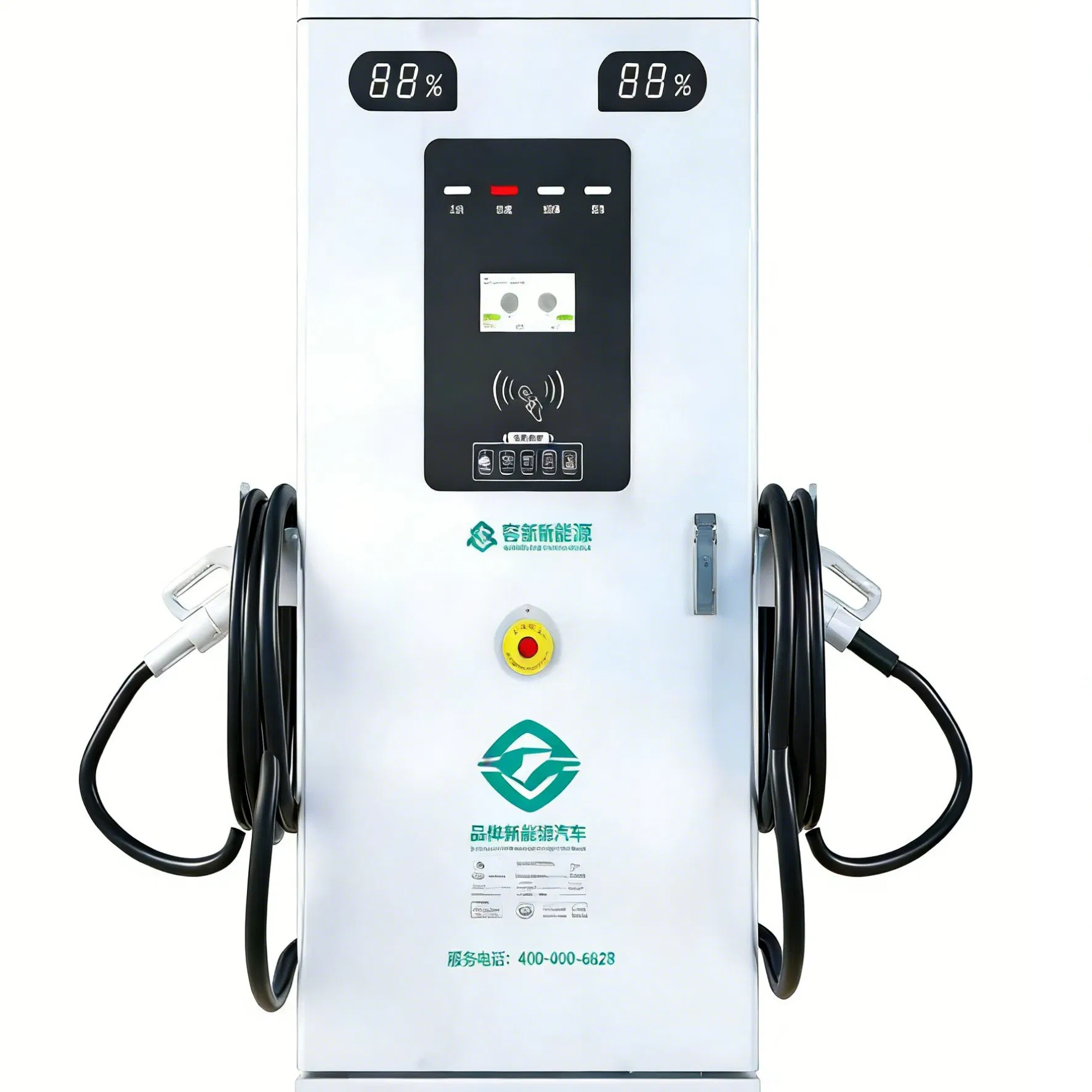

▶ Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc.
▶ Safety features include gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. Pre-debugged before leaving the factory for direct plug-and-play use.

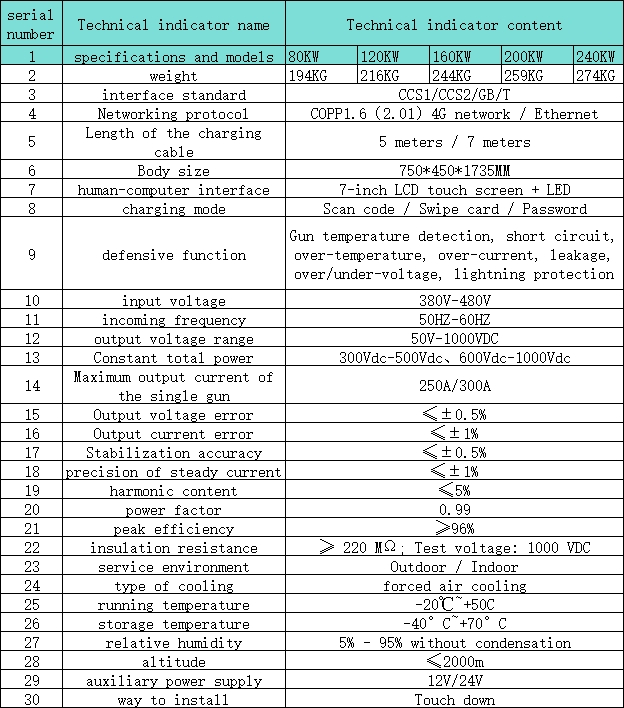

| Product Model | 40KW-600KW | Dimensions | 750x410x1700(mm) |
| Design Criterion | CCS1, CCS2, GB/T | Charging Mode | Scan code, Swipe card, VIN, Password |
| Cloud Platform | OCPP 1.6 / 2.0.1 | Weight | 194KG-274KG |
We are an AAA-rated credit enterprise with ISO9001 and ISO14001 certifications. Our equipment holds various third-party inspection reports and software copyrights. Packaging is designed to withstand sea, air, and land transportation to ensure equipment safety.
