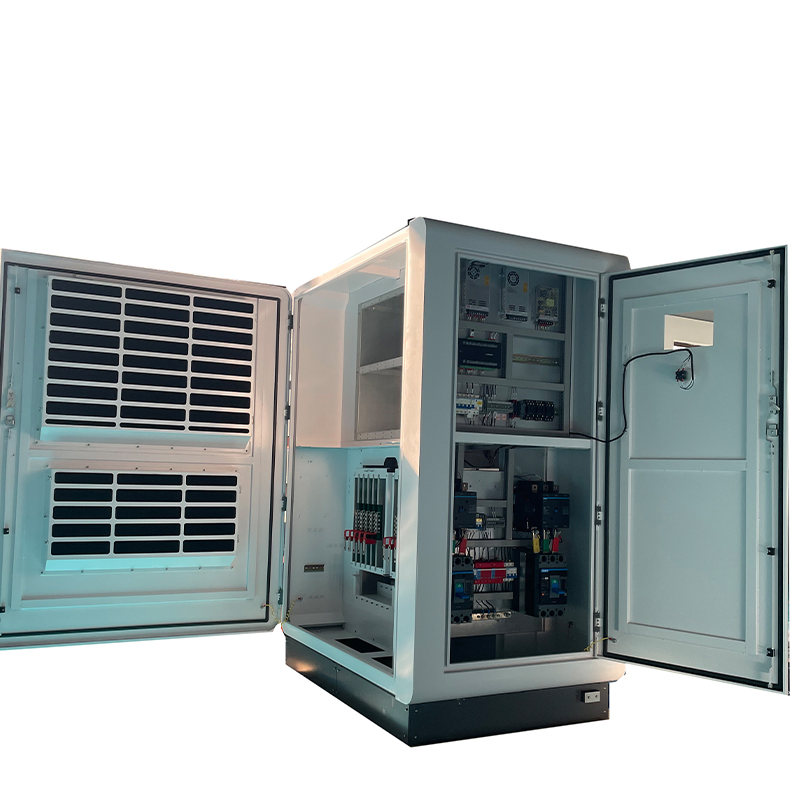

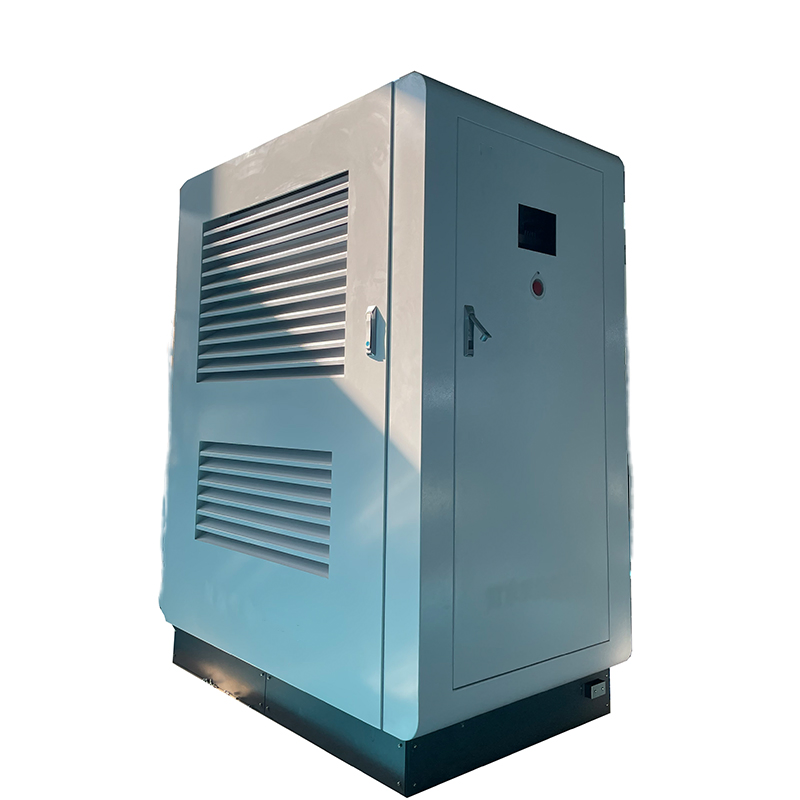

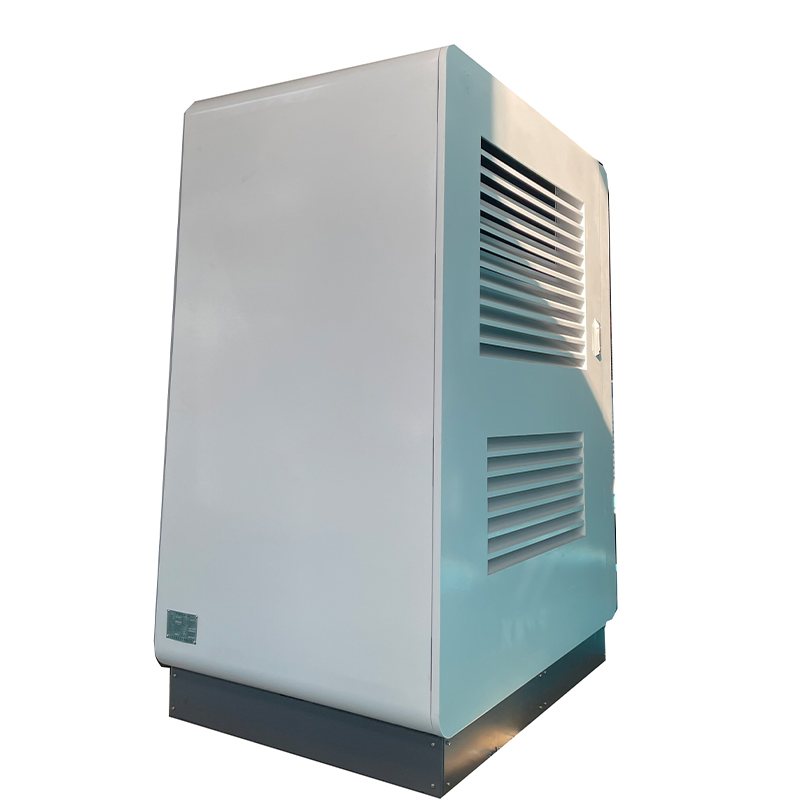

High Output EV Charging Pile for Urban Charging Infrastructure

1 / 5

High Output EV Charging Pile for Urban Charging Infrastructure

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Parameter	Details
Rated Current	2A; 63A; 100A; 200A; 300A
Rated Power	7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw

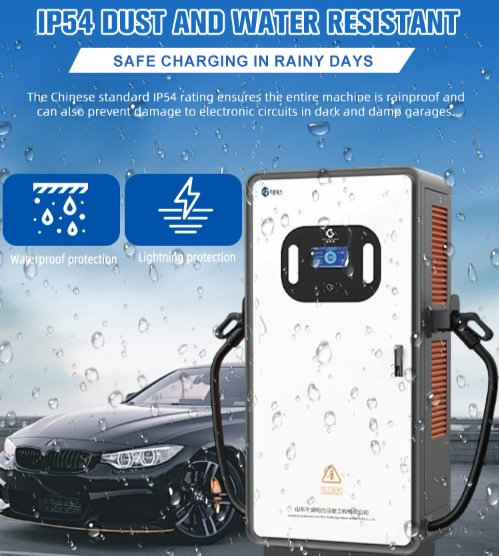

Protection Grade	IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor)
Shell Material	Customized High-Strength Material
Service Life	8 - 10 Years
Charging Type	AC Charging; DC Charging; AC&DC Integrated Charging
Efficiency	≥93% (AC Charger); ≥95% (DC Charger)
Power Factor	≥0.95 (Rated Load)
Harmonic Distortion	≤5% (THD)
Voice & Remote	Supported Voice Broadcast & Remote Control

⚡ Product Description

Efficient Charging Solutions for Urban Infrastructure

🔹 Flexible Expansion: Wide compatibility with global EV models.
🔹 Certified Safety: Rock-solid reliability with multi-layer protection.
🔹 Low Maintenance: Effortless operation via modular design.
🔹 Stable Performance: Consistent high-efficiency energy delivery.

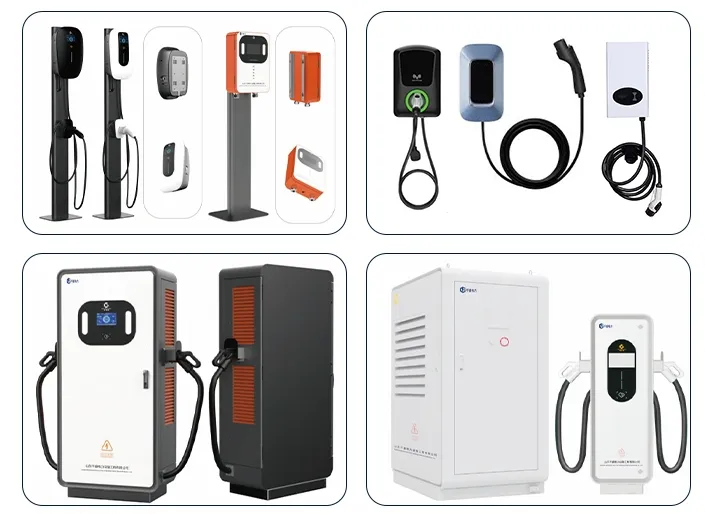

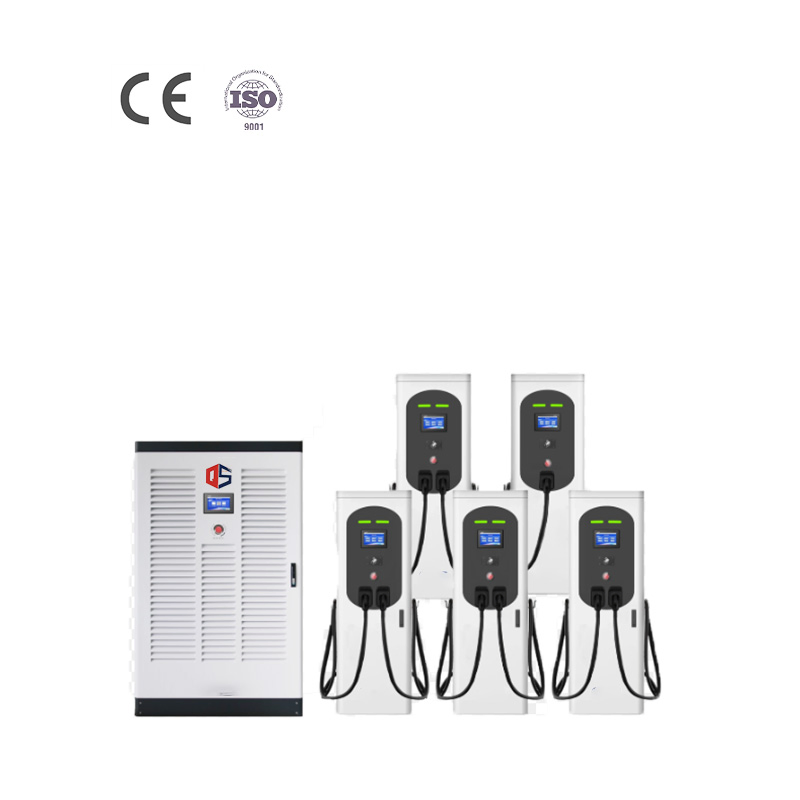

Our charging pile series includes wall-mounted and floor-standing models to meet diverse installation needs, blending stylish design with industrial-grade stability.

⚙️ Technical Specifications

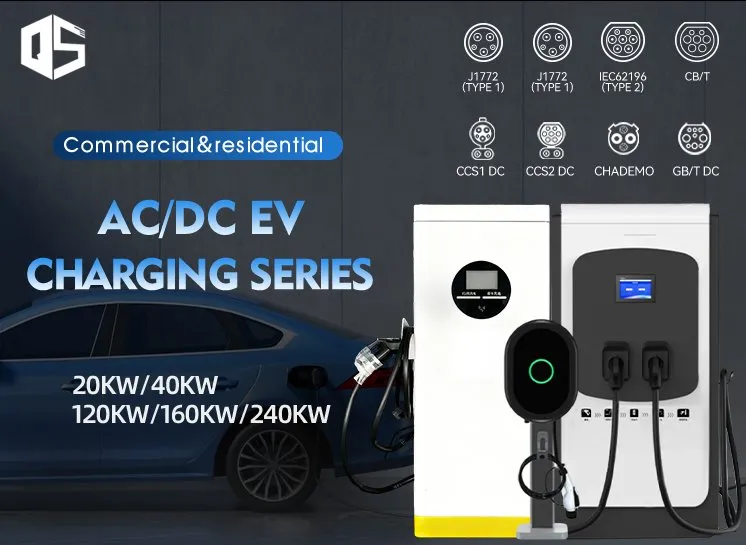

Power Range	20KW / 40KW / 120KW / 160KW / 240KW
Input Rating	110V / 220V / 380V ±15%
Working Frequency	50/60Hz ±10%
Output Voltage	200 ~ 1000V DC
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen

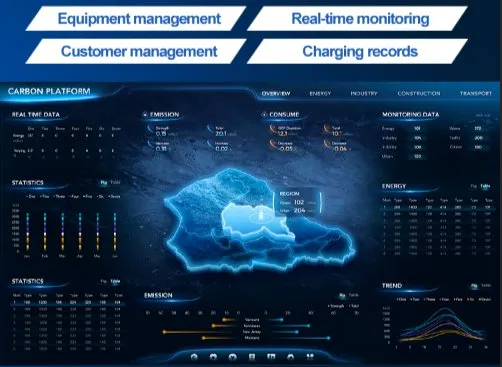

Network	4G / Ethernet Connection
Protocols	OCPP 1.6J (OCPP 2.0 Upgradable)
Temperature	Operating: -20℃ to +50℃; Storage: -20℃ to +70℃

🏆 Best Sellers

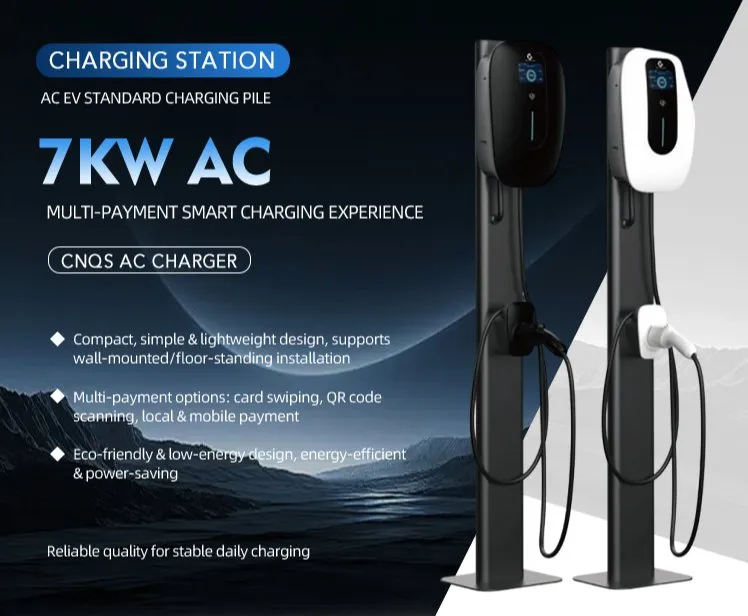

7KW AC Charger

Global certification compliance (CE/UL/KC). Supports ISO 15118 and V2G protocol. Accuracy within ±0.5%.

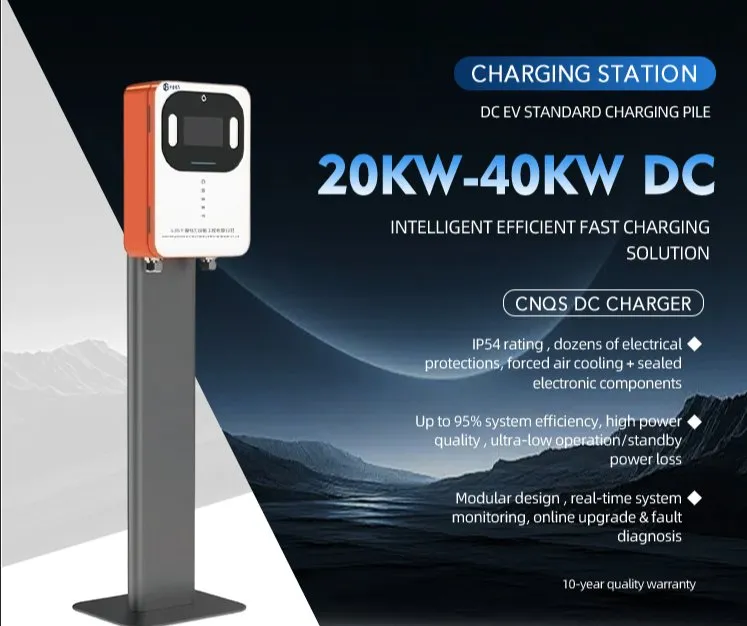

20KW-40KW DC Station

80% power replenished in 30 mins. IP65 rated for extreme weather (-30℃ to 60℃). Supports Apple/Google Pay.

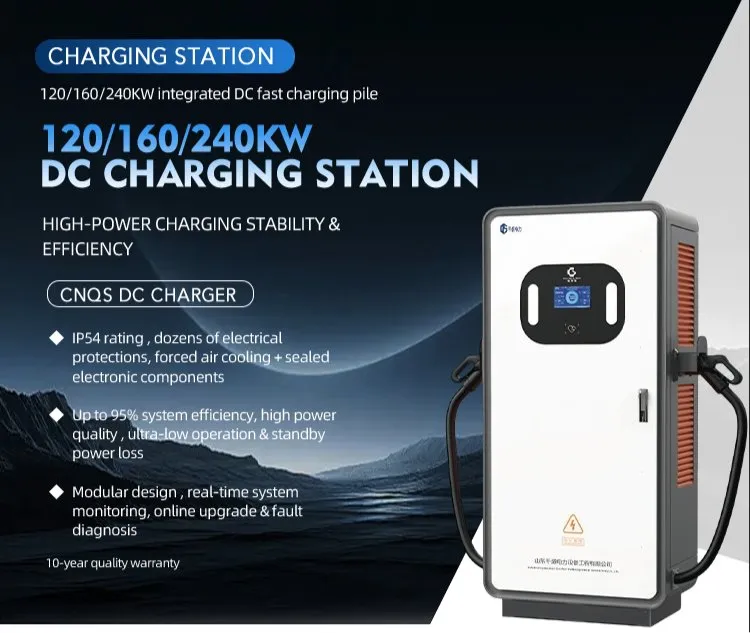

120/160/240KW DC Ultra

Dual-gun simultaneous charging. 300+km range in 15-30 mins. Dynamic power allocation for highway hubs.

🔍 Product Details

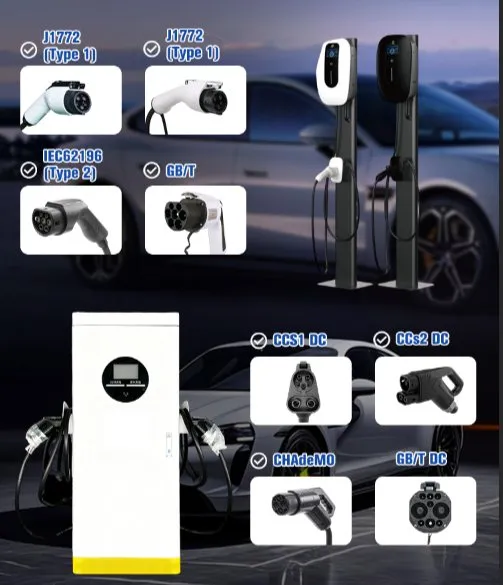

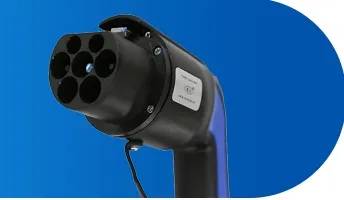

✅ Multi-Standard Connectors: Compatible with CCS2, Type 2, and CHAdeMO.
✅ Durable Cables: Thickened, high-temperature resistant, anti-aging, and anti-stretching.
✅ Customization: Adjustable cable lengths and self-locking anti-drop connectors.

📦 Features & Packaging

Package Size	120.00cm * 45.00cm * 155.00cm
Gross Weight	60.00kg
Transport Package	Heavy-duty Wooden Box

❓ Frequently Asked Questions

1. What situations are not covered by the warranty?

Warranty excludes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events such as fires or earthquakes.

2. Is regular maintenance service provided?

Yes, we provide free annual inspections including electrical safety testing, part tightening, cleaning, and software updates. Quarterly packages are available for commercial chargers to reduce fault rates.

3. Does the service comply with local data security regulations?

Our systems are fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). All maintenance data is encrypted and stored securely to protect user privacy.

4. Can the warranty period be extended?

Paid extensions are available: 2 years for residential models and 1-3 years for commercial models, covering the main unit and core components.

5. Is the after-sales service universal across different regions?

Our global warranty system covers major markets in Europe, America, Asia-Pacific, and the Middle East. Standardized service is available locally using your equipment serial number.

6. What is the efficiency of the chargers?

Our AC chargers reach an efficiency of ≥93%, while DC fast chargers achieve ≥95%, ensuring minimal energy waste during the charging process.
