Basic Information & Technical Specifications
Model NO.MECS-80kW-Y1
Rated Power80kW

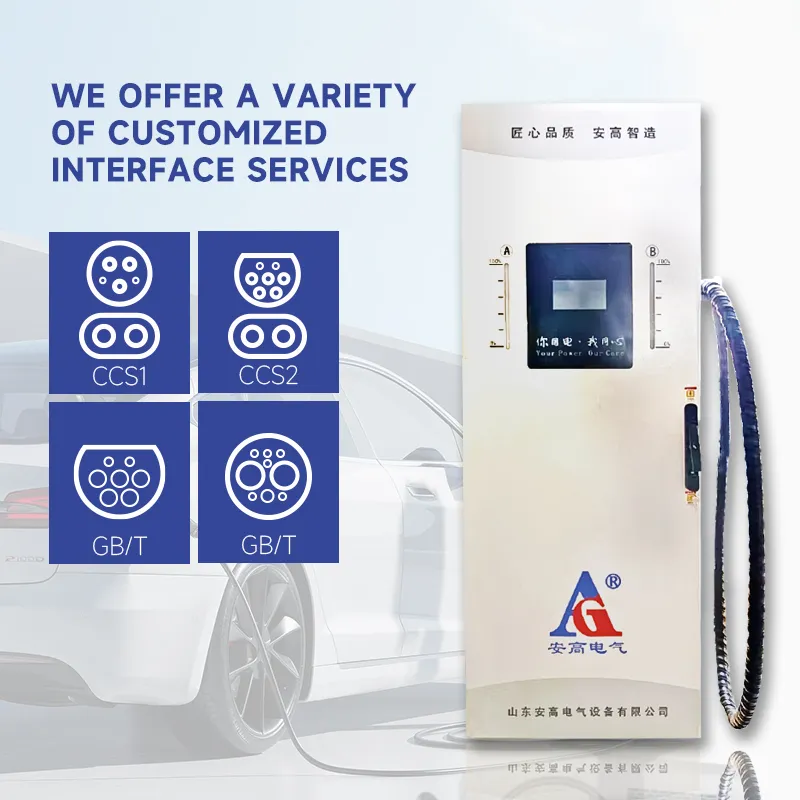

Charging InterfacesOne Pile with One Charge

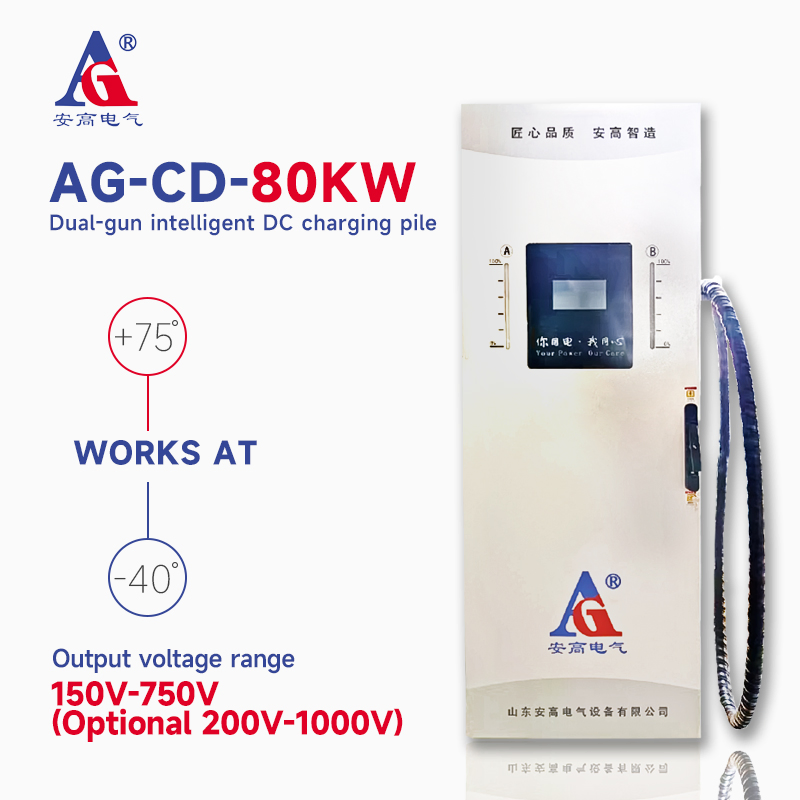

Output Voltage Range150V-750V (Optional 200V-1000V)
Max Output Current250A
Input VoltageThree-Phase Five-Wire AC Input (380VAC ± 15%)
Efficiency>95.0% (Rated input and output)
Protection RatingIP54 (Indoor or Outdoor)
Display7-Inch Touch Screen
Start ModeRFID, Credit Card, Mobile Remote, Ethernet/4G

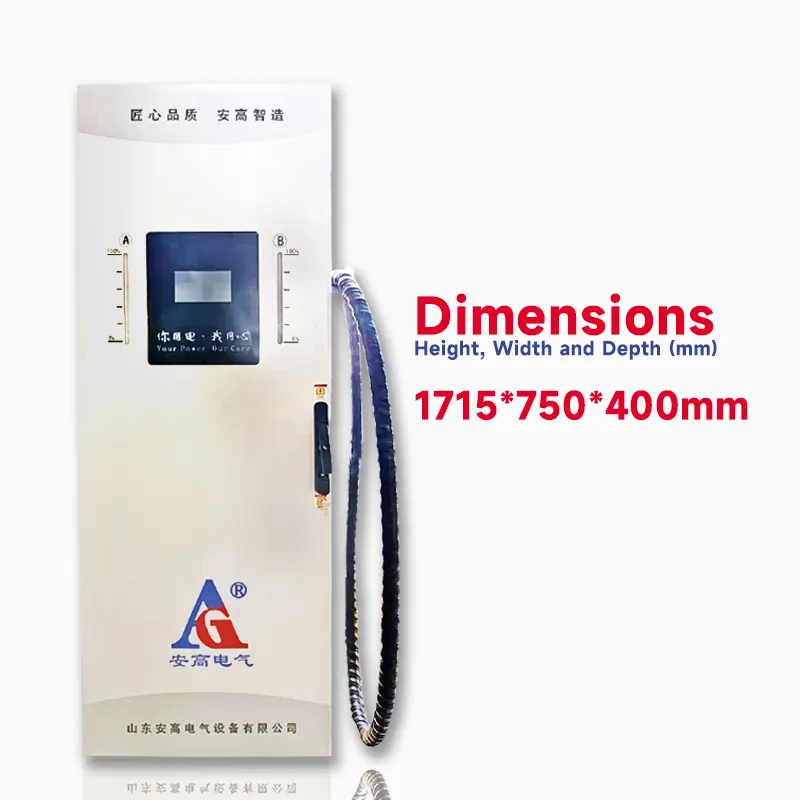

Dimensions1715*750*400mm
Operating Temperature-30 to +70°C
Product Overview

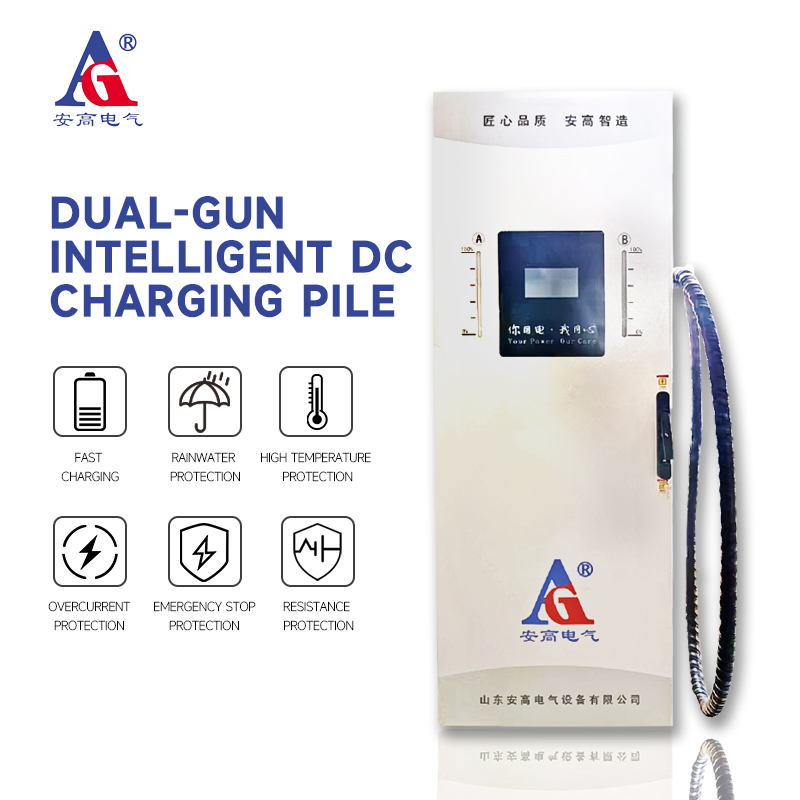

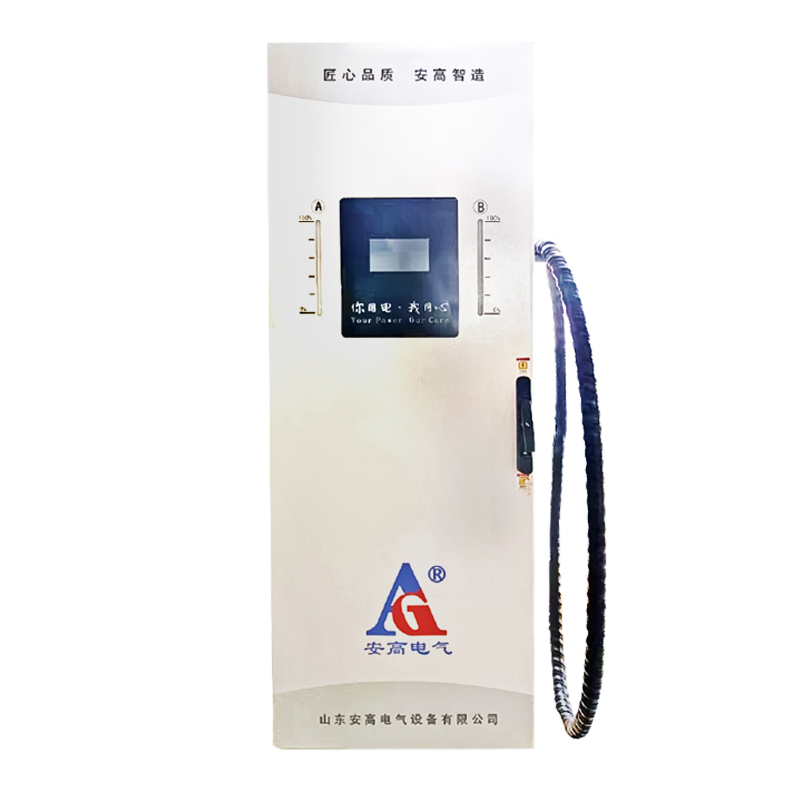

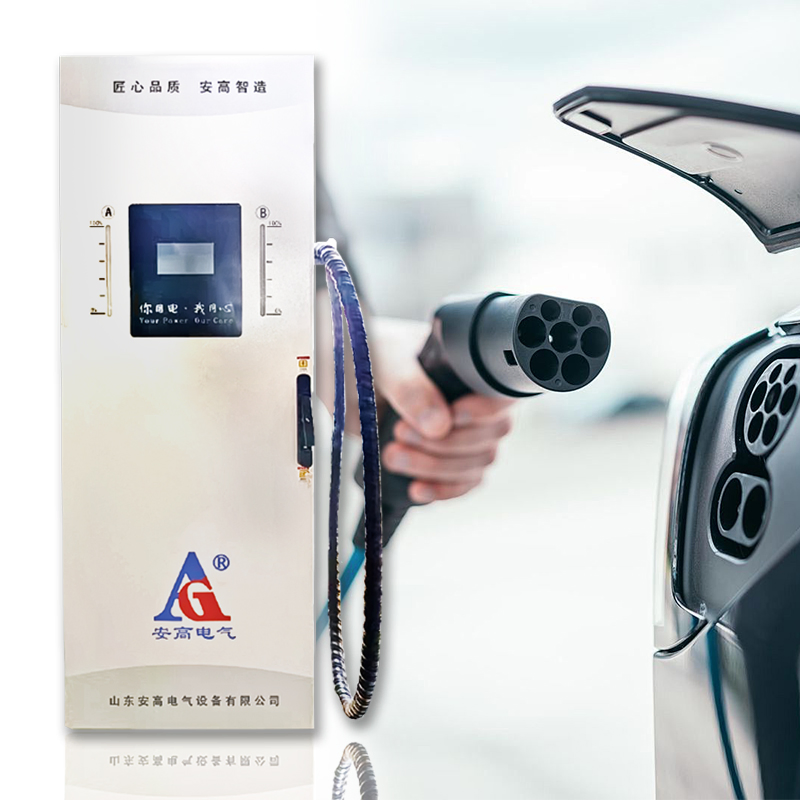

Next Generation DC Fast Charging: Integrated design for electric vehicles featuring modules with isolated air channel potting for extreme reliability.
Flexible power configurations (80kW/60kW/40kW) to meet diverse charging needs in shopping malls, parking lots, and amusement parks.
Key Features & Reliability

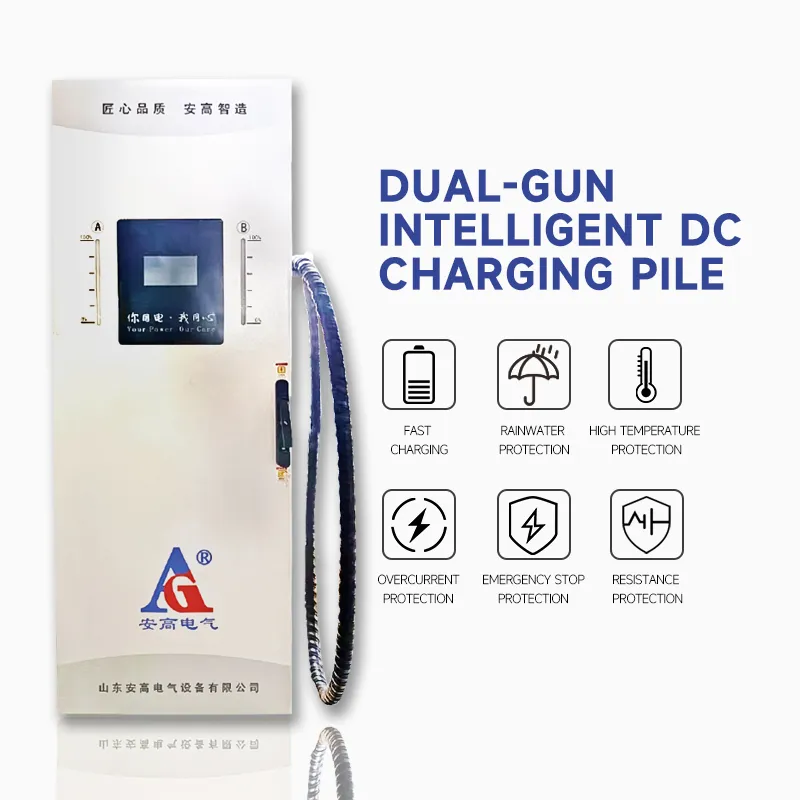

Safe and Reliable
High protection design; anti-rain, snow, wind-proof sand, salt spray, and anti-condensation. Includes a 7-inch capacitive screen with front door windproof design.
Quality Assurance
Strict EMC testing and temperature cycling. Components selected from global first-class brands ensuring a perfect R&D quality system.
Powerful Performance
- ✦ Charging efficiency up to 95%.
- ✦ Excellent power quality and low output ripple.
- ✦ Ultra-low operating losses and standby power consumption.

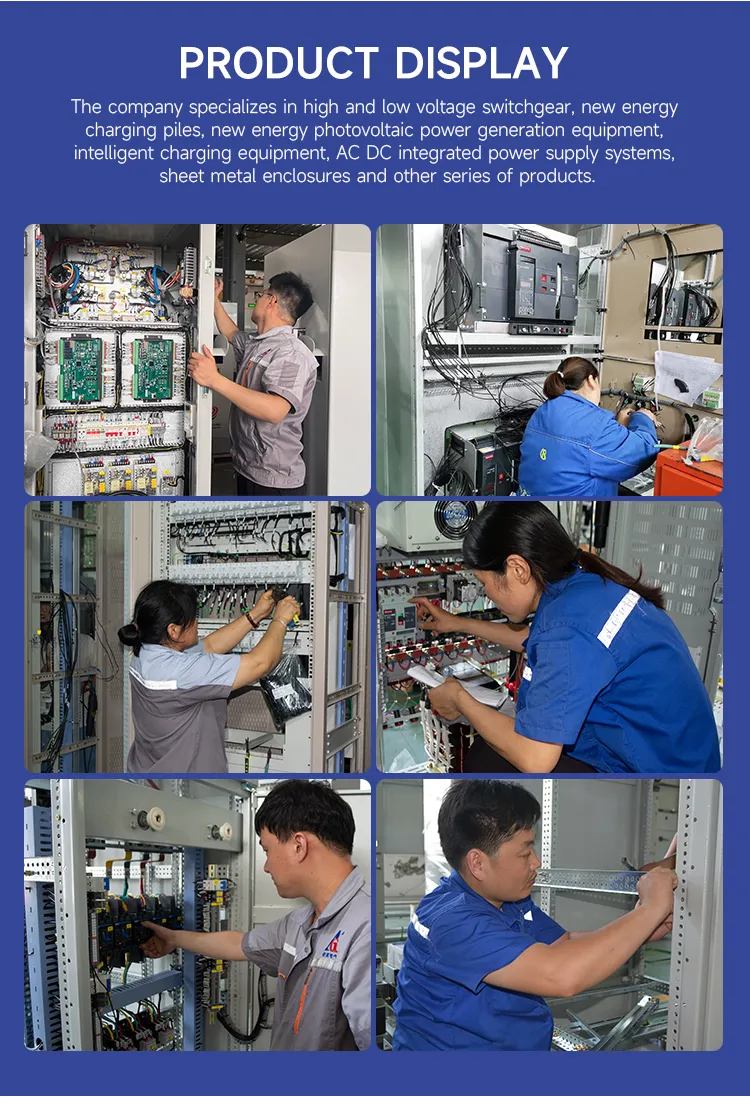

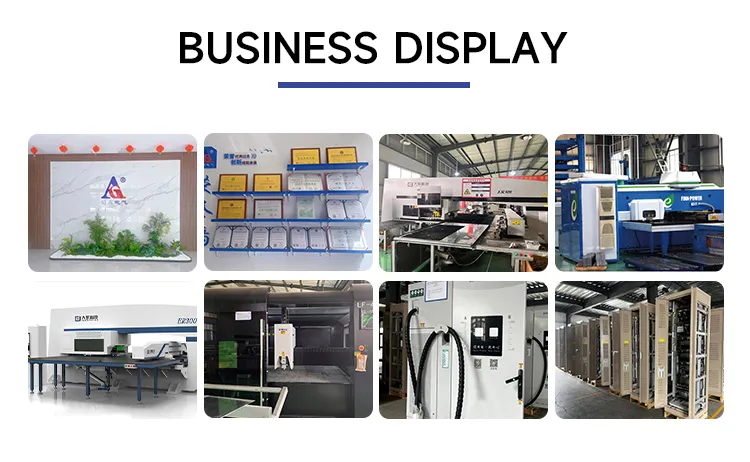

Manufacturing Excellence
Frequently Asked Questions
Q1: What is the standard charging efficiency of the 80kW DC pile?
The system achieves a high charging efficiency of up to 95%, ensuring minimal energy loss during the power transfer process.
Q2: Can this charger be installed outdoors?
Yes, it features an IP54 protection rating, making it suitable for both indoor and outdoor environments, with resistance to rain, snow, and salt spray.
Q3: What payment and access methods are supported?
The unit supports RFID authentication, Credit Card payments, and Mobile Remote Operation via Ethernet or 4G connectivity.
Q4: What is the typical lead time for production?
Standard production typically takes about 15-20 days depending on the configuration requirements.
Q5: Does the product support customization?
Yes, customization is available. Clients can provide specific drawings or technical parameters for evaluation and quoting.
Q6: What certifications do the charging piles hold?
The products have passed relevant national mandatory certifications (such as CCC) and meet international quality management system standards like ISO9001.
