Basic Information
| Model NO. | QSCDZ |
| Rated Current | 2A; 63A; 100A; 200A; 300A |
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw |
| Protection Grade | IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor) |
| Charging Type | AC Charging; DC Charging; AC & DC Integrated Charging |
| Efficiency | ≥93% (AC Charger); ≥95% (DC Charger) |
| Power Factor | ≥0.95 (Rated Load) |
| Harmonic Distortion | ≤5% (Total Harmonic Distortion) |
| Origin | Linyi City, Shandong Province |
Product Description
▣ Flexible Expansion & Wide Compatibility
▣ Certified Safety & Rock-Solid Reliability
▣ Effortless Operation & Low-Maintenance Design
▣ Consistently Stable Performance for Efficient Charging

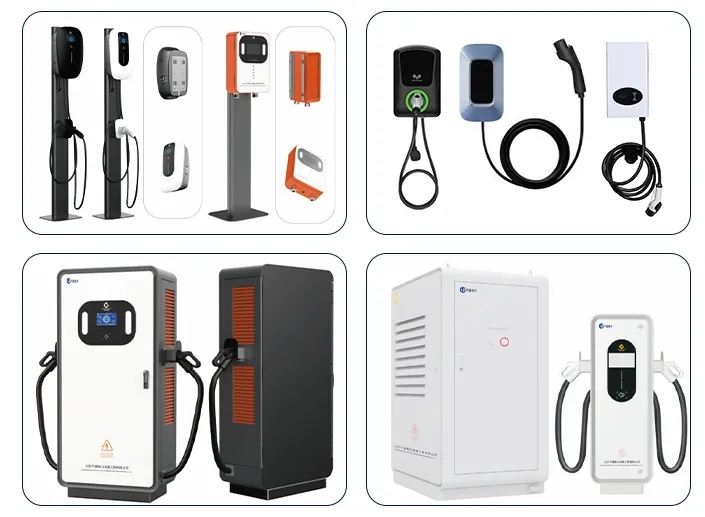

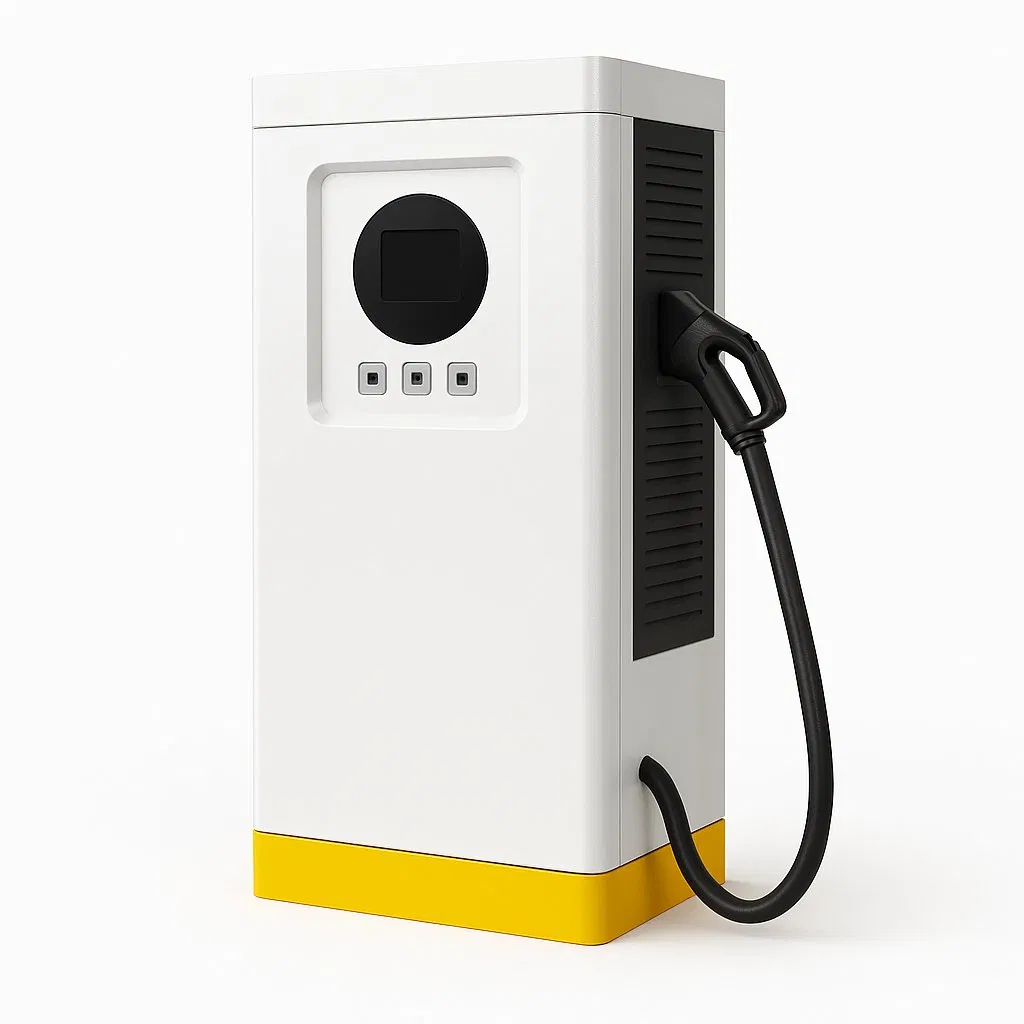

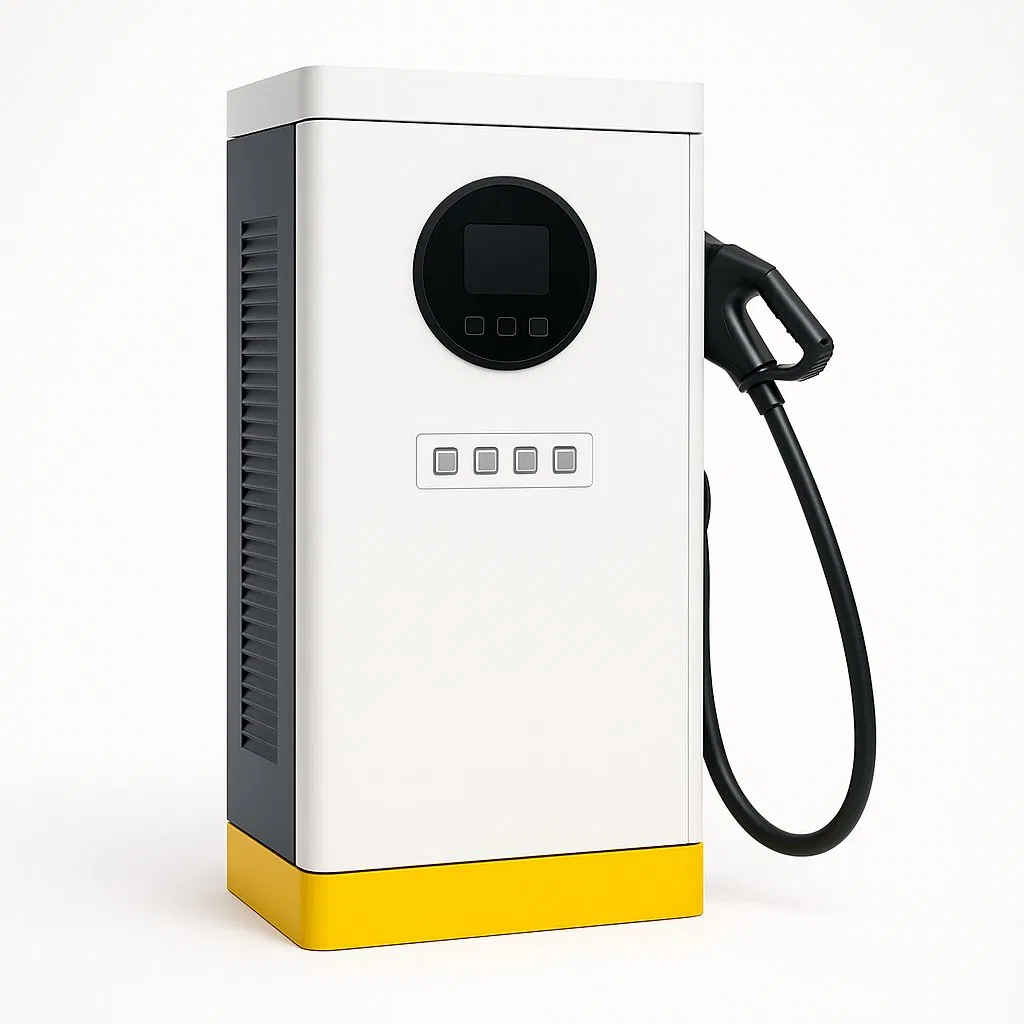

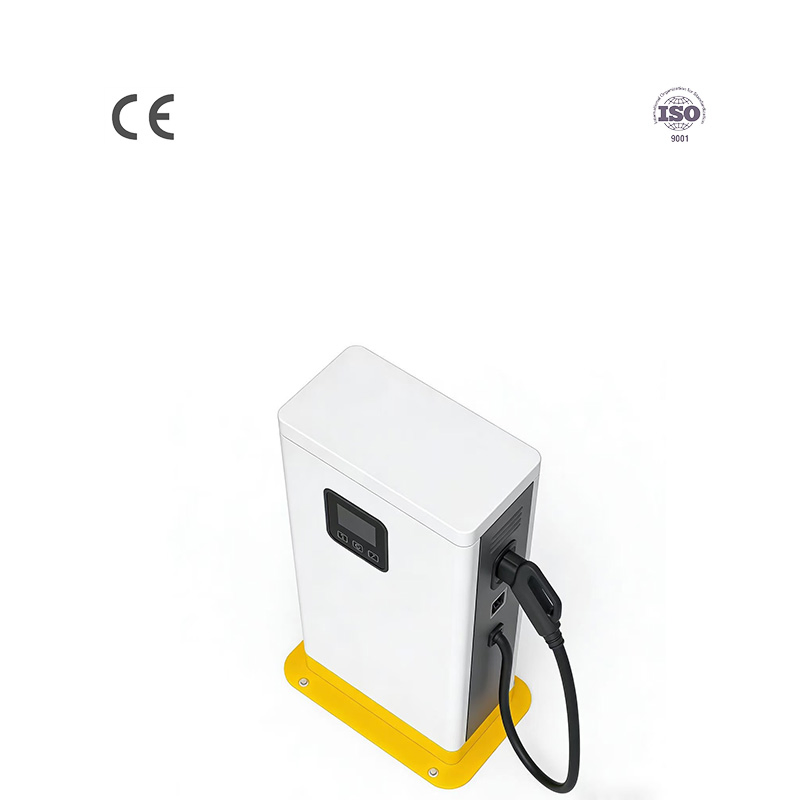

Our charging pile series includes multiple models, with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and complete functionality make them ideal for residential and commercial use.
Technical Specifications
| Power Range | 20KW / 40KW / 120KW / 160KW / 240Kw |
| Input Rating | 110V/220V/380V±15% |
| Output Voltage | 200~1000V |
| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Network | 4G / Ethernet |
| Protocols | OCPP1.6J (OCPP2.0 upgradable) |
| Protection | IP55 |
Best Sellers
7KW AC Charger
- 100% compliance with global certifications (CE/UL/PSE/KC).
- Supports ISO 15118-20 & PNC Plug & Charge.
- V2G compliant, increasing operational revenue by 35%.
- Billing accuracy ±0.5% with MID/UL certification.

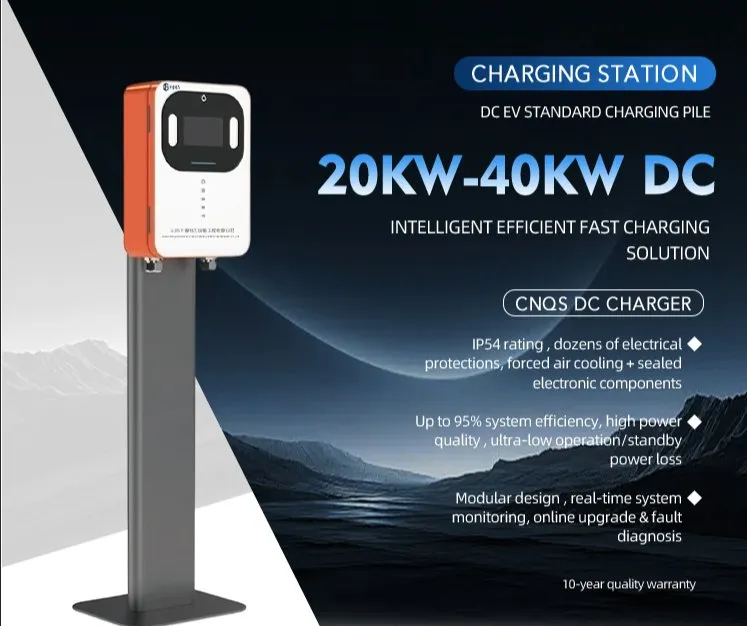

20KW-40KW DC Charger
- 80% power replenished in 30 mins.
- IP65 waterproof and -30℃ to 60℃ adaptation.

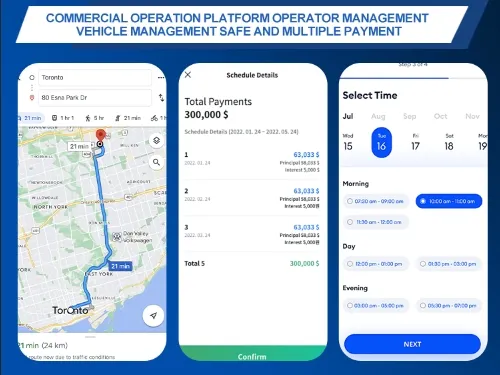

- Supports Apple Pay / Google Pay / Credit Cards.
- 99.2% fault repair rate with remote diagnosis.

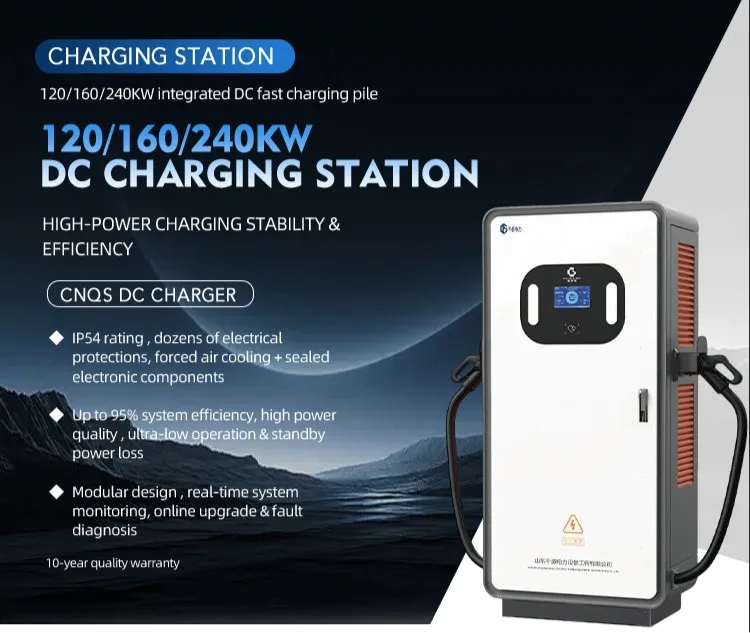

120/160/240KW Super Charging
- Dual-gun simultaneous charging with dynamic allocation.
- 240kW ultra-fast charge: 80% battery in 15 mins.
- Modular design reducing maintenance costs by 40%.
- Ideal for highway rest hubs and flagship stations.
Product Details

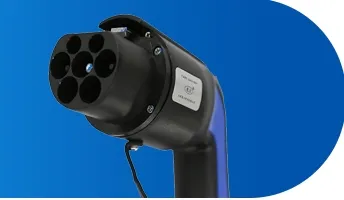

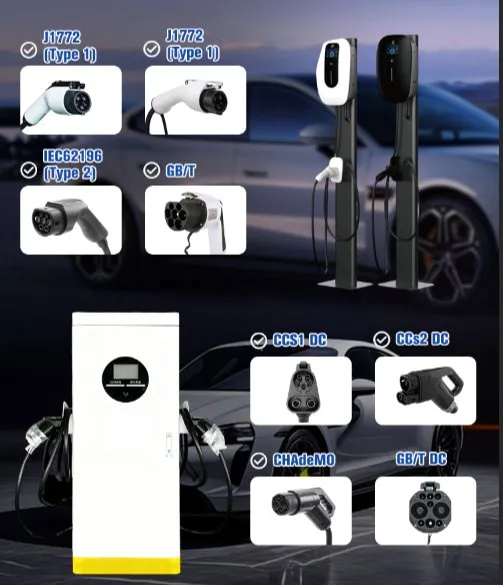

✔ Multi-standard connectors: CCS2, Type 2, and CHAdeMO.

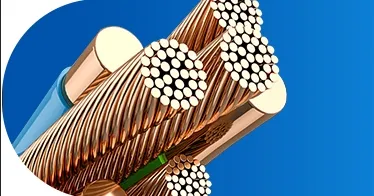

✔ Thickened high-temperature resistant cables, anti-aging.
✔ Customizable cable lengths and self-locking connectors.
Features & Manufacturing
Packaging & Shipping
Capabilities & Qualifications

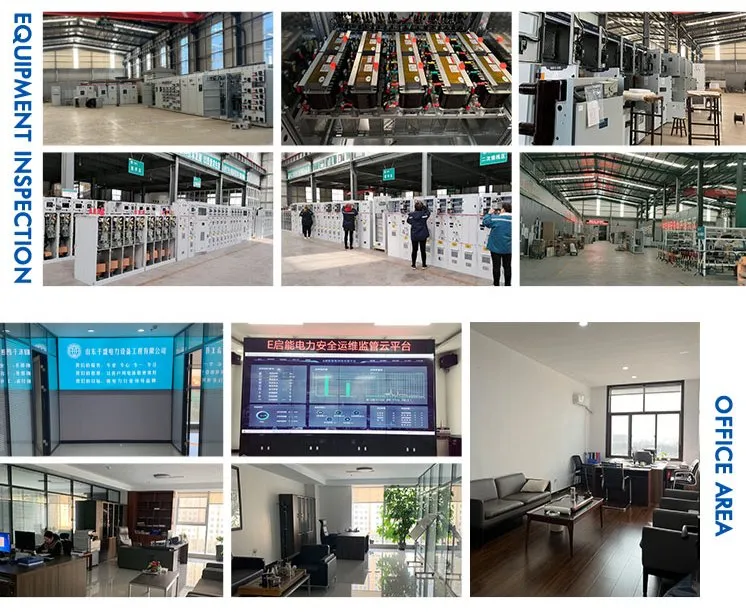

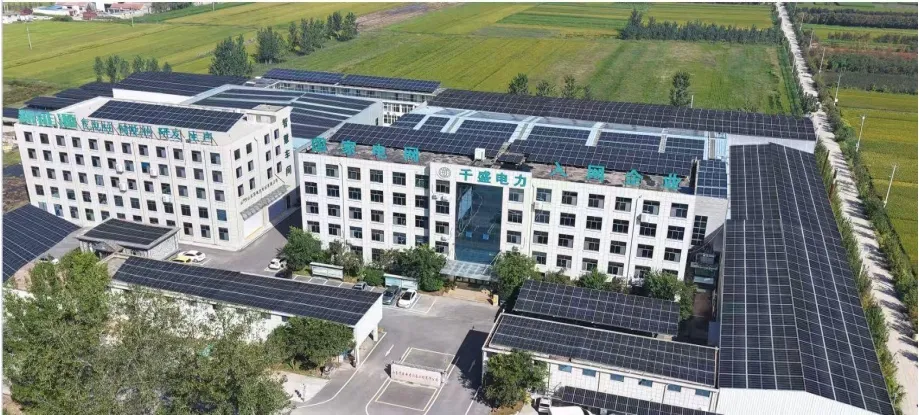

Equipped with over 20 years of industry expertise, the manufacturer serves global markets with reliable power distribution and new energy solutions.
- ISO9001:2000, Environmental, and Health & Safety Certifications.
- CCC and CQC product certifications.
- Strict quality control and compliance with international standards.
- Supports standardized and customized charging solutions.
Frequently Asked Questions
What situations are not covered by the warranty?
Warranty excludes human damage, unauthorized disassembly, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events (fire, earthquake, etc.).
Is regular maintenance service provided?
Yes, we provide free annual inspections including electrical safety testing, mechanical tightening, cleaning, and software updates. Quarterly packages are also available for commercial chargers.
Does the service comply with local regulations and data security?
Fully compliant with EU GDPR, local safety certifications (CE/UL/PSE), and industry standards. Maintenance data is encrypted and stored to protect user privacy.
Can the warranty period be extended?
Paid extensions are available: 2-year extension for residential chargers and 1-3 years for commercial chargers, covering the main unit and core parts.
Is after-sales service universal across regions?
Our global warranty system covers Europe, America, Asia-Pacific, and the Middle East. Standard services are available locally with the serial number and warranty certificate.
What is the production capacity for these units?
Our manufacturing facility maintains a production capacity of approximately 5,000 PCS per year to ensure stable supply and delivery.
