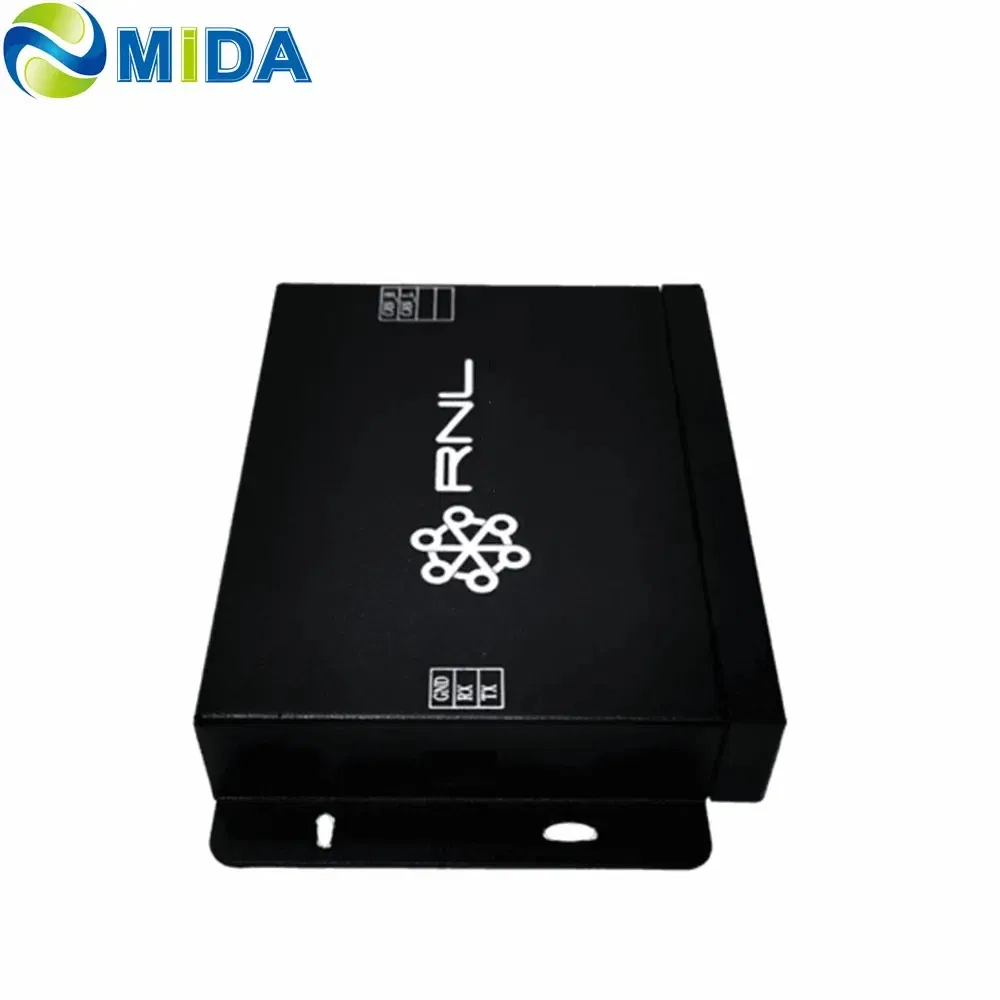

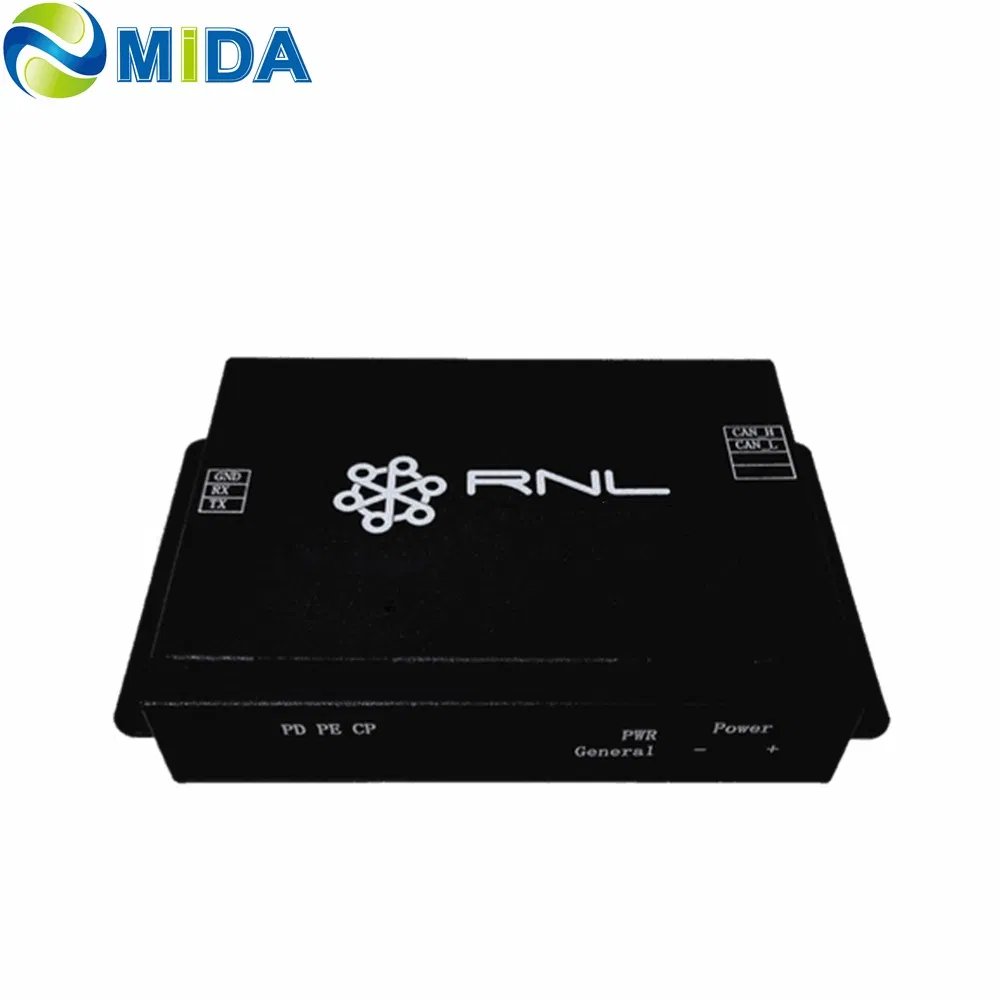

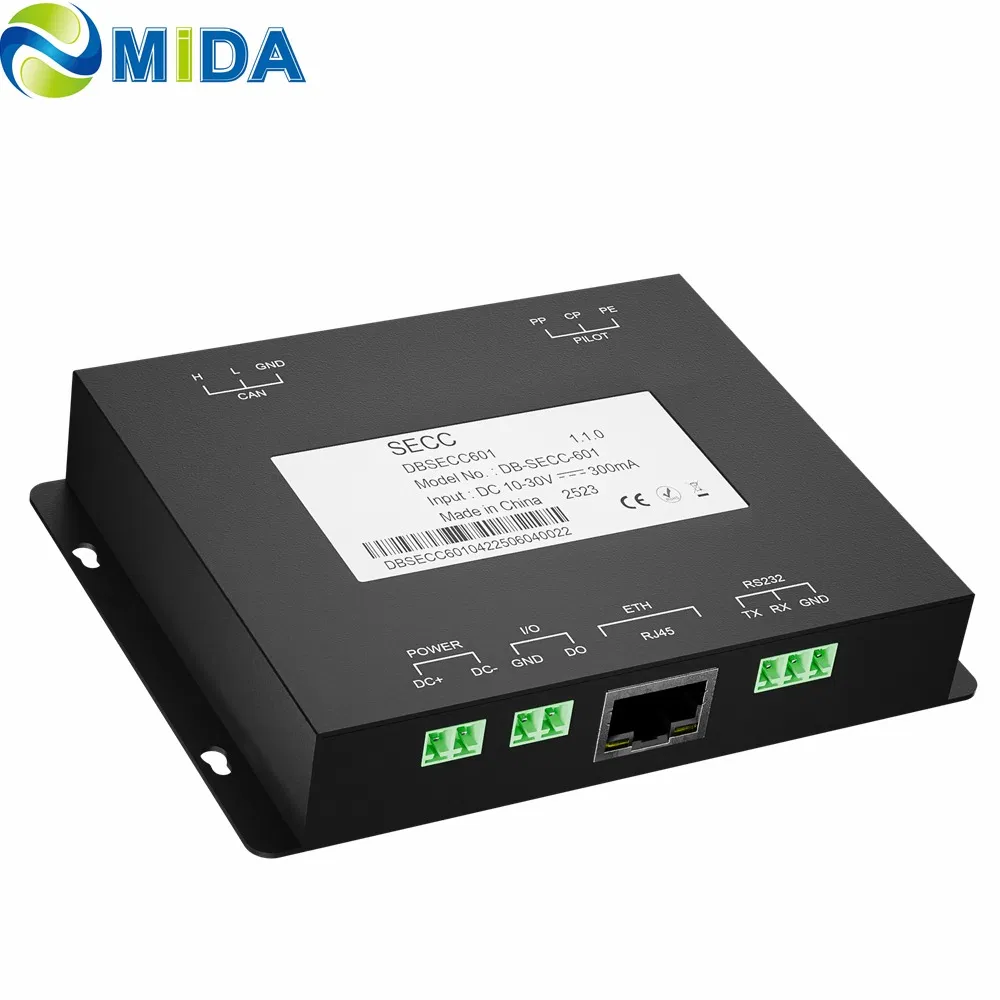

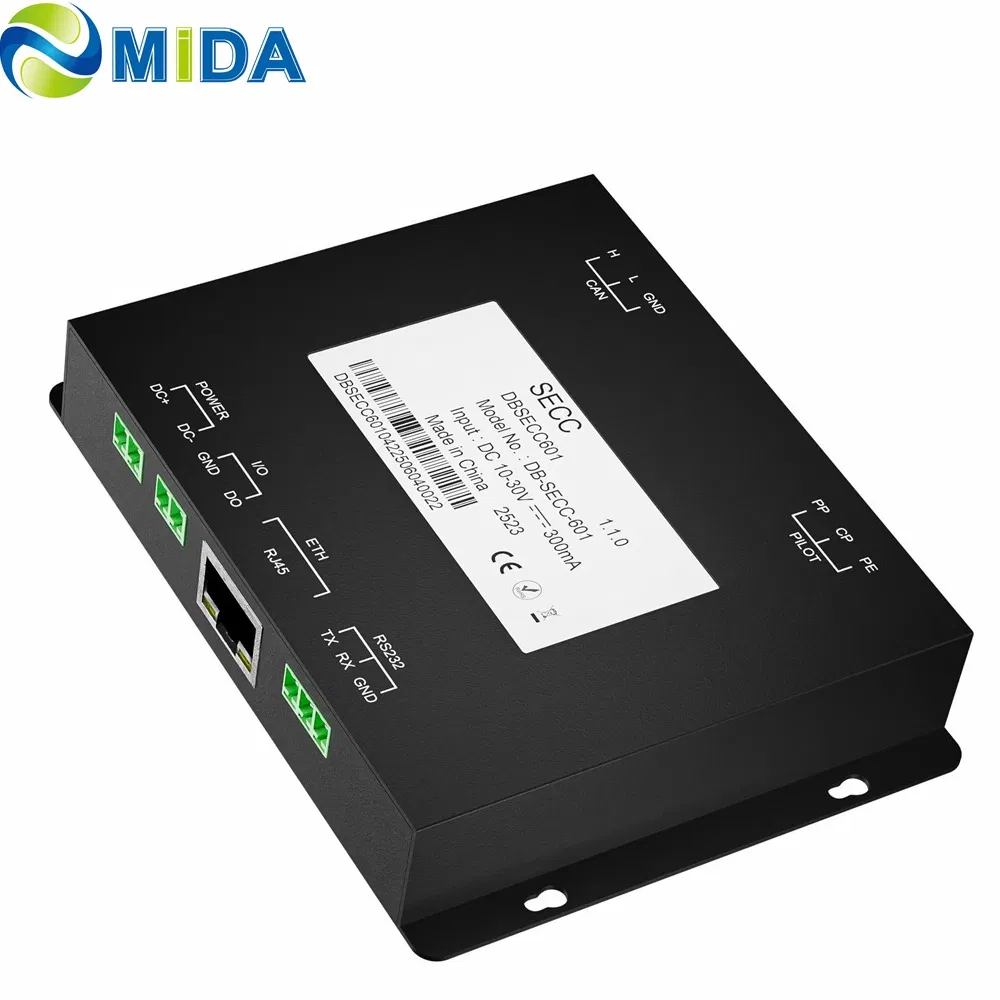

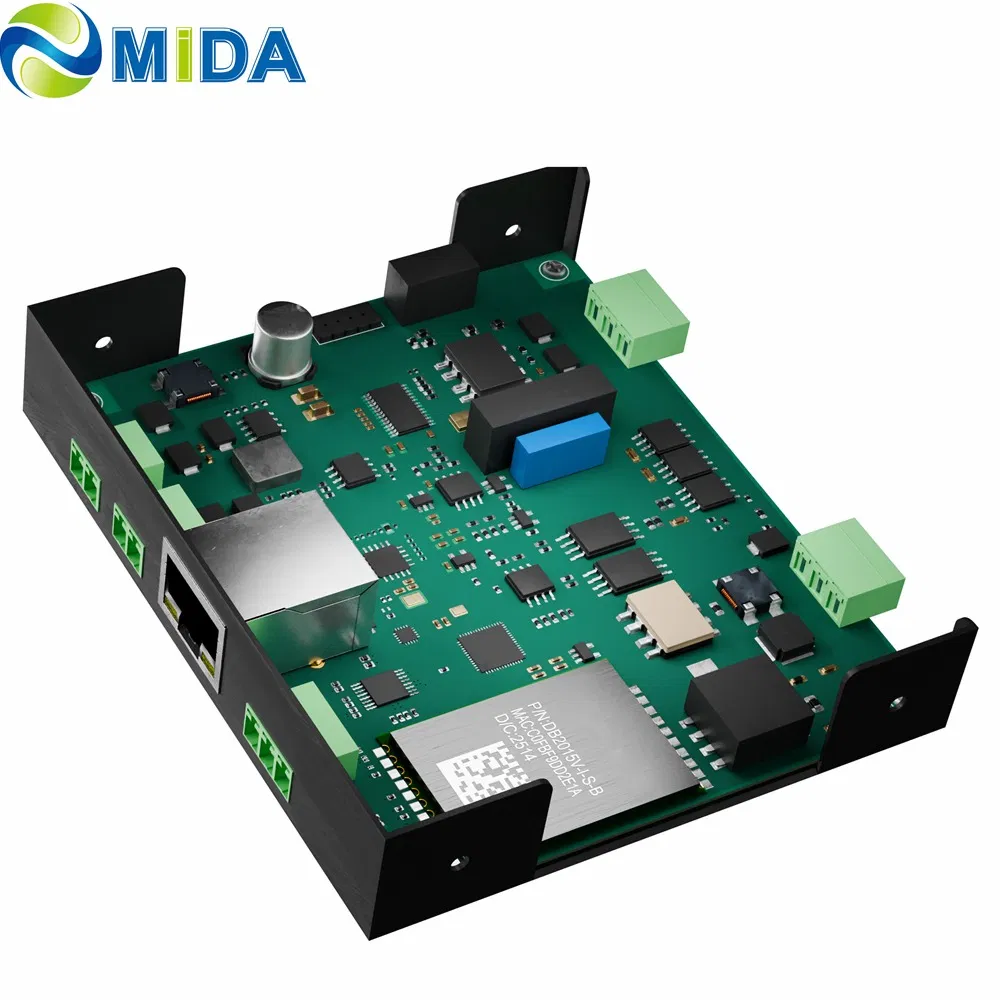

Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
1 / 5
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station
Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station

Secc CCS Chademo PLC EV Charging Communication Solution for DC Charging Station

Customization: Available
Usage: Electric Vehicles
Type: Wireless
Send Inquiry

Product Description

Technical Specifications
Model NO.:
SECC
Certification:
CE
Charging Mode:
CCS (DIN70121, ISO15118)
Voltage Range:
Vin DC12V (Max 2A)
Serial Port:
RS232, Can (Optional)
Standby Power:
<2W
Temp Range:
-40 ~ +85°C
Dimensions:
151.5x135x35.3 mm
Product Description
SECC Communication Solution

SECC CCS CHAdeMO PLC EV Charging Communication Solution

The SECC is a professional PLC communication converter designed for full-function power supply equipment at the charger side. It meticulously conforms to ISO15118 (TLS, Pnc, AC), DIN70121, SAE, and CHAdeMO PLC communication protocol standards.

Features built-in PD detection to support Bi-directional Vehicle-to-Grid (V2G) applications, bridging the communication between DC charger power electronics and the EV battery management system.

Key Capabilities
✔ Supports ISO15118 (EIM) and DIN70121 standards
✔ Real-time output of diagnostic information via serial port
✔ Integrated PWM generator circuit on board
✔ Compliant with PD detection requirement of SAEJ1772-2017
✔ Comprehensive error handling for all exceptions

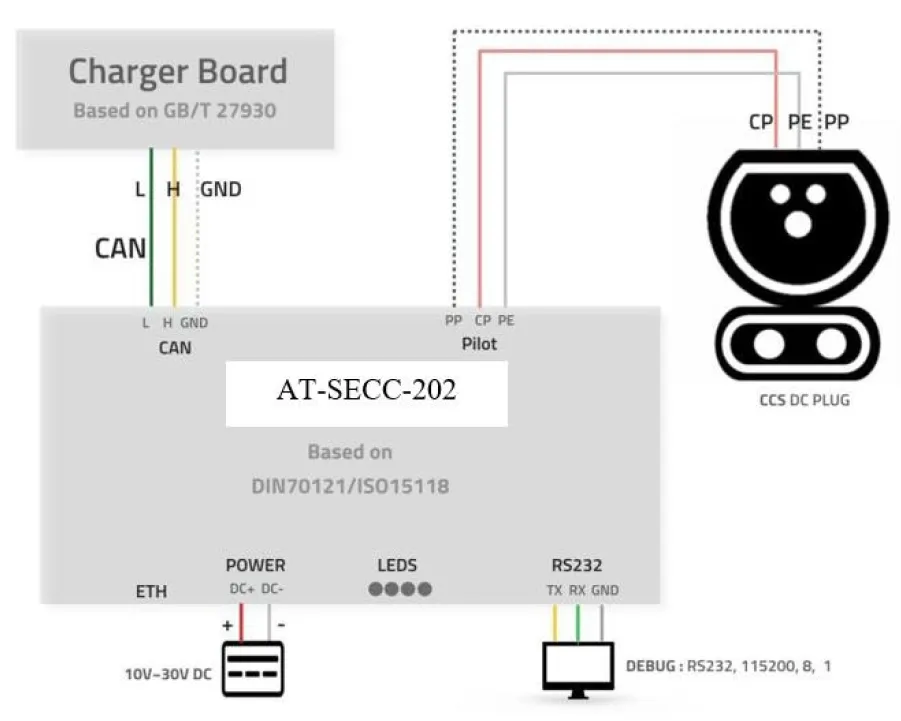

Technical Layout
Detailed Parameters
Items Description
Charging ModeCCS (DIN70121, ISO15118)
Voltage RangeVin DC12V (Max input current: 2A)
Power Consumption<2W
Operation Temperature-40~+85°C
FeaturesCCS (DIN70121,ISO/IEC15118), SAE2847-2, IEC61851-1/23
Gallery & Components
Component 1
Component 2
Component 3
Frequently Asked Questions
Q1: Which communication standards does the SECC support?
It conforms to ISO15118, DIN70121, SAE, and CHAdeMO PLC communication protocol standards.
Q2: Does it support Vehicle-to-Grid (V2G) technology?
Yes, the board supports Bi-directional Vehicle to Grid communication (V2G Protocol) applications.
Q3: What is the operating temperature range?
The module is designed for industrial environments with an operating range of -40°C to +85°C.
Q4: How is the device monitored for troubleshooting?
The SECC supports real-time output of diagnostic information via the RS232 serial port for easy maintenance.
Q5: Is it compatible with both AC and DC charging?
The SECC acts as a bridge for DC charging but can also be configured as a main controller for AC charging systems.
Q6: What certifications are held by these components?
Our core components carry CE, PSE, TUV, and UL certifications, meeting global market requirements.
