Universal CCS and Chademo EV Fast Charger Global Charging Station

⚙️ Basic Information

Model NO.	80KW-600KW	Location	Public Use
Connector Type	CCS1, CCS2, Chademo, GB/T	Rated Power	40kw To 600kw
Body Size	750X410X1700(mm)	Weight	194kg-274kg
Protection Level	IP54	Origin	China

📘 Product Description

⚡

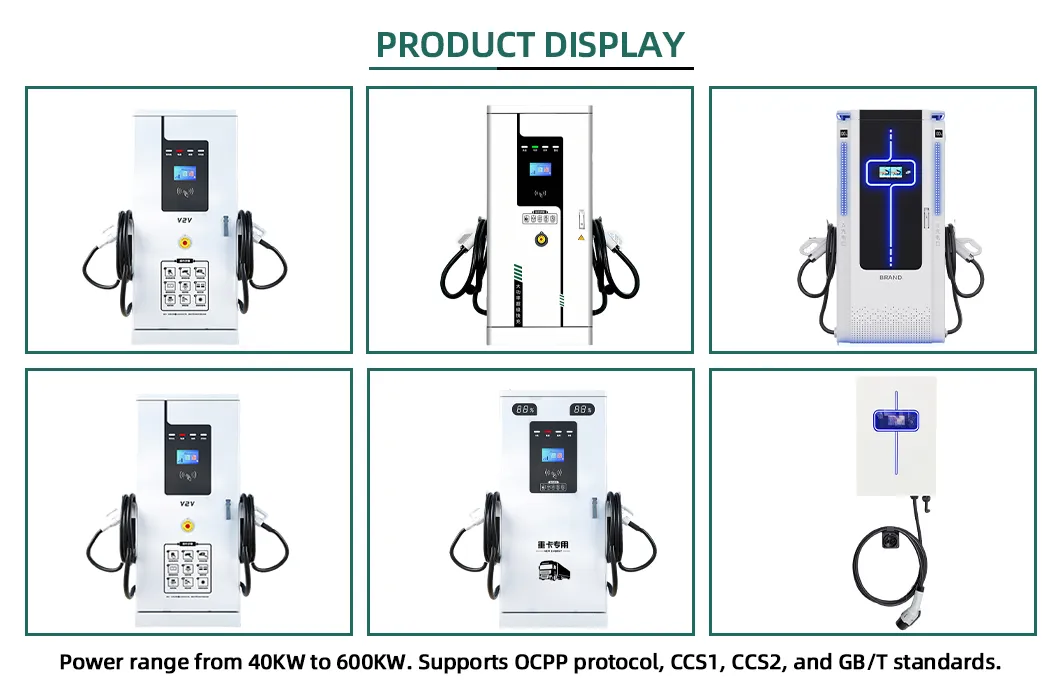

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns.

🛡️

Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory.

🌐

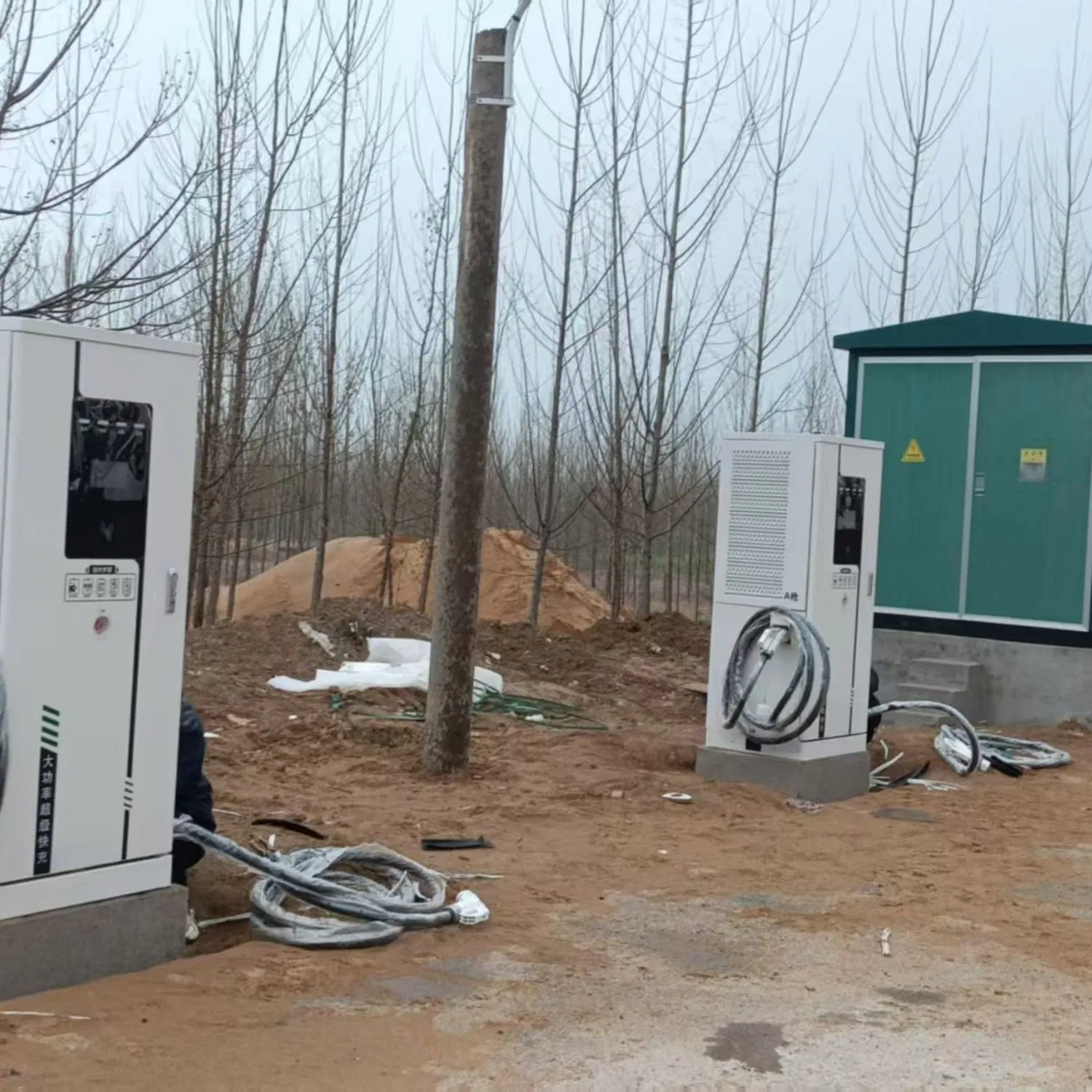

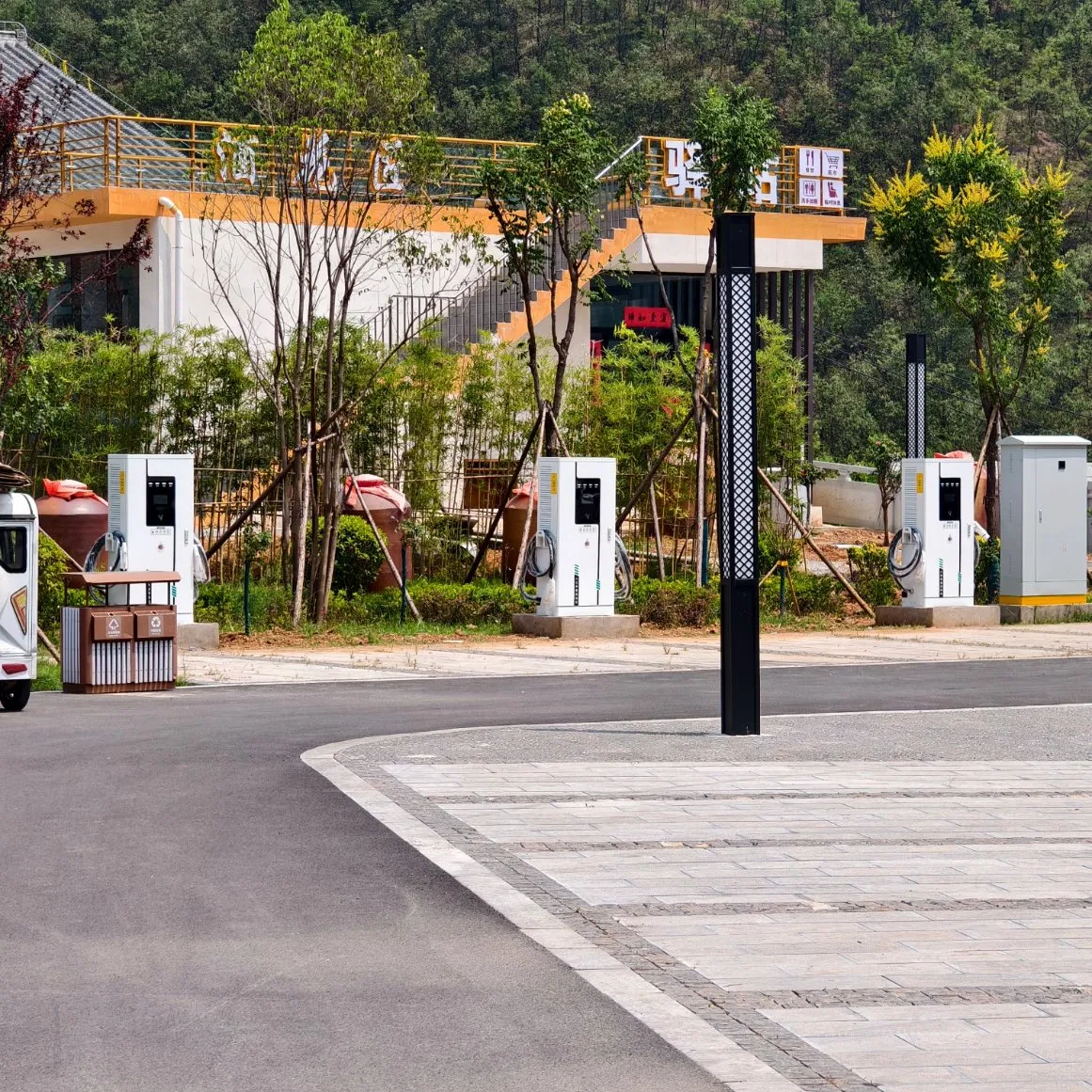

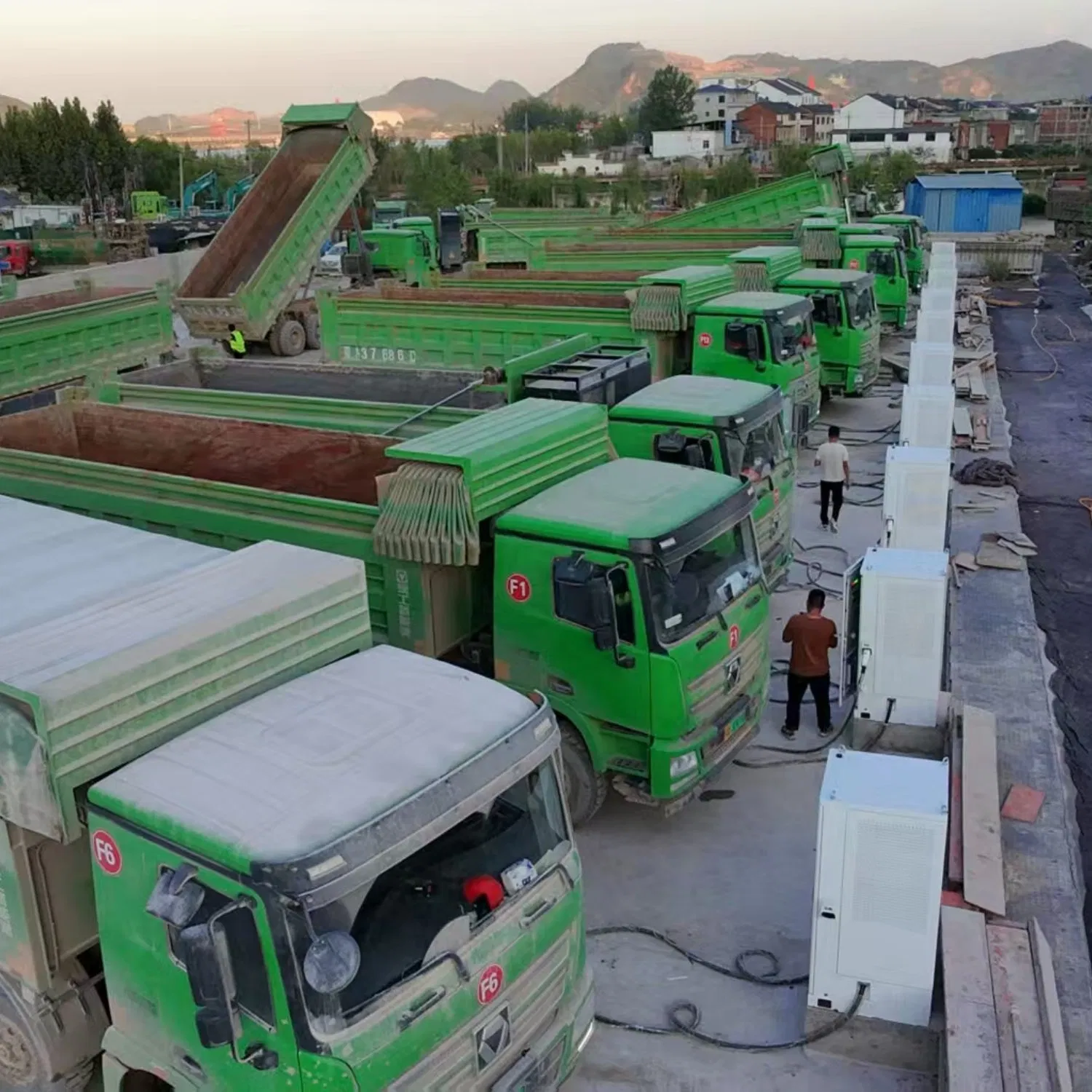

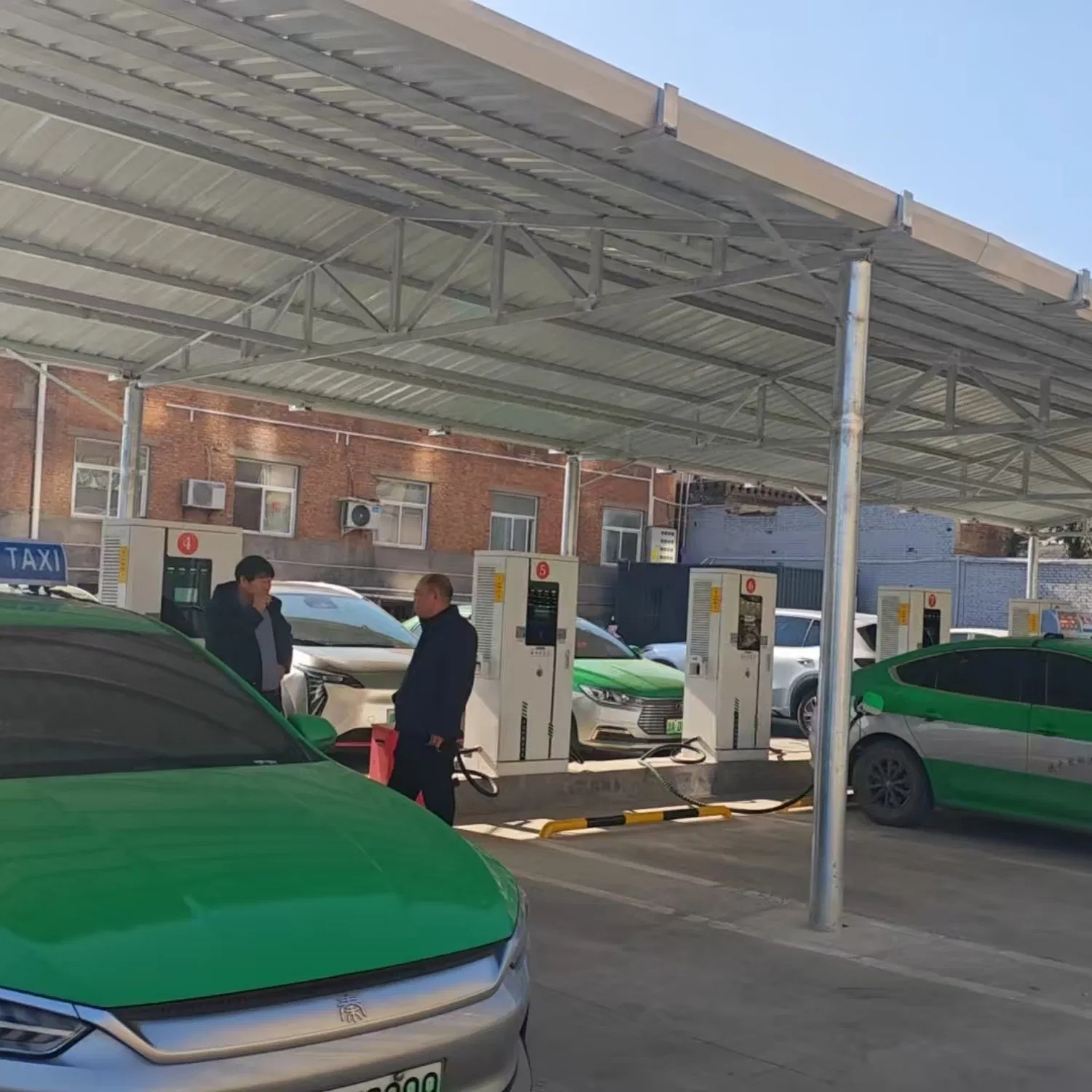

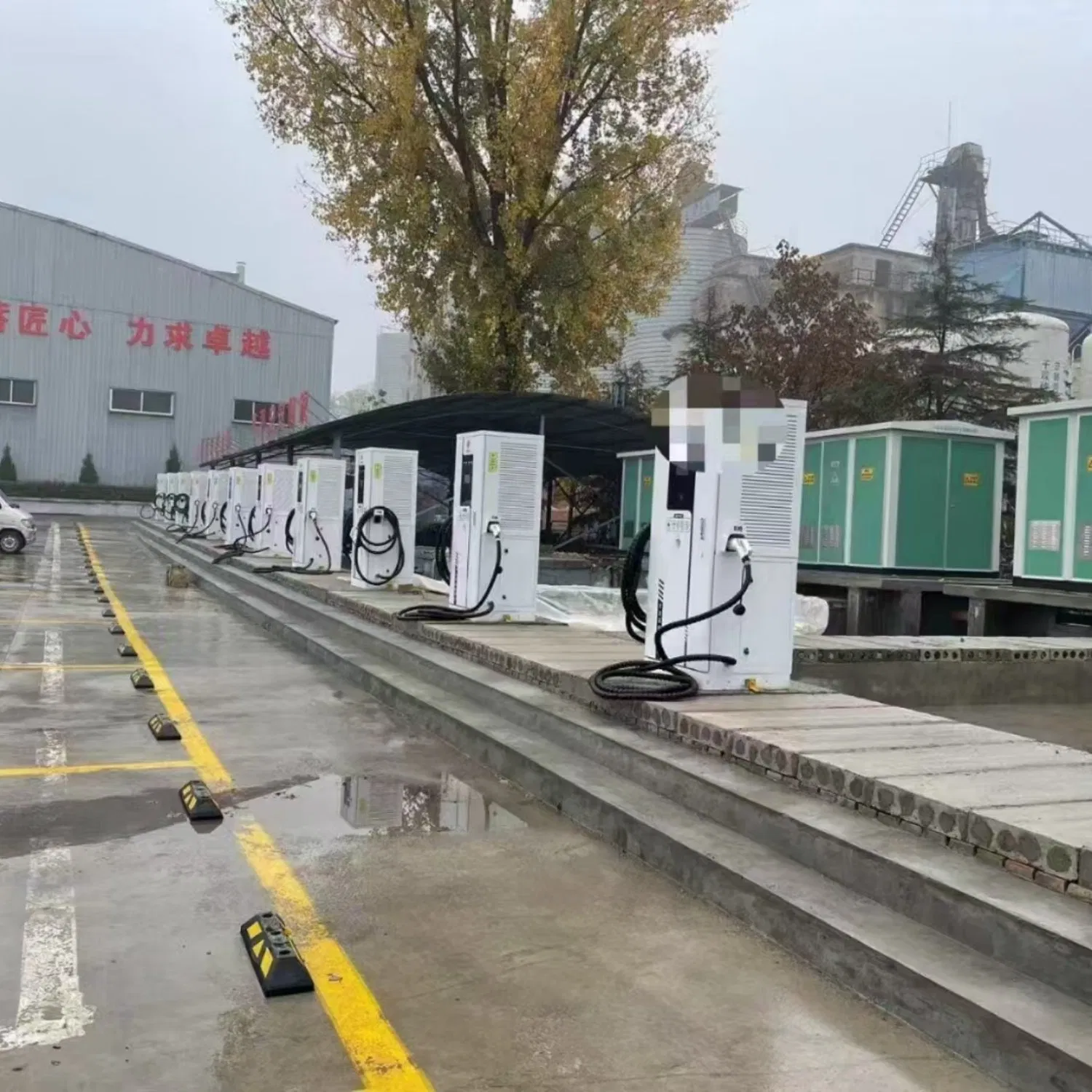

Supports Ethernet and 4G networking methods, and multiple cloud platforms. Suitable for bus stations, factories, large charging stations, cars, buses, and heavy trucks.

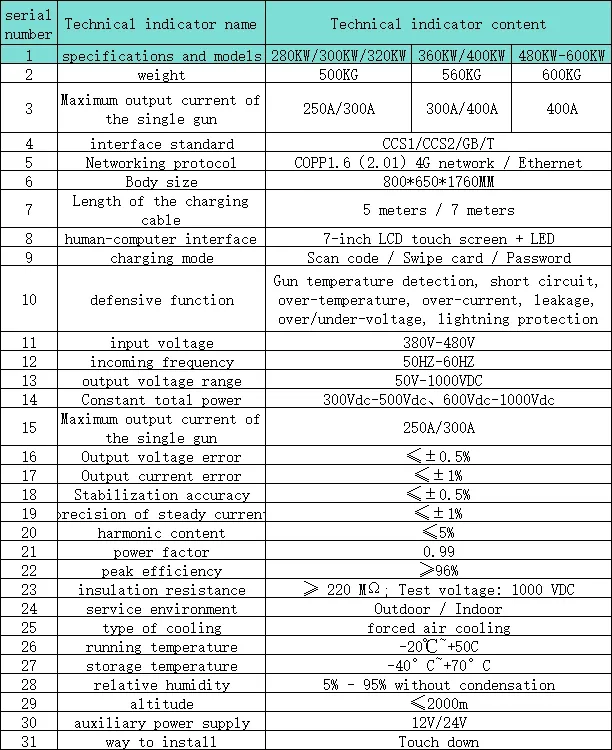

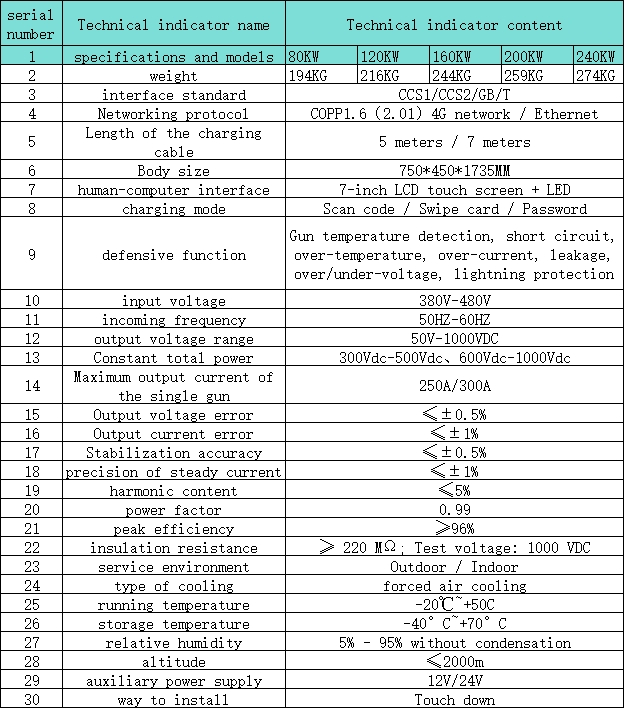

📋 Technical Specifications

Charging mode	Scan code, swipe card, VIN code, password
Start method	Swiping the card, scanning the code
Gun barrel length	5 Meters / 7 Meters
Cloud platform	OCPP 1.6 (2.01)
HMI	7-Inch LCD Touch Screen + LED

🎬 Video Demonstration

🏆 Quality Assurance

Holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions.

📦 Packaging & Shipping

We adopt packaging methods that are sufficient to protect the equipment, supporting sea, air, and land transportation.

❓ Frequently Asked Questions

Q1: Are you a factory or a trading company?

A: We are a manufacturer, welcome to visit our factory at any time!

Q2: What can you buy from us?

A: We mainly offer AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC charging stations (30kw-480kw), mobile chargers with energy storage (3.5kwh-161kwh), and Solar System products.

Q3: Can you put our logo on the products?

A: Yes, we can make your design and put your logo on the products.

Q4: What are your payment terms?

A: T/T 30% as deposit, 70% paid before delivery. We will show you photos of the products and packages before you pay the balance.

Q5: How about your delivery time?

A: Generally, it will take 7 to 35 days after receiving your advance payment. The specific time depends on the item and quantity of your order.

Q6: Do you test all your goods before delivery?

A: Yes, we perform a final inspection of all goods before delivery to ensure quality.
