As the electric vehicle industry, particularly in the commercial vehicle sector, accelerates toward electrification, the demand for efficient, reliable, and high-power charging infrastructure grows increasingly urgent. Our newly launched next-generation ultra-high-performance DC charging station is a milestone product born to meet this era's demands. It is not merely a charging device but a core power engine driving green transformation in logistics, engineering, and specialized operations.

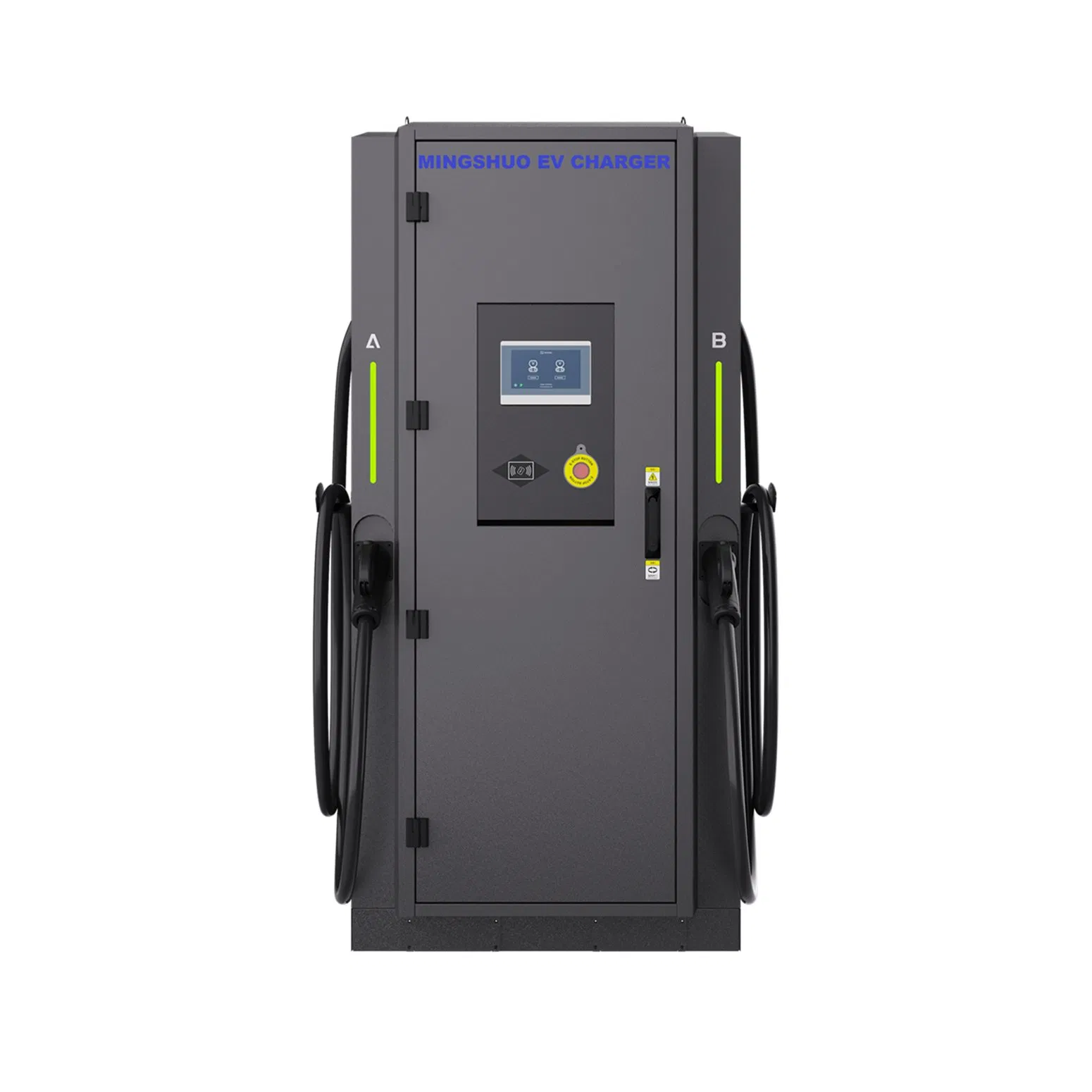

This charging station embraces the design philosophy of "functional aesthetics." Its overall form is bold and steady, with a rugged and resolute style. Clean, sharp lines and distinct angular contours exude industrial strength. It provides outstanding physical protection and conveys a sense of dependable reliability, suitable for highway supply stations, mines, and ports.
The product adopts a forward-thinking modular and highly scalable design. It comes standard with 12 high-efficiency power module slots, offering exceptional scalability that smoothly expands up to 480kW. This model effectively protects investments and avoids the risk of rapid obsolescence.
| Model NO. | MS08A-10C |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC |
| Rated Power | 240-480kW |
| Max Output Current | 1-600A |
| Peak Efficiency | ≥96% |

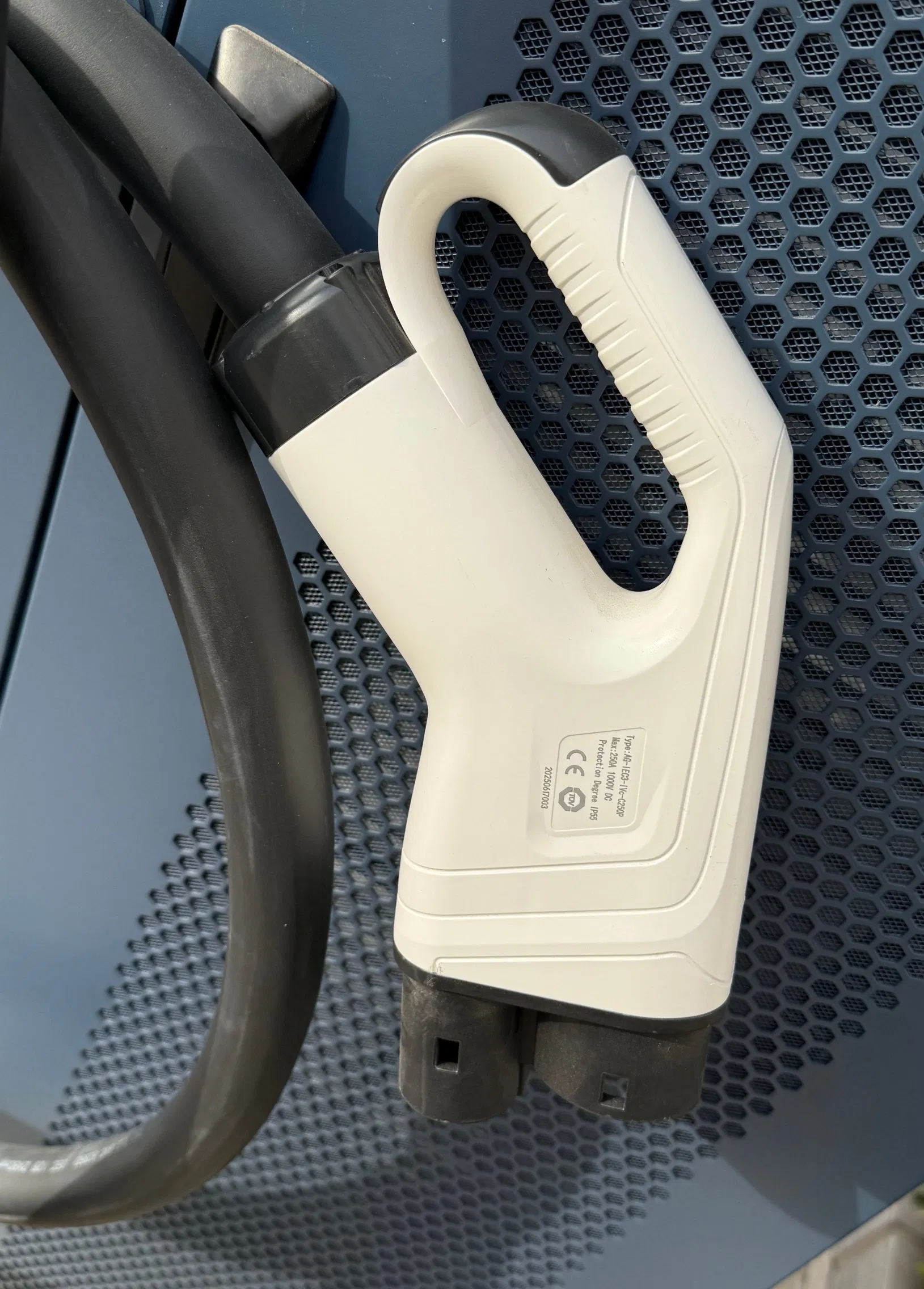

| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS |
| Protection Grade | IP54 / IK10 |
| Operating Temp | -30°C to 75°C |

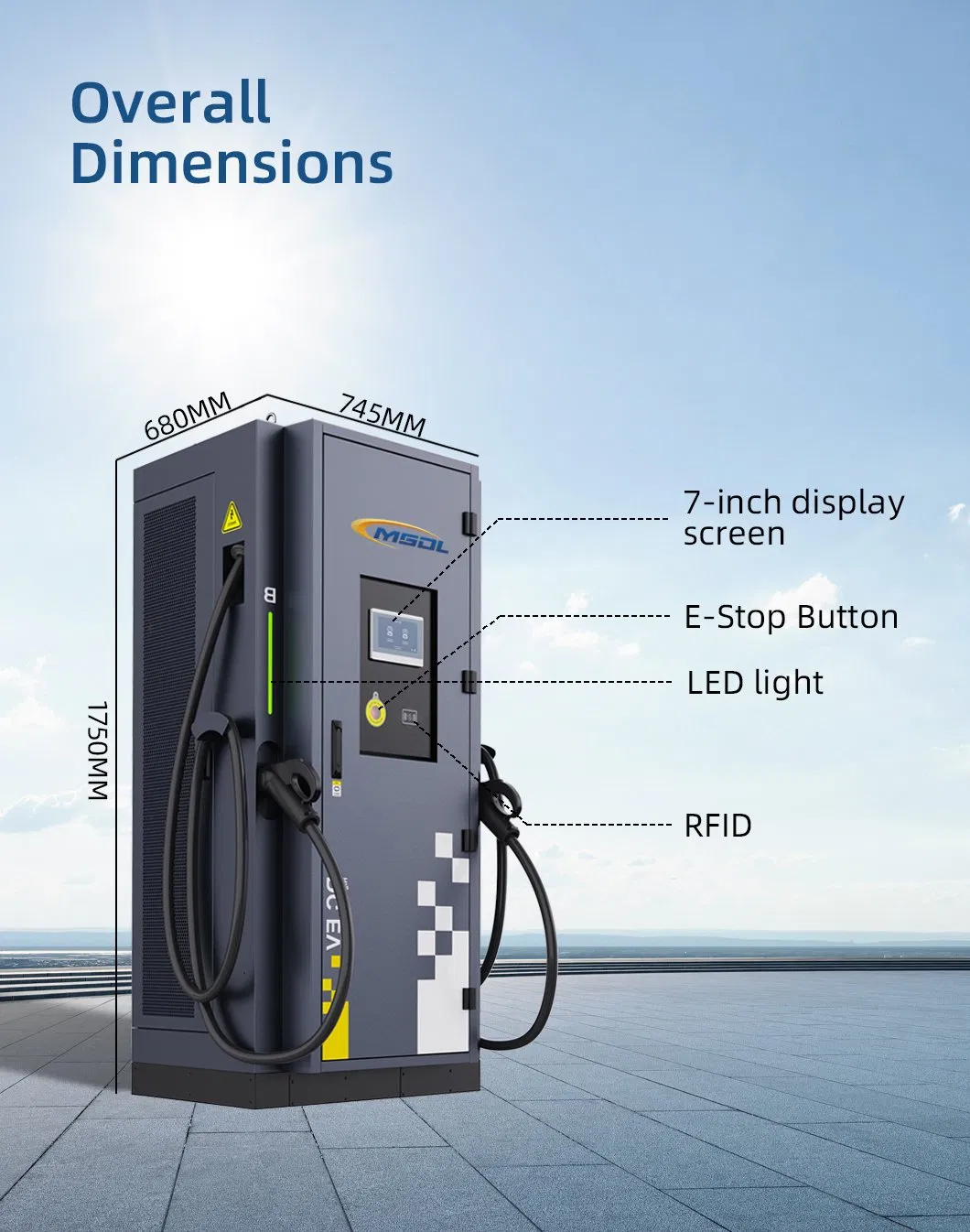

| Dimensions | 900mm x 700mm x 1900mm |
| Weight | 440kg |
A: The station features a modular design that can scale from 240kW up to a maximum of 480kW.
A: It supports all major global standards including GBT, CCS2, CCS1, CHAdeMO, and NACS.
A: Yes, it is designed to operate in temperatures ranging from -30°C to 75°C with an IP54 protection rating.

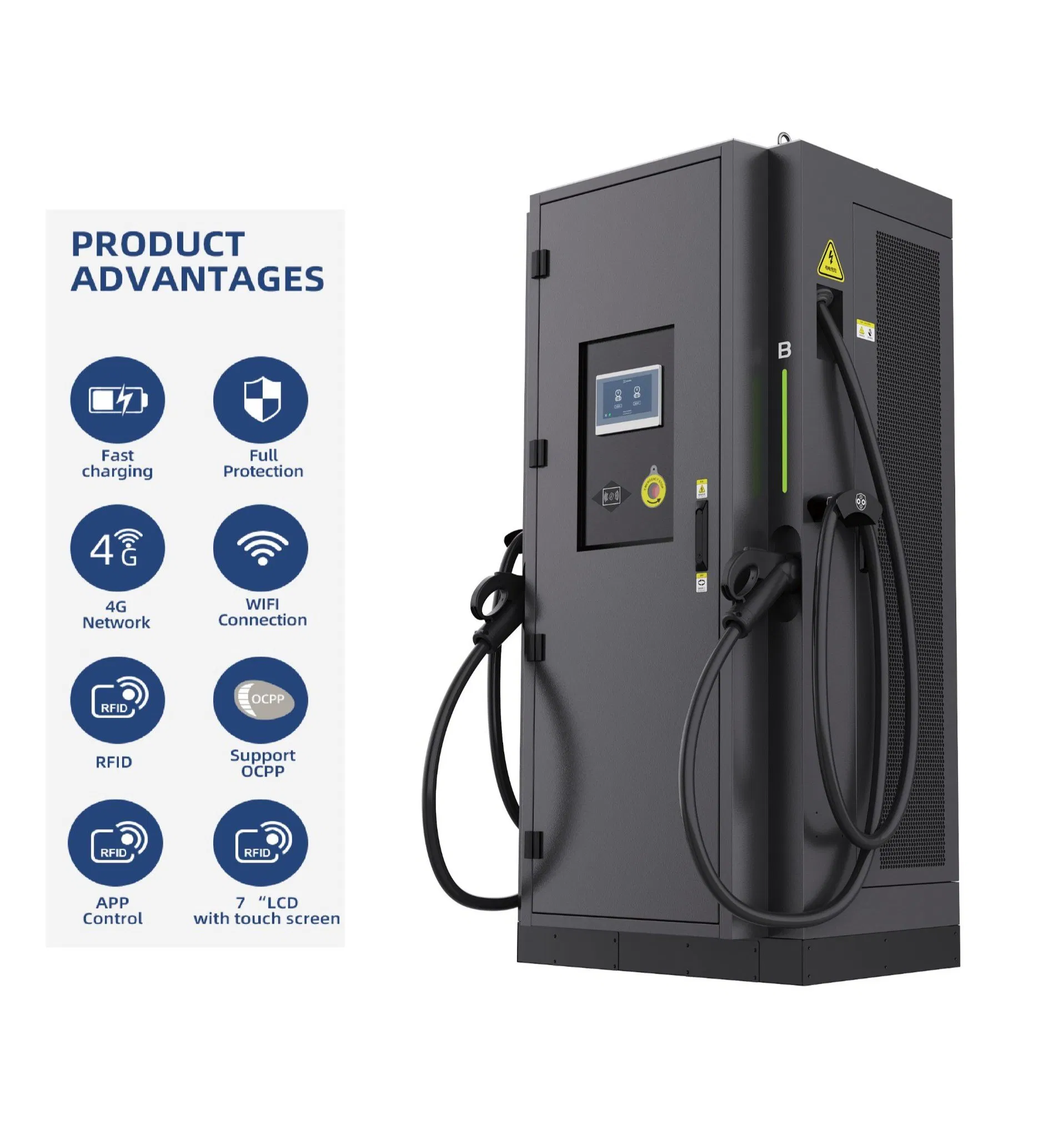

A: Users can start charging via RFID cards, mobile remote operation, or credit card payments (POS optional).

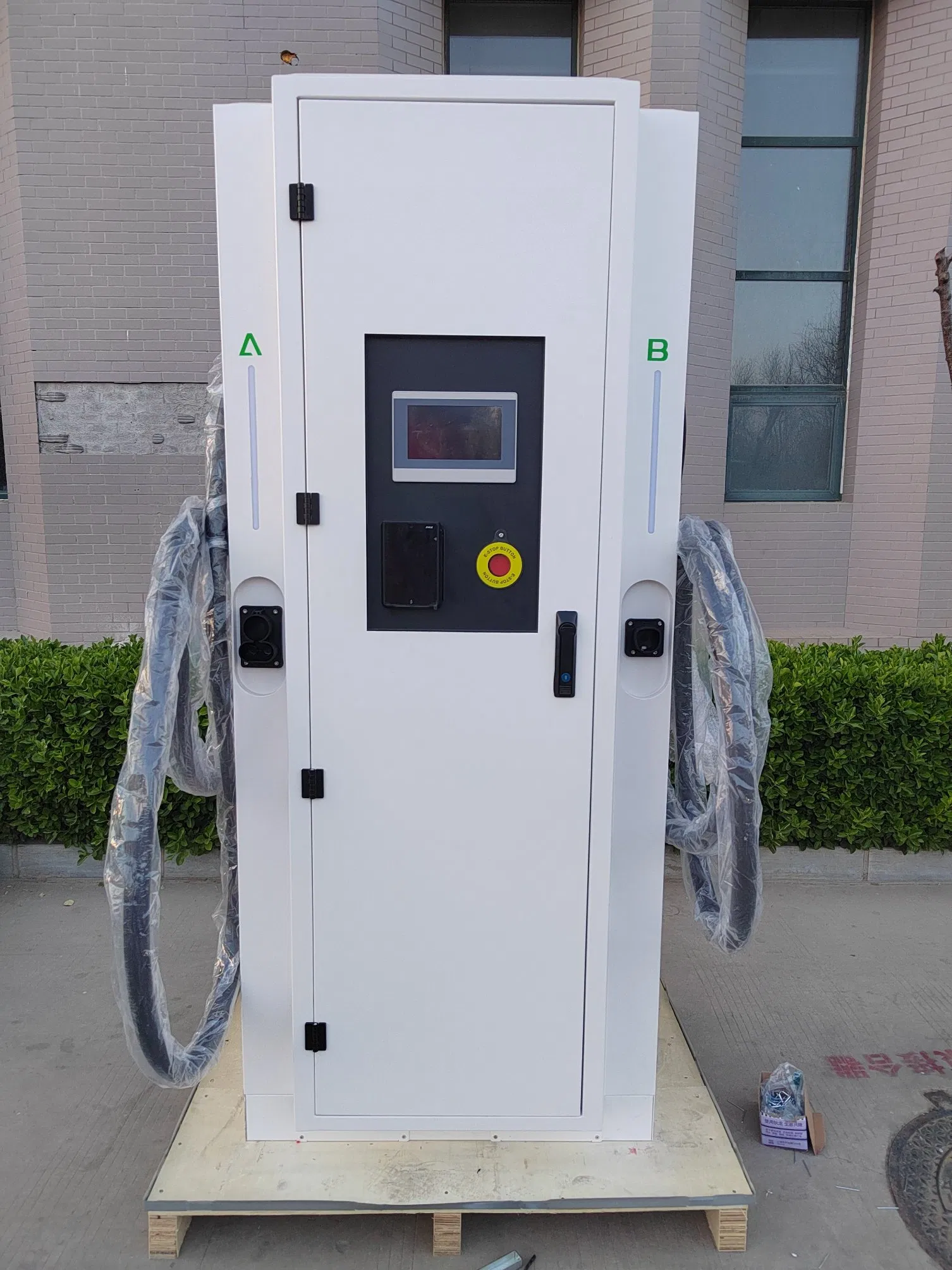

A: The unit utilizes a high-performance air-cooled system to maintain optimal power electronics temperatures during high-speed charging.
A: It includes overvoltage, lightning, overcurrent, leakage, and waterproof protection, along with an immediate emergency stop button.
