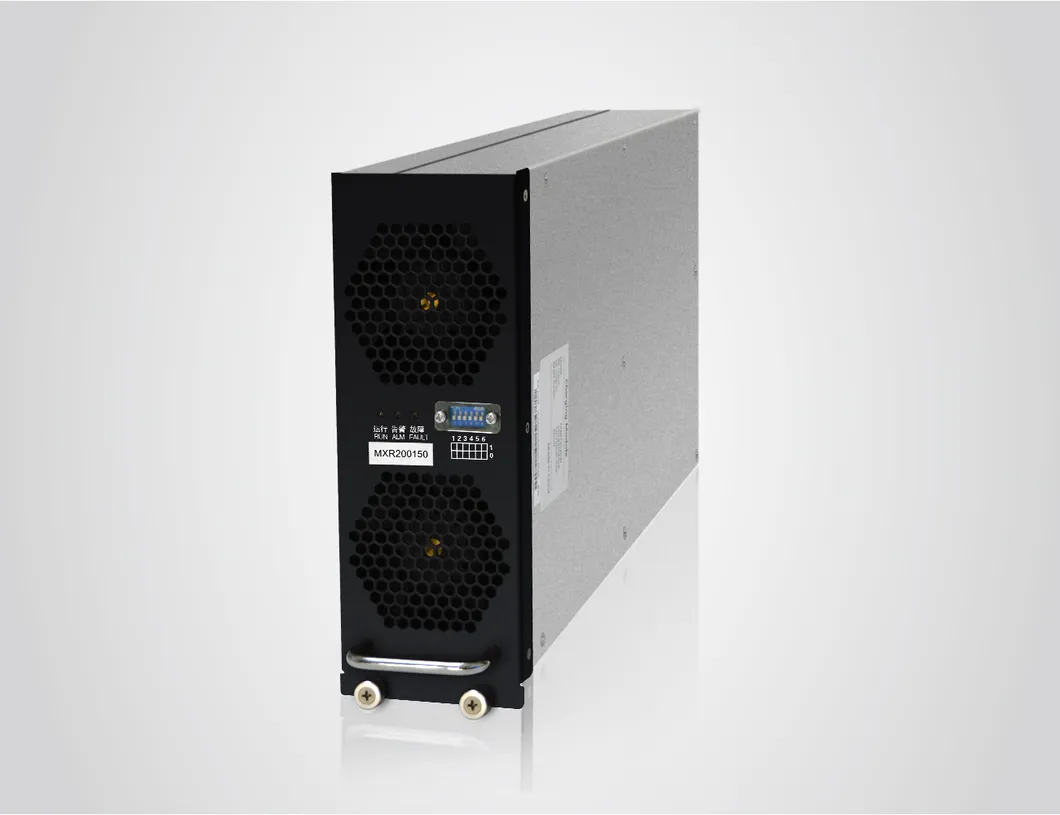

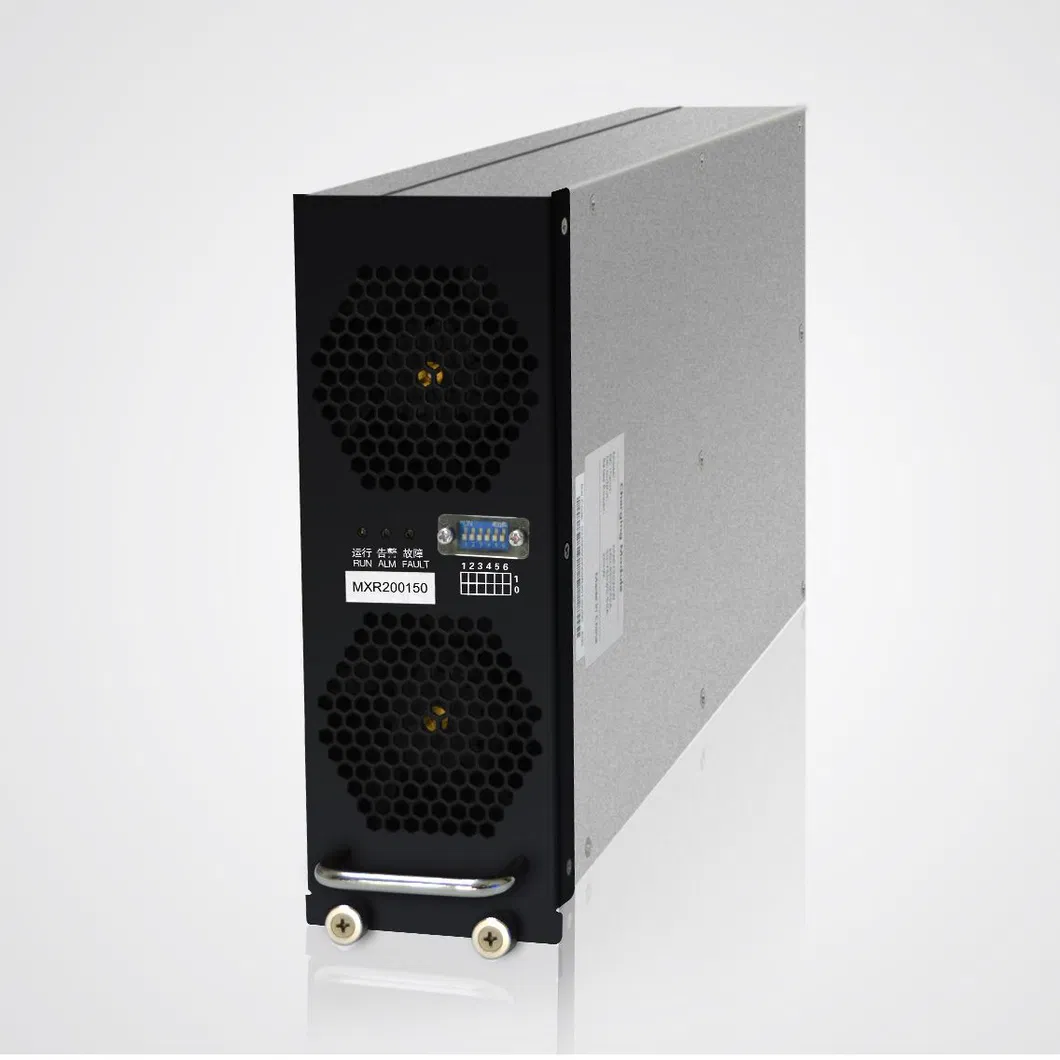

| Model | MXR200150 |
| Iuput Current | 40A |
| Output Current | 150A |
| Efficiency (Full Load) | ≥95% |
| Cooling Mode | Fan Cooling |
| Communication Protocol | CAN bus |
| Dimensions | 84mm(H)*226mm(W)*395mm(D) |
| Input Voltage | 260Vac~475 Vac, three phrase+PE |
| Output Voltage | 20Vdc~200Vdc |
| Power Factor | 0.99 |
| Mtbf | 500,000 Hours |
1. Function details:

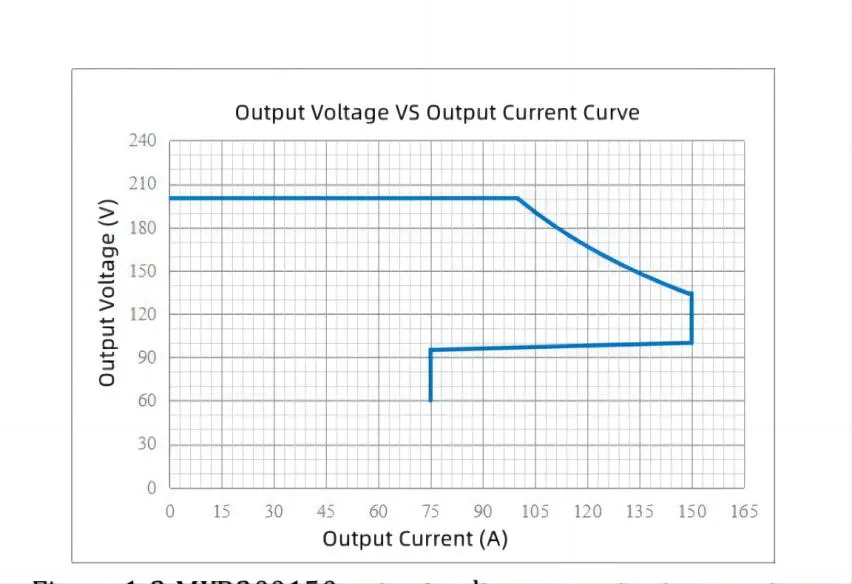

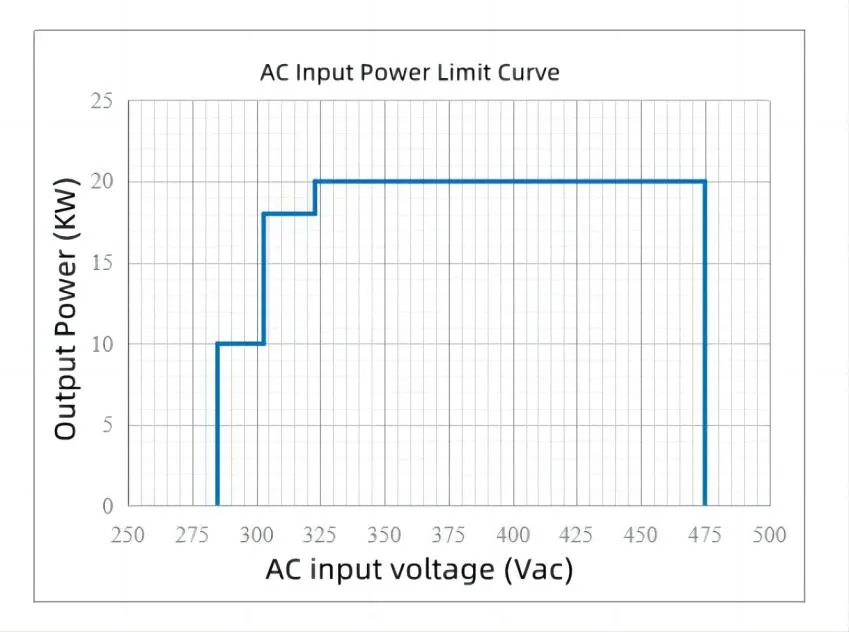

2. Output constant power control: At rated input voltage, the allowable output power is 20kW.
| CE/ TUV / EMC | EN IEC 61000-6-1, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 61851-21-2 |
| cTUVus | UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16 |
Warranty Period: 1 Year
For non-human damage:
- First 6 Months: Free replacement of a new module.
- Second 6 Months: Free repair services.
Technical assistance from engineers is available throughout the testing process.
A: The module achieves a full load efficiency of ≥95%, ensuring energy-efficient power conversion for EV infrastructure.
A: Yes, it utilizes plug-in technology which allows for hot-swapping, making installation and maintenance significantly easier.
A: The modules feature automatic current sharing with an unbalance degree of less than 5% across parallel units.

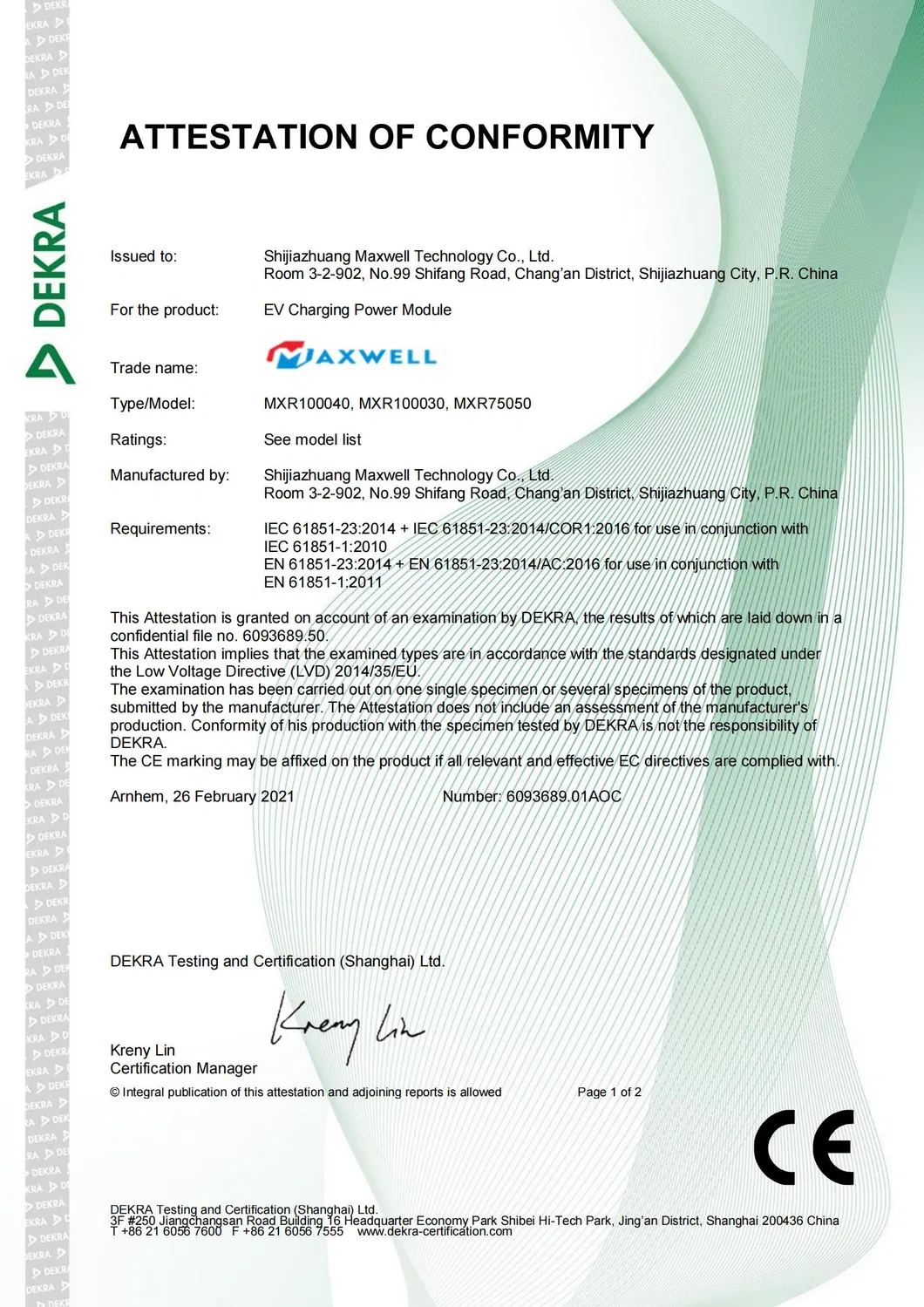

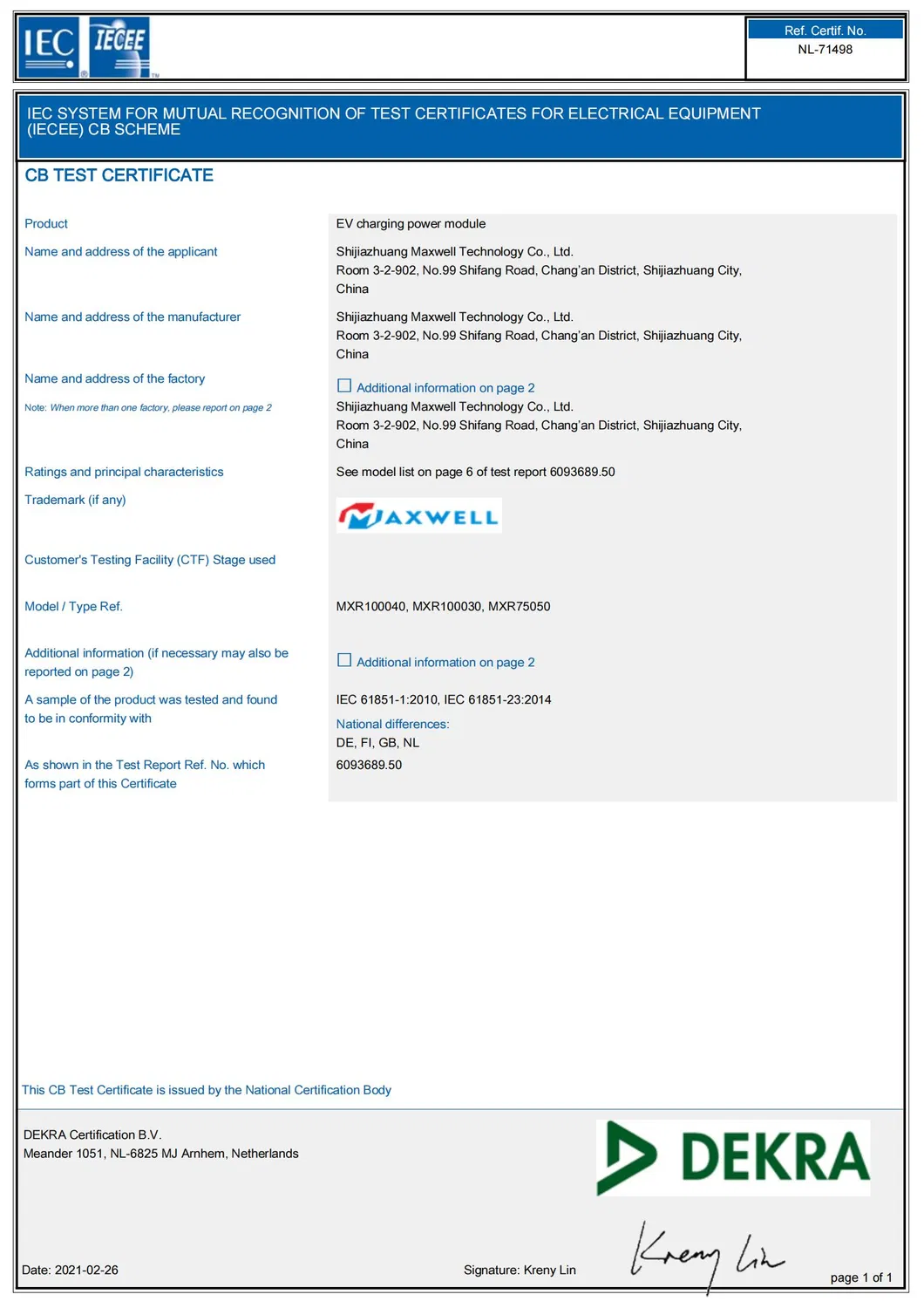

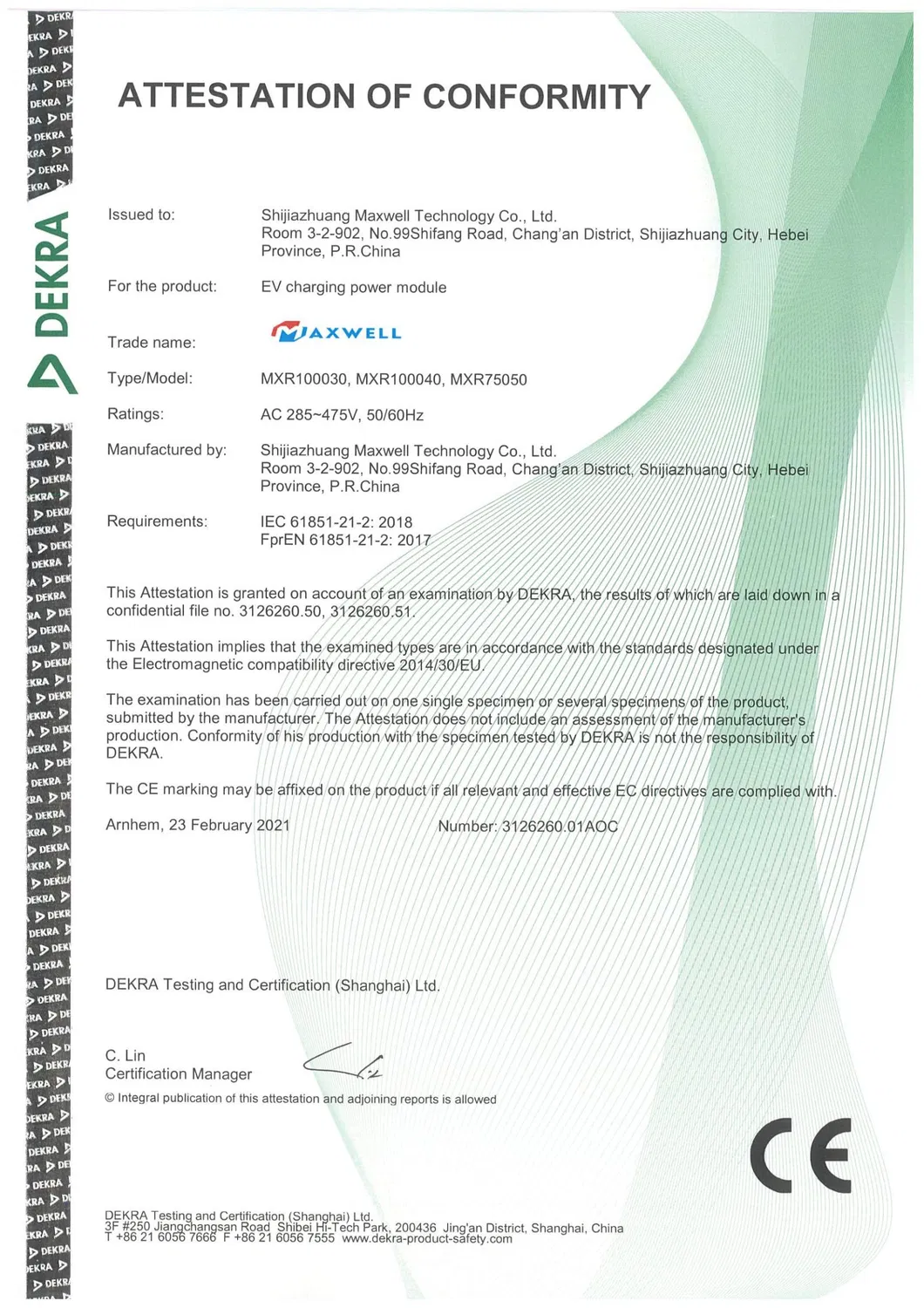

A: The product is certified under CE, TUV, and EMC standards, including EN IEC 61851 and UL 2202 for the North American market.
A: The module is designed with an integrated fan cooling system to maintain optimal operating temperatures.
