20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
1 / 5
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure
20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure

20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
TH20F10025C7-WT
Location
Public Use
Interfaces
One Pile with Multiple Charges
Output Function
300-1000VDC
Efficiency
Peak ≥ 96%
Certification
CE, ISO, Kc
Package Size
59.00cm * 34.00cm * 15.00cm
Gross Weight
15.000kg
★

Product Advantages

  • Wide output constant power range: 300-1000VDC
  • Ultra-low standby power consumption: <10W
  • Ultra-low total harmonic distortion: ≤5%
  • Ultra-wide operating temperature: -40ºC-75ºC
  • High Conversion Efficiency: peak efficiency ≥ 96%

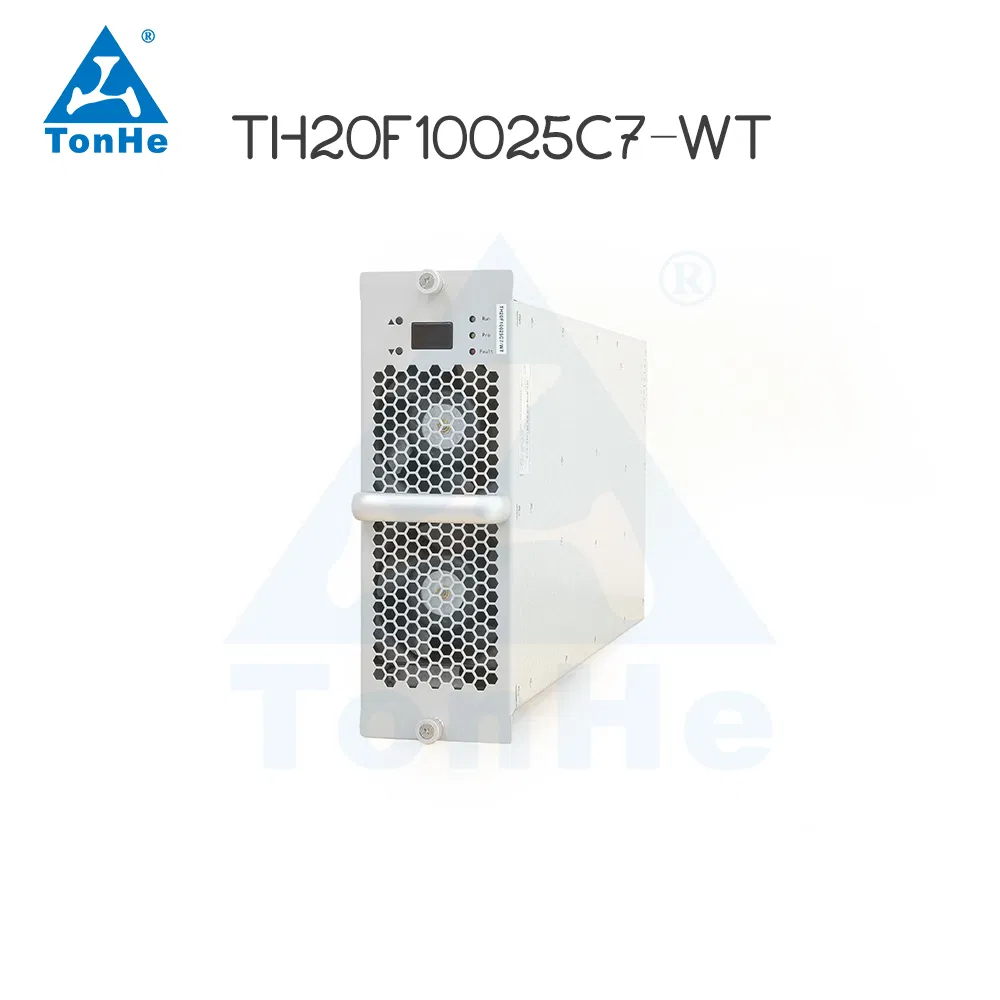

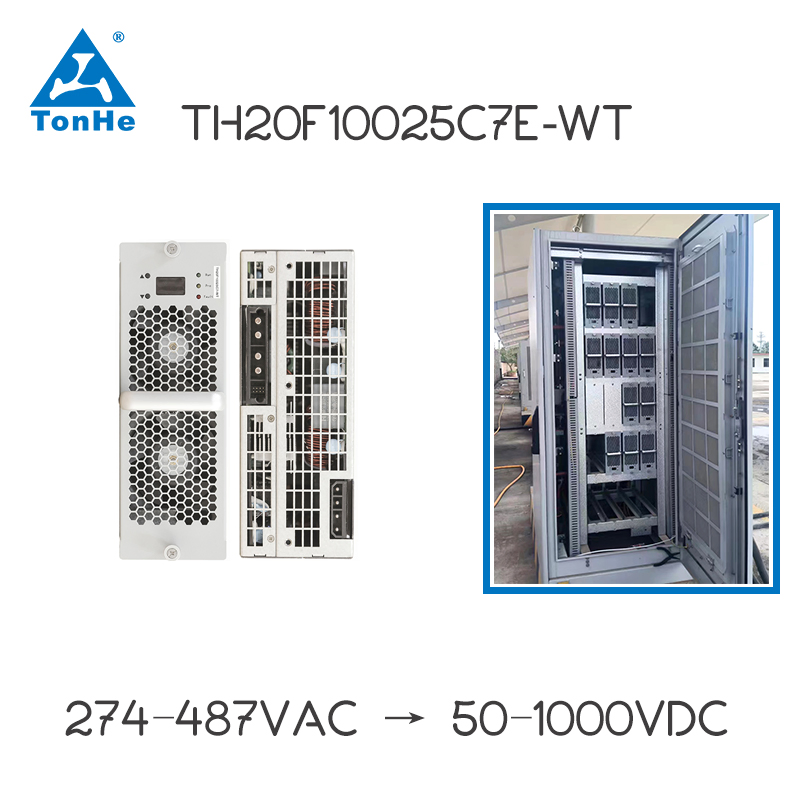

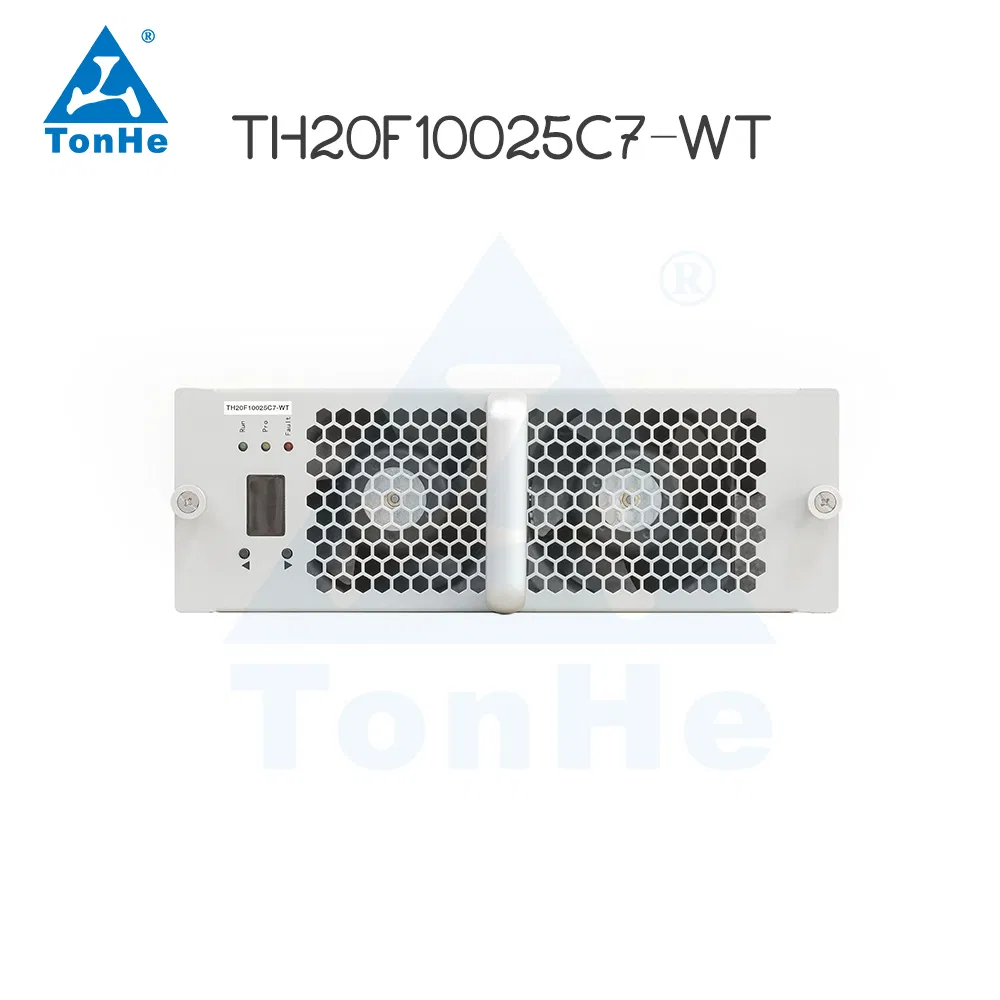

DC Fast Charger Module

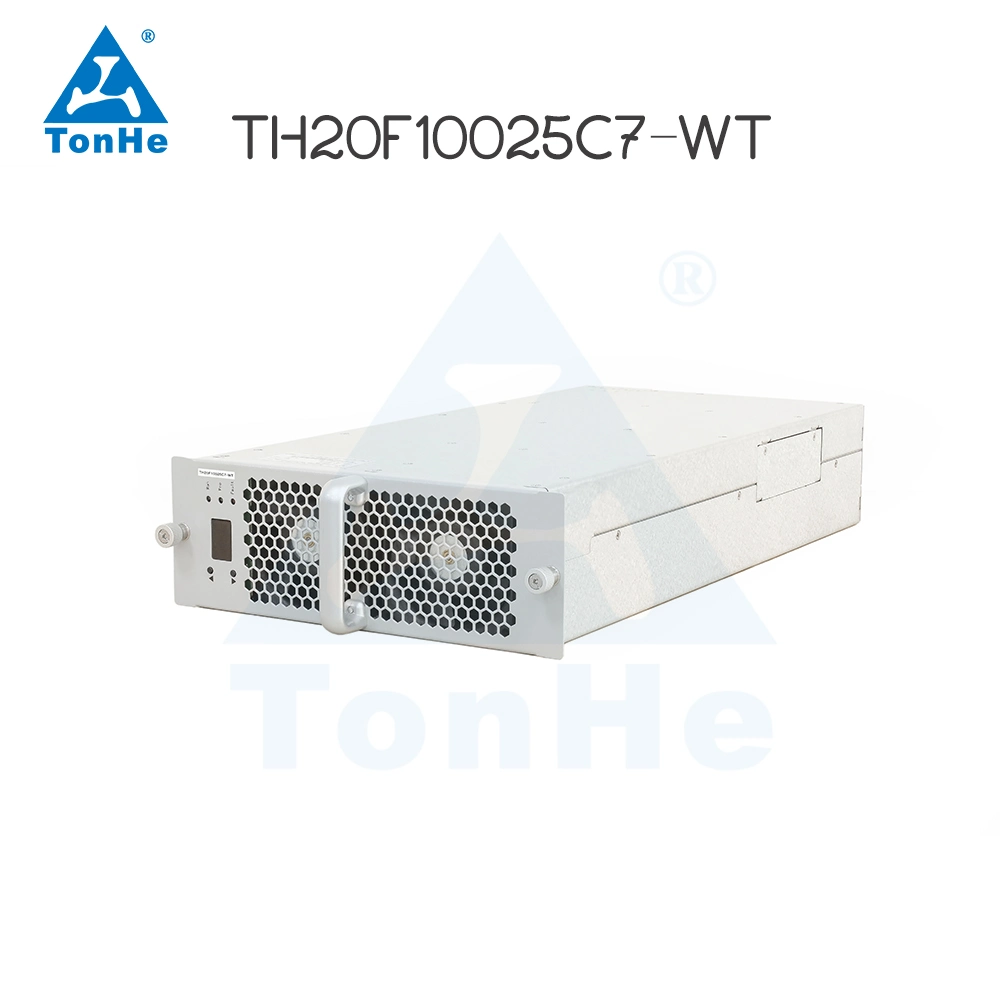

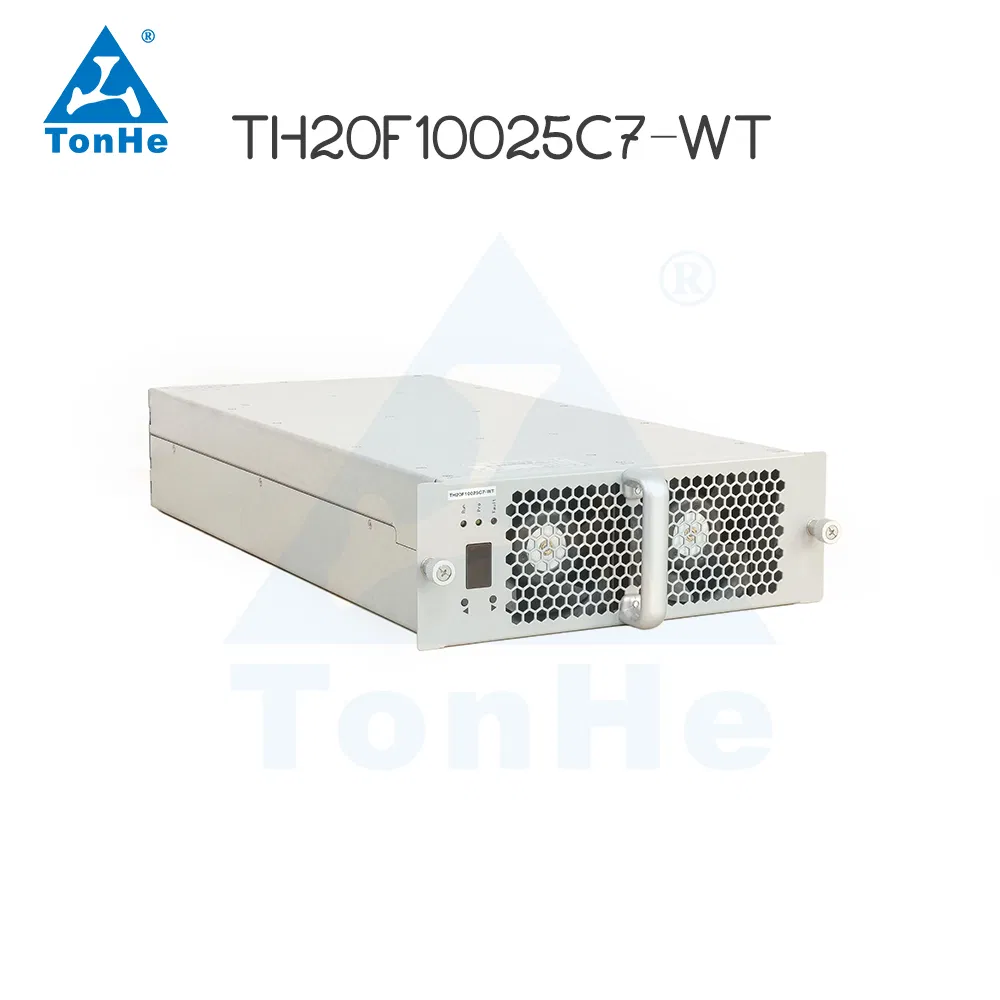

DC Fast Charger Module Side View
DC Fast Charger Module Detail
Internal Structure 1

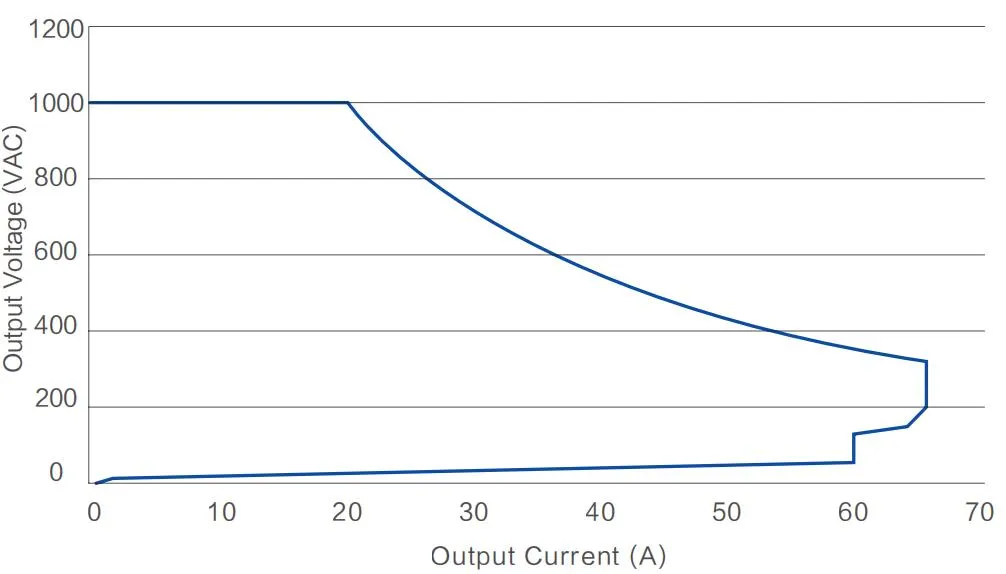

Internal Structure 2

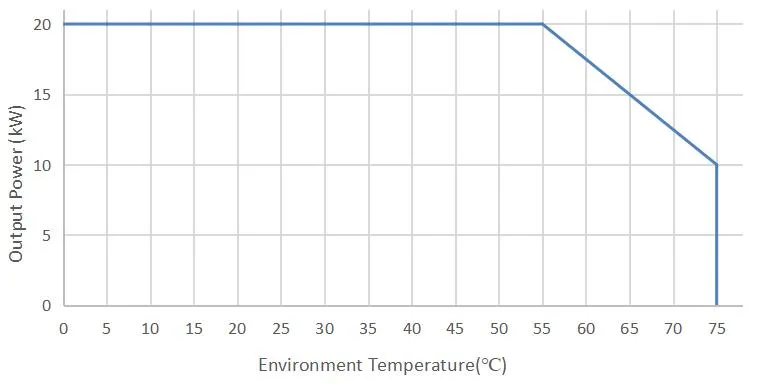

Internal Structure 3

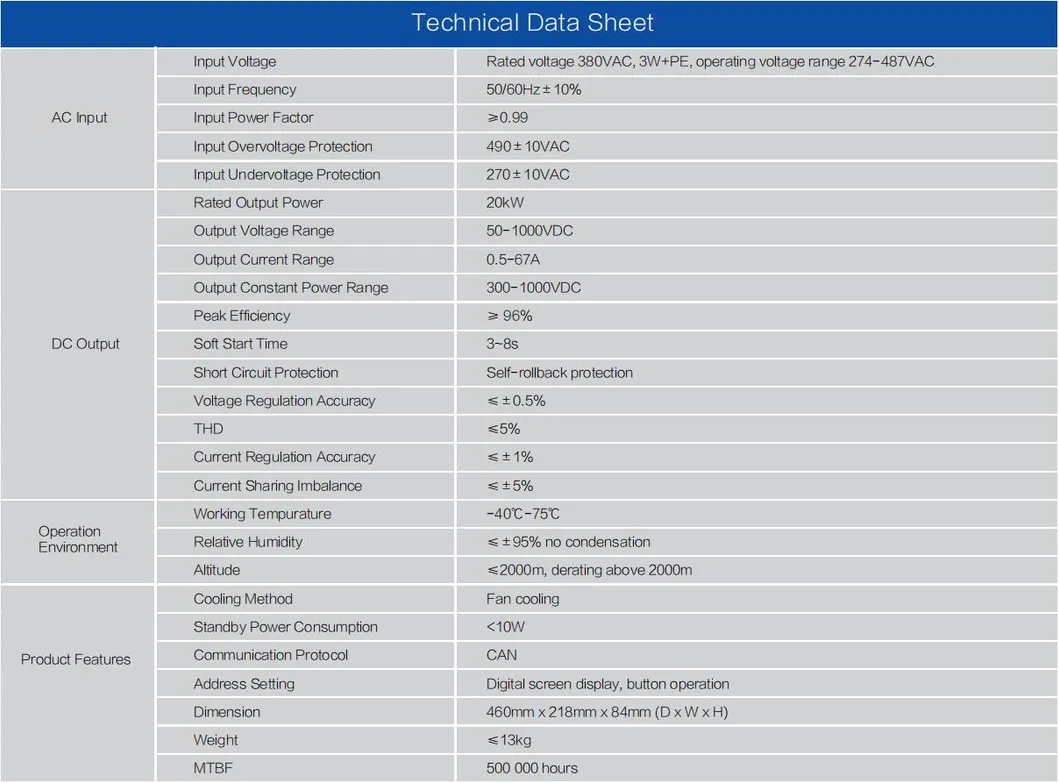

Comprehensive View
■

Professional Capability

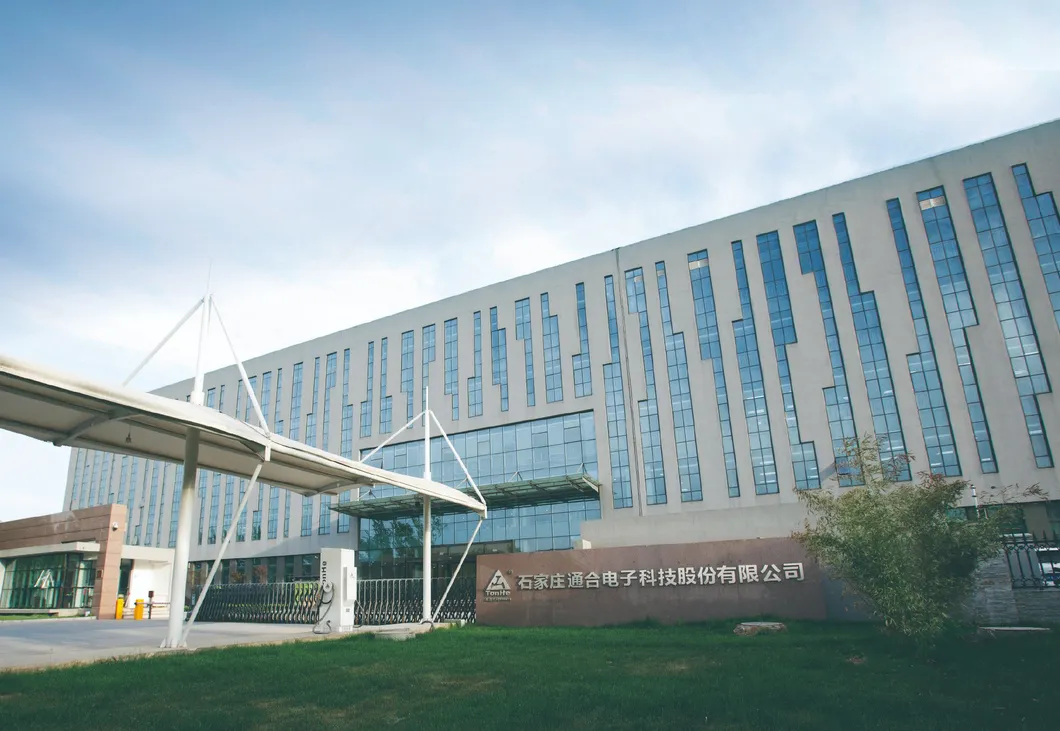

R&D Center

Focusing on high-frequency power conversion technology, we are among the first to realize soft switching technology for the entire power conversion process. Our solutions cover EV charging power modules and complete system designs, providing integrated "One-Stop Service" including technical guidance and global support.

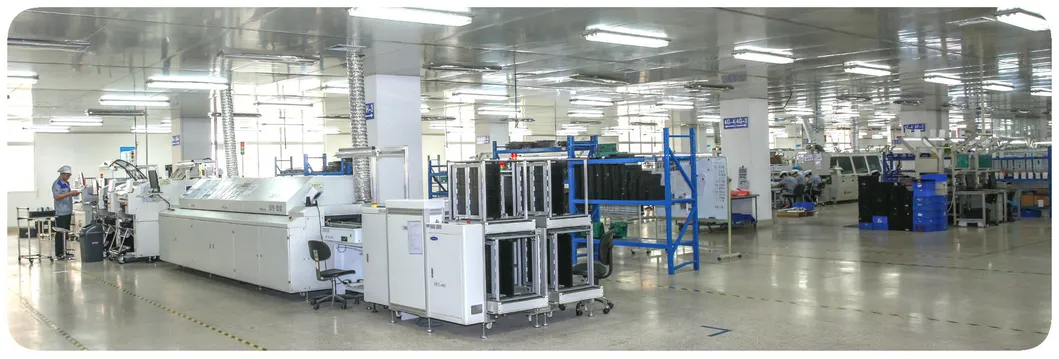

Manufacturing Line

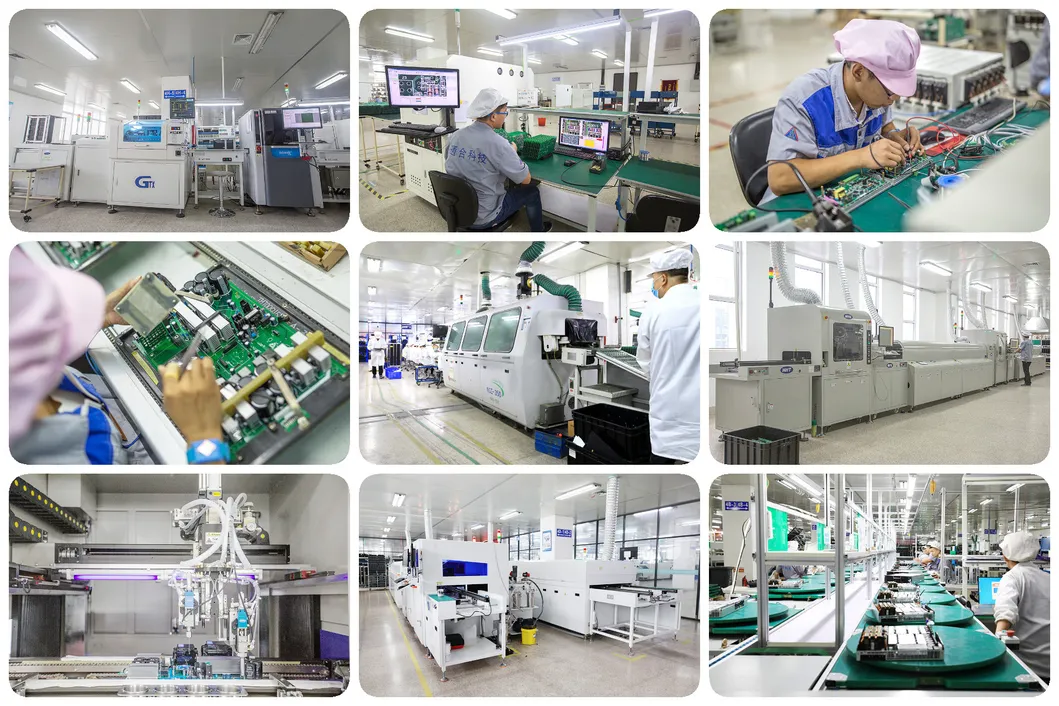

Workshop Assembly
⚙

Quality Control & Logistics

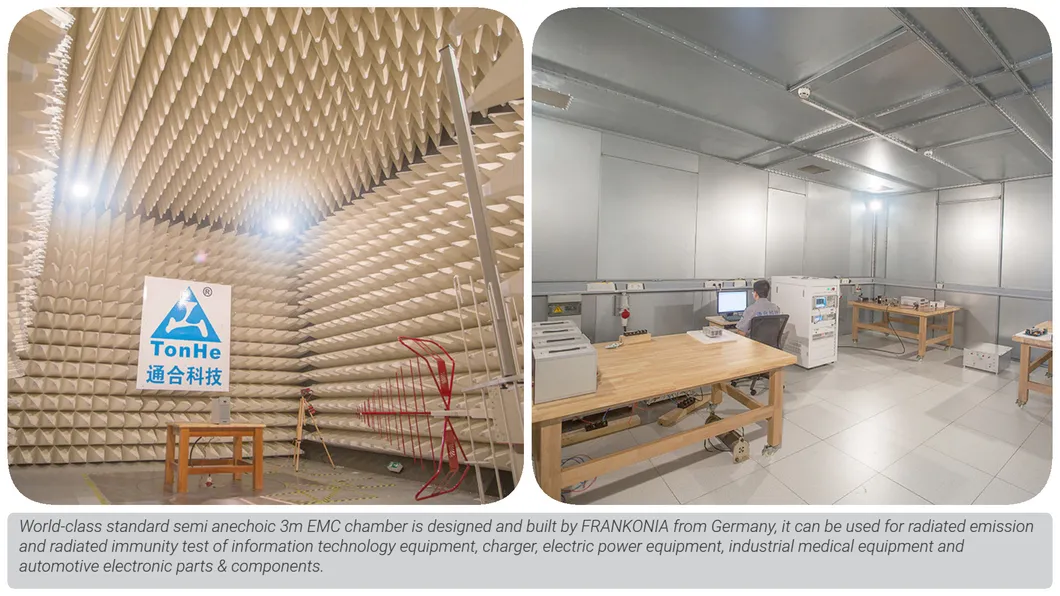

Lab Testing

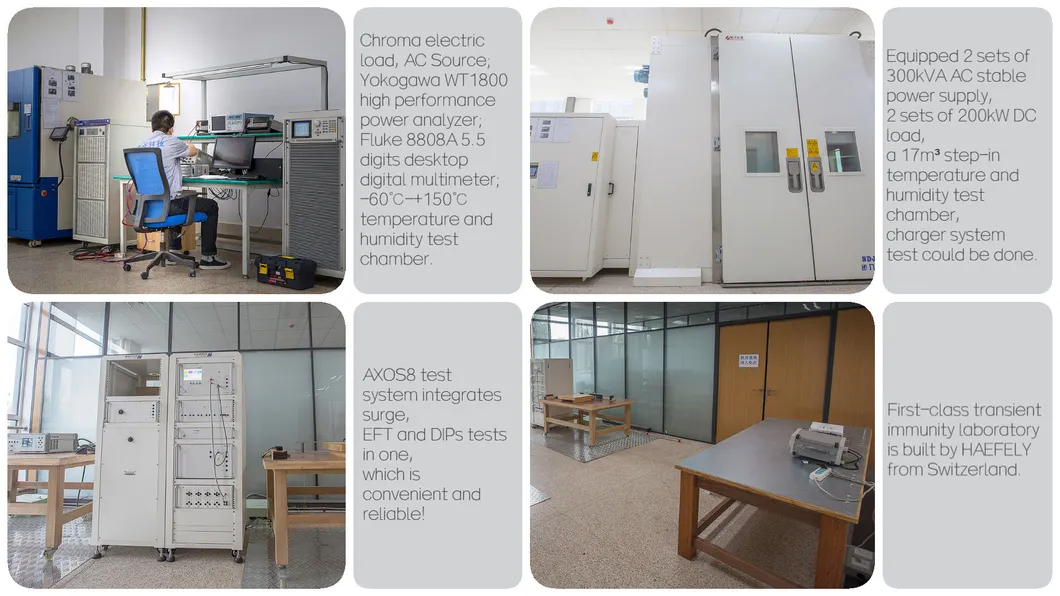

Performance Test
Certifications Display
Packaging Box
Shipping Logistics
?

Frequently Asked Questions

1. What are the module CAN communication specifications?
The module uses a CAN baud rate of 125Kbs and a 5V CAN voltage level.
2. Are the modules compatible with glue filling?
Yes, all series modules can support glue filling for enhanced durability.
3. What are the installation requirements?
Modules can be installed horizontally, side-standing, or upside down. For upside-down installation, front panels can be customized without handles.
4. What is the typical delivery timeframe?
Standard modules typically require 7 days, while standard charging piles take approximately 35 days. Large or custom orders are scheduled based on current workshop capacity.
5. What warranties and certifications do you provide?
We offer a 12-month standard warranty. Our products and systems are certified with ISO, TUV, CE, IATF16949, and CNAS.
6. Do you provide after-sales support?
We provide a 24-hour response scheme for both online and on-site after-sale services based on contract conditions.
