20kw 200V EV Fast Charging Infrastructure Power Supply Module
20kw 200V EV Fast Charging Infrastructure Power Supply Module
20kw 200V EV Fast Charging Infrastructure Power Supply Module
20kw 200V EV Fast Charging Infrastructure Power Supply Module
20kw 200V EV Fast Charging Infrastructure Power Supply Module
1 / 5
20kw 200V EV Fast Charging Infrastructure Power Supply Module
20kw 200V EV Fast Charging Infrastructure Power Supply Module
20kw 200V EV Fast Charging Infrastructure Power Supply Module
20kw 200V EV Fast Charging Infrastructure Power Supply Module
20kw 200V EV Fast Charging Infrastructure Power Supply Module

20kw 200V EV Fast Charging Infrastructure Power Supply Module

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.MXR200150
Input Current40A
Output Current150A
Cooling ModeFan Cooling
Parallel Modules60PCS
MTBF500,000 Hours
Power Factor0.99
Input Frequency45Hz~65Hz
Warranty1 Year
HS Code8504409999
Basic Specifications
ModelMXR200150
Efficiency (Full Load)≥95%
Communication ProtocolCAN bus
Dimensions84mm(H)*226mm(W)*395mm(D)
Input Voltage260Vac~475 Vac, three phrase+PE
Output voltage20Vdc~200Vdc
Output deratingabove 50ºC
Detailed Photos

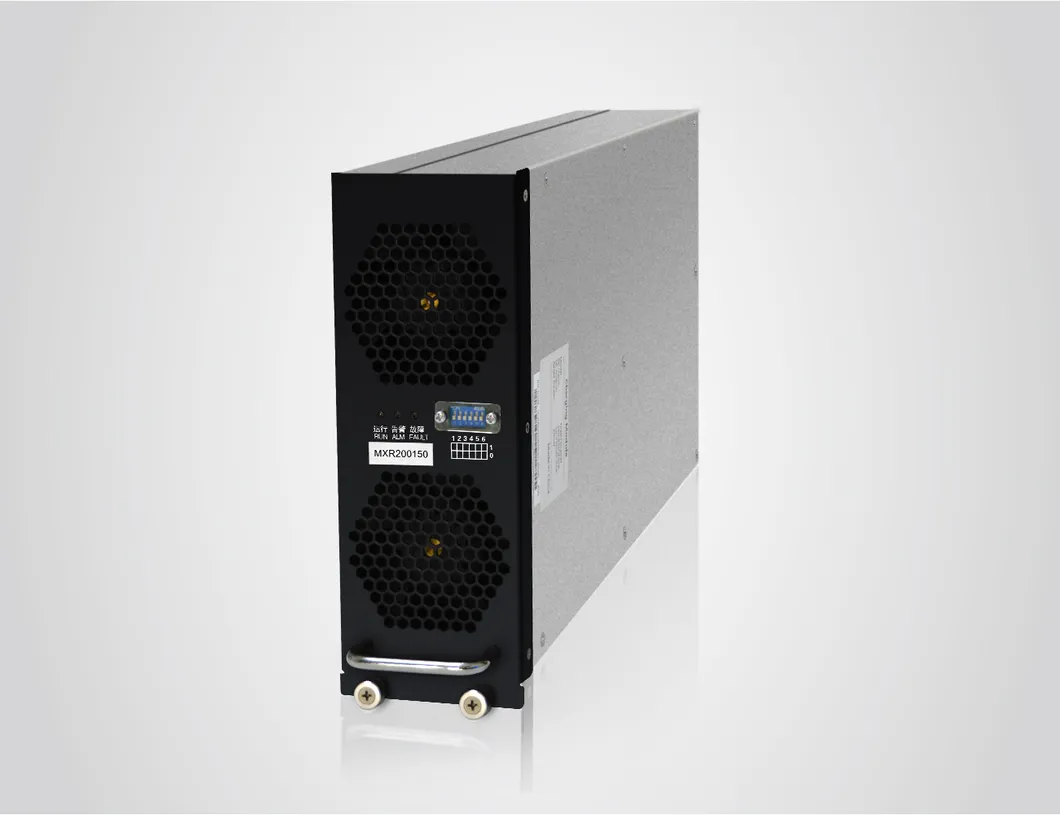

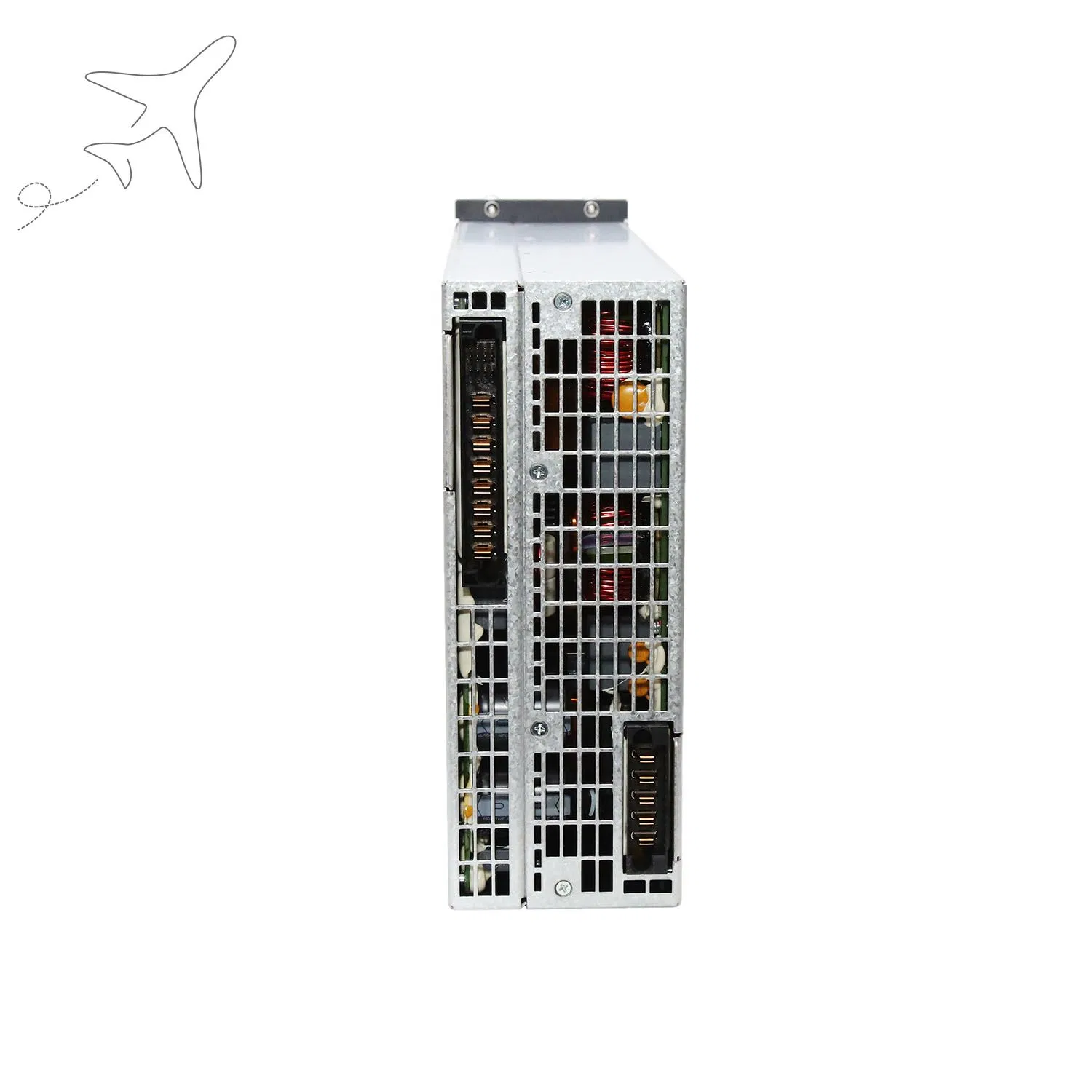

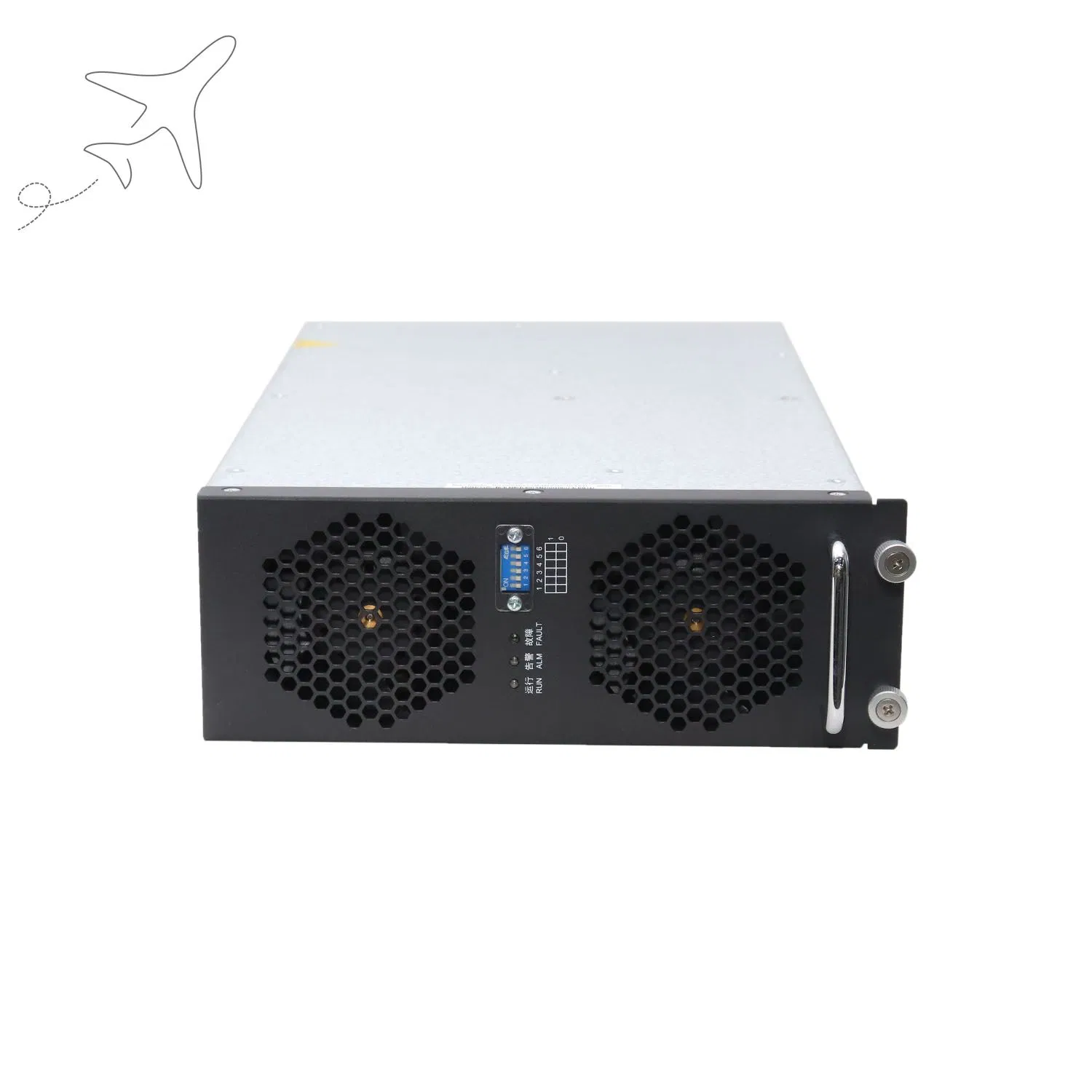

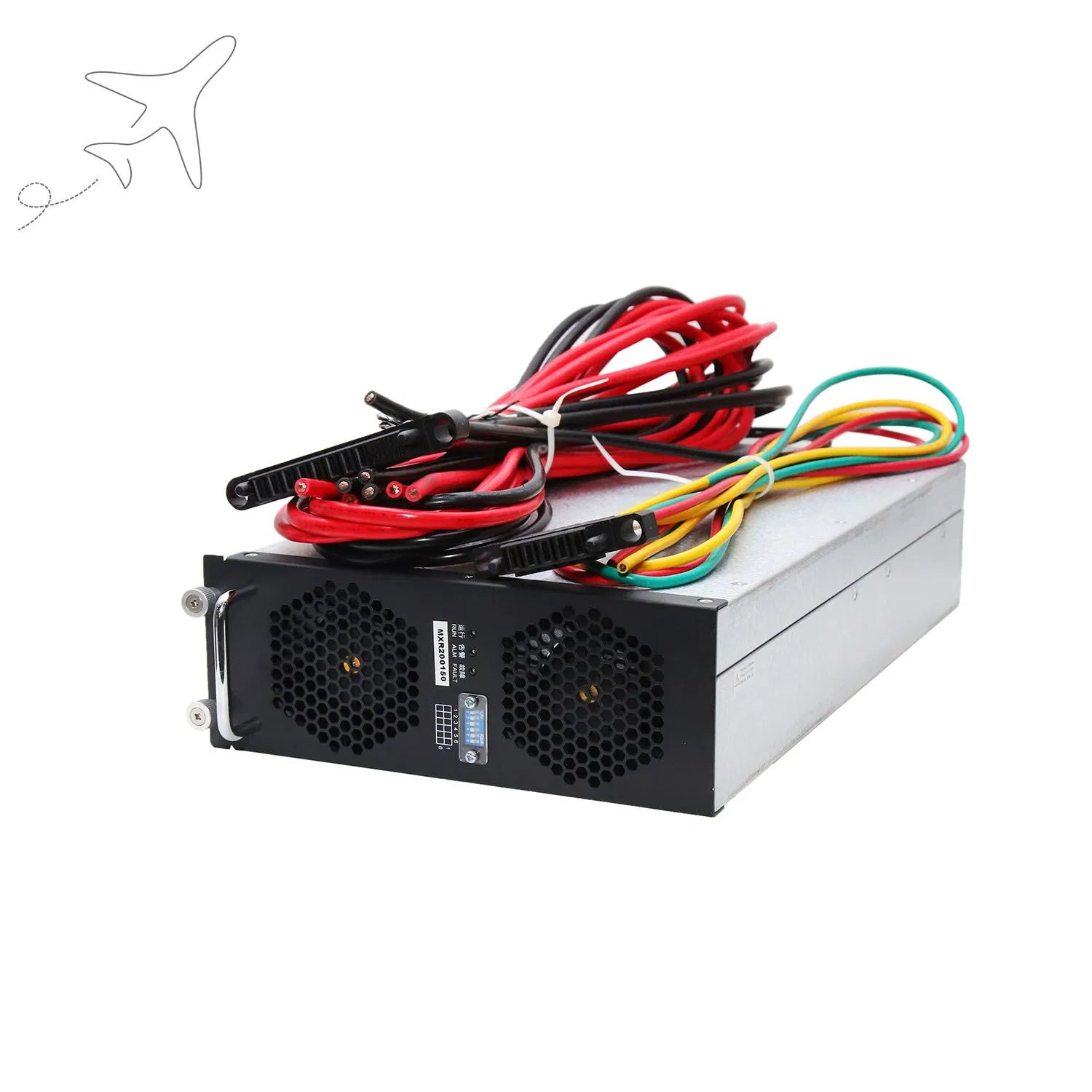

EV Module 1

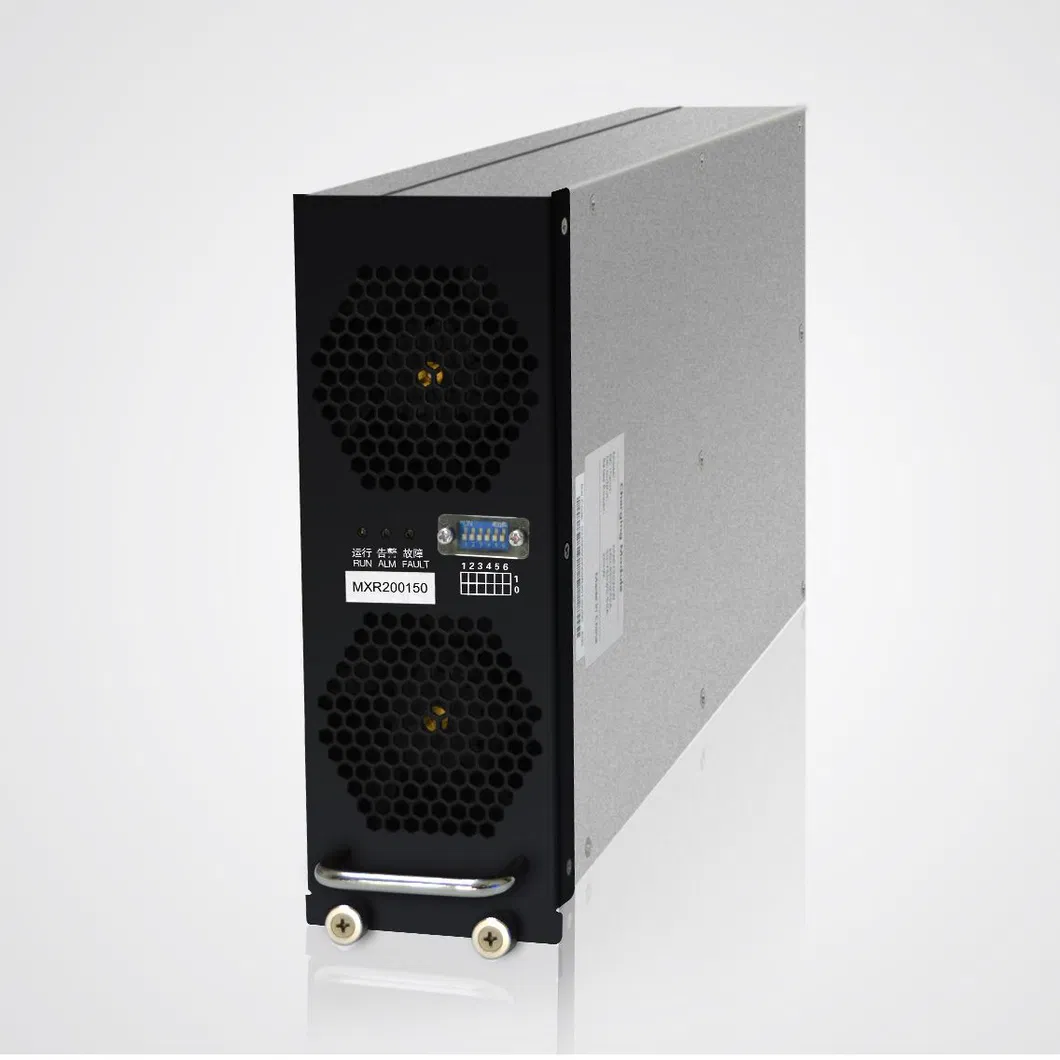

EV Module 2

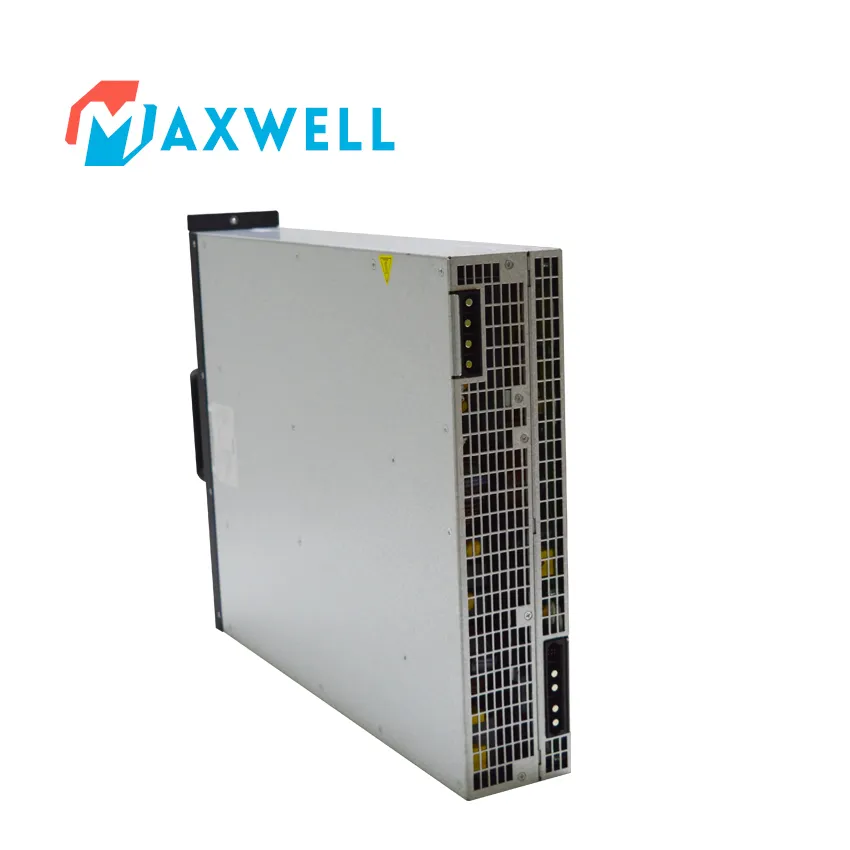

EV Module 3

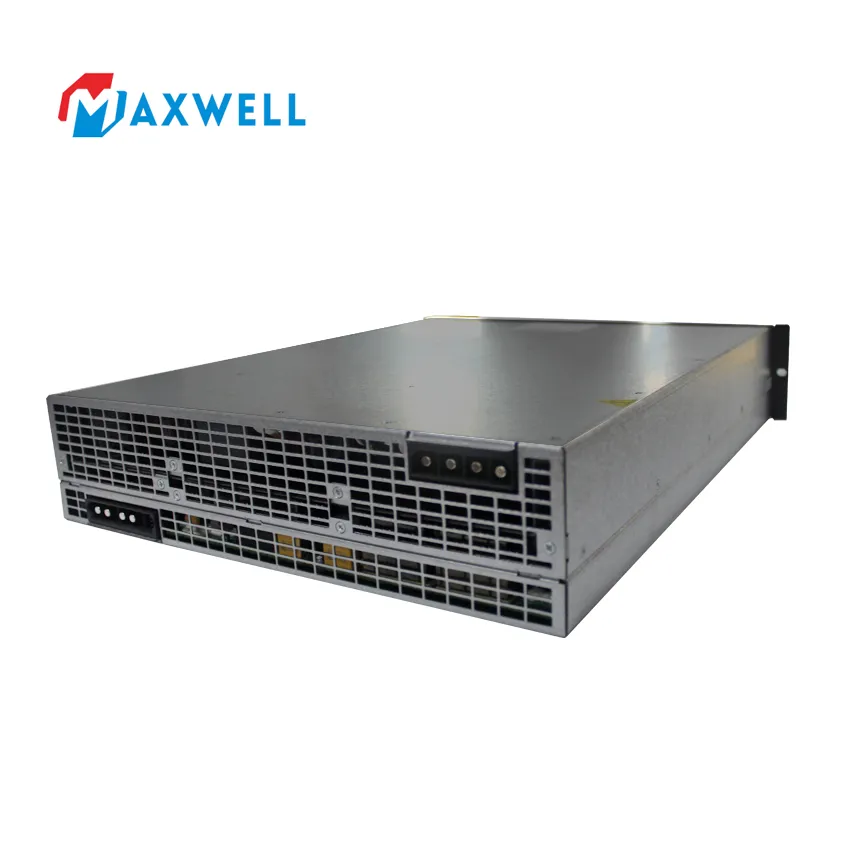

EV Module 4
Product Functions

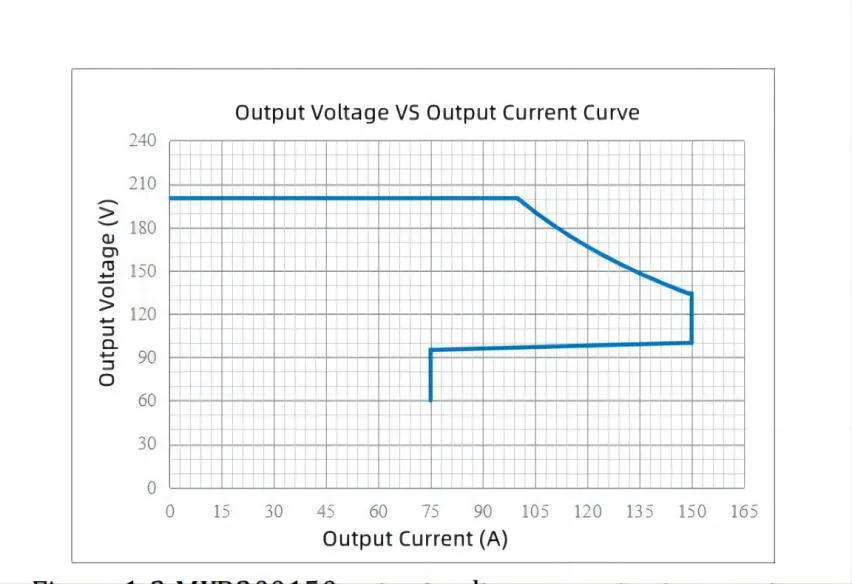

Parameter 1
Parameter 2
1. Function details:
• Hot swap: The charging module adopts plug-in technology for easy installation.
• Current sharing: Modules automatically share current (unbalance < 5%).

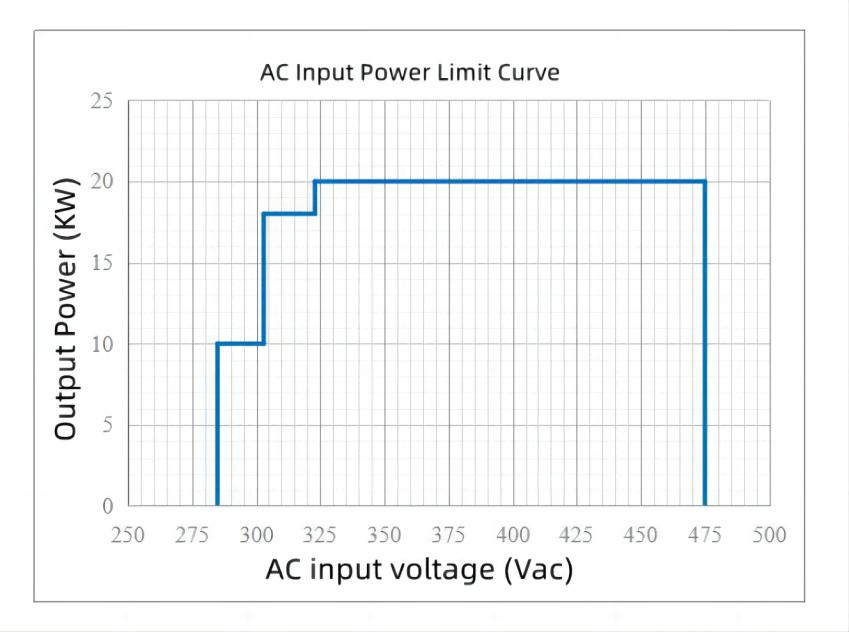

• Input limited power: Maximum power output between 323Vac and 475Vac.
2. Output constant power: Allowable output power is 20kW at rated voltage.
Certifications

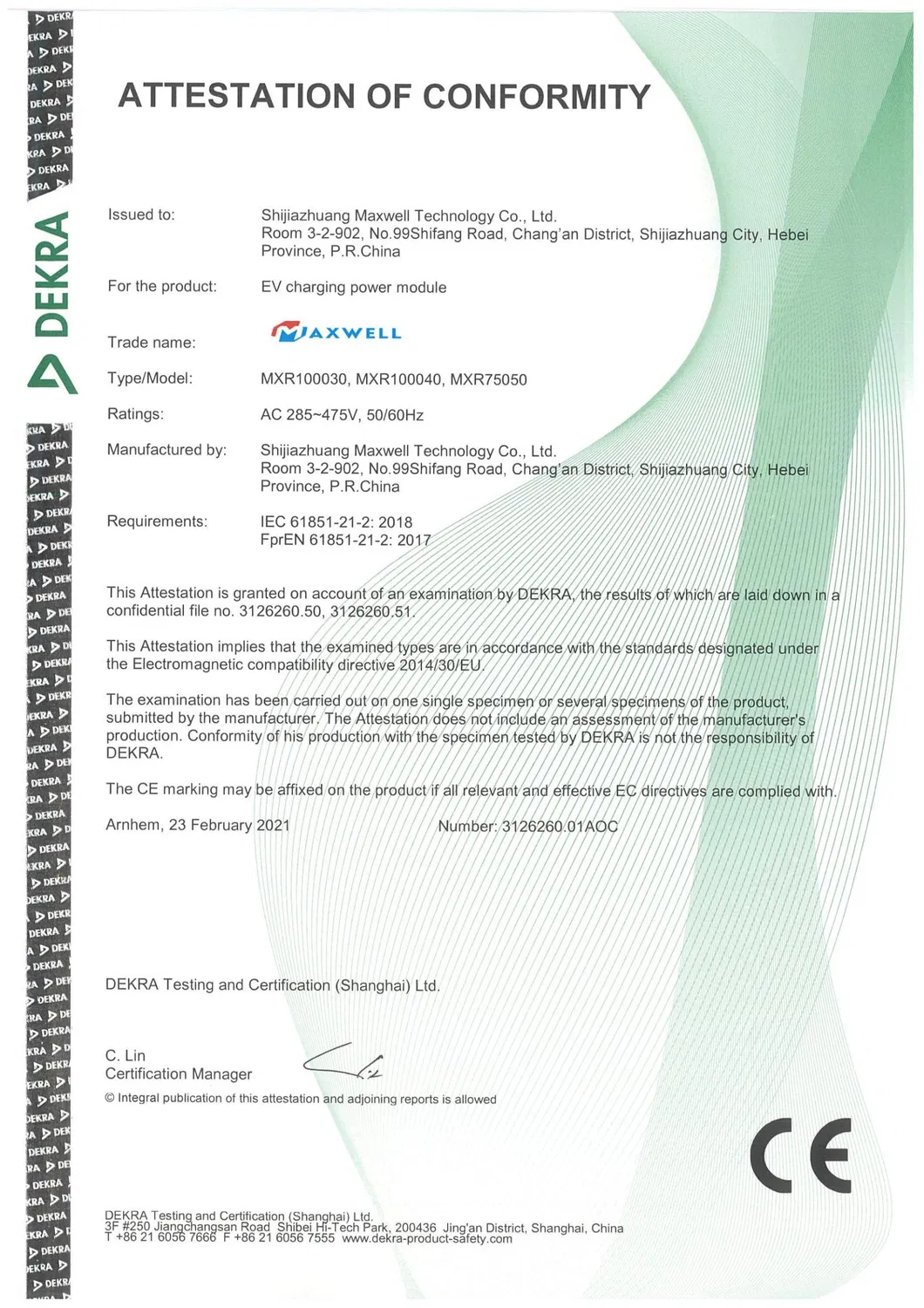

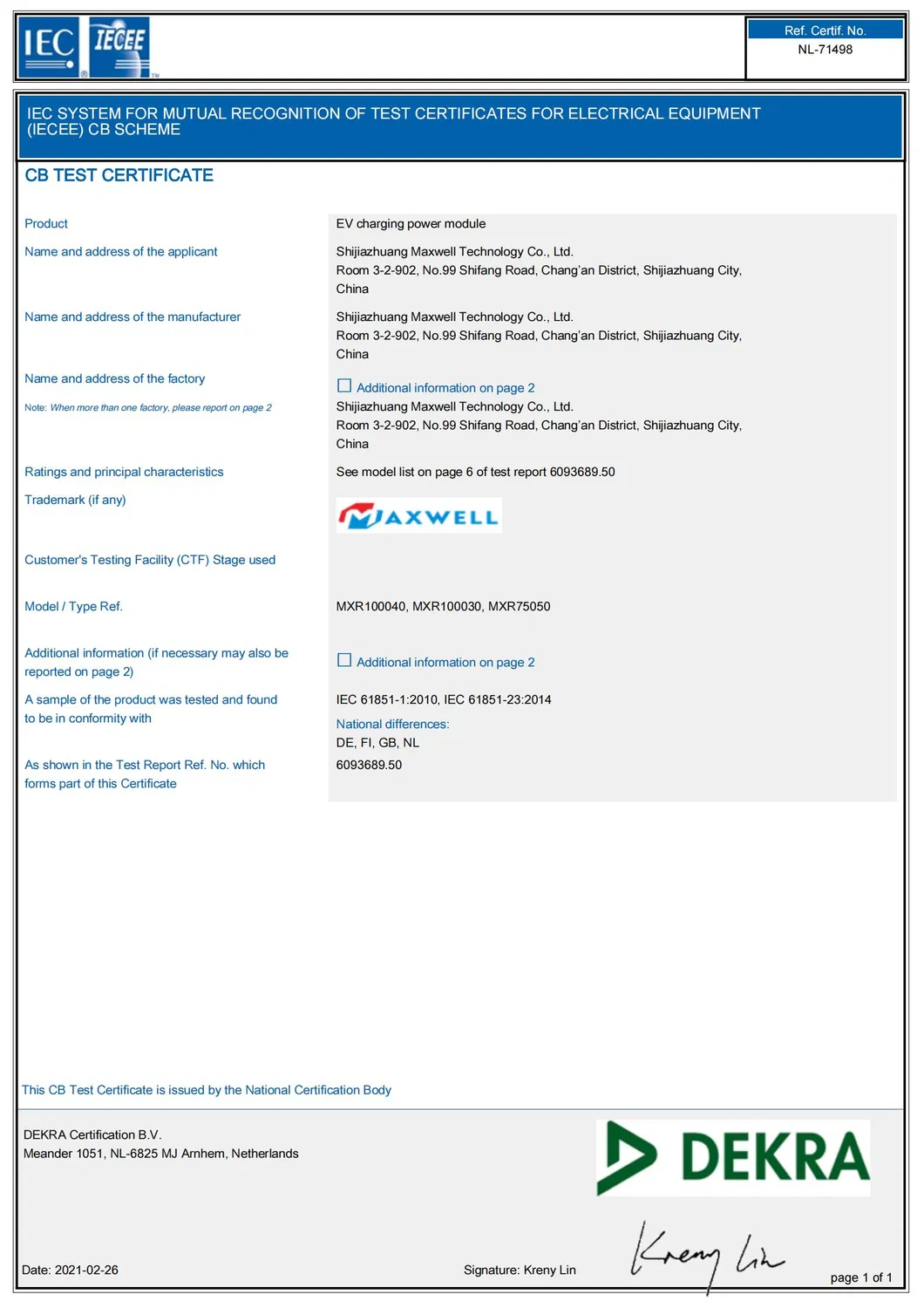

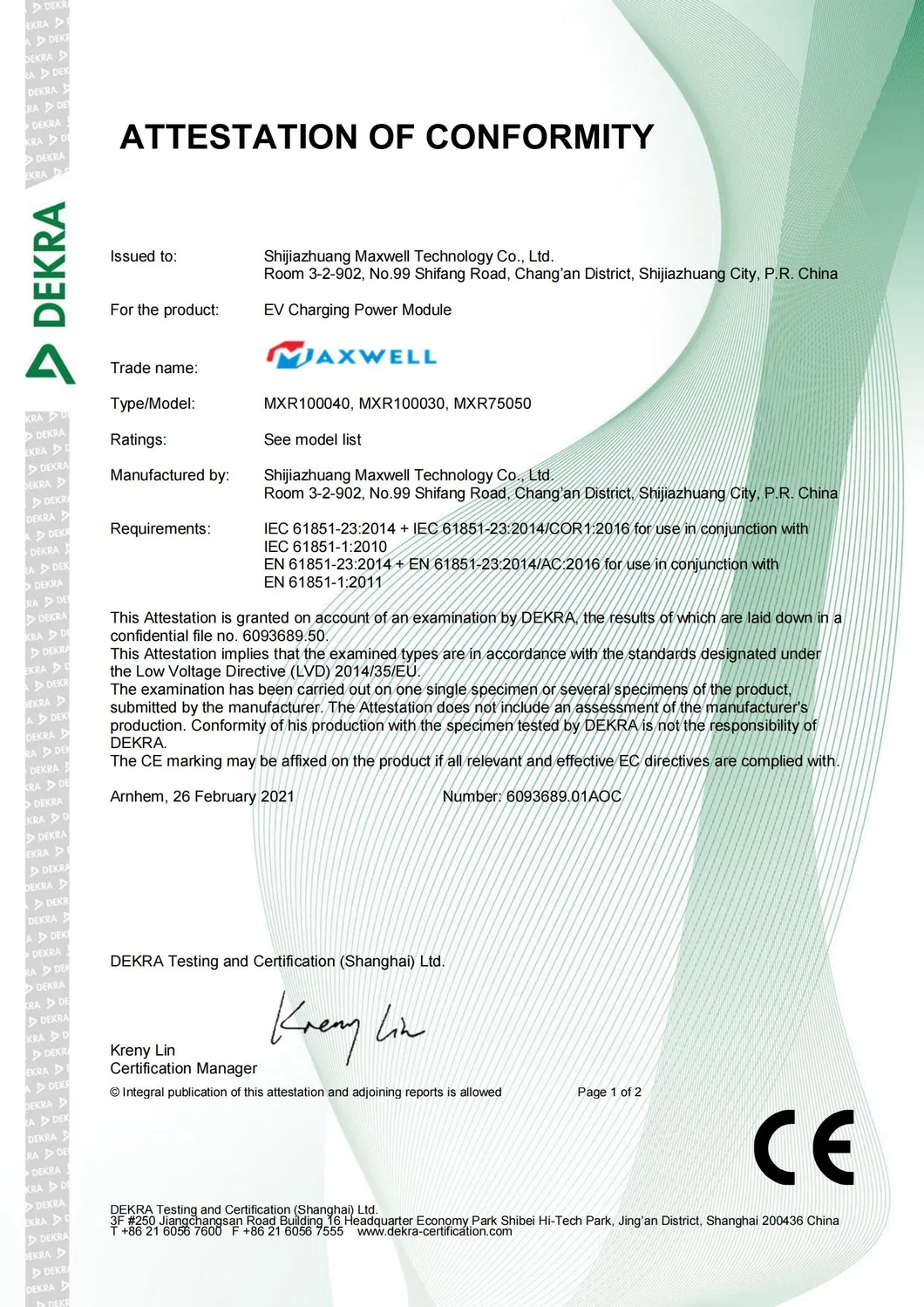

Cert 1
Cert 2
Cert 3
CE/ TUV / EMCEN IEC 61000-6-1:2019, 6-2:2019, 6-3:2021, 6-4:2019, 61851-21-2:2021
cTUVusUL 2202:2009 R2.18; CSA C22.2 NO.107.1-16
Production Process

1. Material Management: Categorized and environmental management of qualified raw materials.

2. Production Link: SMT, Wave soldering, Spray brush lines, Assembly, Debugging, and Aging Toaster Test.

3. Delivery: Selection of appropriate channels and detailed record entry into management systems.

4. Traceability: Full information tracking from procurement to delivery.

After Sales Service
Warranty: 1 Year
• First 6 months: Free replacement for non-human damage (shared freight).
• Second 6 months: Free repair for non-human damage.
• Technical assistance available from engineers during testing.
Frequently Asked Questions
What is the efficiency of the MXR200150 module?
The module offers a high efficiency of ≥95% under full load conditions.
Does the module support parallel connection?
Yes, it supports up to 60PCS parallel modules with an automatic current sharing unbalance of less than 5%.
What cooling method is used?
The module utilizes an efficient Fan Cooling system to maintain optimal operating temperatures.
Is the module hot-swappable?
Yes, it adopts plug-in technology which allows for convenient hot-swap installation and maintenance.
What certifications does the product hold?
The product is certified with CE, TUV, EMC (EN IEC 61000 series), and cTUVus (UL 2202).
What is the warranty period?
We provide a 1-year warranty, including free replacement or repair for non-human damage within specific periods.
