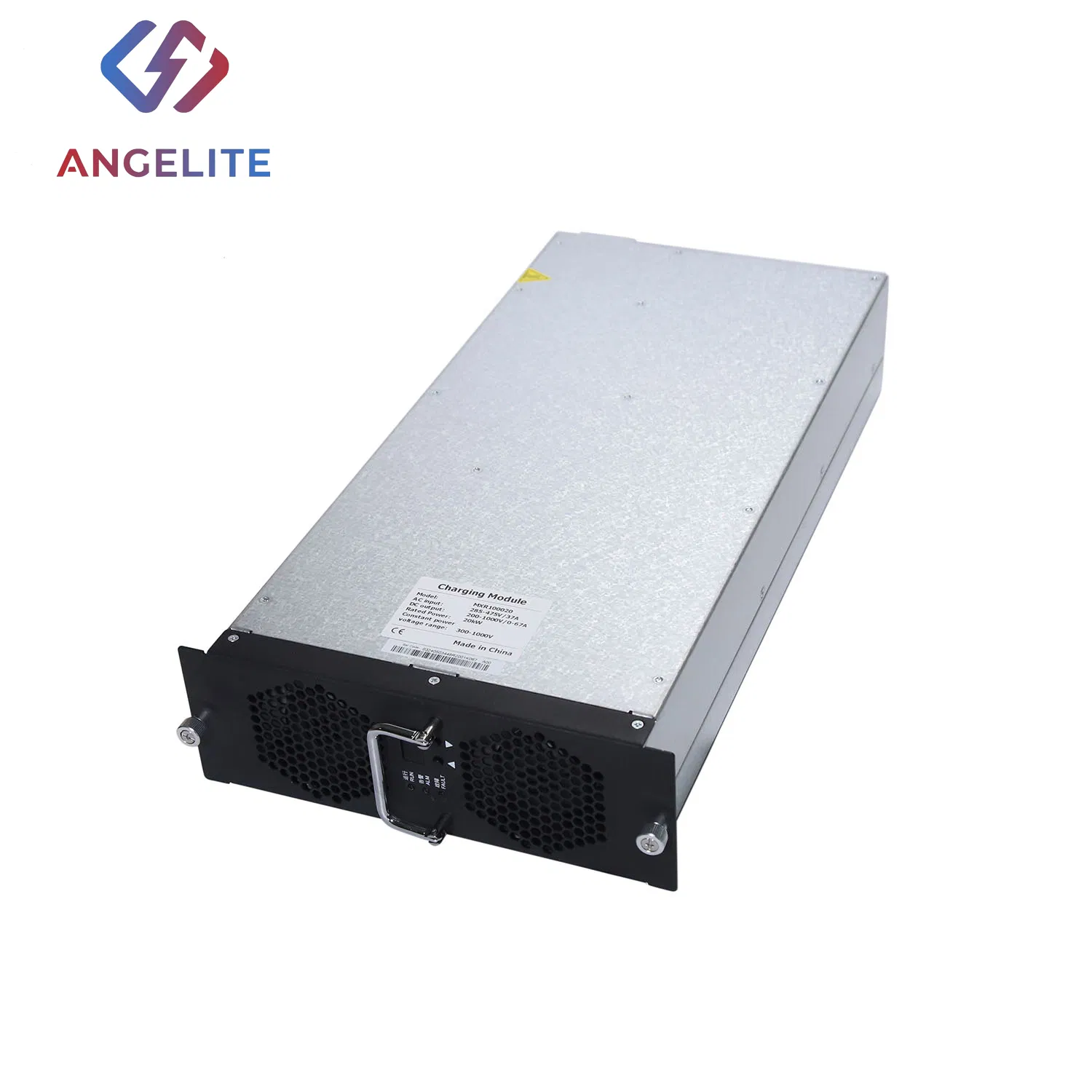

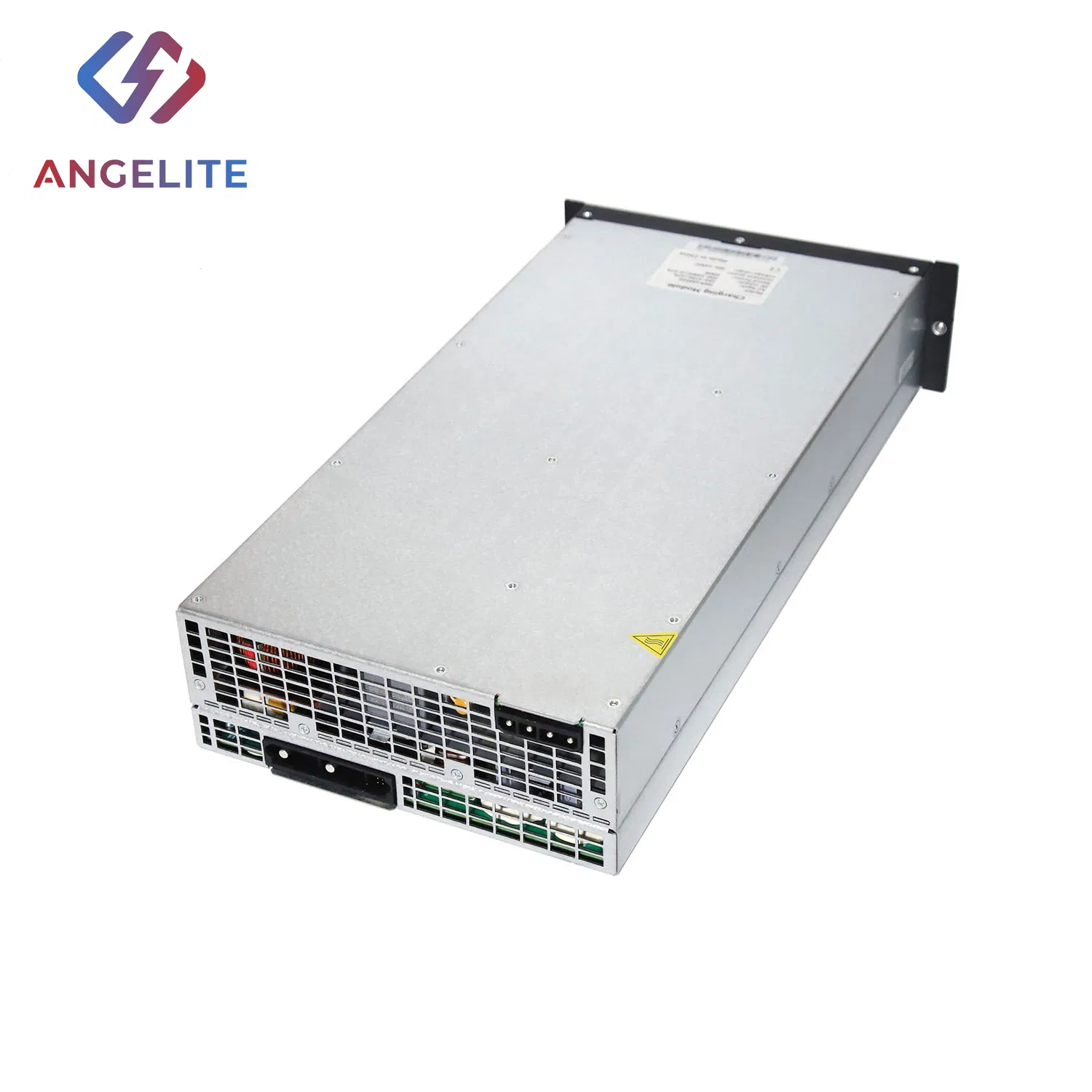

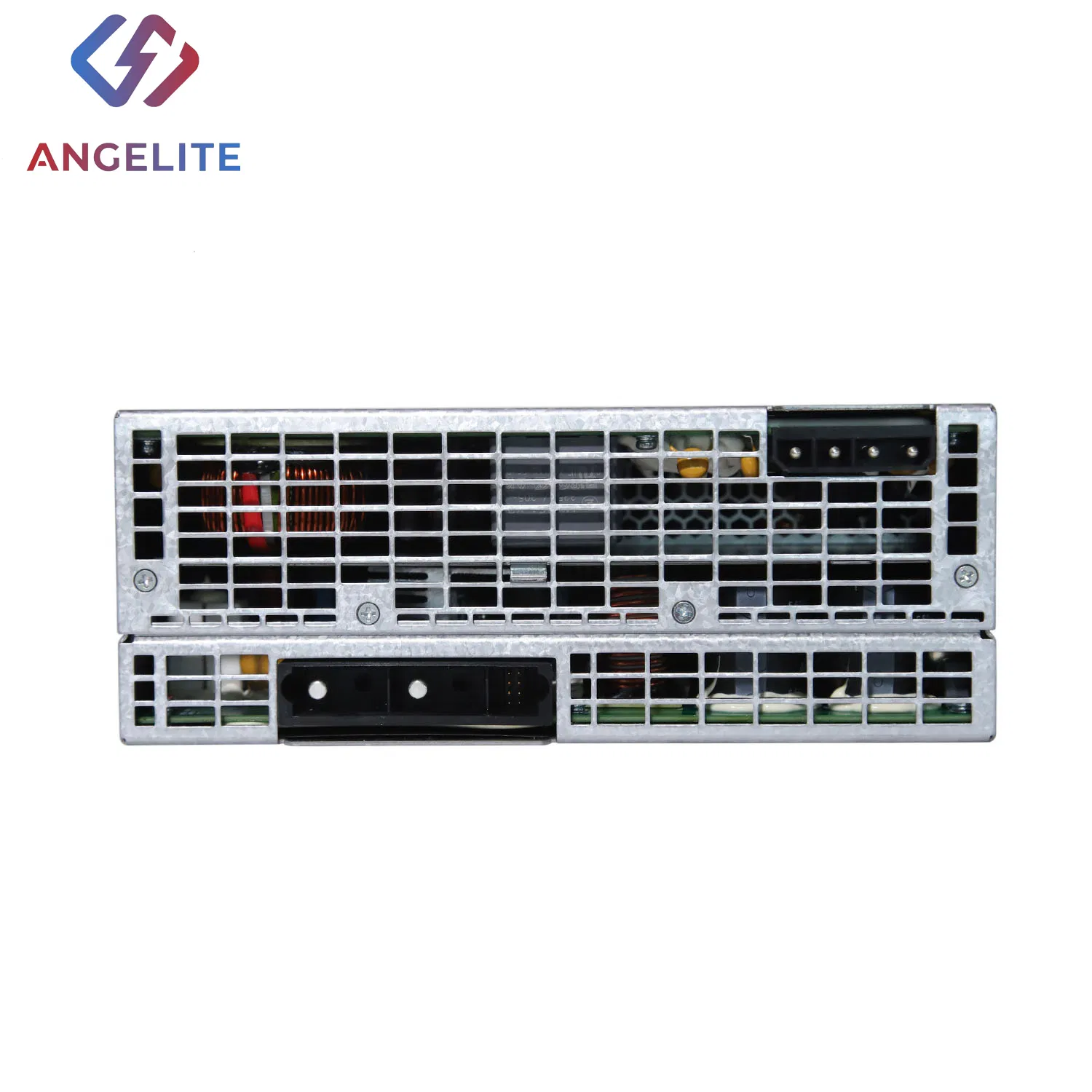

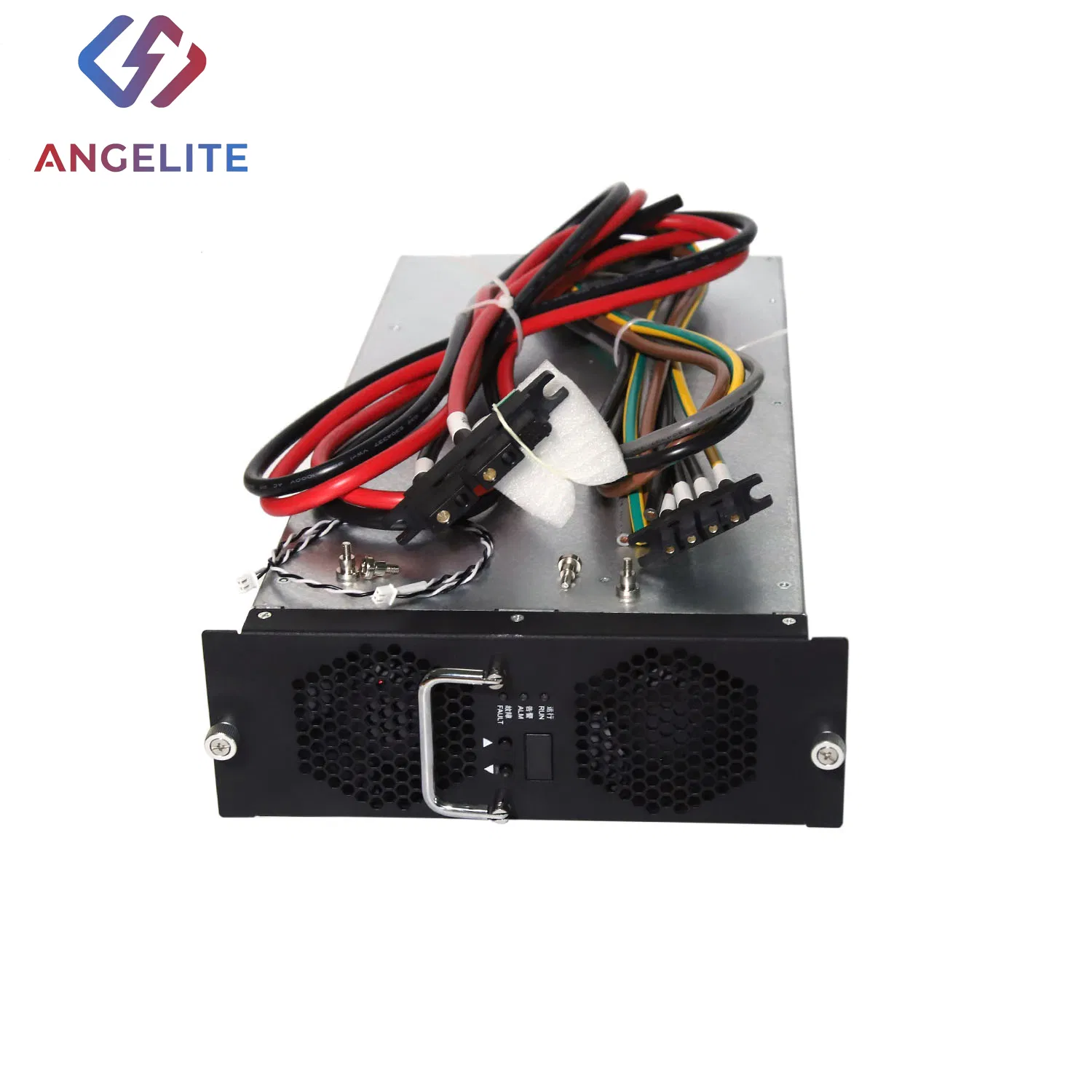

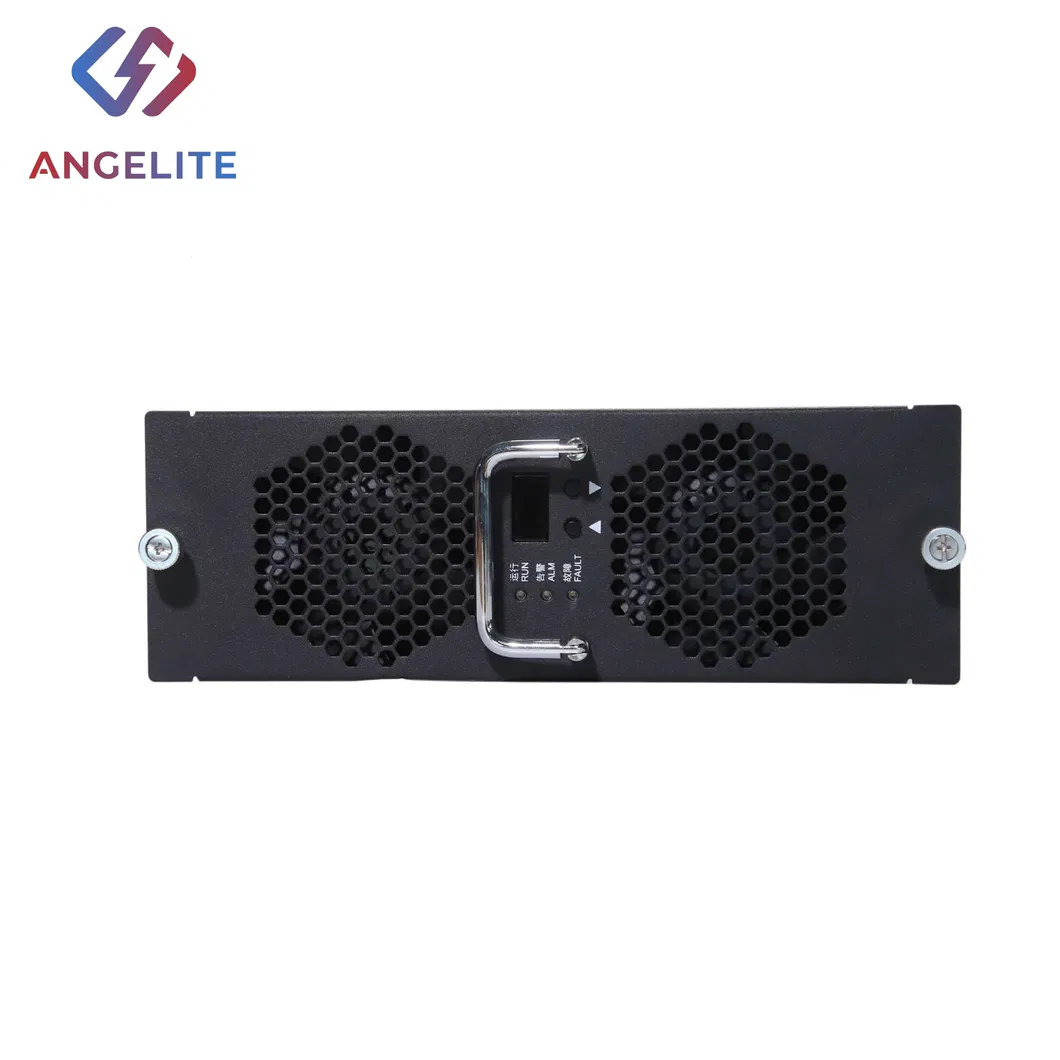

MXR 100020 offers a faster charging speed and shorter charging time for electric vehicles. It achieves an impressive 95.5% charging efficiency, effectively converting electric energy into the energy storage system of the electric vehicle, reducing energy loss and improving charging speed.
| Item | Parameters |
|---|---|
| Input Voltage | 285Vac-475Vac, three-phase+PE |
| Grid frequency | 45Hz-65Hz |
| Power Factor | ≥0.98 (10kw-20kw) |
| ITHD | ≤5% |
| Item | Parameters |
|---|---|
| Output Power | 20kw |
| Voltage Range | 50-1000Vdc |
| Current Range | 0-67A |
| Ripple Peak-to-Peak | ≤1% |
We focus on the research and development, production and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, we insist on technological innovation to realize corporate and customer value together.
A: The module achieves an impressive full-load efficiency of over 95.5%, which reduces energy loss and speeds up charging.
A: The output voltage range is wide, from 50VDC to 1000VDC, making it compatible with various electric vehicle models.
A: Yes, it has a wide operating temperature range from -40ºC up to 60ºC at full power output.
A: The module utilizes the CAN Bus communication protocol for reliable system integration.
A: The system supports the parallel connection of up to 60 pieces for high-power charging requirements.
A: The standby power consumption is ultra-low, strictly controlled within 8W for the whole series.
