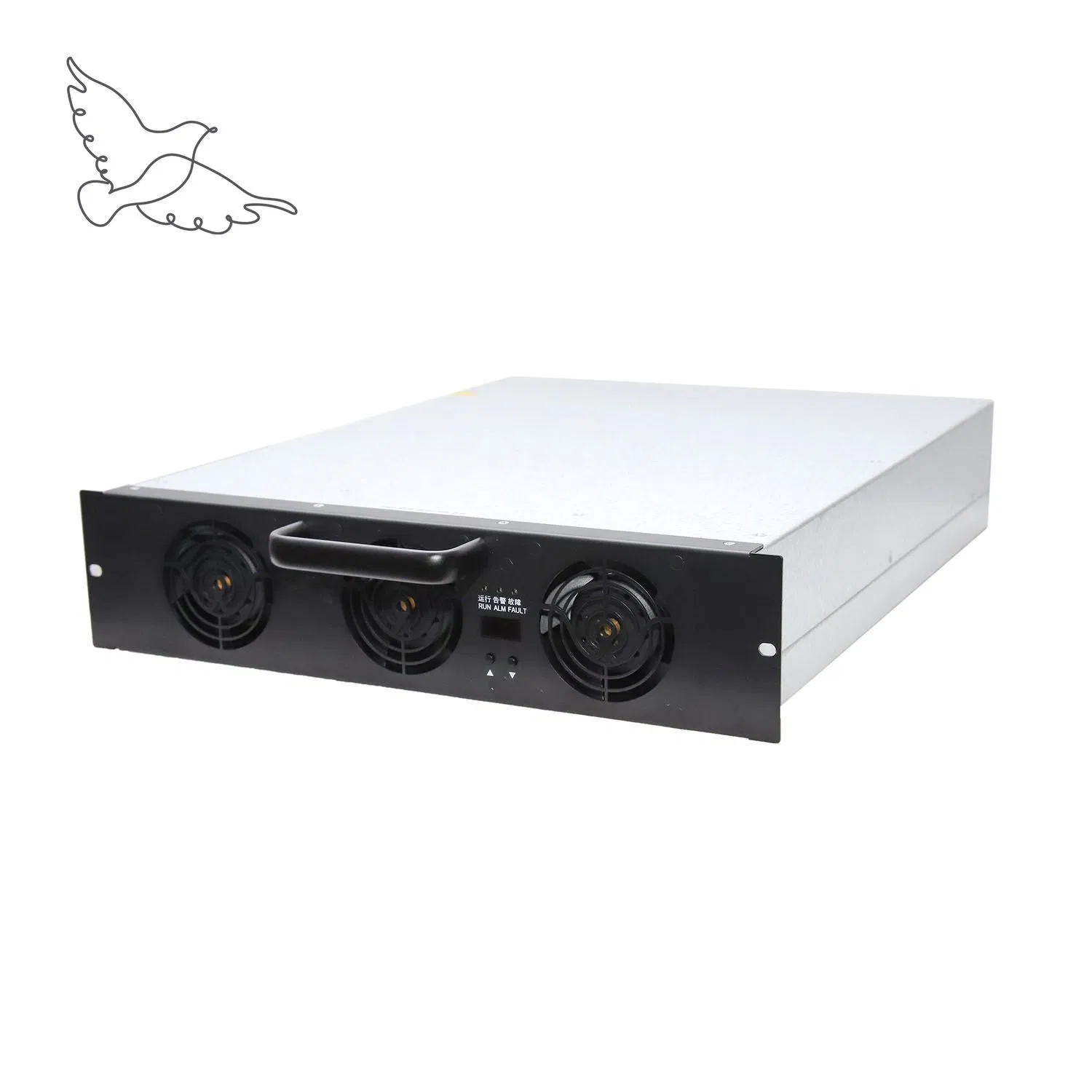

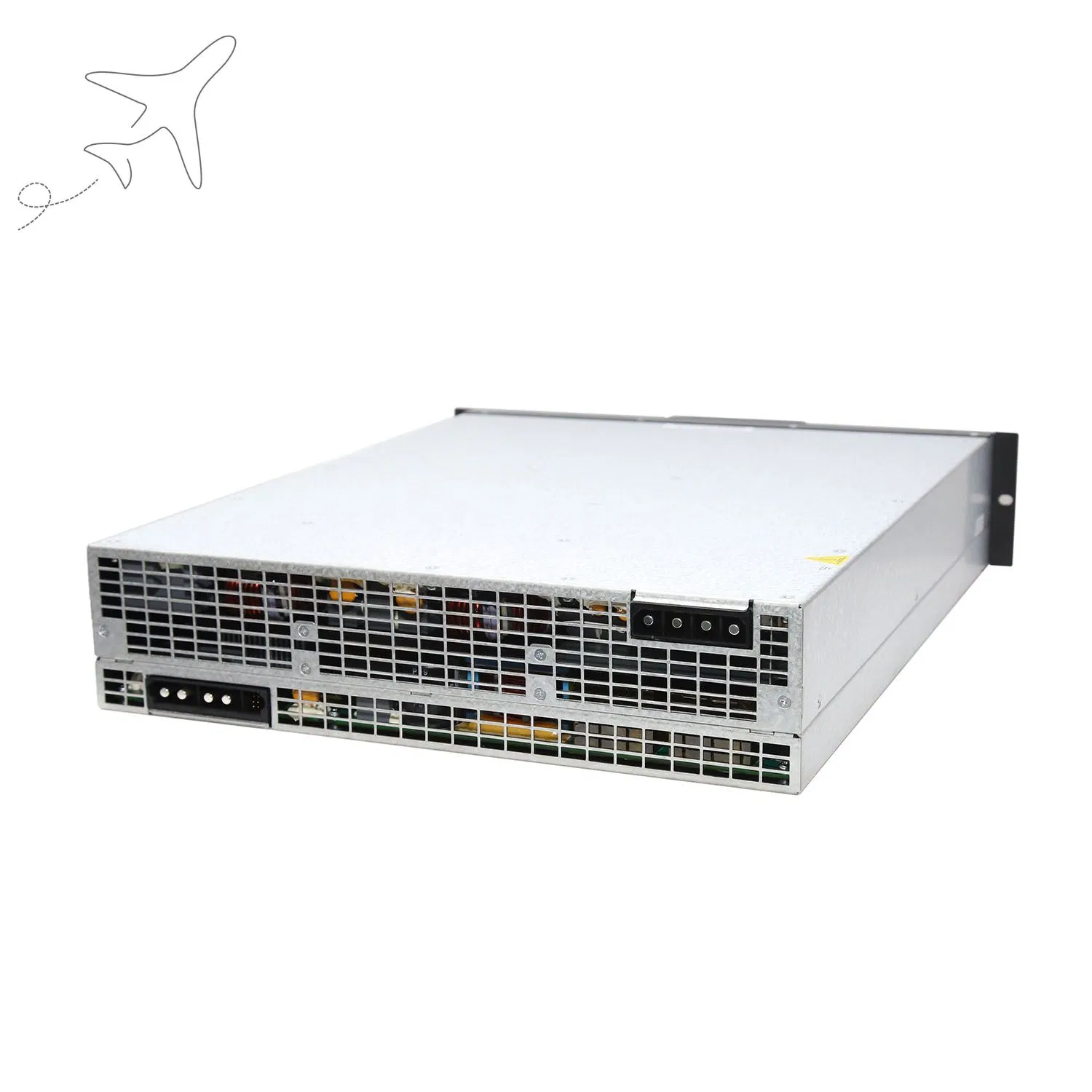

| Model NO. | MXR100030B | Input Current | 60A |
| Output Current | 0~100A | Certification | CE, ISO, TUV, RoHS |
| Cooling Mode | Fan Cooling | Parallel Modules | Up to 60PCS |
| MTBF | 500,000 Hours | Power Factor | 0.98 |
| Frequency | 45Hz~65Hz | Warranty | 1 Year |
| HS Code | 8504409999 | Capacity | 300,000 Pieces/Year |
| Efficiency | ≥95.5% (Full Load) |
| Protocol | CAN bus |
| Dimensions | 85mm(H) * 360mm(W) * 459mm(D) |
| Input Voltage | 260 Vac ~ 530 Vac, Three Phase + PE |

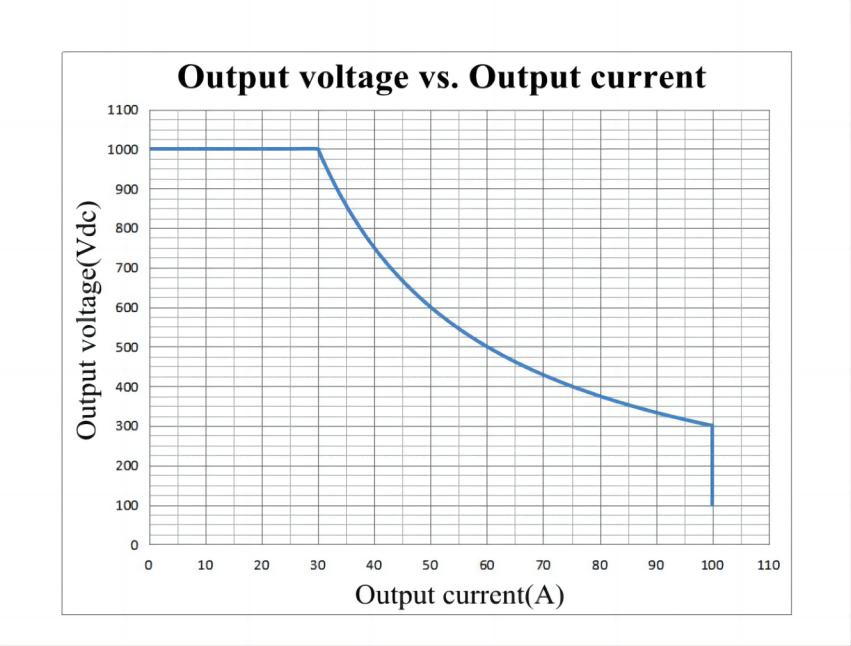

| Output Voltage | 100 Vdc ~ 1000 Vdc |

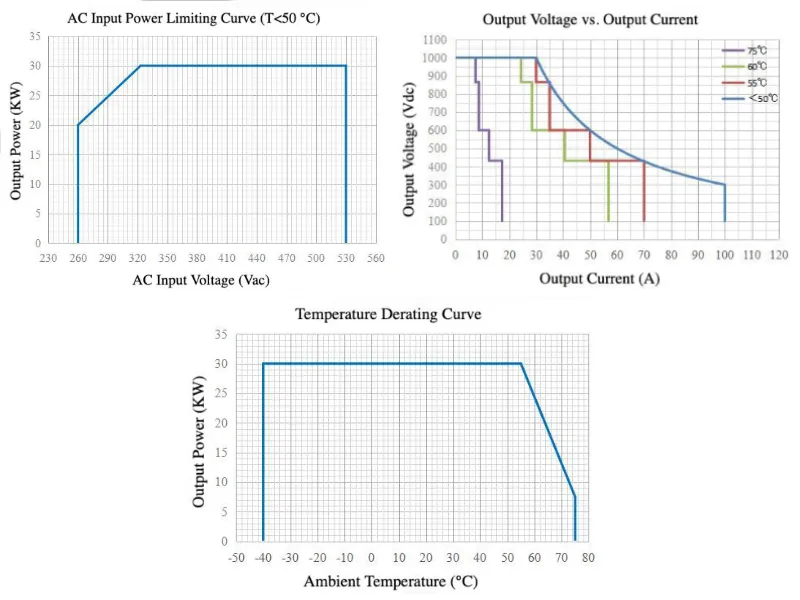

| Output Derating | Above 55ºC |

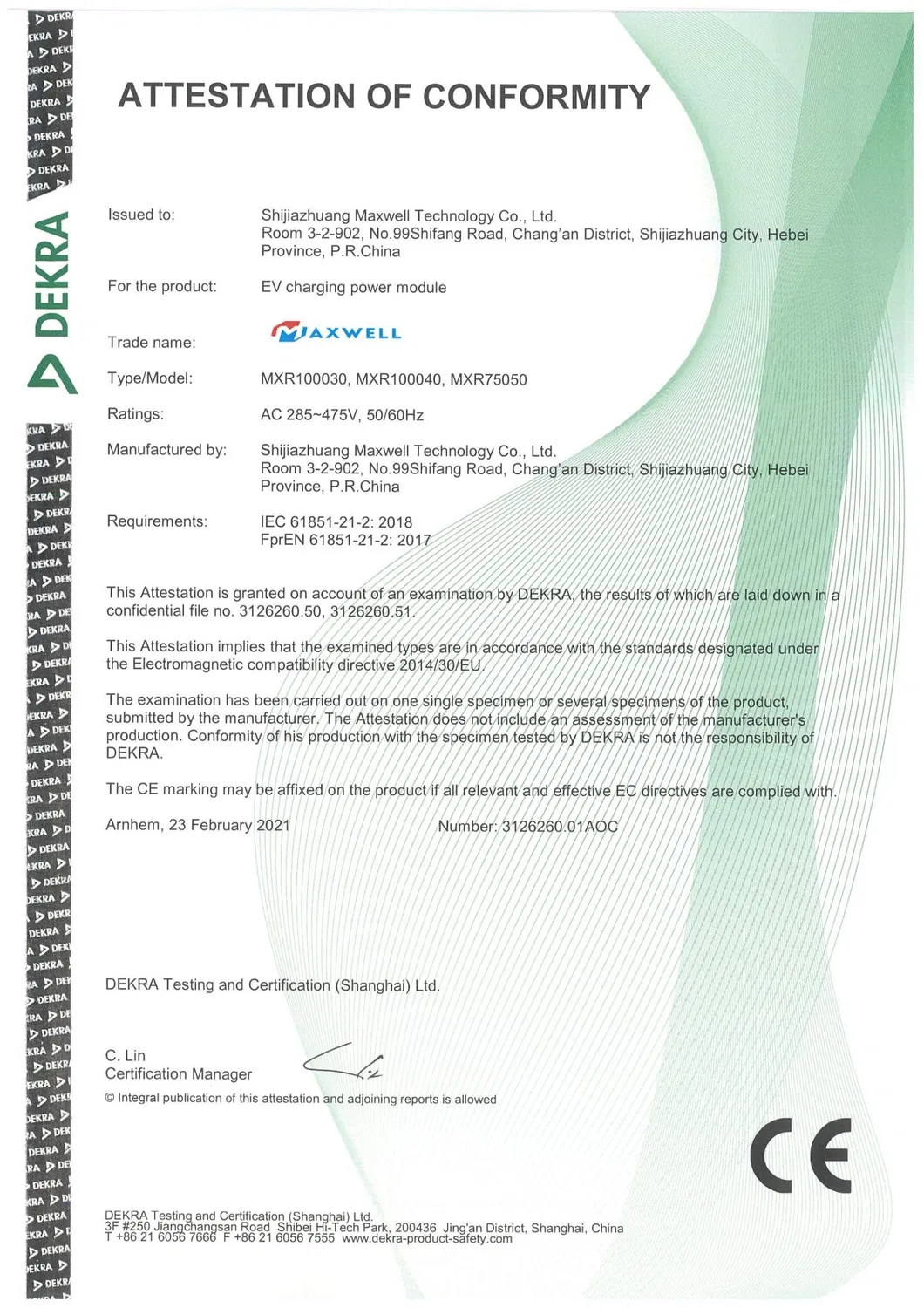

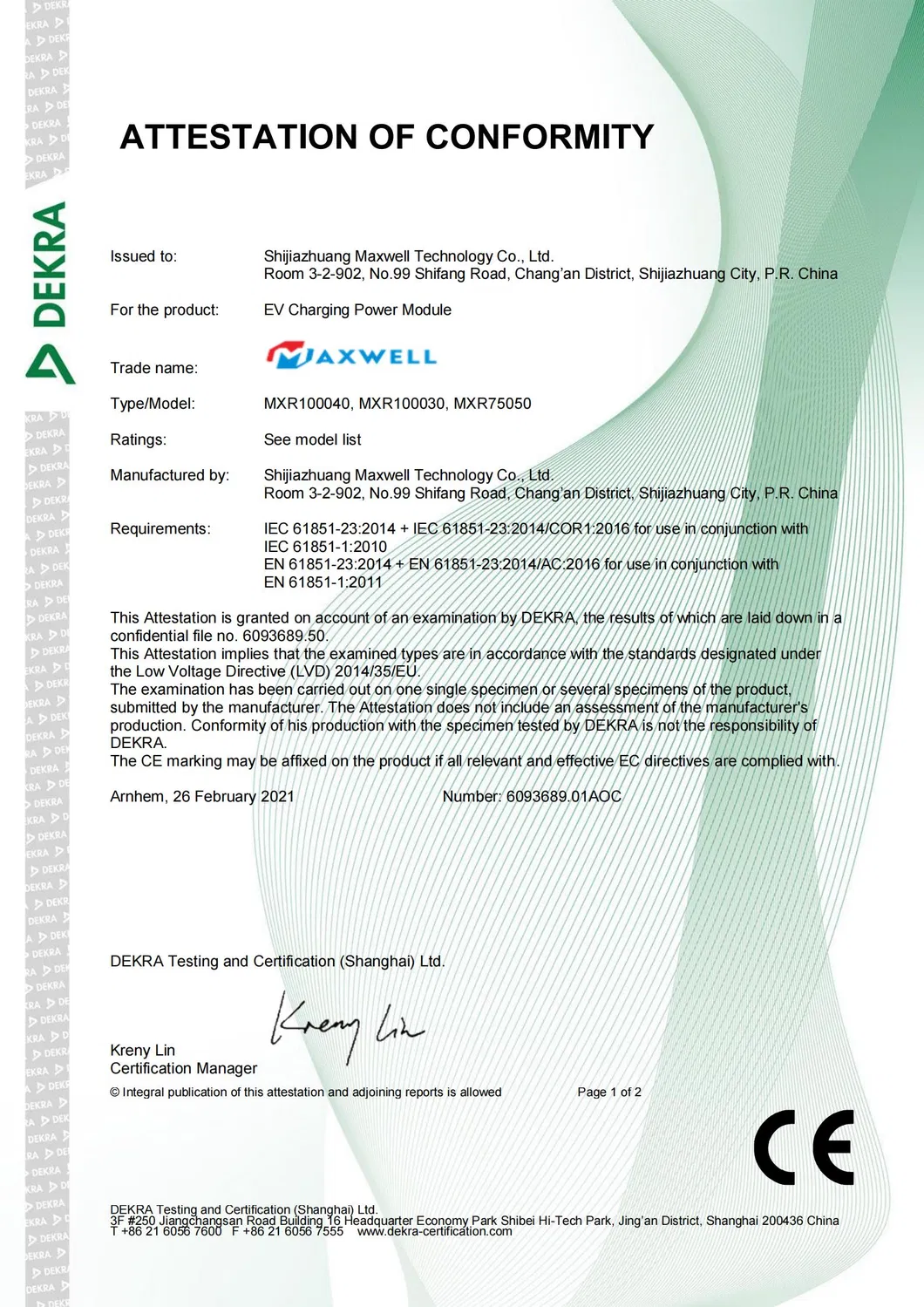

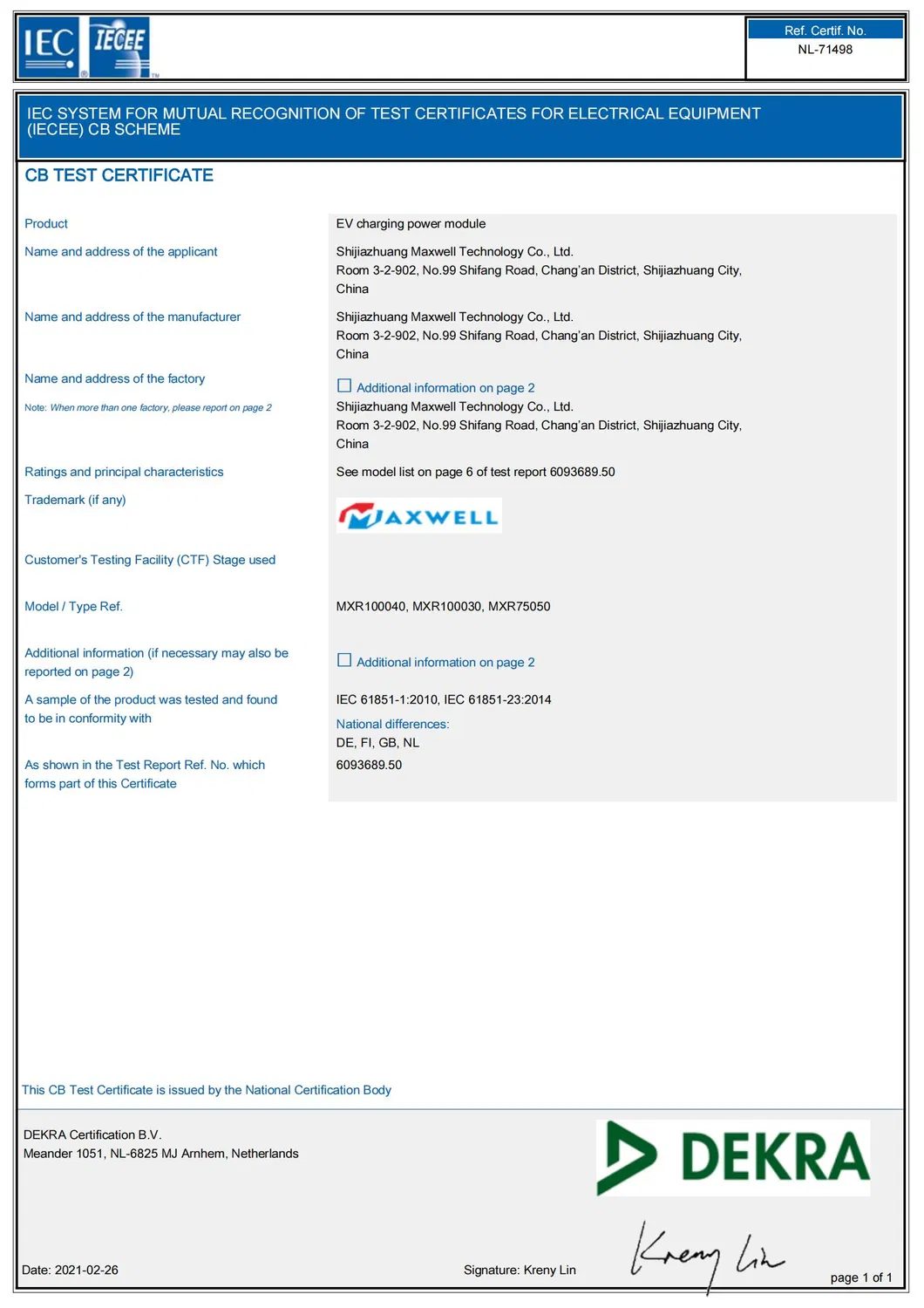

| CE / TUV / EMC | EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019, EN IEC 61851-21-2:2021 |

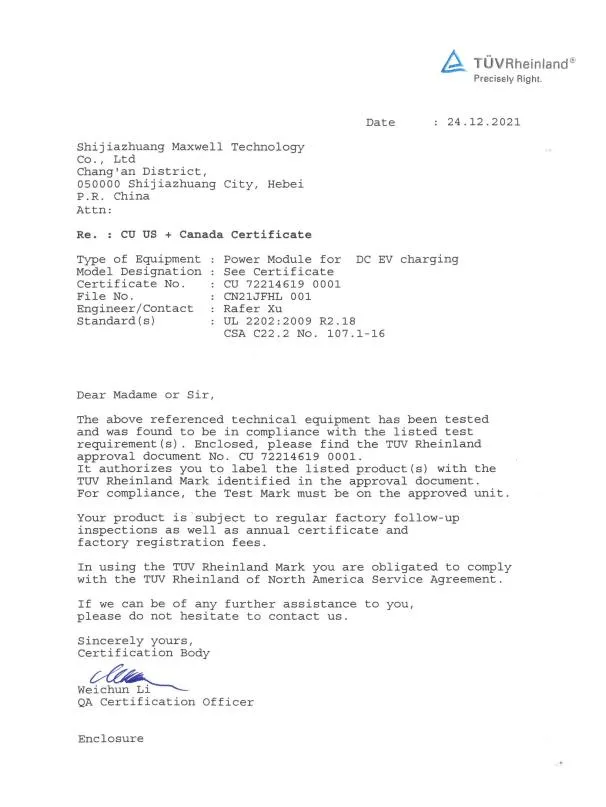

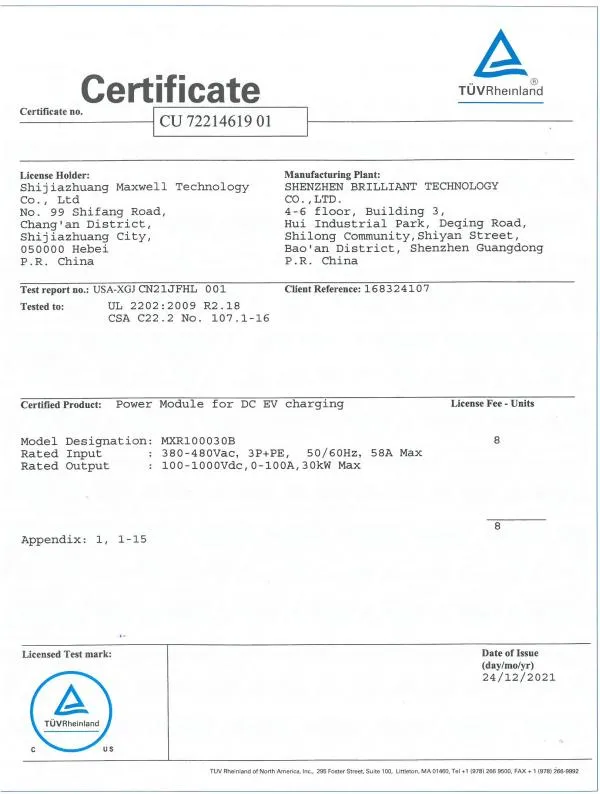

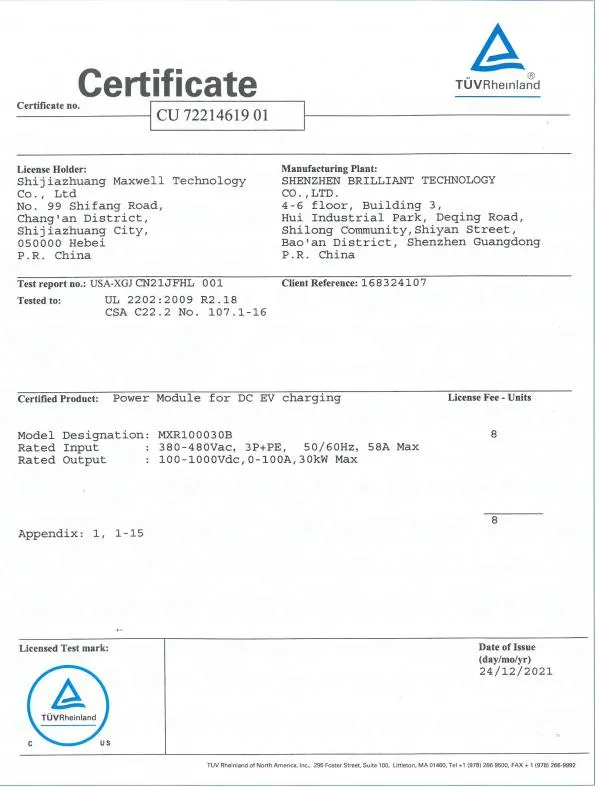

| cTUVus | UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16 |
| Package Size | 59.00cm * 47.00cm * 33.00cm | Gross Weight | 29.300kg |
| Package Type | Wooden Case or Kraft Carton Protection | ||
Warranty Period: 1 Year
First 6 Months: For non-human damage, we offer a free new replacement. (Both parties share freight costs).
Remaining 6 Months: Free repair services for non-human damage.
Technical assistance is available from our engineering team throughout your testing and integration processes.
