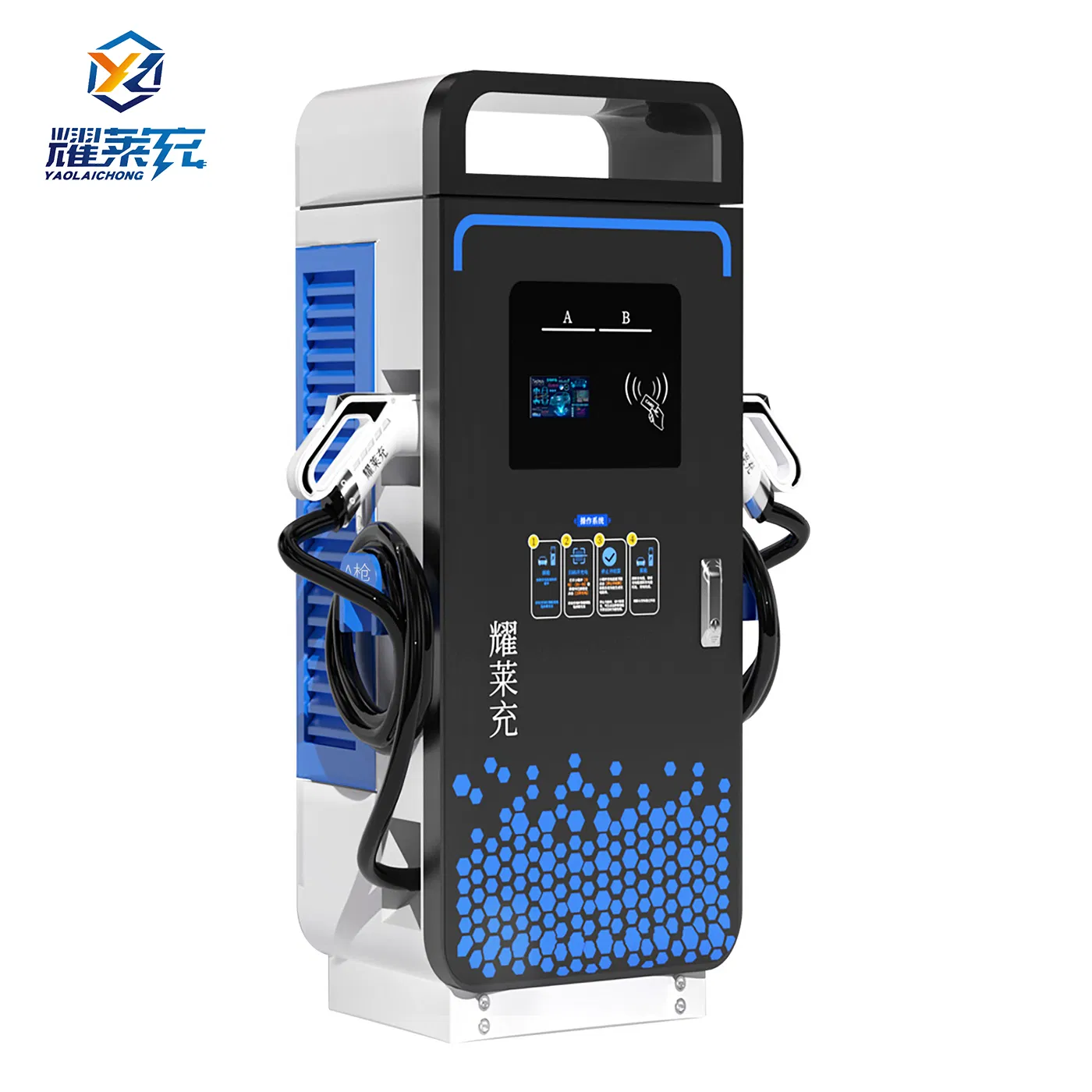

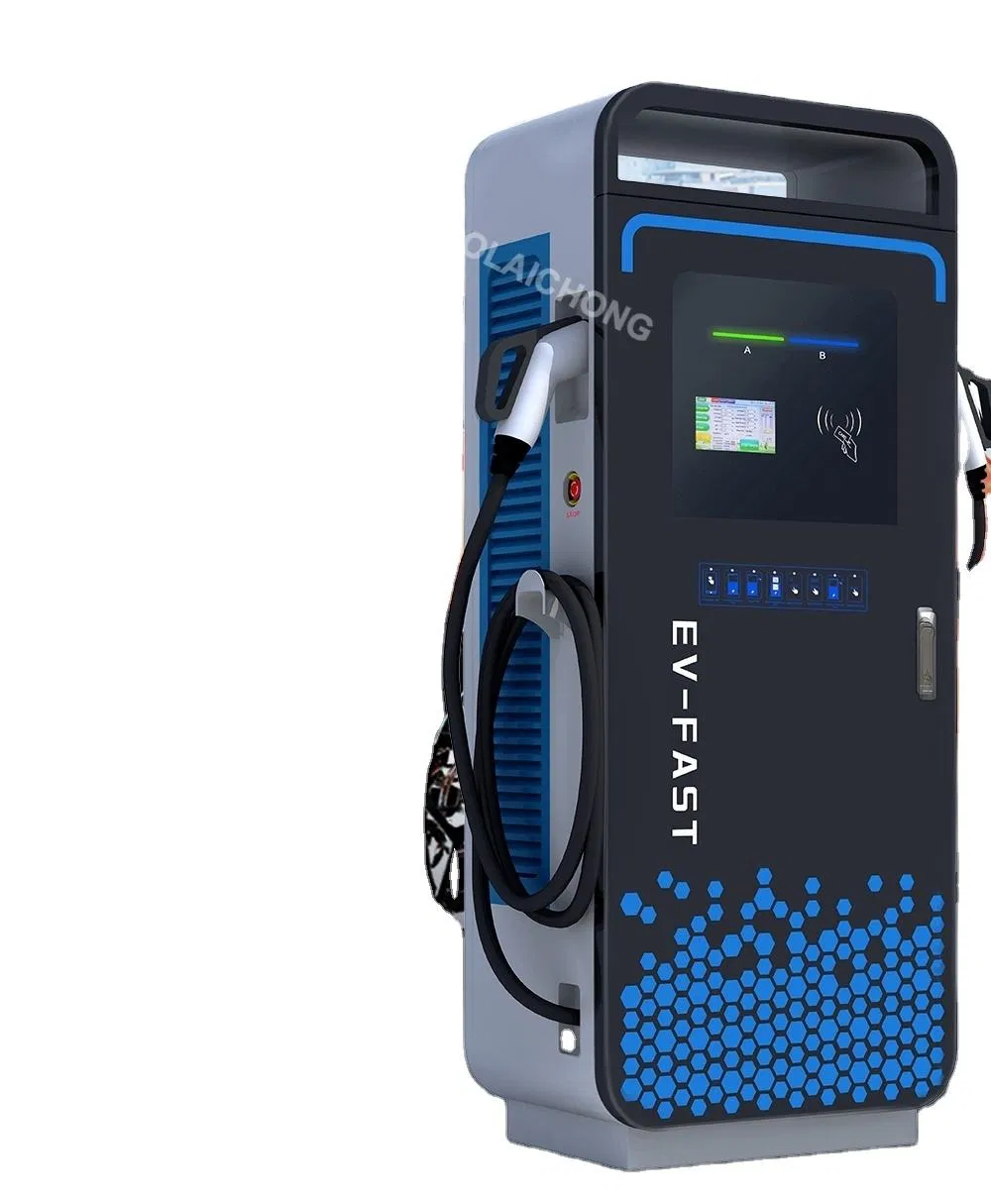

Charging Infrastructure 250kw 240kw 200kw Ocpp Fast EV Station Electric Vehicle Charger

Customization: Available
Applicable Car: Applicable to All Brands of Electric Vehicles

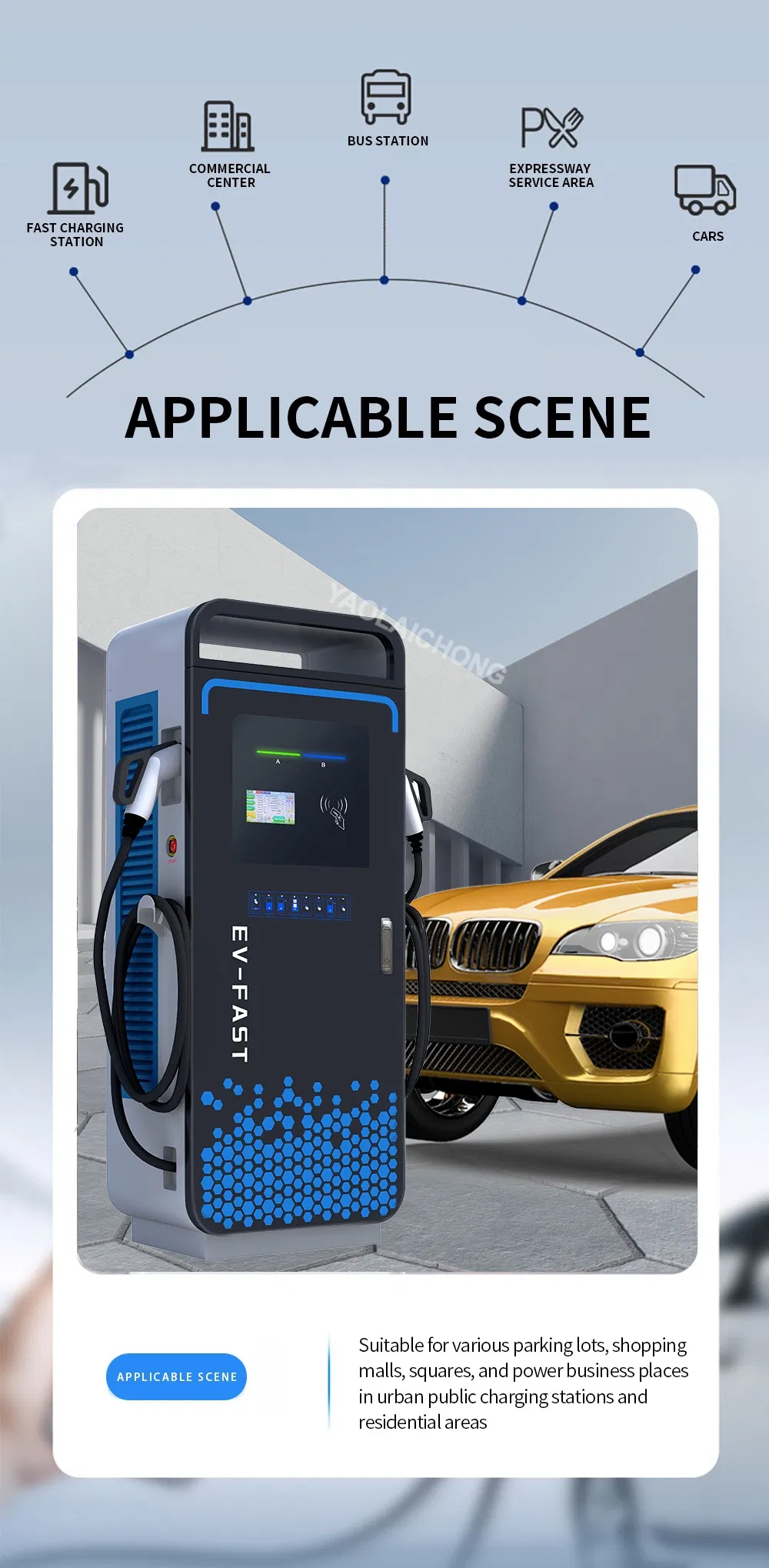

Applicable Car Models: Cars, Buses, Trucks, Sanitation Vehicles

Product Description

i

Overview & Basic Info

Model NO.YLC-KC-B
Charging PaymentRFID/POS/Ocpp(Qr Code, Credit Card, Alipay)
Charging Time20-30mins
Output Power40kw-360kw
Input Voltage380V
G.W300kg
Packing970*643*1945mm
Transport PackageWooden Case
Specification600*700*1700MM(W*D*H)
Production Capacity200/Month

Why Customers Choose Us

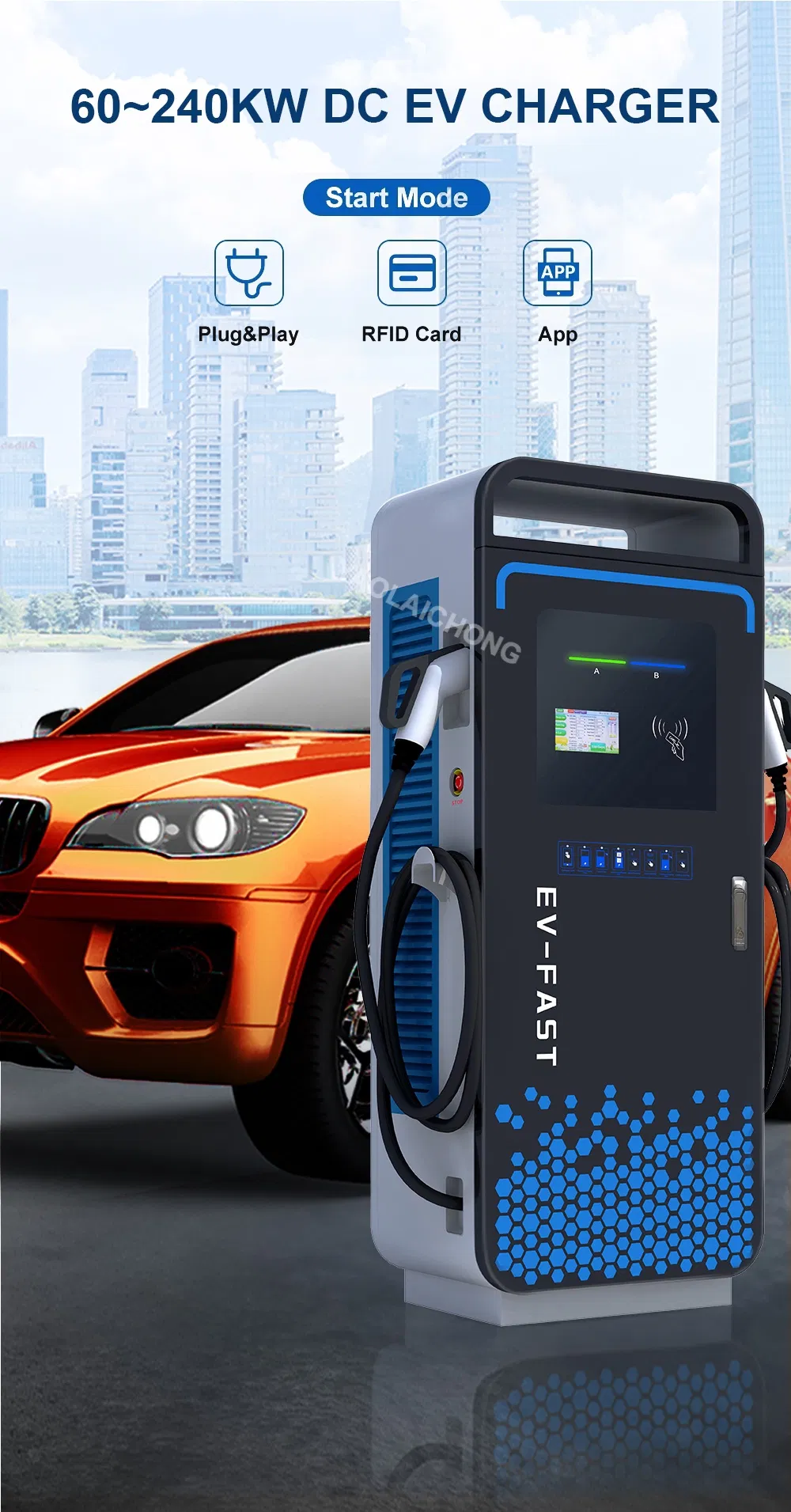

Products Description

Detailed Technical Specifications

Rated power120KW

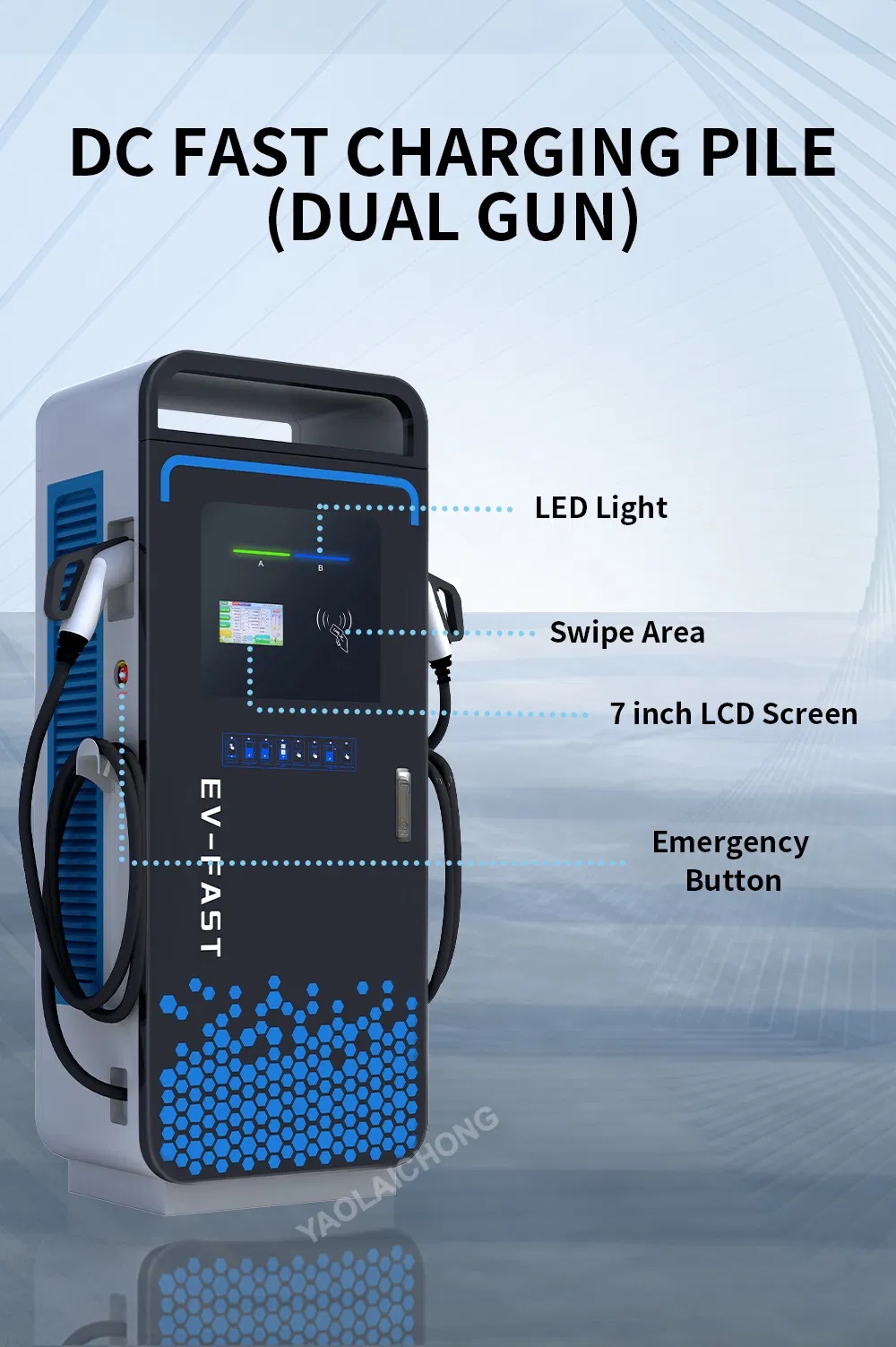

User interface7-inch LCD color display touch screen
Installation methodfloor standing
Cable length5m
Working temperature-25 ~+50
Protection levelIP54
Output voltage200-750V constant power
Single gun output current0-250A
Efficiency≥ 94.5%

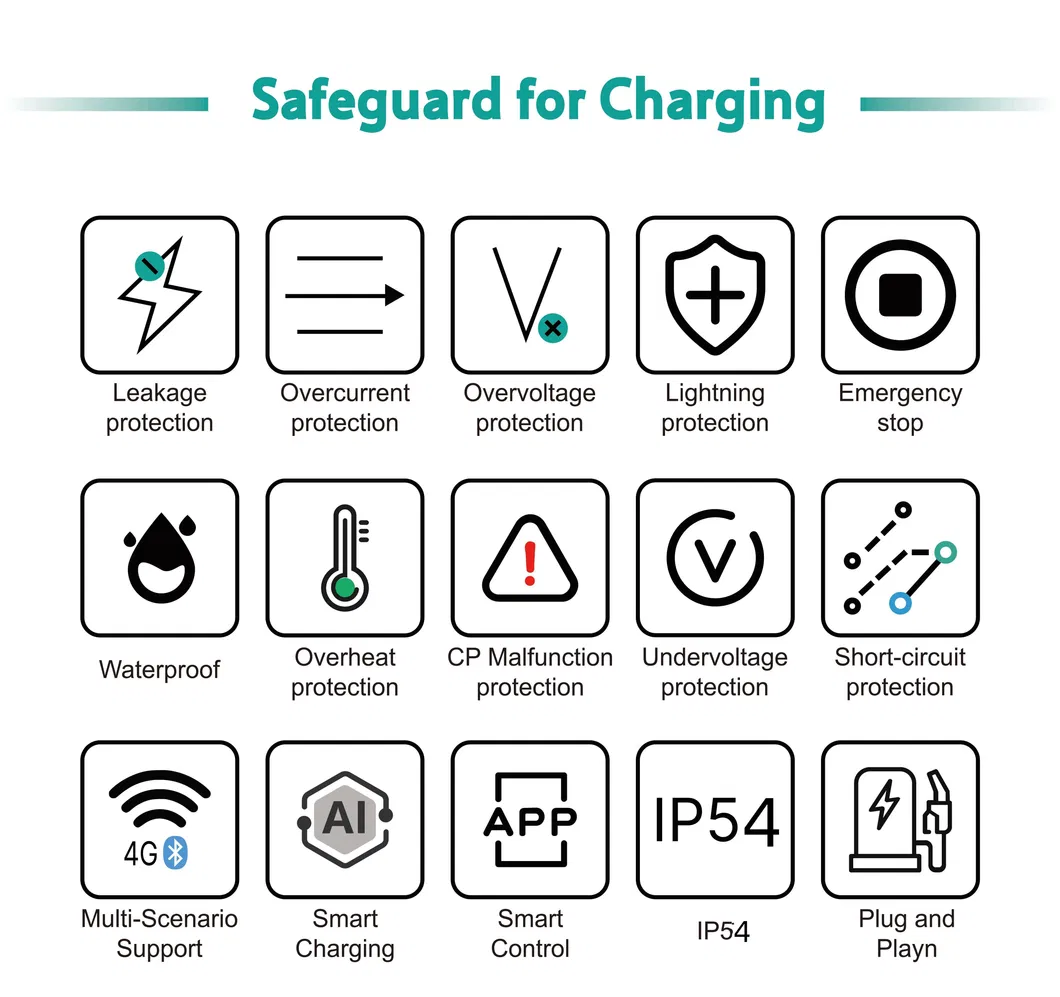

Safety functionsOvervoltage, Undervoltage, Overload, Short circuit, Grounding, Over temperature, Insulation monitoring, Lightning protection, Emergency stop, Leakage protection.
?

Frequently Asked Questions

Q1: What is the main difference between AC Charger and DC Charger?
The difference is the location where the AC power gets converted; inside or outside the car. Unlike AC chargers, a DC charger has the converter inside the charger itself, feeding power directly to the car's battery.
Q2: What are the different DC fast charging standards?
CCS-1: North America; CCS-2: Europe; CHAdeMO: Japan; GB/T: China.
Q3: Does higher output power always mean faster charging?
Not necessarily. Due to battery limitations, once a certain limit is reached, higher power won't increase speed. However, high-power chargers support dual connectors and future-proof your investment.
Q4: How fast can a vehicle be charged?
Speed depends on the Charger Type (kW), the Vehicle's onboard capacity and battery state (slowing down after 80-90%), and environmental conditions like temperature.
Q5: What services and warranties are provided?
We offer post-installation guidance, technical support, and a two-year hardware warranty with lifetime software support based on terms.
Q6: Are you a manufacturer?
Yes, we are a professional EV charging station manufacturer with over 15 years of experience and ISO9001/CE/UL certifications.
🏢

About Our Technology

Established in 2011, our facility spans over 10,000 square meters with modern workshops and advanced testing equipment. We hold ISO9001, 3C, CE, UL, 62, UKCA, and SAC TR 25 MyHIJAU certifications. With over 100 professional workers in R&D and manufacturing, we provide AC chargers, fast DC chargers, and super fast liquid-cooled solutions to over 60 countries worldwide.
