| Model NO. | QSCDZ |
| Rated Current | 2A; 63A; 100A; 200A; 300A |
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw |
| Protection Grade | IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor) |
| Service Life | 8 - 10 Years |
| Charging Type | AC Charging; DC Charging; AC&DC Integrated Charging |
| Charging Efficiency | ≥93% (AC); ≥95% (DC) |
| Power Factor | ≥0.95 (Rated Load) |
| HS Code | 8504409999 |

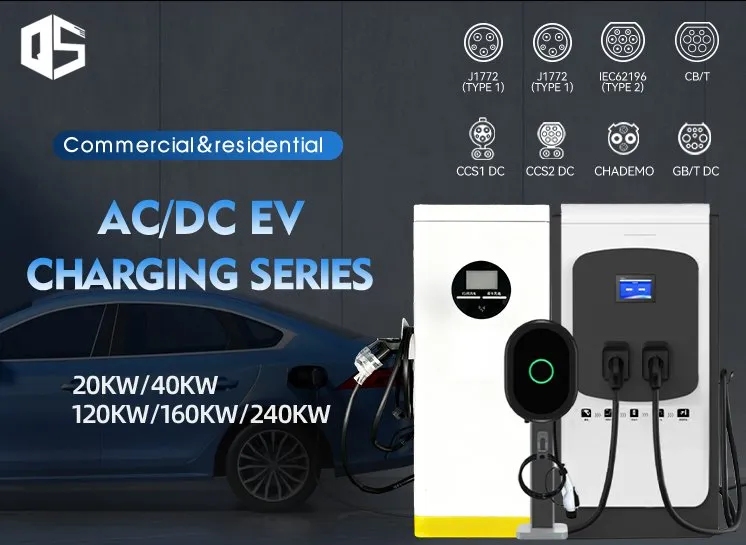

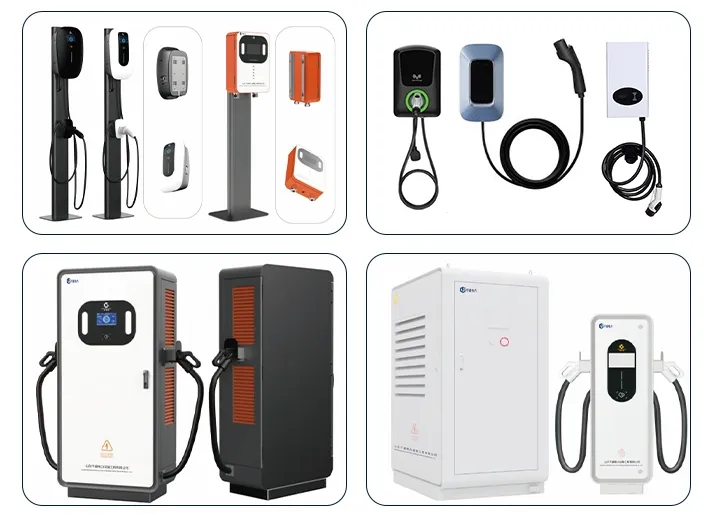

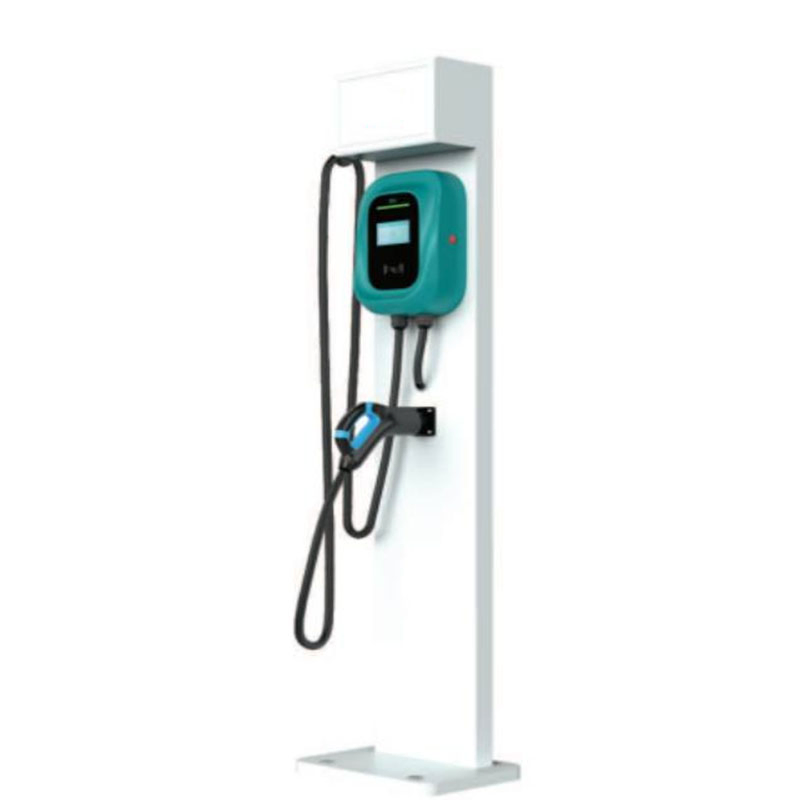

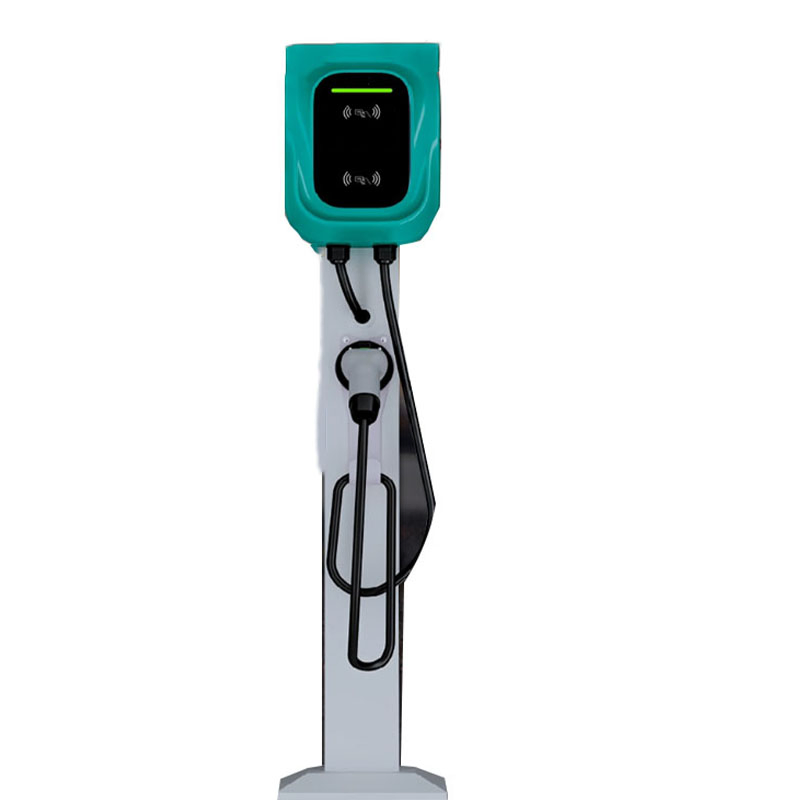

Our charging pile series includes multiple models, with two options: wall mounted and floor standing, to meet different installation needs. Stylish designs, stable frameworks, and complete functionality make them suitable for residential and commercial use.

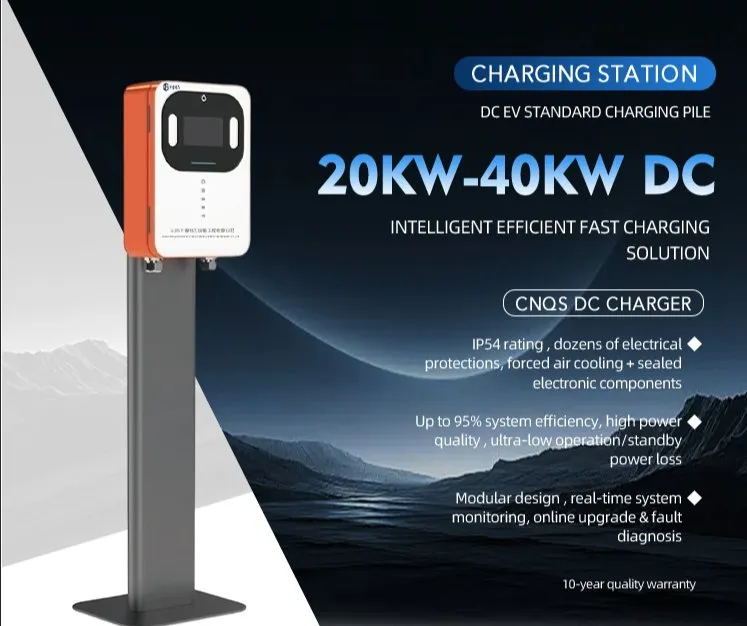

| Power | 20KW / 40KW / 120KW / 160KW / 240Kw |
| Input Rating | 110V/220V/380V±15% |
| Output Voltage | 200~1000V |
| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Network | 4G / Ethernet / OCPP1.6J |
| Operating Temp | -20℃ to +50℃ |
| Protection | IP55 |
• Global certifications (CE/UL/PSE/KC) with 100% compliance rate.
• Supports ISO 15118 PNC Plug & Charge.
• Billing accuracy ±0.5% with MID/UL certification.
• IP65 dustproof & waterproof, adapts to -30℃ to 60℃.

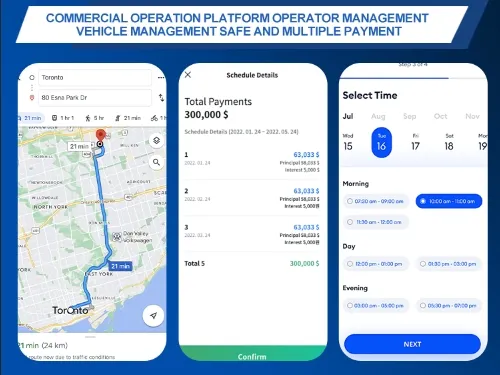

• Supports Apple Pay/Google Pay/Credit Card.

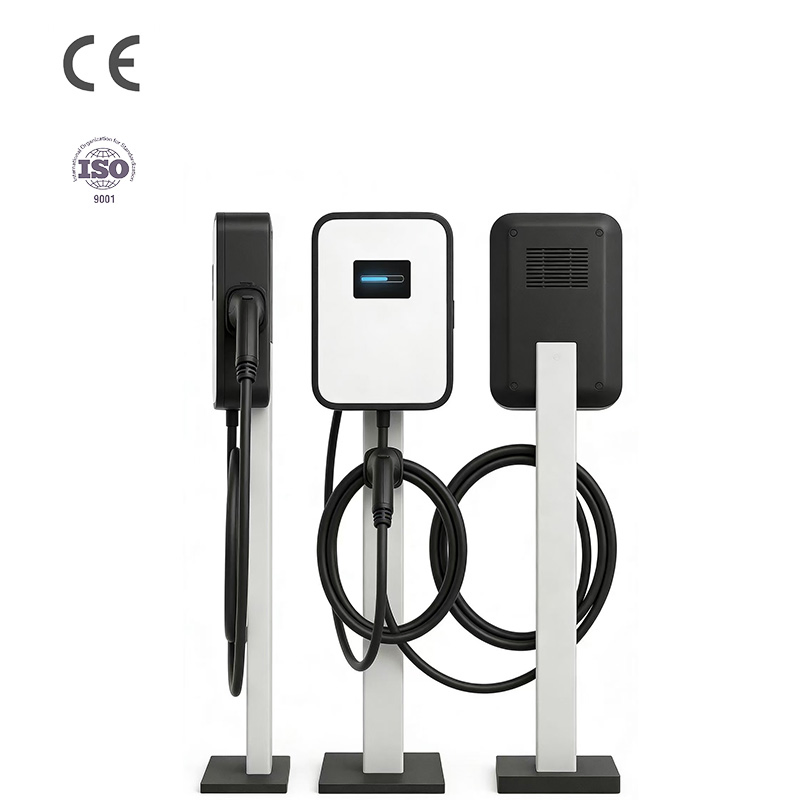

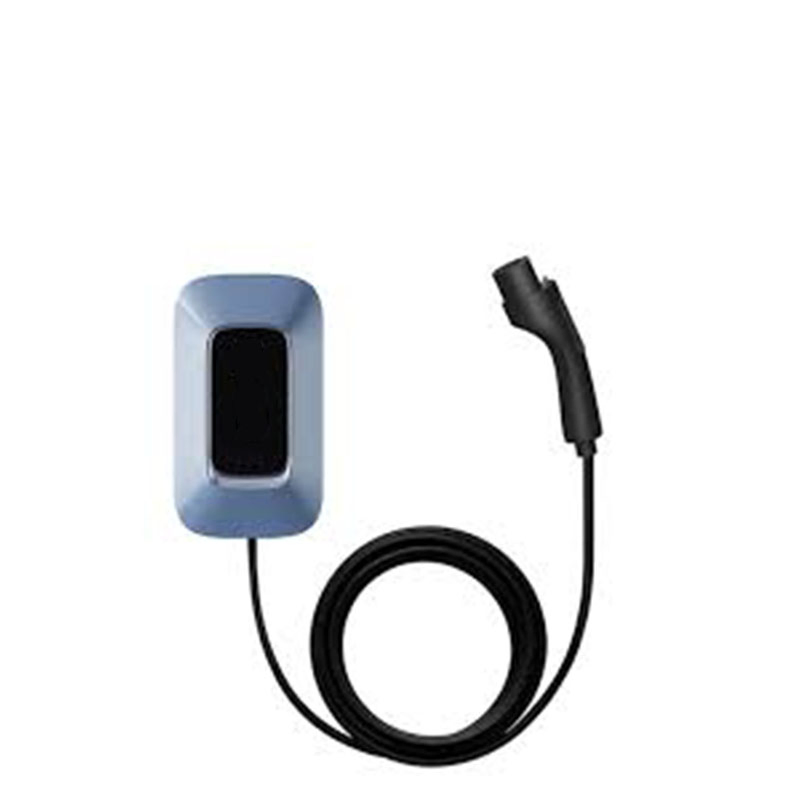

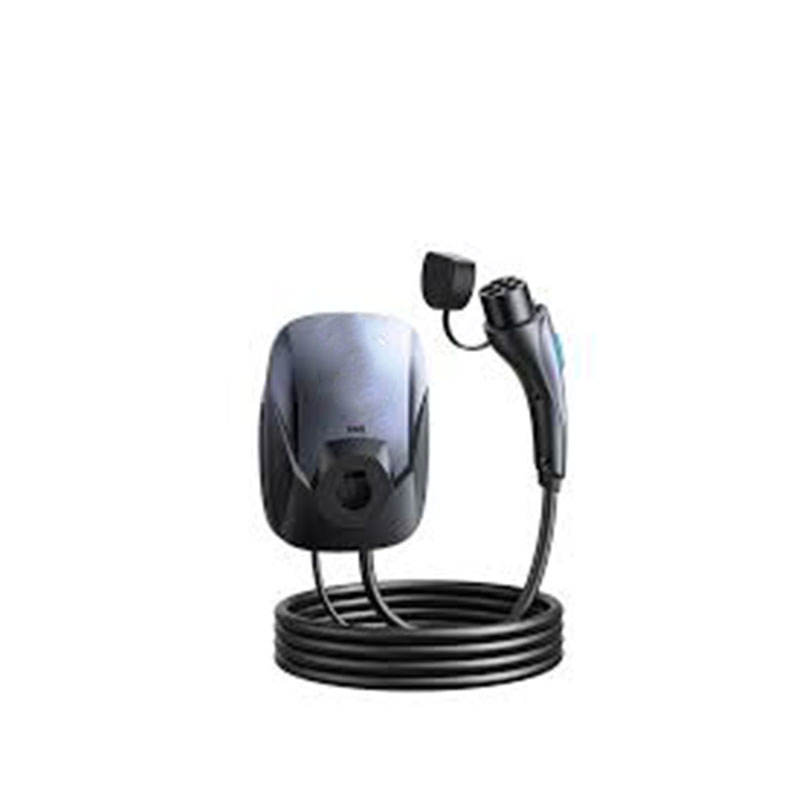

• Wall-mounted & column installation modes available.
• Dual-gun simultaneous charging + modular design.

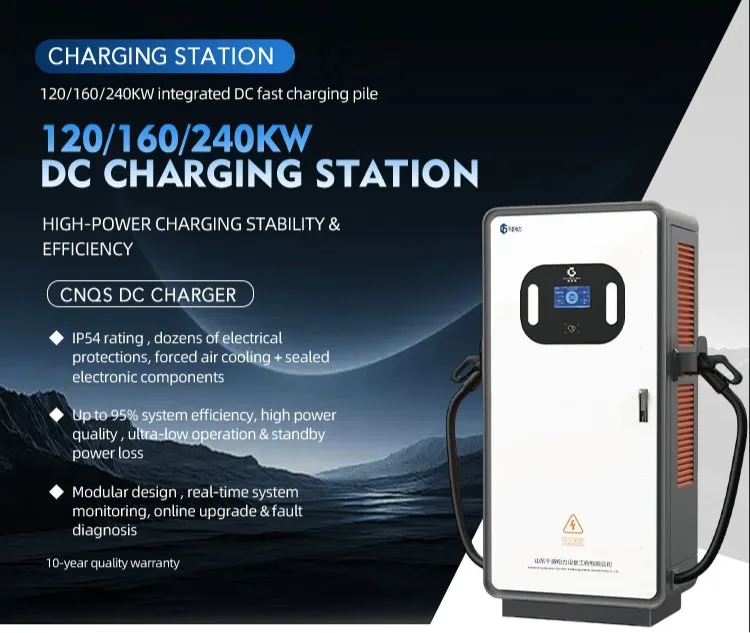

• 120kW mainstream super charging: 300+km range in 30 mins.
• 240kW ultra-fast: 80% battery in 15 mins.

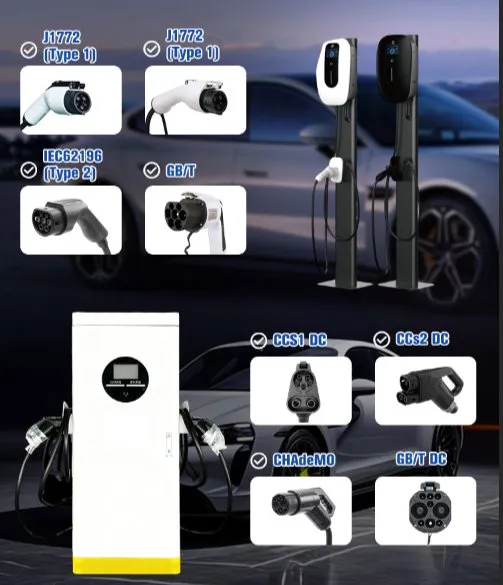

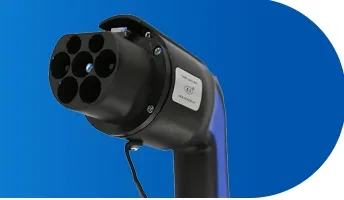

• Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).
• Thickened high-temperature resistant special cables.
• Customizable cable length with self-locking anti-drop features.
Standard wooden box packaging: 120cm * 45cm * 155cm | Gross Weight: 60kg.

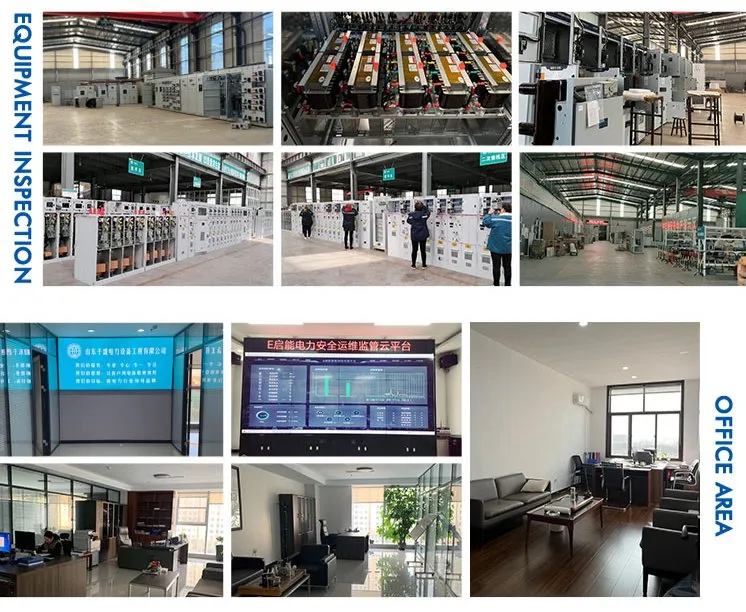

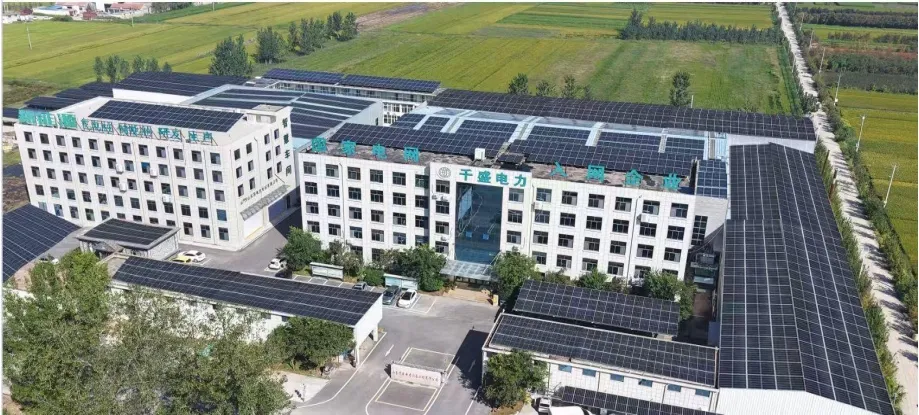

With over 20 years of industry expertise, we serve global markets with reliable power distribution and new energy solutions. Our facility covers over 16,000 square meters and employs a professional team of technicians and managers.
We hold ISO9001:2000, Environmental Management, and Occupational Health certifications, alongside CCC and CQC product approvals. We focus on long-term cooperation and stable quality delivery.
