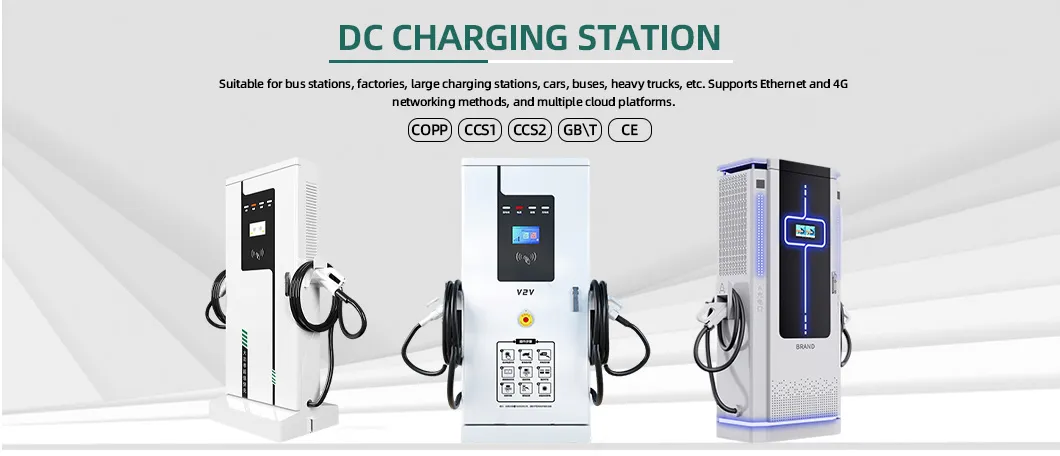

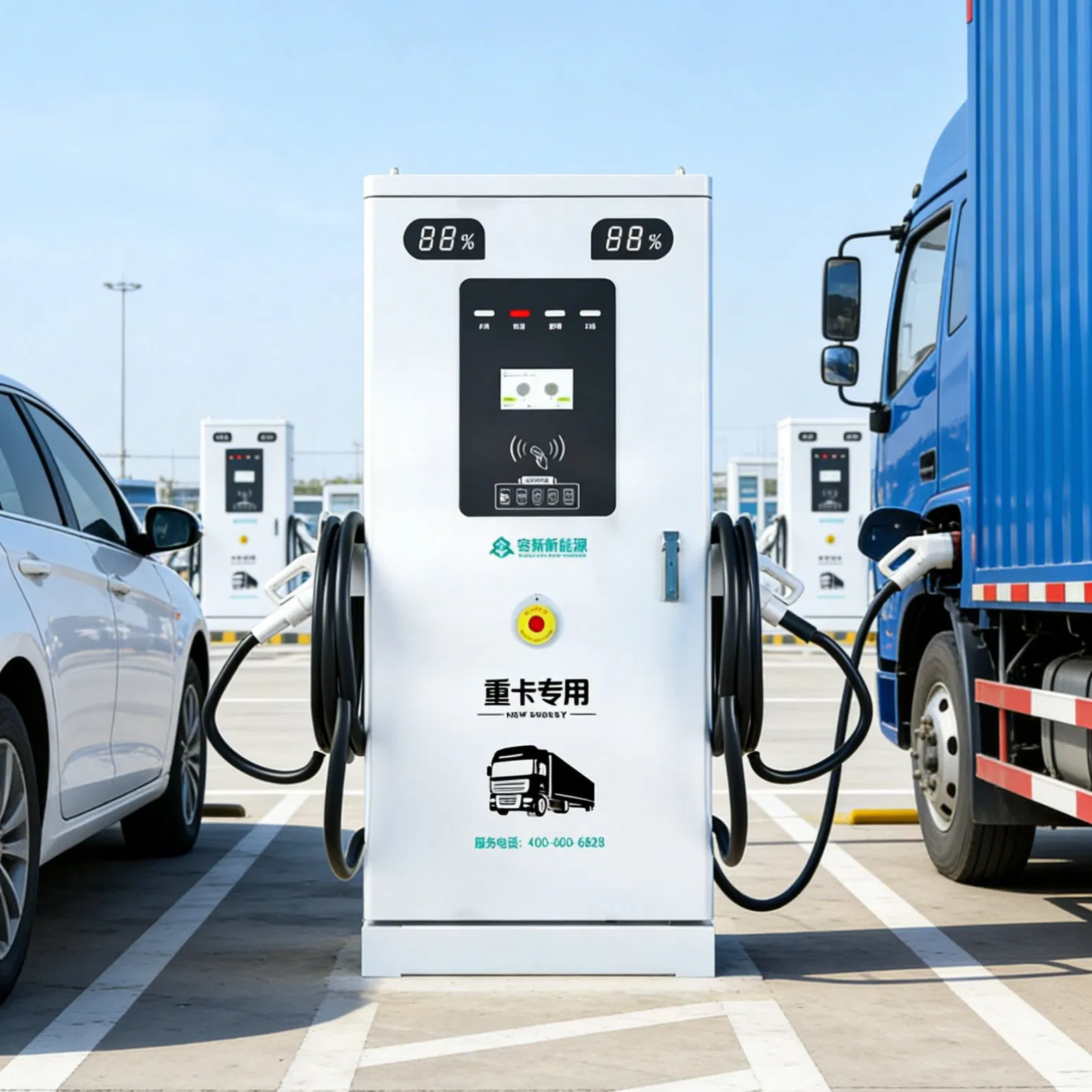

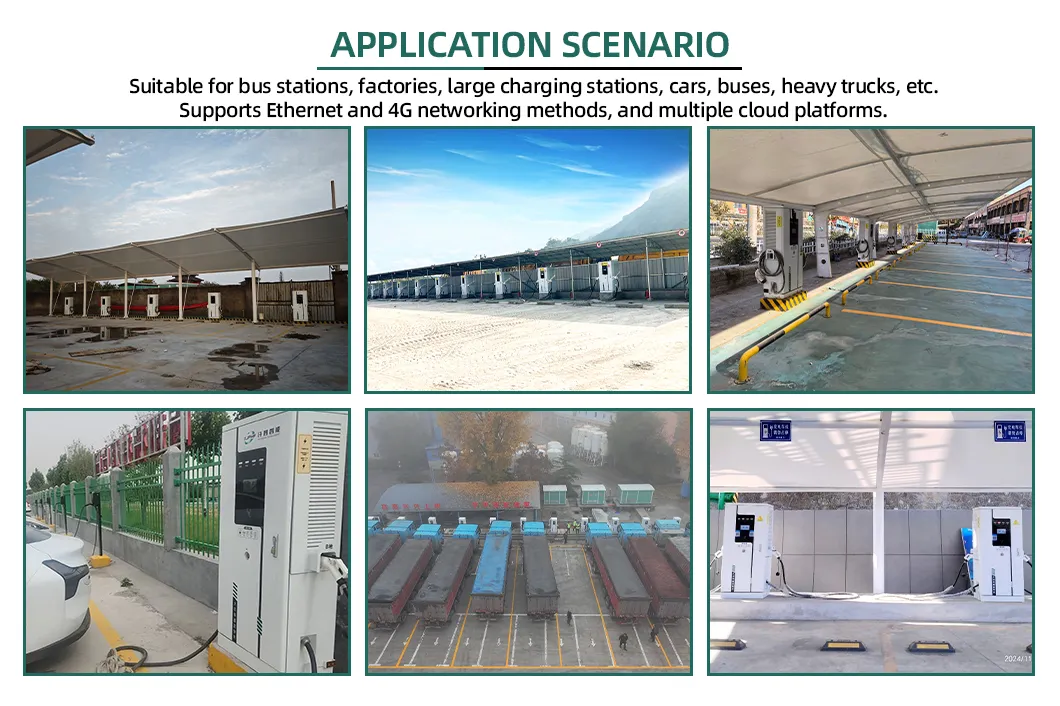

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.
📝
Technical Specifications
Product Model
40KW-600KW
External Dimension
750x410x1700(mm)
Rated Power
40KW-600KW
Weight
194KG-274KG
Design Criterion
CCS1, CCS2, GB/T
Gun Barrel Length
5 meters
Charging Guns
2 individual
HMI Interface
7-inch LCD touch screen + LED
Protection Level
IP54
Connection Method
4G / Ethernet
Charging Mode
Scan code, swipe card, VIN code, password
Cloud Platform
OCPP 1.6 / 2.01
🖼️

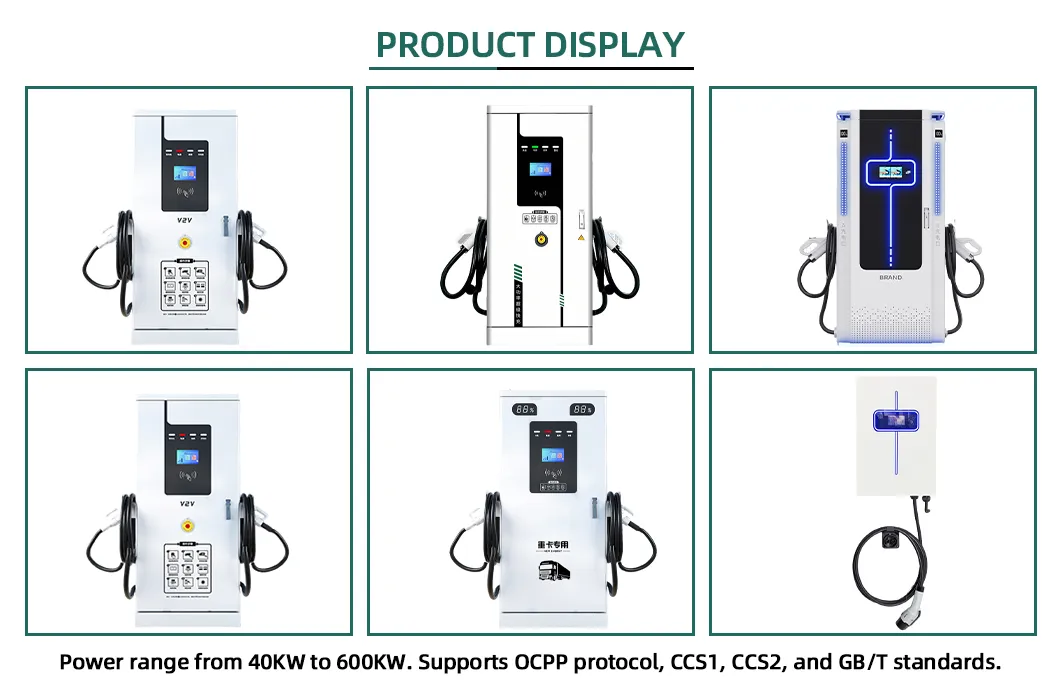

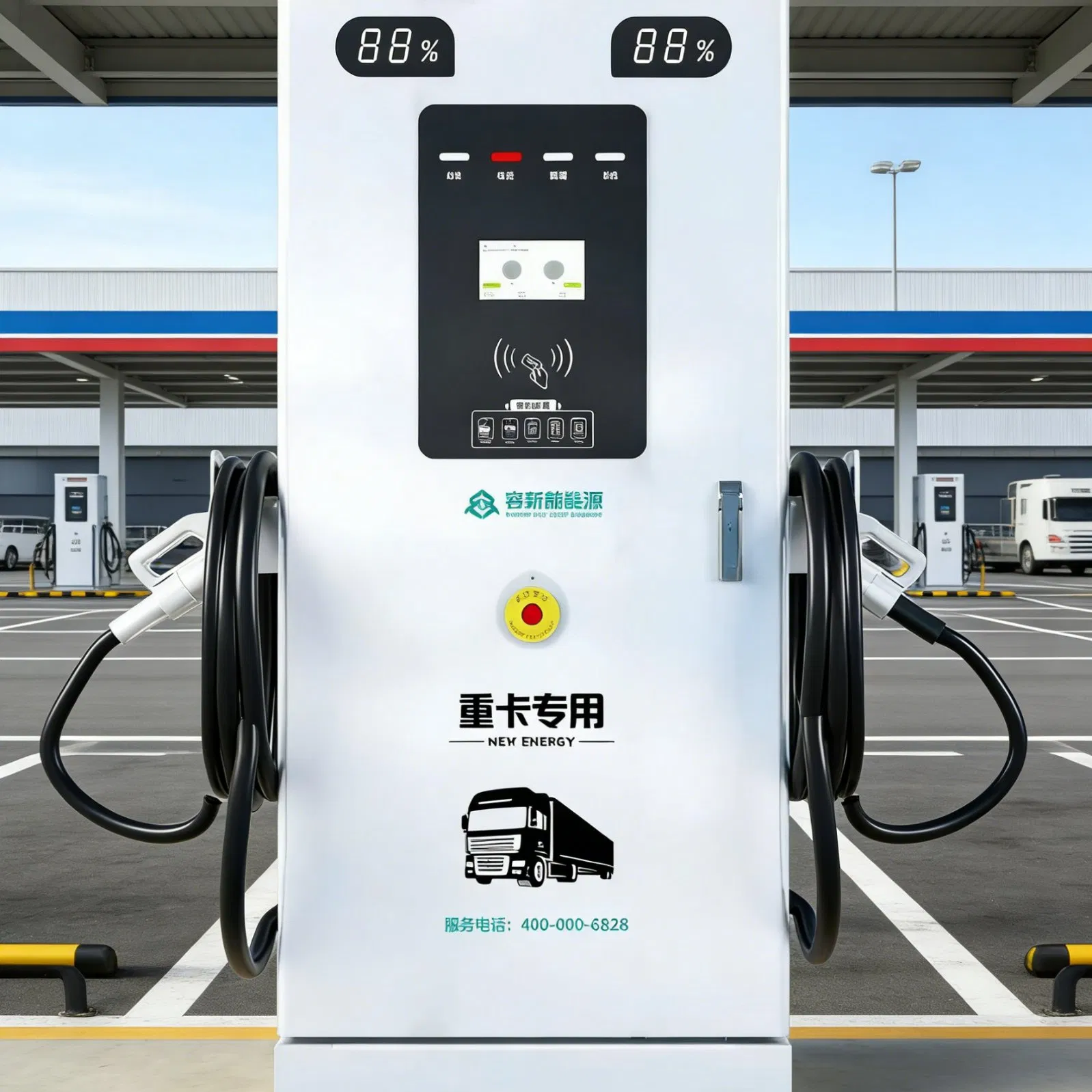

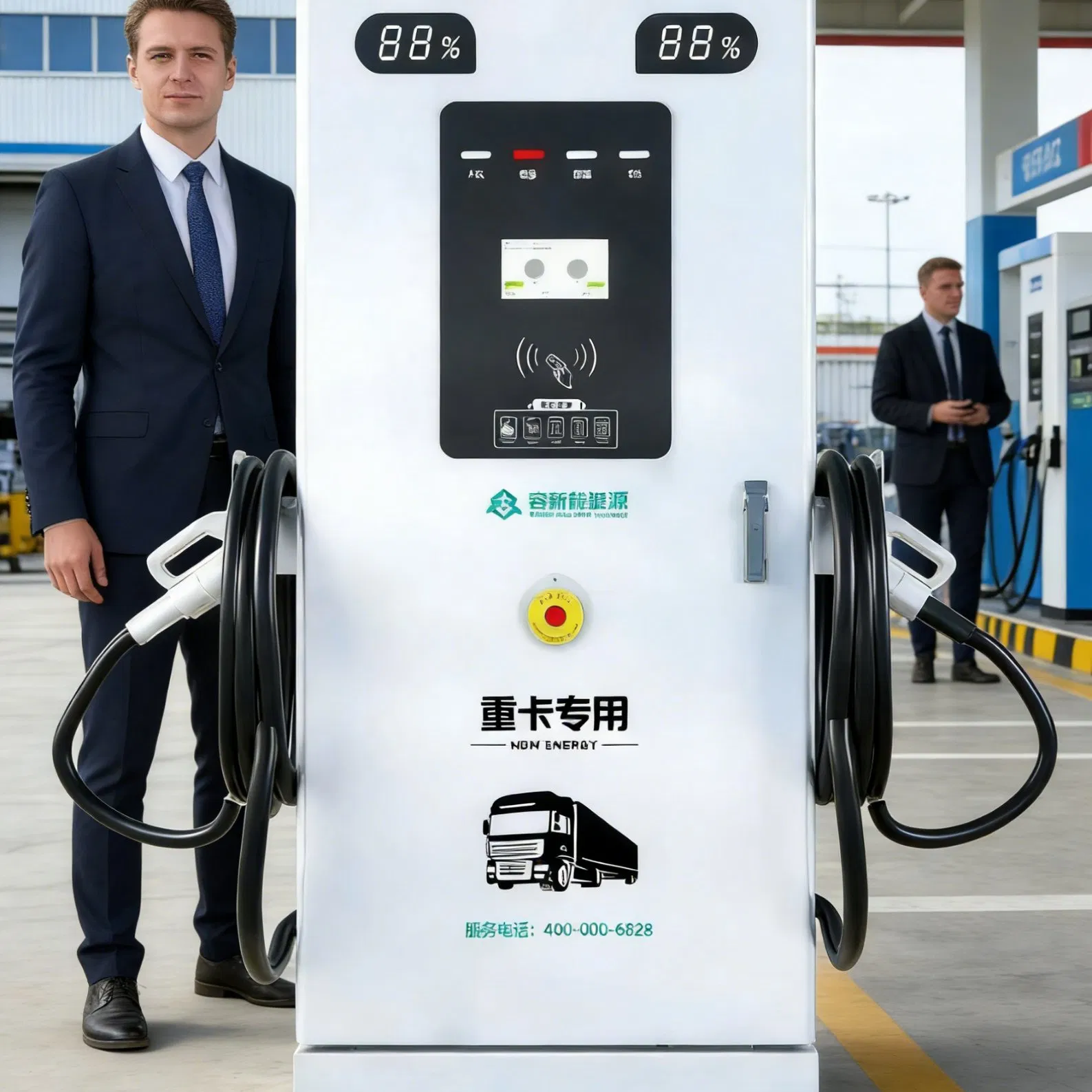

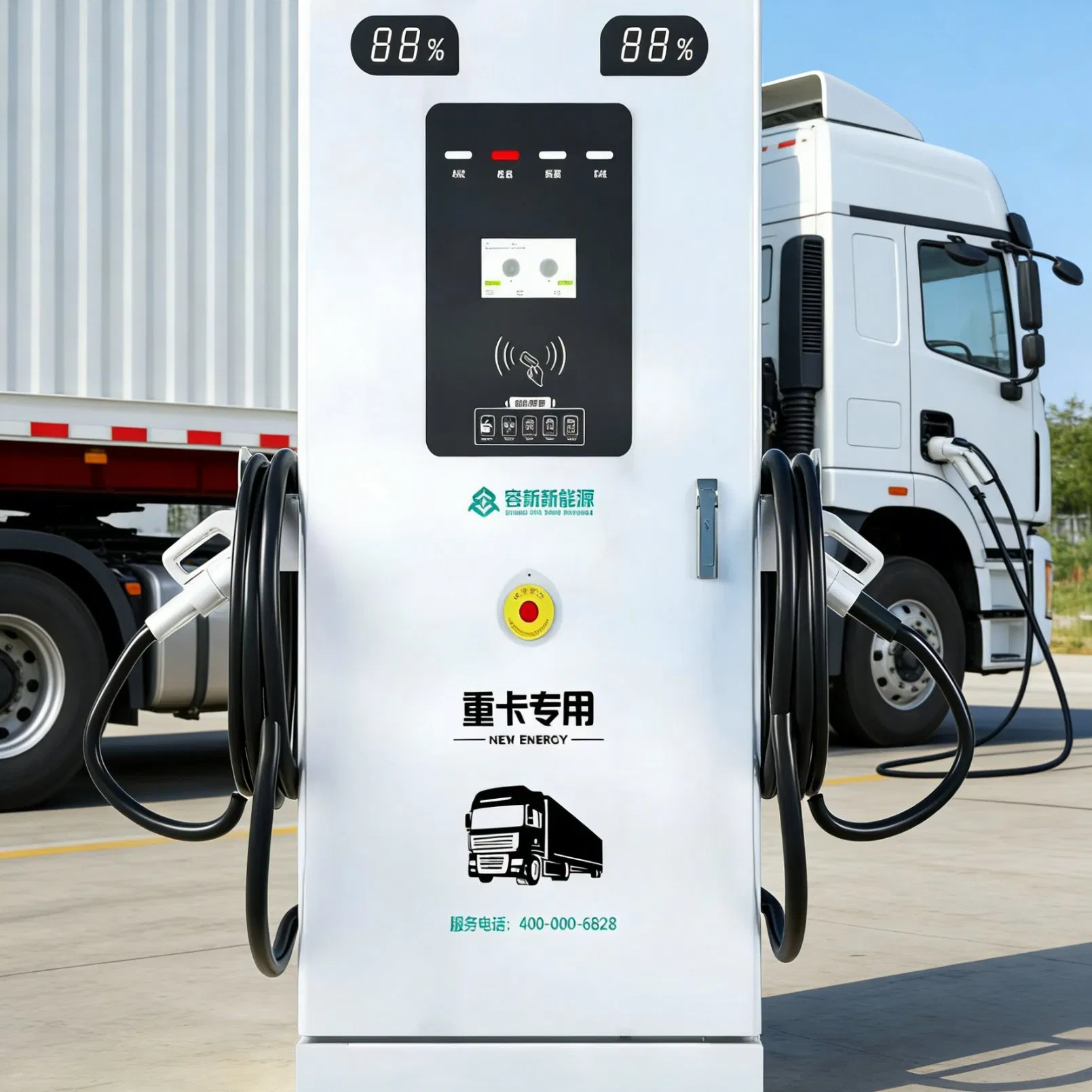

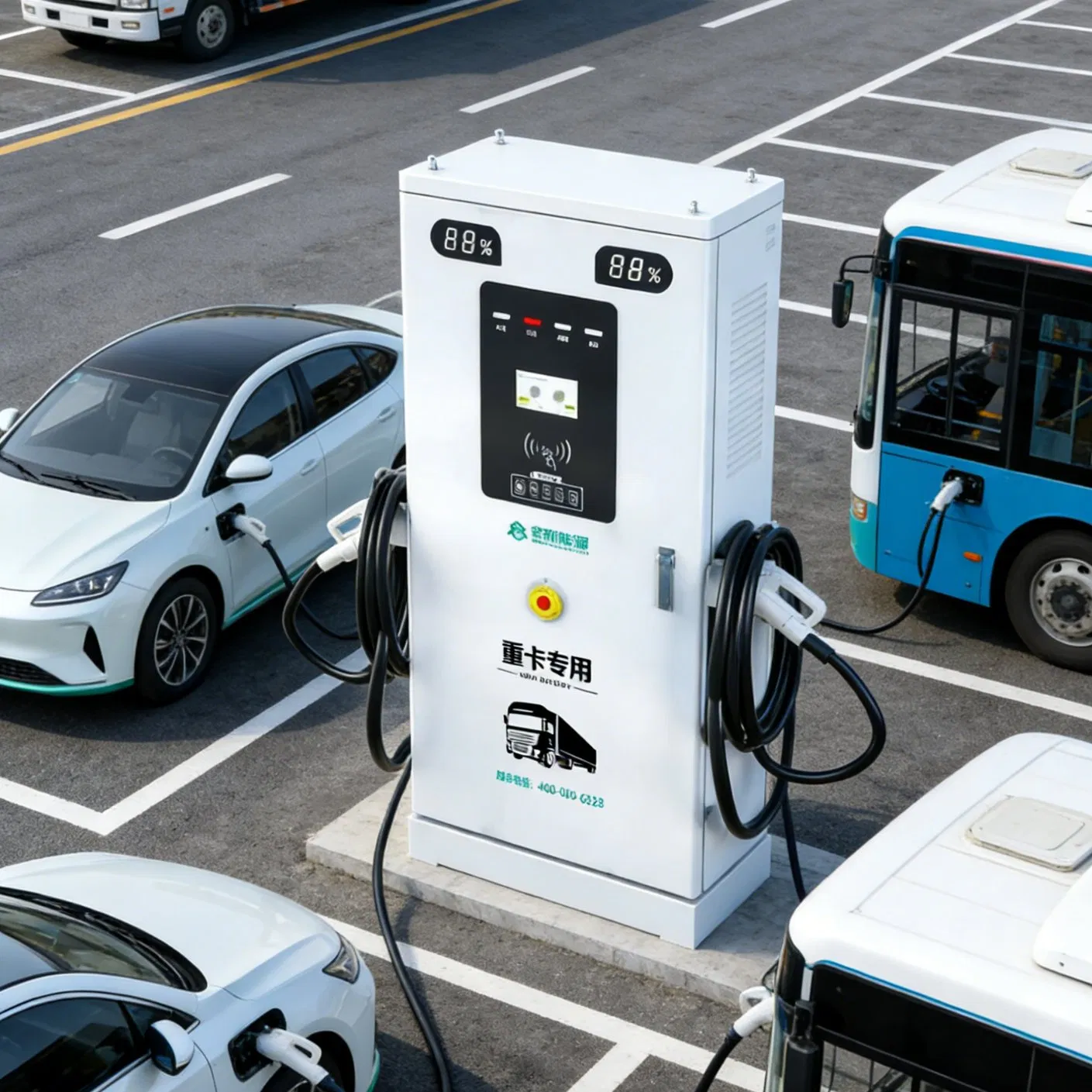

Product Display
🏆
Certifications & Quality
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises both at home and abroad.
📦
Packaging & Shipping
We adopt packaging methods that are sufficient to protect the equipment, supporting sea transportation, air transportation, and land transportation.
❓
Frequently Asked Questions
Are you a factory or a trading company?
We are a manufacturer, welcome to visit our factory at any time!
What products can we buy from you?

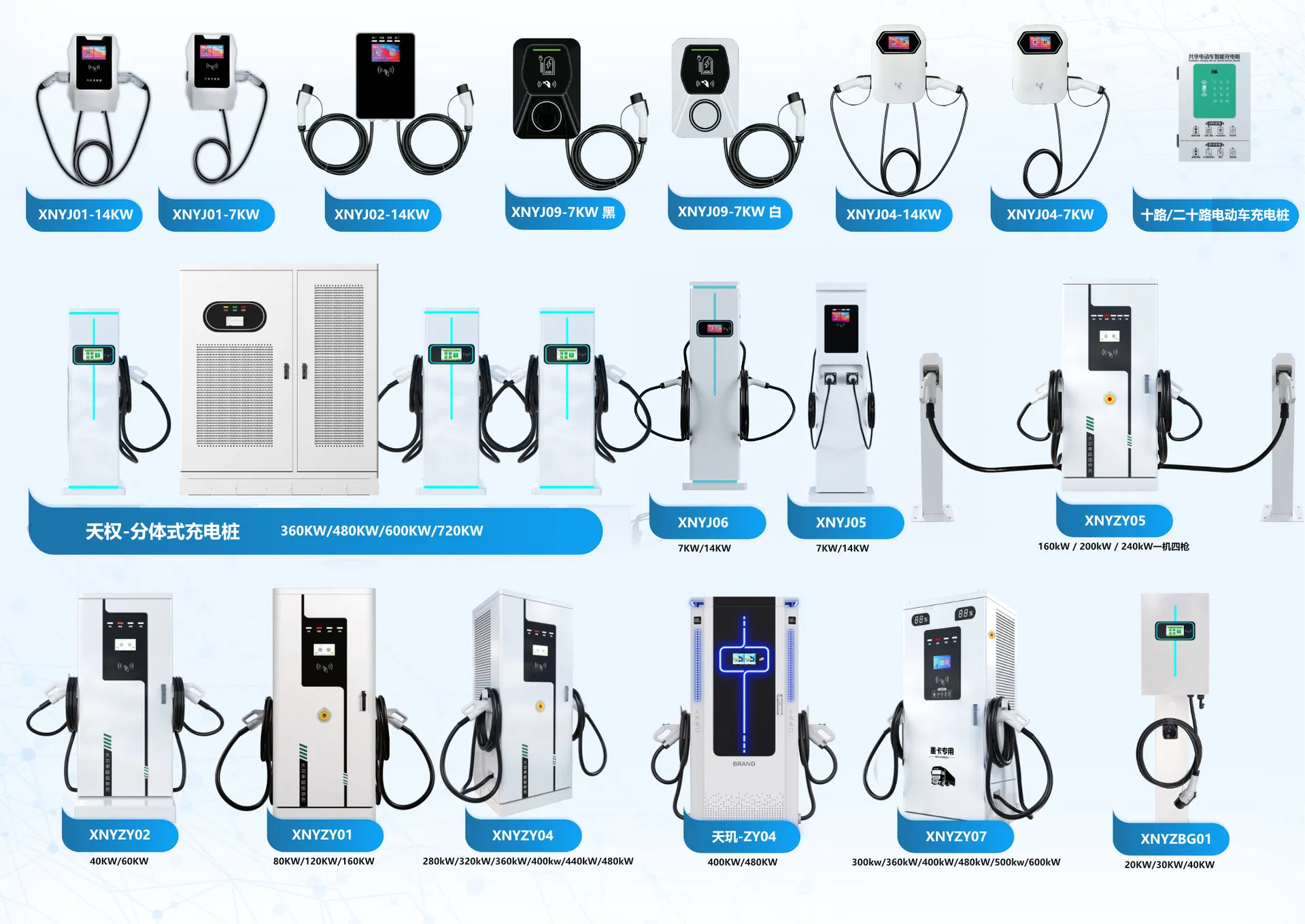

We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), mobile chargers with energy storage, and Solar System products.
Can you provide customization for logo and design?
Yes, we can implement your design and place your logo on the products based on your requirements.
What are your payment terms?
T/T 30% as deposit, and 70% paid off before delivery. We provide photos of the products and packages before final payment.
How long is the delivery time?
Generally, it takes 7 to 35 days after receiving advance payment, depending on the item and order quantity.
Do you test all goods before delivery?
Yes, we conduct a final 100% inspection of all goods before they leave our facility.
