Product Description

📊 Basic Info

Installation

Floor Mounted

Housing

Metal

Input Voltage

400VAC ±15%

Input Frequency

45-65Hz

Thdi

No More Than 5%

Efficiency

Beyond 95%

IP Class

IP55

Communication

2G, 3G, 4G, Ethernet

Outlet Current

500A / 850A

Specification

3174*1681*4866mm

Origin

China

Capacity

30 Set/Month

⚡ Product Description

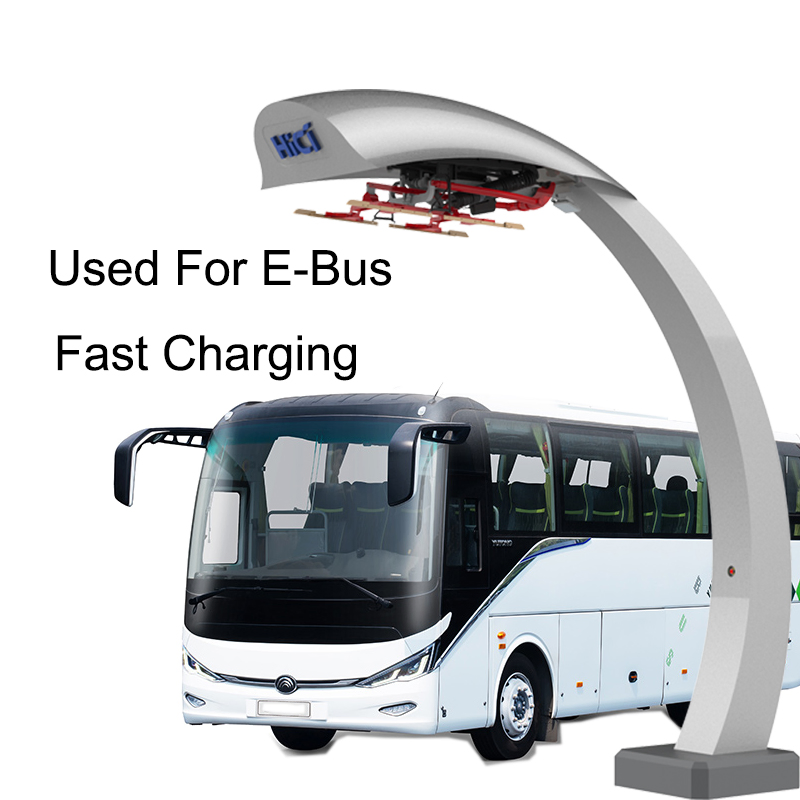

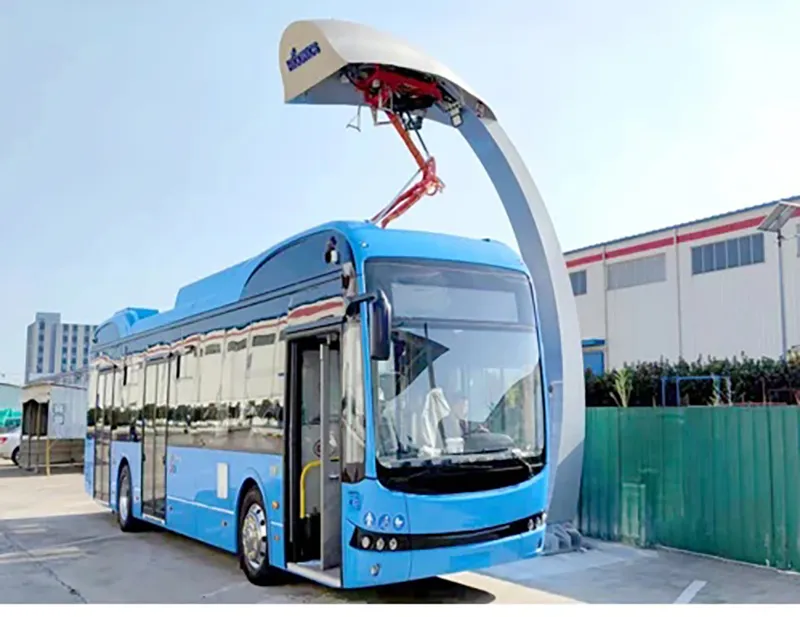

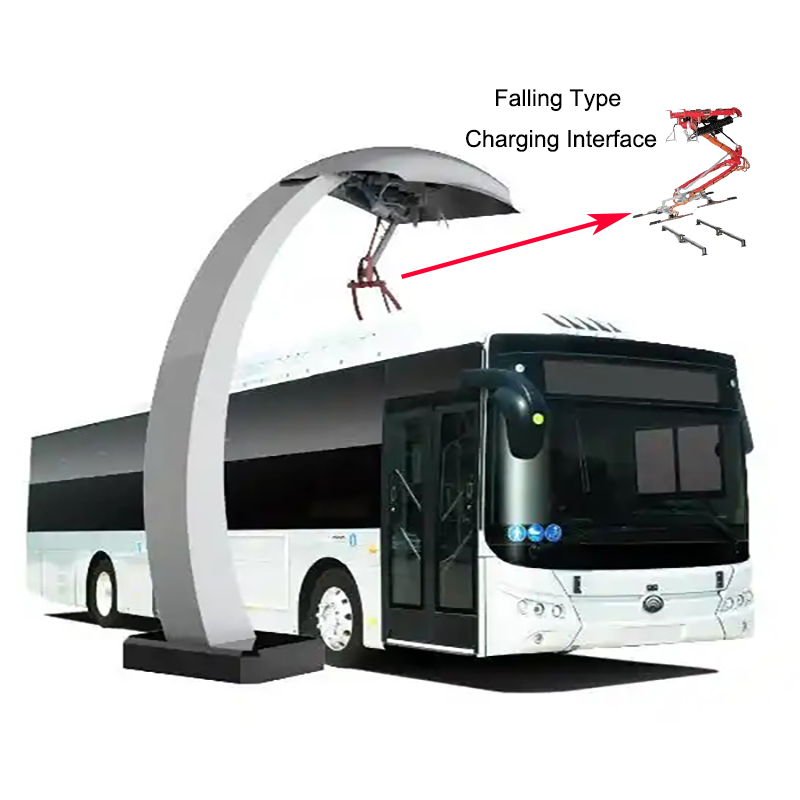

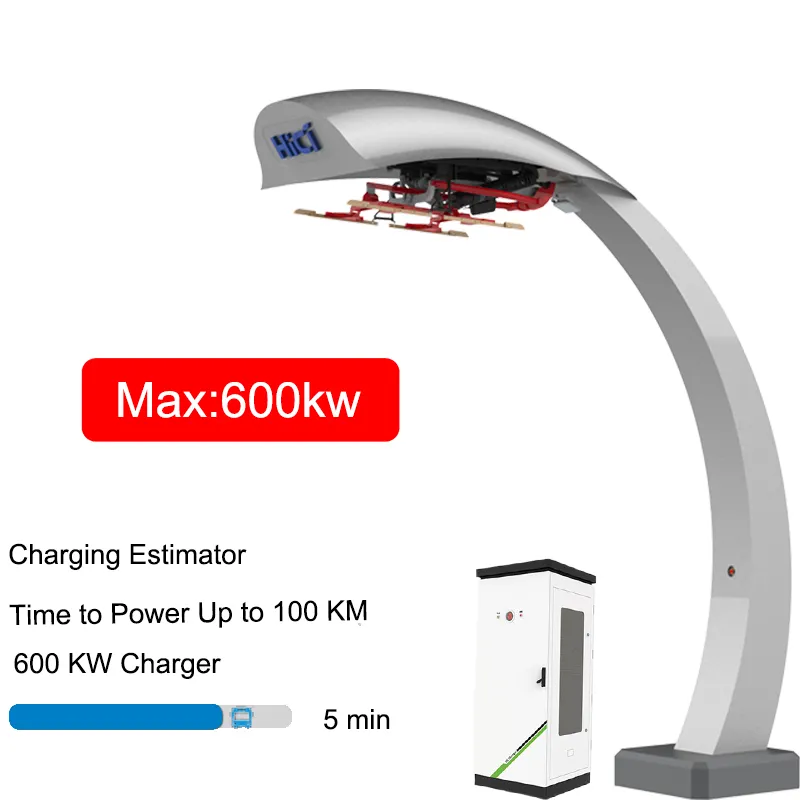

600 KW Split Type Fast Charging Solution Pantograph System For EV Bus

Offering a Quick Charge Solution for Electric Bus Fleet with a high-power pantograph, efficient auto charging, and 600 Kw capacity. Ideal for fast charging electric buses.

Product Highlights:

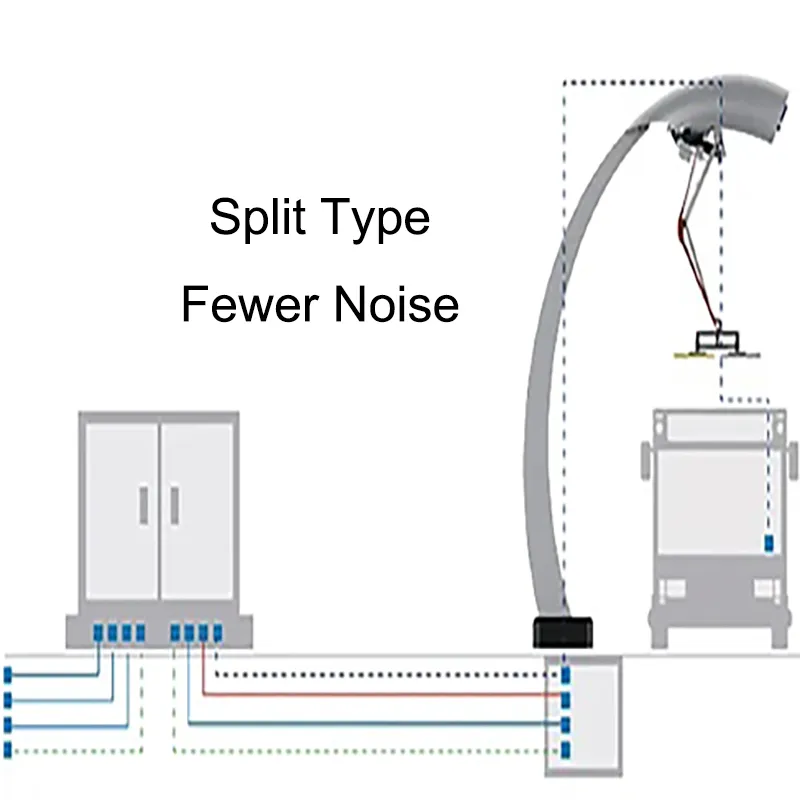

Split Type for reduced noise
Supports up to 600 kw/h

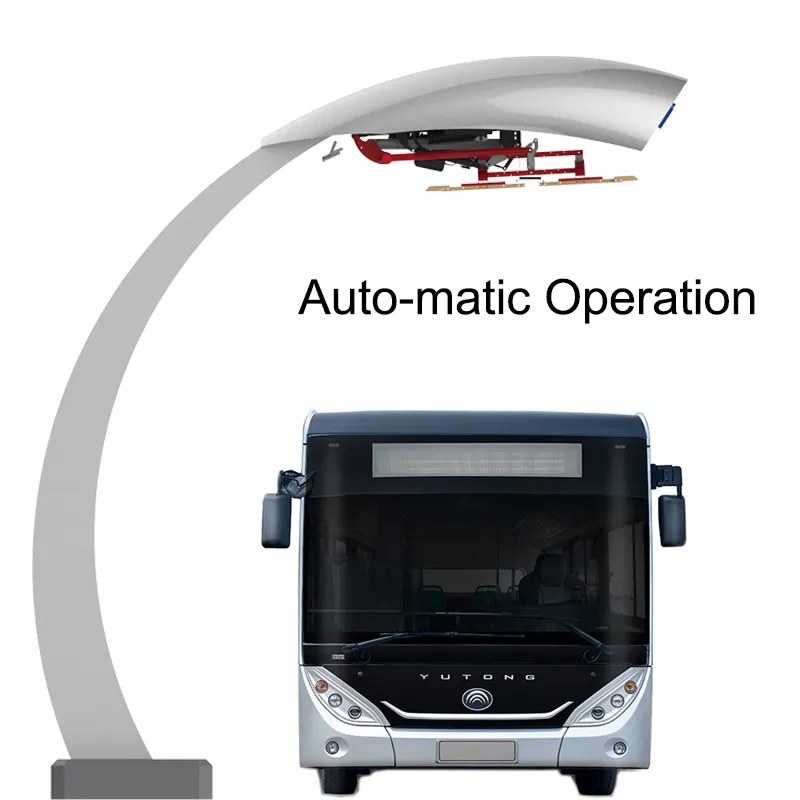

Automatic operation
IP55, IK10 rated durability
High efficiency performance

Production Parameters
Power		300KW	600KW
AC Input	Input Rating	400Vac±15%	4000Vac±15%
	Connection	L1+L2+L3+N+PE	L1+L2+L3+N+PE
	THDi	<5%
DC Output	Voltage Range	150-1000VDC	150-1000VDC
DC Output	Max. Current	500A	850A
Interface	Connectivity	Ethernet / 4G / OCPP 1.6 JSON
Environment	Temp / IP	-30~55ºC / IP55

❓ Frequently Asked Questions

Q1: What is the maximum charging power of this pantograph system?

The system supports high-power fast charging up to 600kW, specifically designed for electric bus fleets.

Q2: Is the system suitable for outdoor installation?

Yes, it features an IP55 and IK10 rating, making it durable and suitable for various outdoor environmental conditions.

Q3: How does the split type design benefit the operation?

The split type design helps in significantly reducing noise levels and allows for more flexible installation configurations.

Q4: Does the charging system support remote monitoring?

Yes, it supports Ethernet and 4G connectivity with OCPP 1.6 JSON protocol for remote management and software upgrades.

Q5: What are the primary applications for this charger?

It is ideal for electric bus fleets, heavy-duty electric trucks, and public transportation hubs requiring rapid turnaround times.

Q6: What is the expected lead time for production?

Standard production lead time is approximately 15 days after payment, with a capacity of 30 sets per month.
