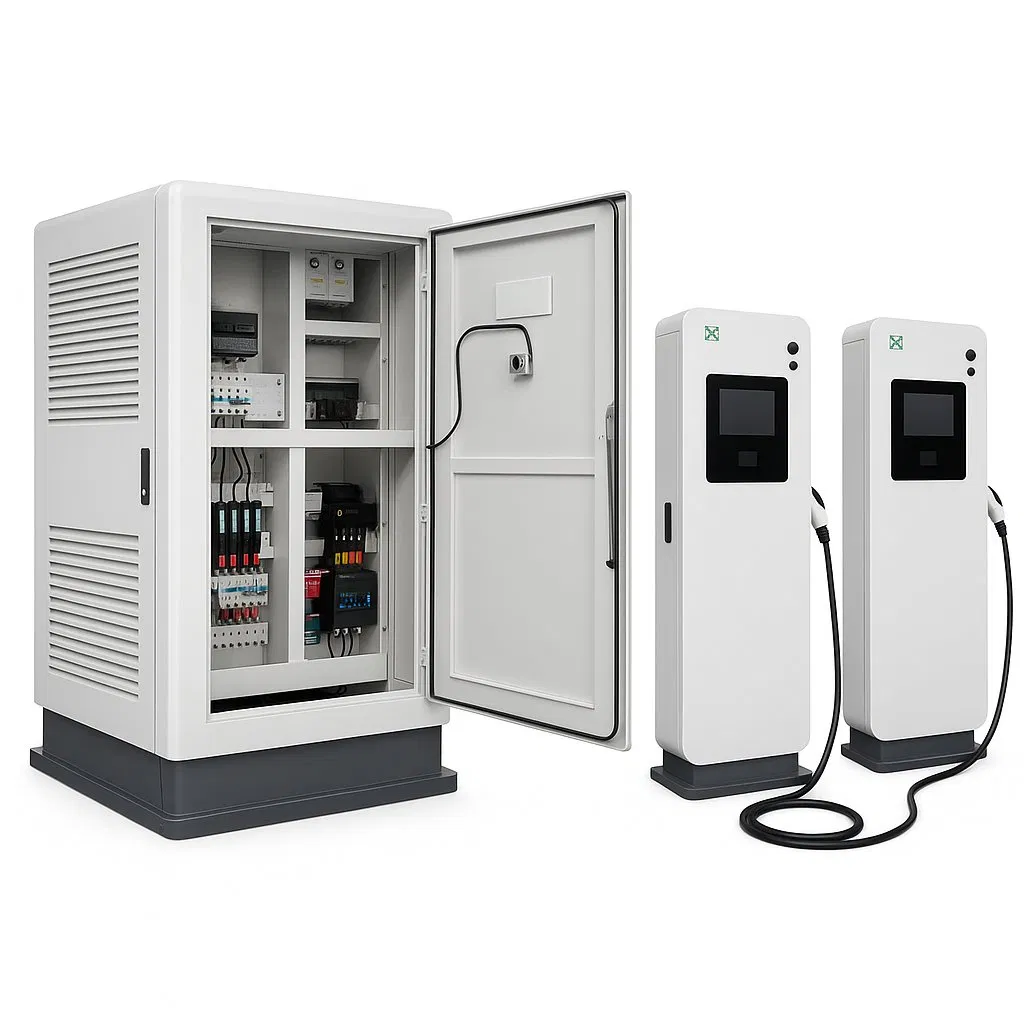

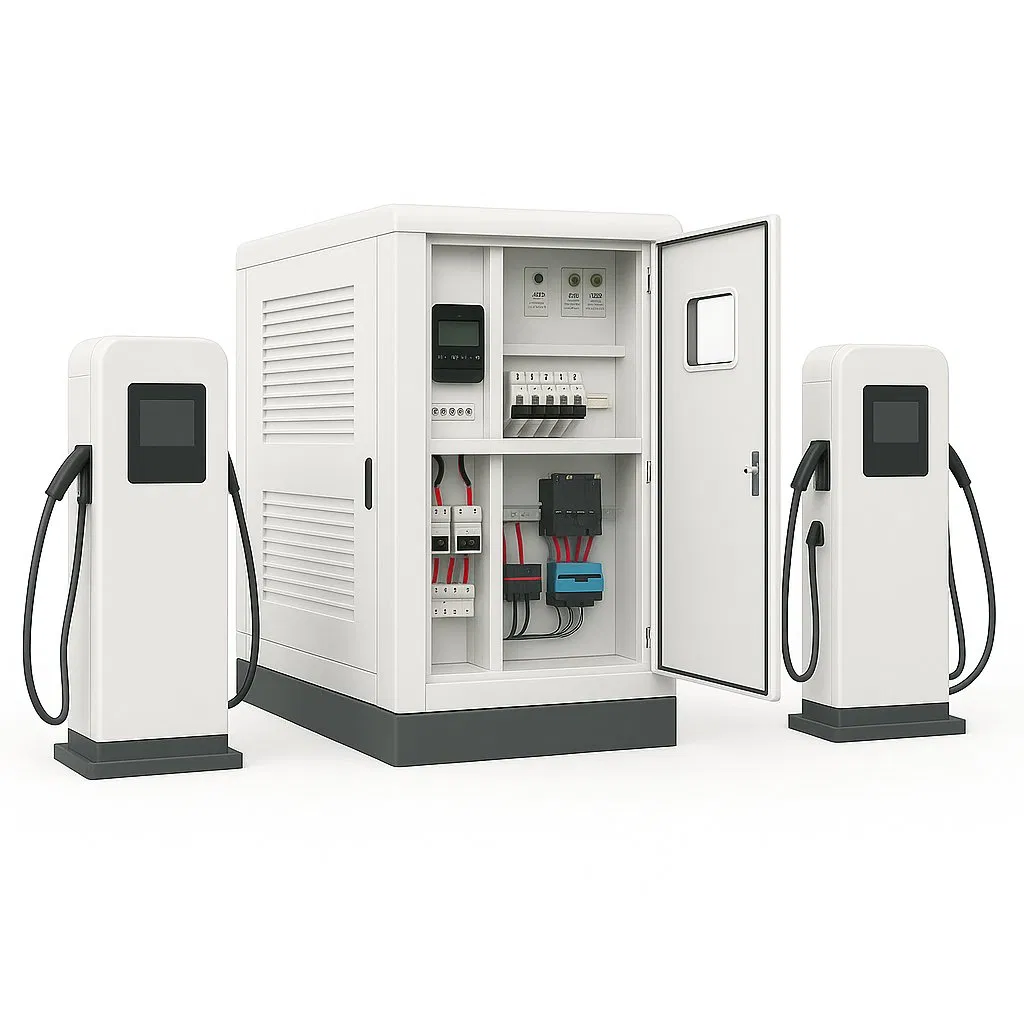

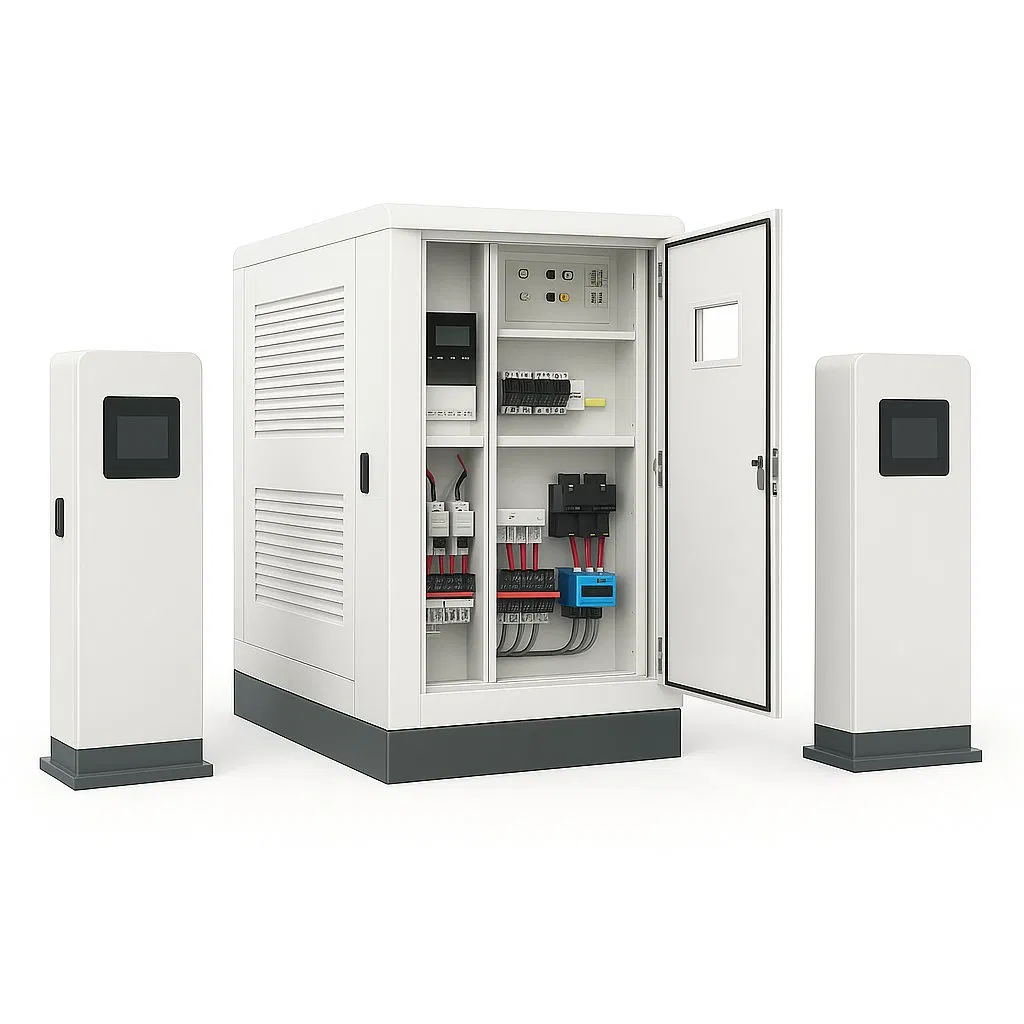

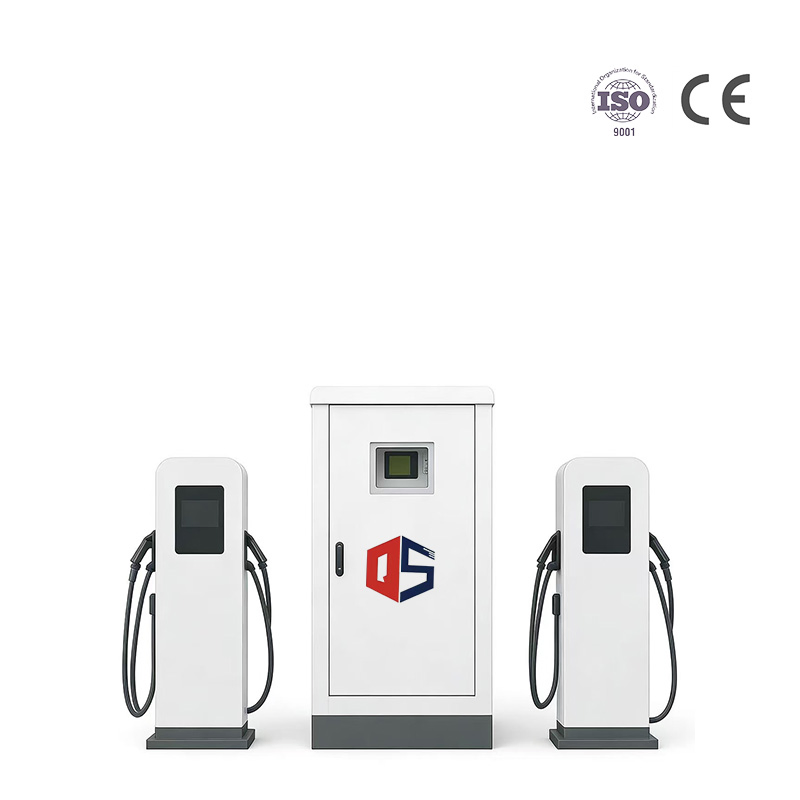

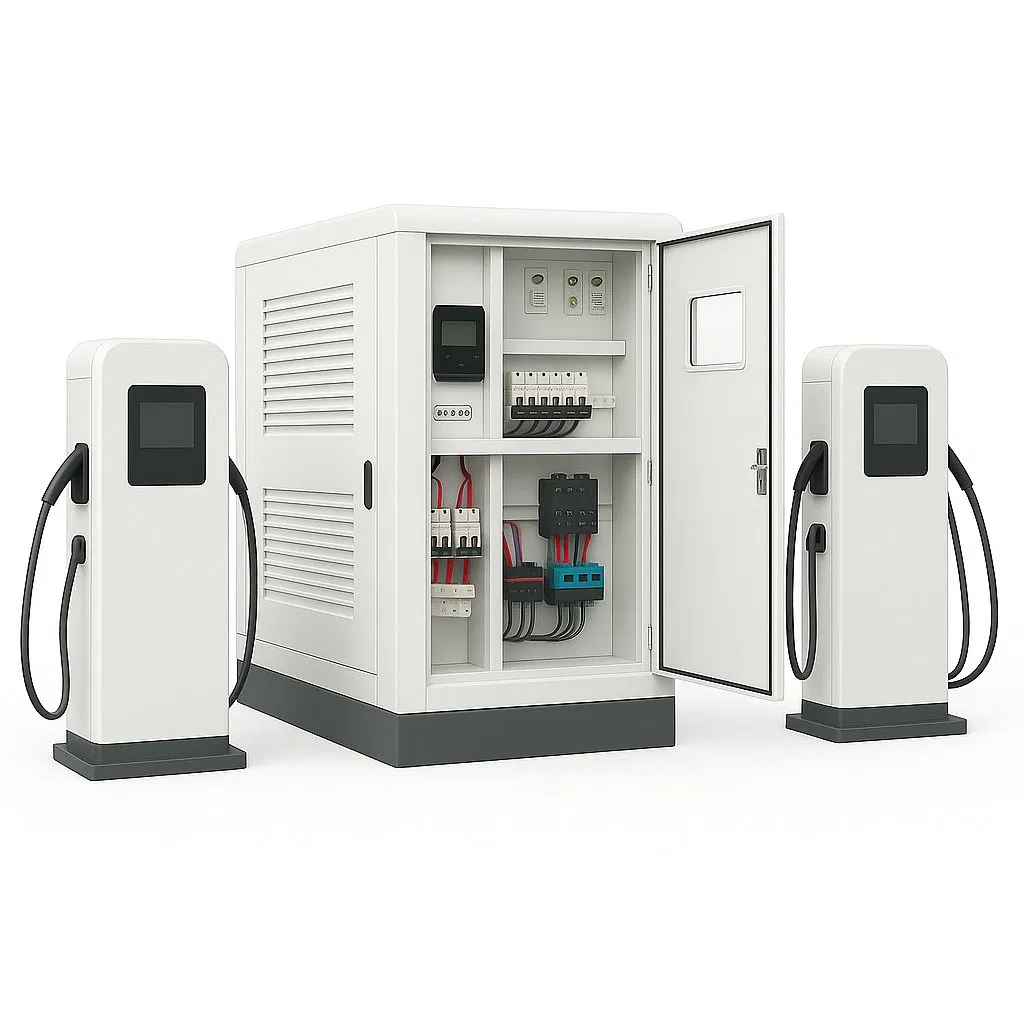

Ess+EV Charging System Integrated Solution for Photovoltaic Energy Storage and Charging

Basic Information

Model NO.	QSCDD
Rated Current	2A; 63A; 100A; 200A; 300A
Rated Power	7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw
Protection Grade	IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor)
Service Life	8 Years; 10 Years
Charging Type	AC Charging; DC Charging; AC&DC Integrated Charging
Charging Efficiency	≥93% (AC Charger); ≥95% (DC Charger)
Power Factor	≥0.95 (Rated Load); ≥0.92 (Light Load)
Harmonic Distortion	≤5% (Total Harmonic Distortion); ≤3%
Voice Broadcast	Supported
Remote Control	Supported
Transport Package	Wooden Box

Product Overview

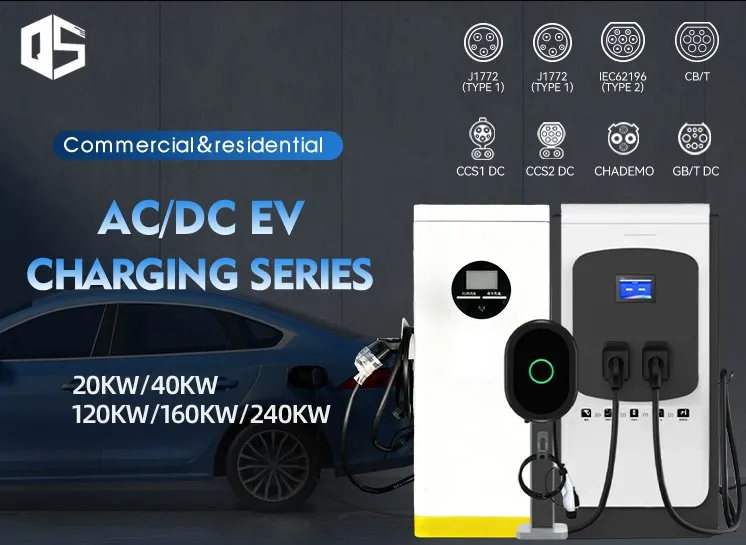

Integrated Solution for Photovoltaic Energy Storage and Charging

✔ Flexible Expansion: Wide compatibility for various power needs.

✔ Certified Safety: Rock-solid reliability for heavy-duty use.

✔ Low Maintenance: Effortless operation with a long-lasting design.

✔ Stable Performance: Consistent and efficient charging cycles.

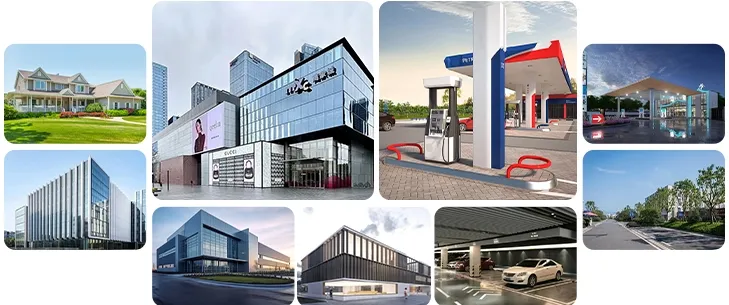

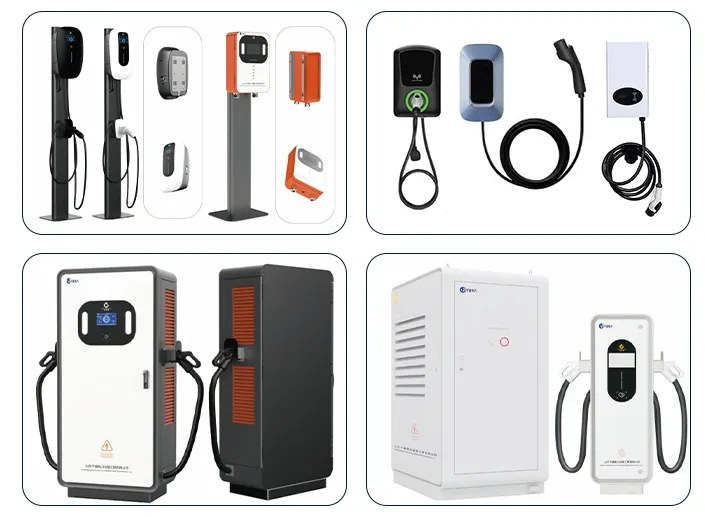

Our charging pile series includes multiple models with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and modular power configurations make them ideal for both residential and commercial applications.

Technical Specifications

Type	EV charging station
Power Options	20KW, 40KW, 120KW, 160KW, 240Kw
Input Rating	110V/220V/380V±15%
Working Frequency	50/60±10%
Output Voltage	200~1000V
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Communication	4G / Ethernet / OCPP1.6J (upgradable)
Operating Temp	-20℃ to +50℃
Protection Grade	IP55

Best Sellers

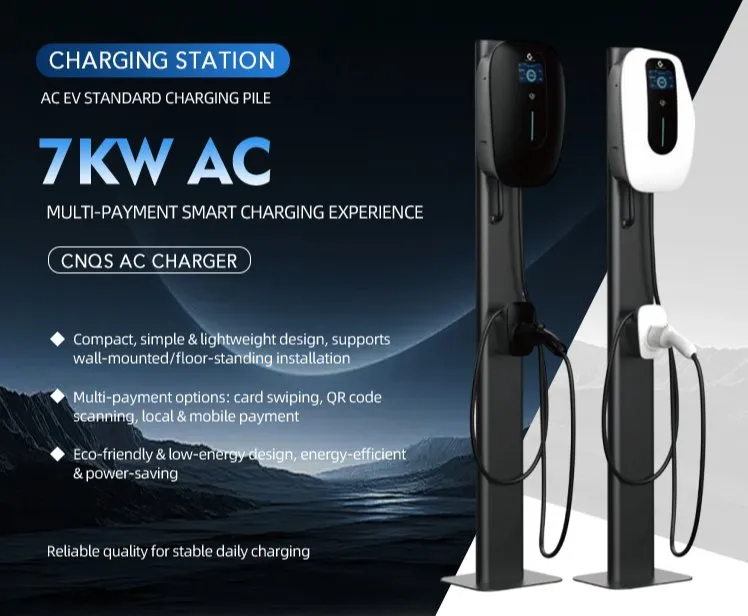

7KW AC

• Compatible with global certifications (CE/UL/PSE/KC).

• Supports ISO 15118-20 standard + PNC Plug & Charge.

• V2G vehicle-to-grid protocol compliant.

• Billing accuracy ±0.5% with MID/UL 2735 certification.

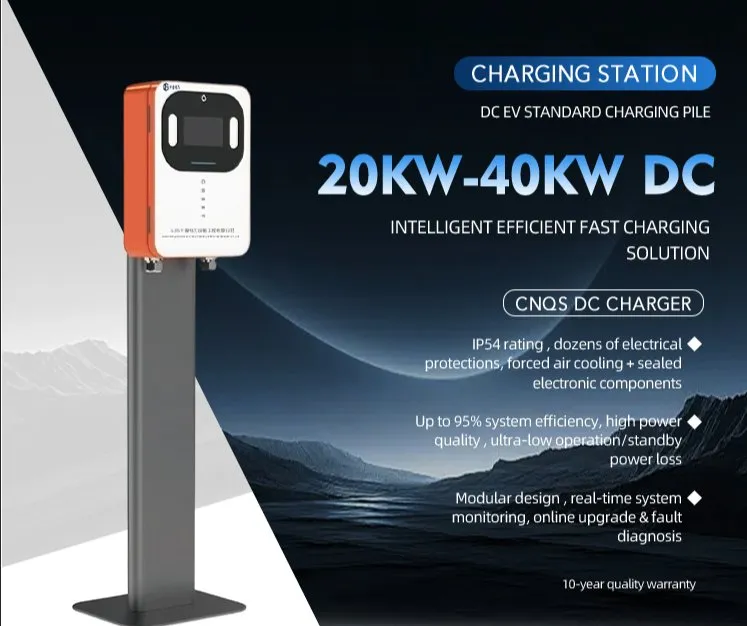

20KW-40KW DC

• 80% power replenished in 30 mins for standard scenarios.

• IP65 waterproof & wide temperature adaptation (-30℃ to 60℃).

• Supports Apple Pay, Google Pay, and credit cards.

• Compact size reducing deployment costs by 40%.

120/160/240KW DC

• Dual-gun simultaneous charging with modular design.

• 240kW ultra-fast charge: 80% battery in 15 mins.

• Dynamic power allocation for commercial hubs.

• Industrial-grade protection and V2G support.

Product Details

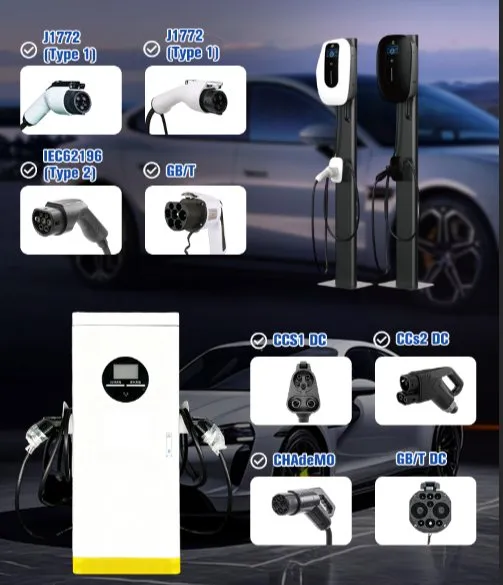

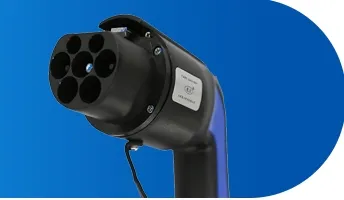

Universal Compatibility: Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

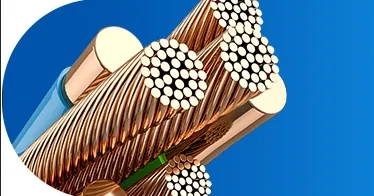

Durable Cables: Thickened high-temperature resistant special cables, anti-aging and anti-stretching.

Customization: Customizable cable lengths and self-locking connectors for easy installation.

Key Features

Packaging & Shipping

Package Size	120.00cm * 45.00cm * 155.00cm
Gross Weight	60.000kg
Packing Method	Export Standard Wooden Box

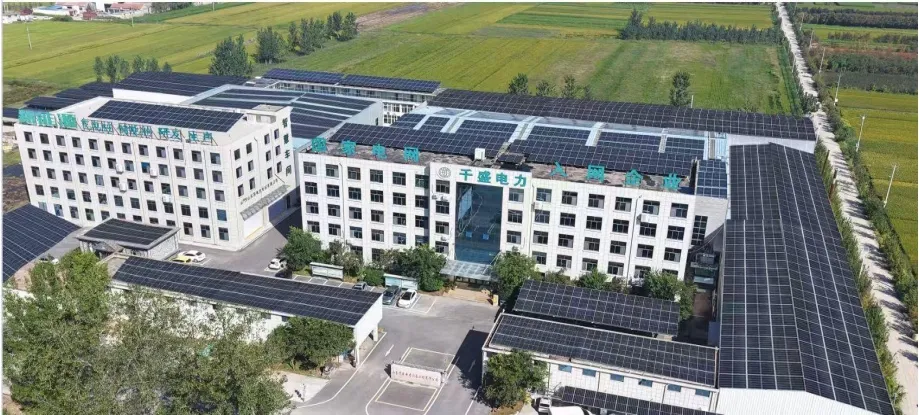

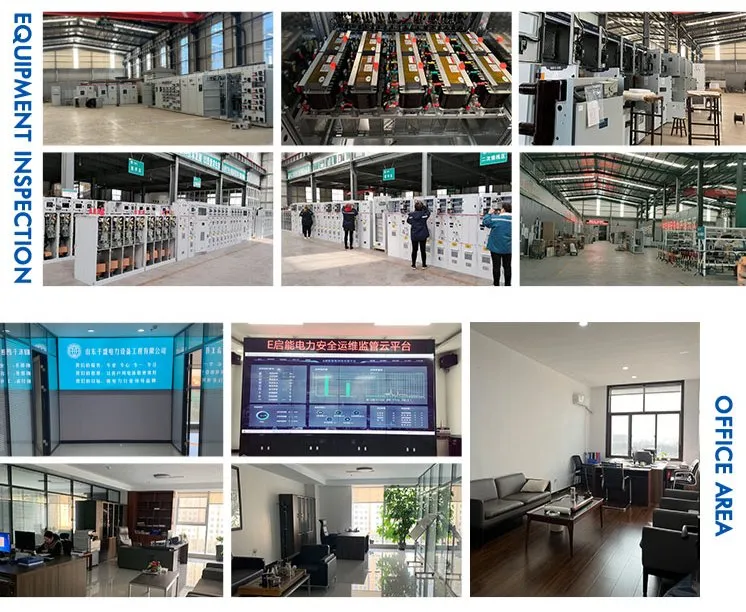

Manufacturing Expertise

An experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable distribution and new energy solutions.

Products include ring main units, transformers, energy storage systems, and inverters, all manufactured under strict ISO9001:2000 quality control.

Frequently Asked Questions

1. What situations are not covered by the warranty?

Warranty excludes human damage, unauthorized disassembly, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events such as fires or earthquakes.

2. Is regular maintenance service provided?

Yes, we provide free annual inspections including electrical safety testing, mechanical part tightening, and software updates. Quarterly maintenance packages are also available for commercial units.

3. Does the after-sales service comply with local data regulations?

Our service is fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). Maintenance data is encrypted to ensure complete user privacy.

4. Can the warranty period be extended?

Yes, paid warranty extensions are available: 2 years for residential chargers and 1-3 years for commercial chargers, covering core components.

5. Is after-sales service universal across different regions?

Our global warranty system covers Europe, America, Asia-Pacific, and the Middle East. Standardized services are available locally with your serial number and warranty certificate.

6. What certifications do the products hold?

All products are compliant with ISO9001, Environmental Management System, and Occupational Health and Safety certifications, along with CCC and CQC marks.
