Factory Price Fpv HD Camera Fast Charging Quadcopter Remote Control Infrastructure Inspection Detect Drone

Customization: Available
Height: Ultra High-Altitude
Operating Radius: Remote

Product Description

Basic Specifications

Model NO.HZH C400
StructureWing UAV (Small Industrial)

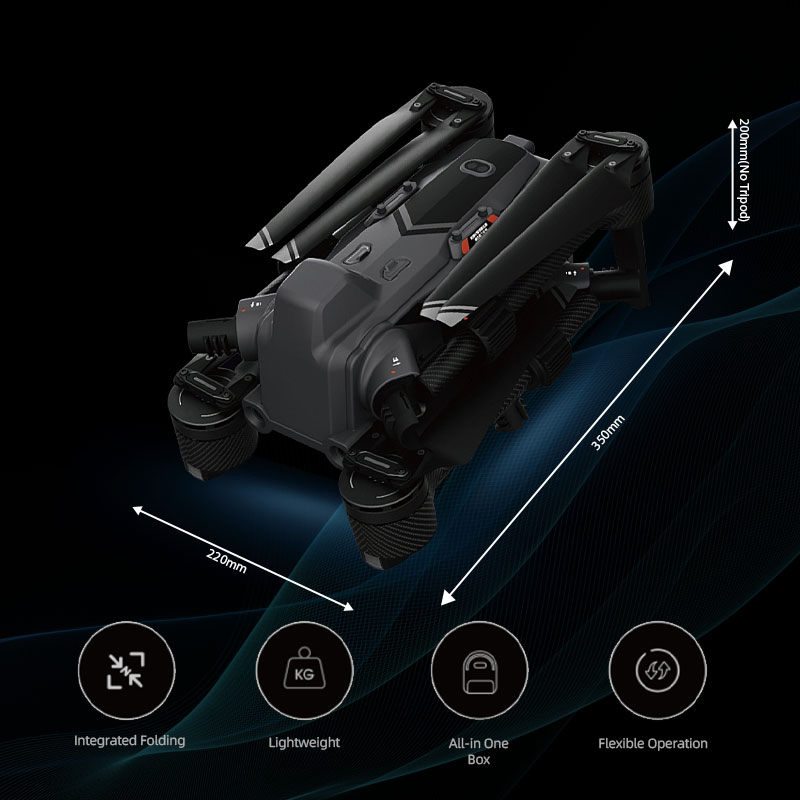

Fold Size347*367*424mm (Including Tripod)
Expanded Size547*592*424mm (Excluding Propellers)
Max Take-off Weight7kg
Maximum Load3kg
Maximum Endurance63 Minutes (Unladen)
Protection LevelIP45
Flight Speed23m/s
Transmission Range15 Km

Product Highlights

HZH C400 Drone

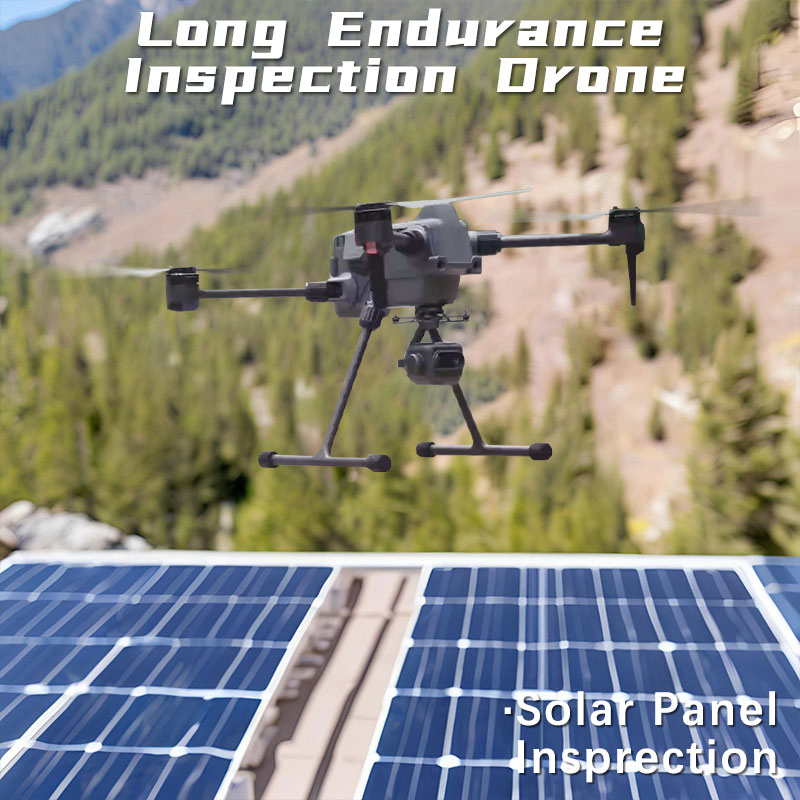

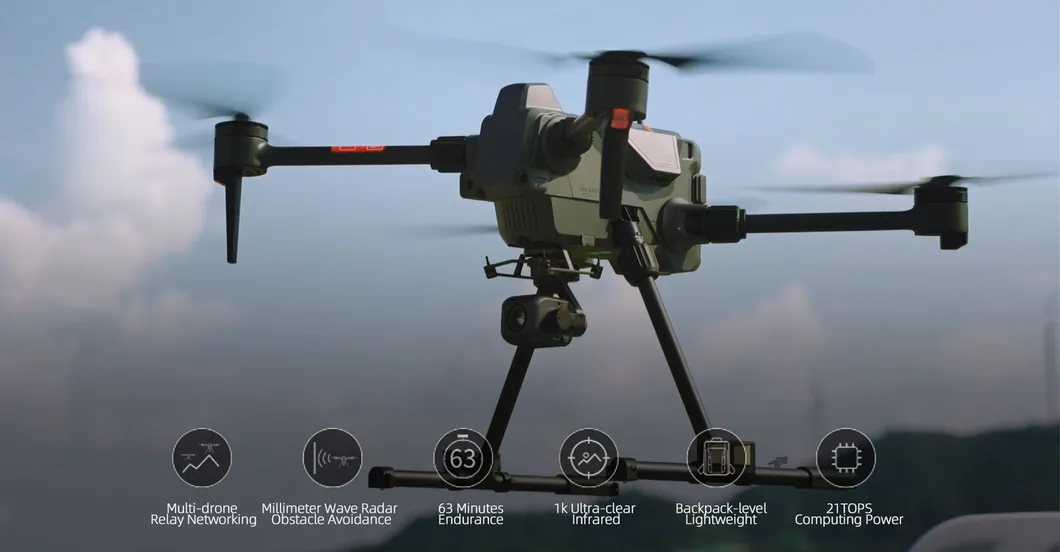

Drone Inspection
63 Minutes Endurance: Ultra-long flight time for comprehensive inspection tasks without frequent battery swaps.
📦
3Kg Payload Capacity: Compatible with various optical pods for multi-scene industrial applications.
💎
Carbon Fiber Design: Integrated carbon fiber fuselage ensures high strength and rigid product quality.
🛡

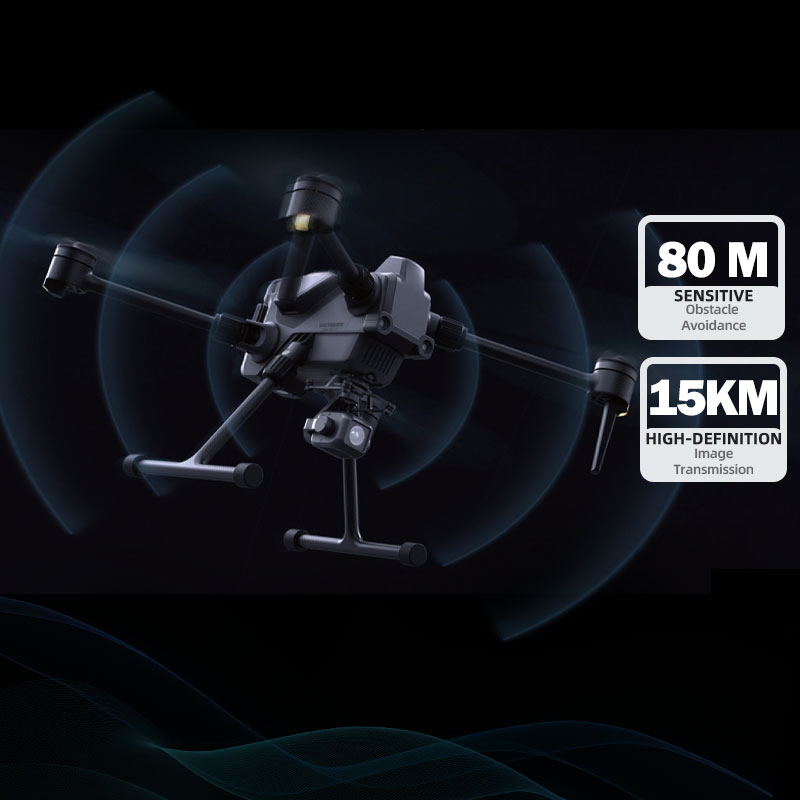

Omnidirectional Obstacle Avoidance: Vision avoidance + millimeter-wave radar fusion for 360° environmental perception.

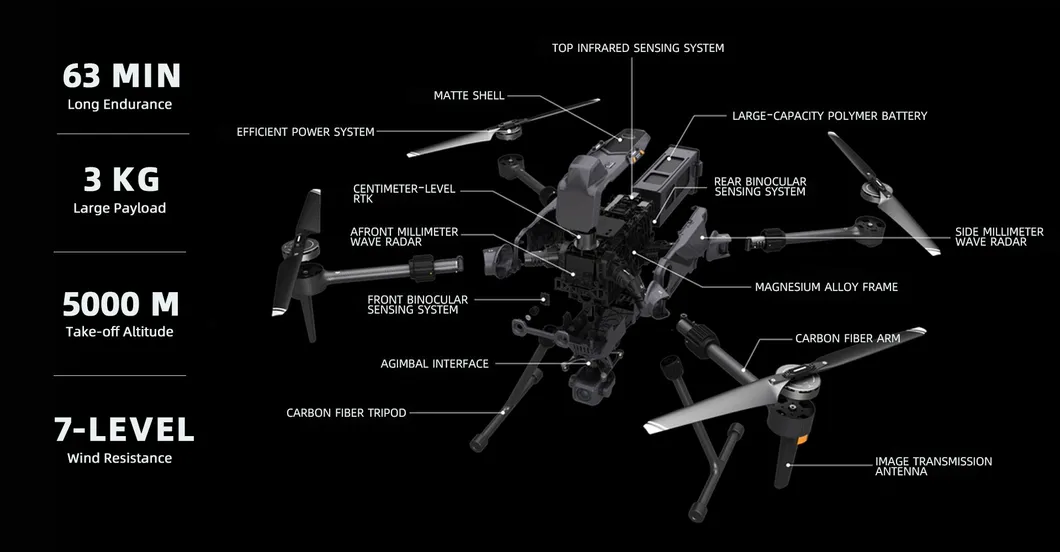

HZH C400 Foldable

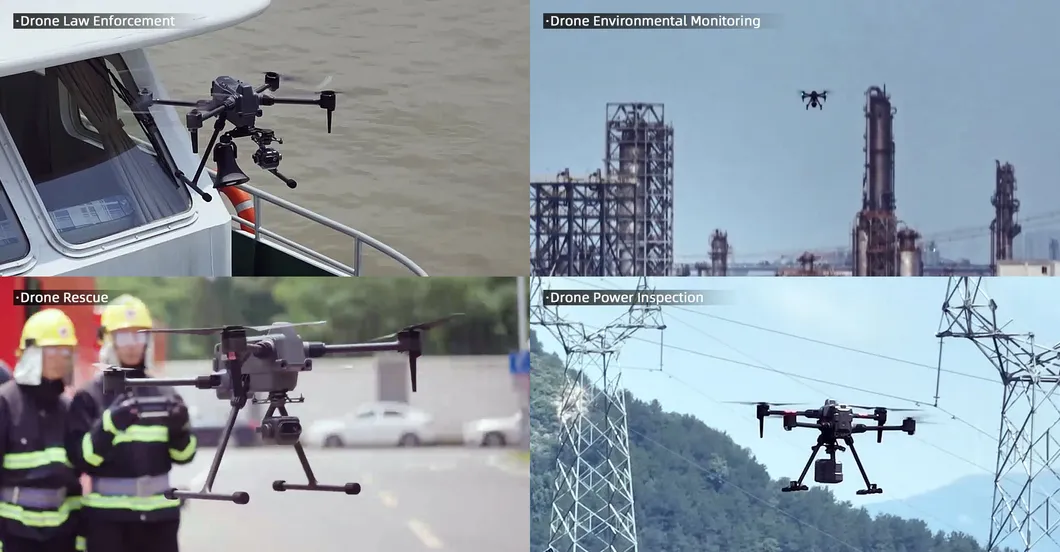

Application Scenarios

Application Scenarios

⚡ Power Inspection: Intelligent power operations to improve grid maintenance safety.
💧 Water Management: Monitoring water bodies and assessing aquatic ecology quality.
🔥 Emergency Firefighting: Real-time fire information and command support for fire detection.
🗺 Surveying & Mapping: Accurate spatial data for terrain and landform measurement.

Advanced Technology

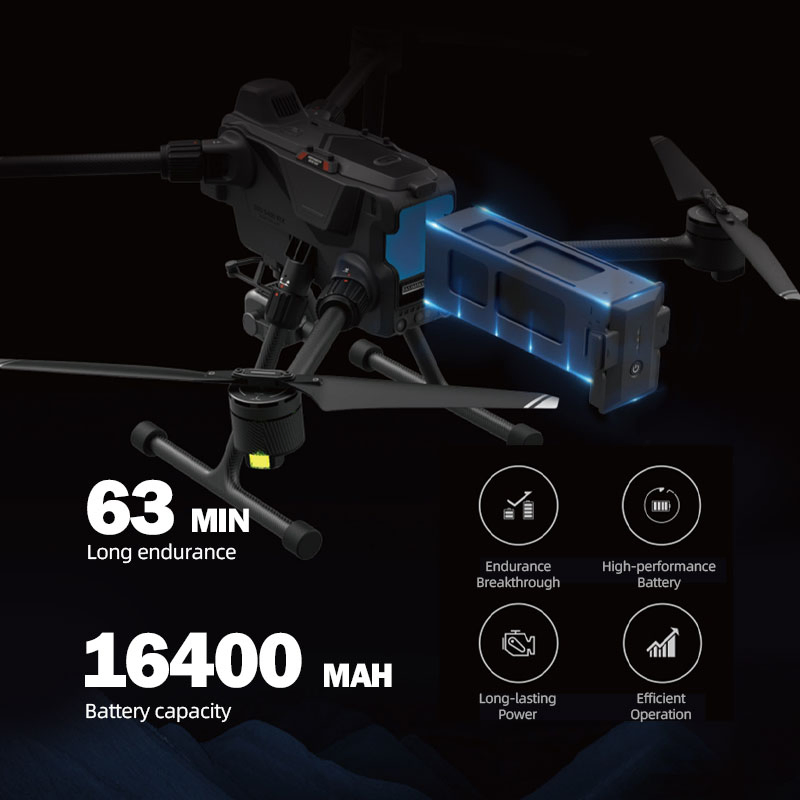

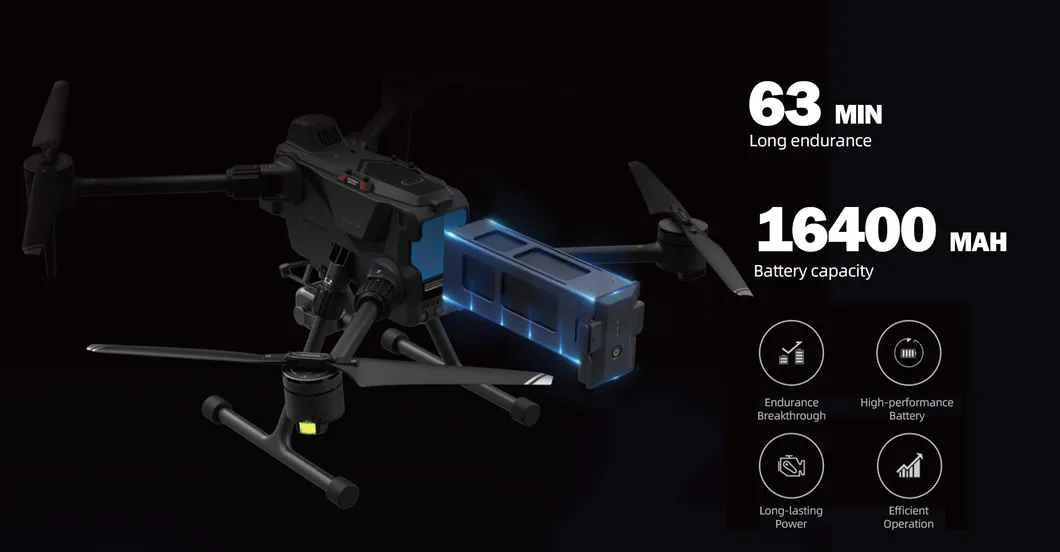

Endurance

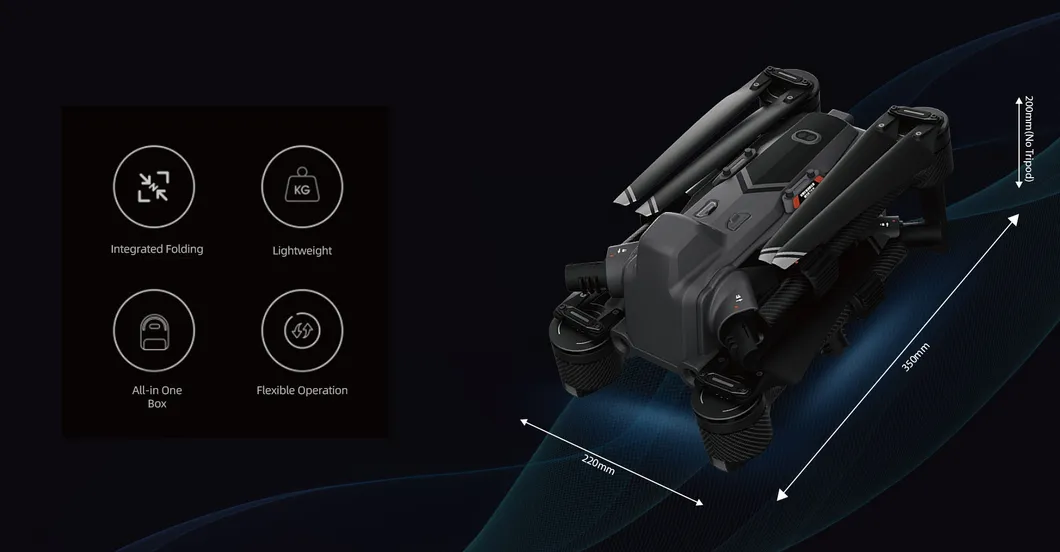

Lightweight

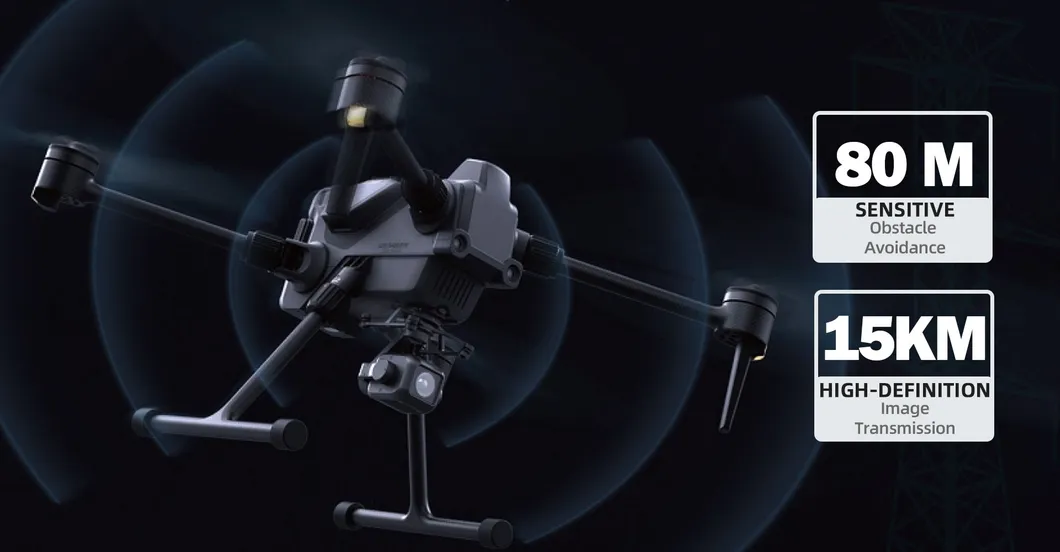

Radar

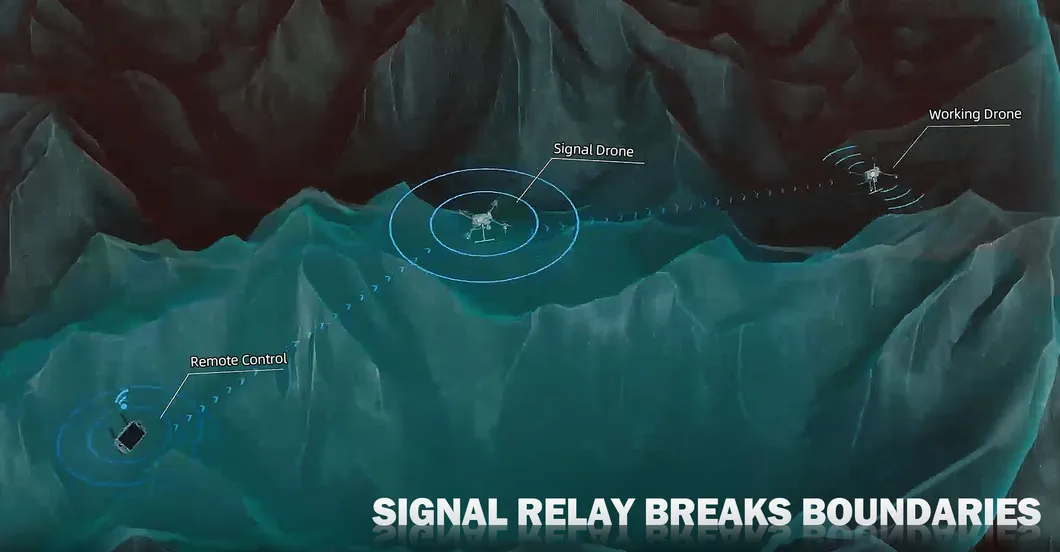

Network

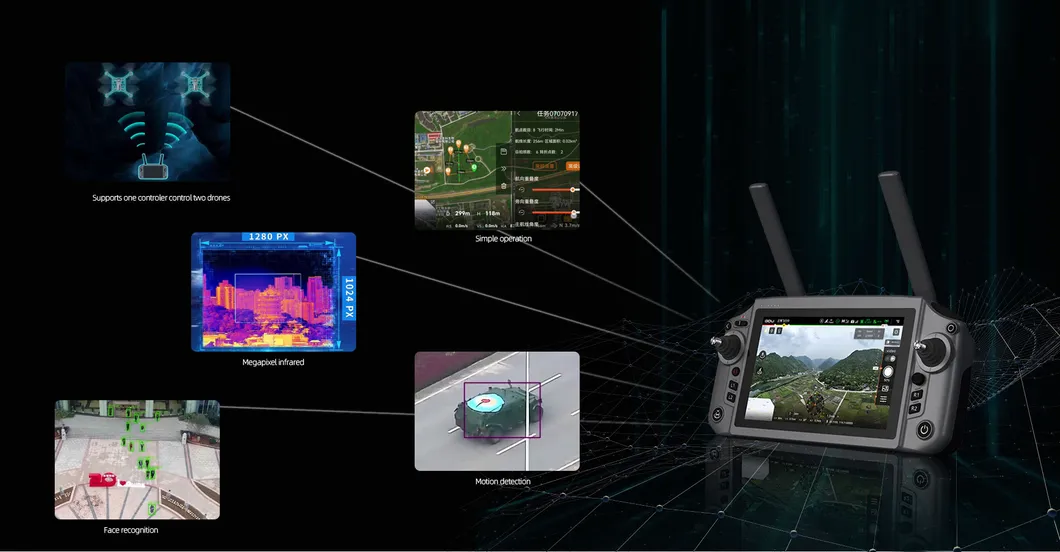

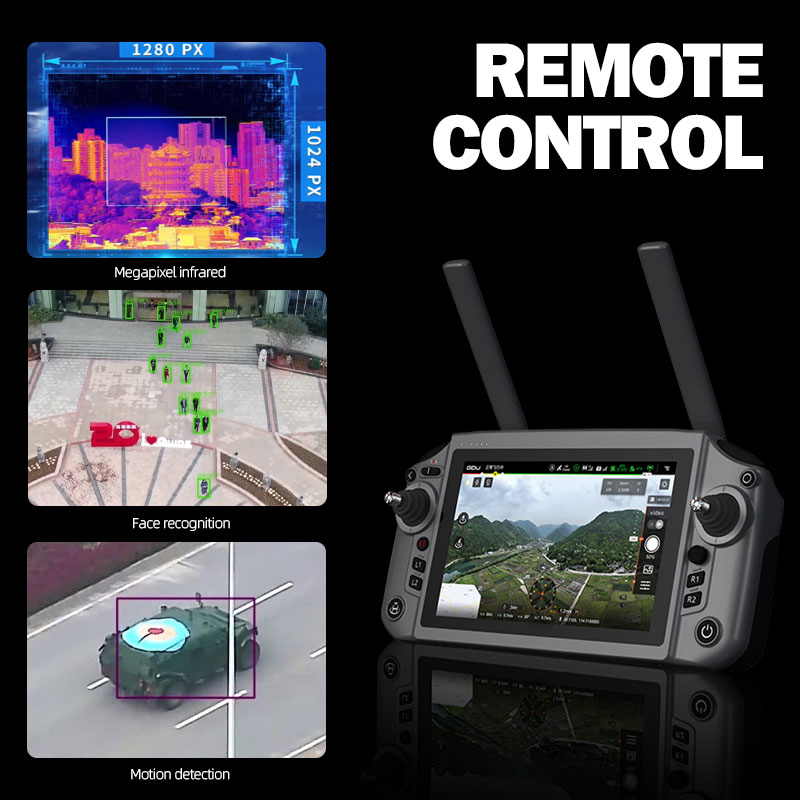

Remote Controller

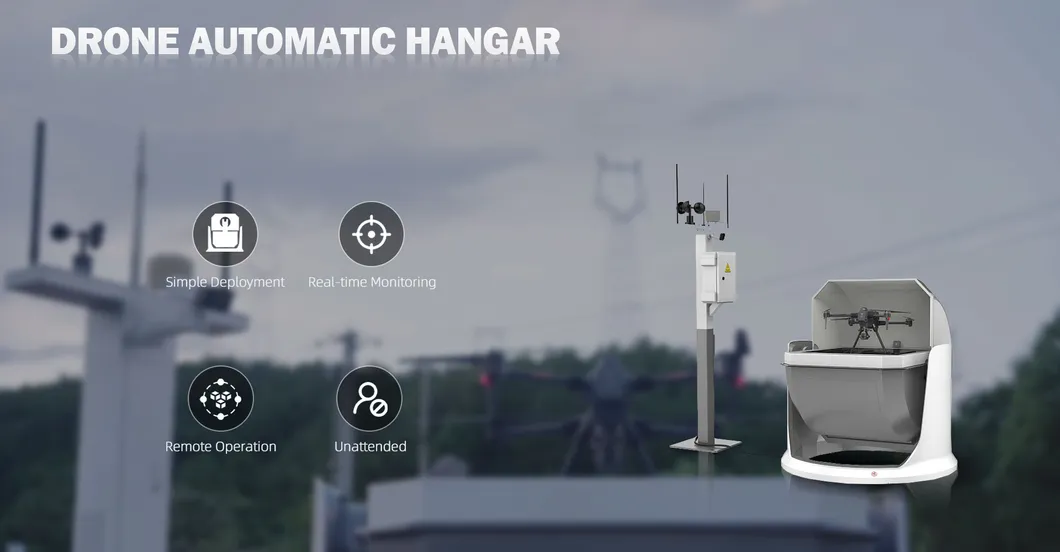

Automatic Hanger

Optional Gimbal Pods

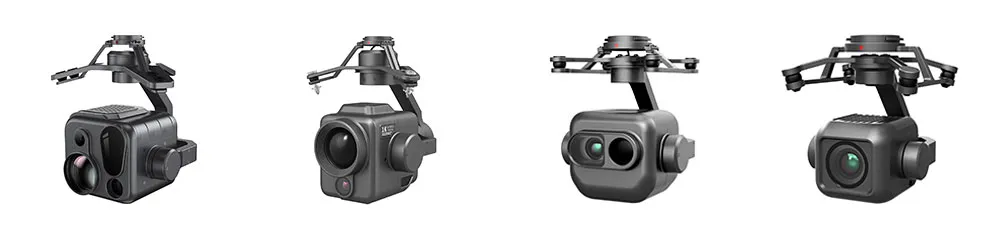

Optional Pods
Pod Model Key Features Specifications
PQL01 Four-light Wide-angle, Zoom, Infrared, Laser Rangefinder 48M Pixel; 18X Optical Zoom
PDL-1K Infrared 1K Resolution Infrared + 1-inch CMOS Resolution: 1280*1024
PDL-300 Dual-light Day/Night Observation, Lightweight design 640*512 Infrared; 48M Visible
PVL-8K Gimbal Ultra-clear 8K imaging for security 48M Pixel; 4K@30fps Video

Why Choose Our Solutions

1. Wide range of drone products to meet diverse industrial needs.
2. Strong R&D team with a long history of drone manufacturing.
3. Competitive price advantage to save costs and increase profits.
4. Global sales network for quick and convenient delivery.

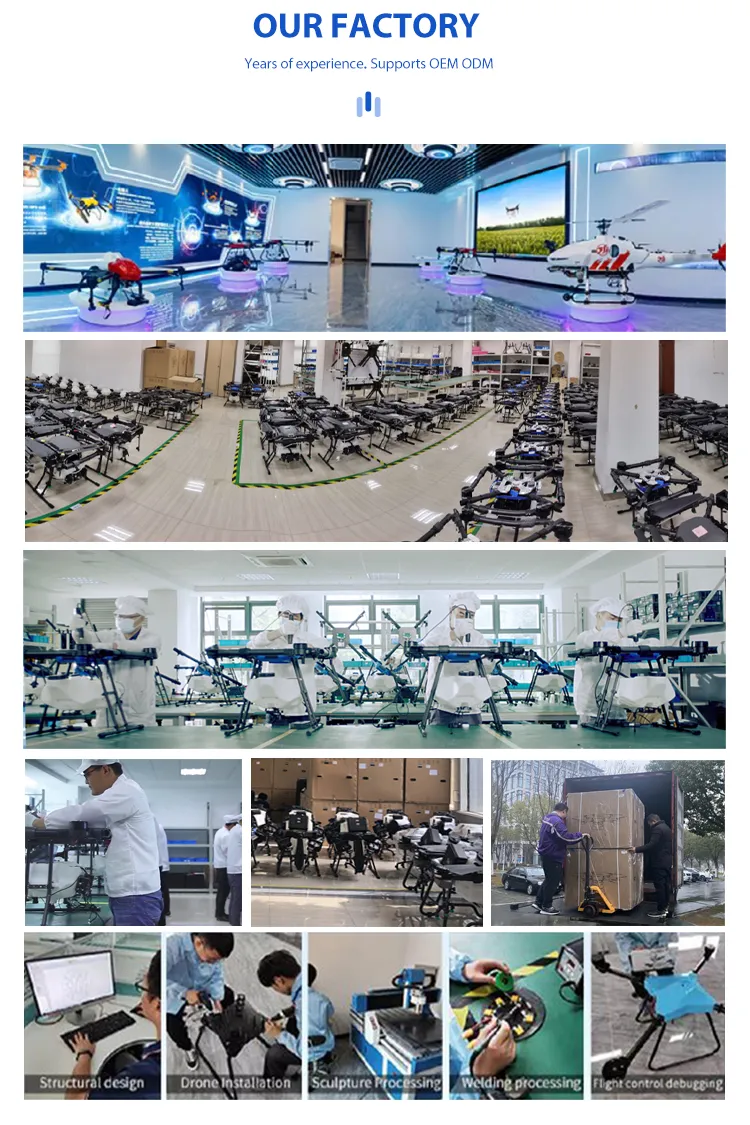

Factory
R&D
Certification

Frequently Asked Questions

What is the maximum flight time of the HZH C400?
The HZH C400 supports an ultra-long endurance of up to 63 minutes when unladen, thanks to its high-power performance batteries.
Does the drone support obstacle avoidance?
Yes, it features omnidirectional environmental perception using a fusion of vision avoidance and millimeter-wave radar, effective up to 80 meters.
What kind of materials is the fuselage made of?
The fuselage uses integrated carbon fiber composite materials, which provide high strength, heat resistance, and corrosion resistance.
Can the C400 operate in harsh weather?
The drone is designed with an IP45 protection level, and when used with the automatic hangar (IP54), it can operate in environments from -35ºC to 50ºC.
What is the image transmission range?
The HZH C400 has a reliable image transmission distance of up to 15 kilometers, suitable for long-range surveillance.
Are the gimbals interchangeable?
Yes, the C400 supports various optional pods including infrared, zoom, and 8K ultra-clear cameras to suit different industrial scenarios.
