📋 Basic Specification
Model: EV7 Pro
Certificate: CE, TUV
RCCB: Type-a + 6mA DC

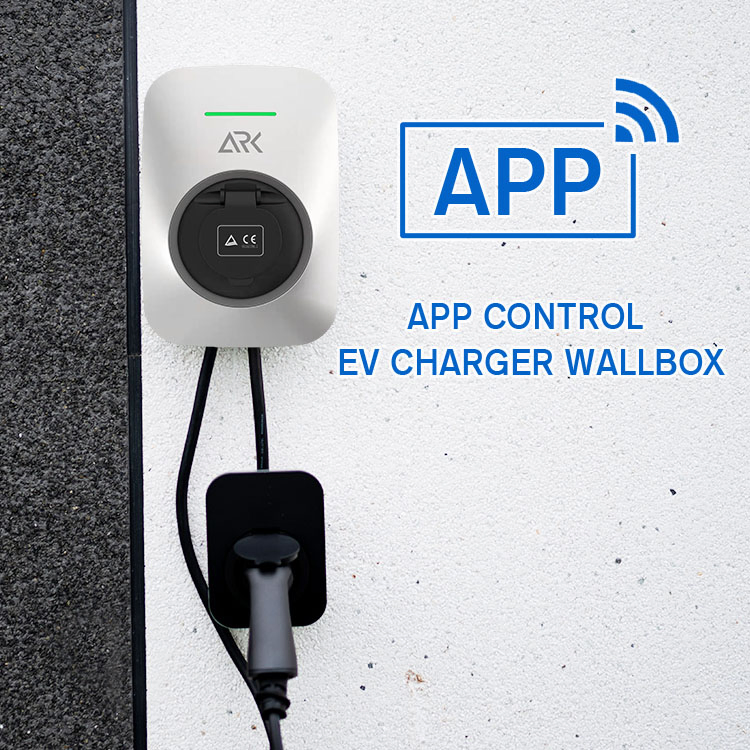

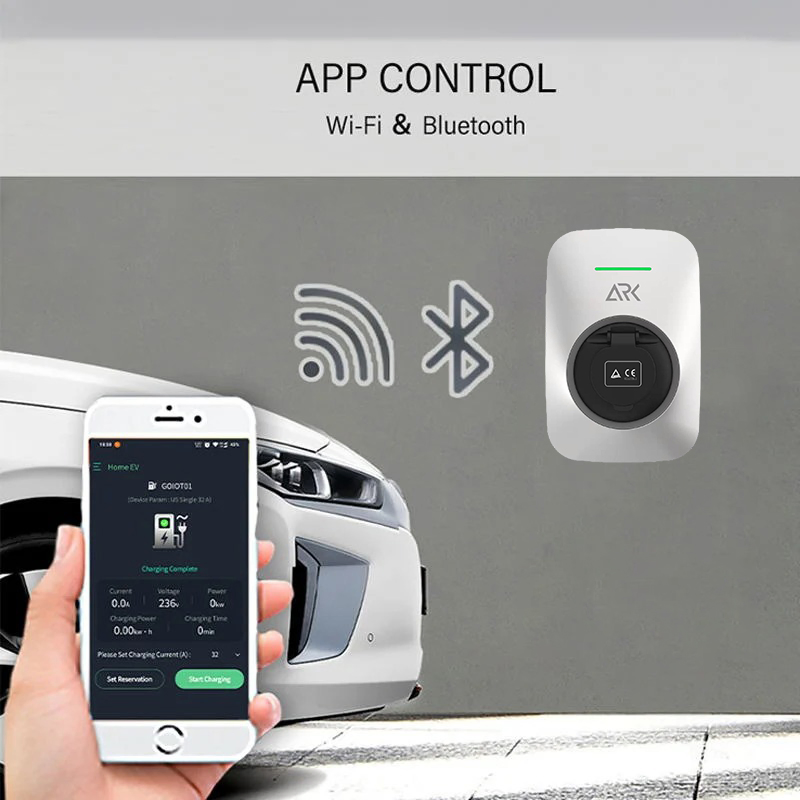

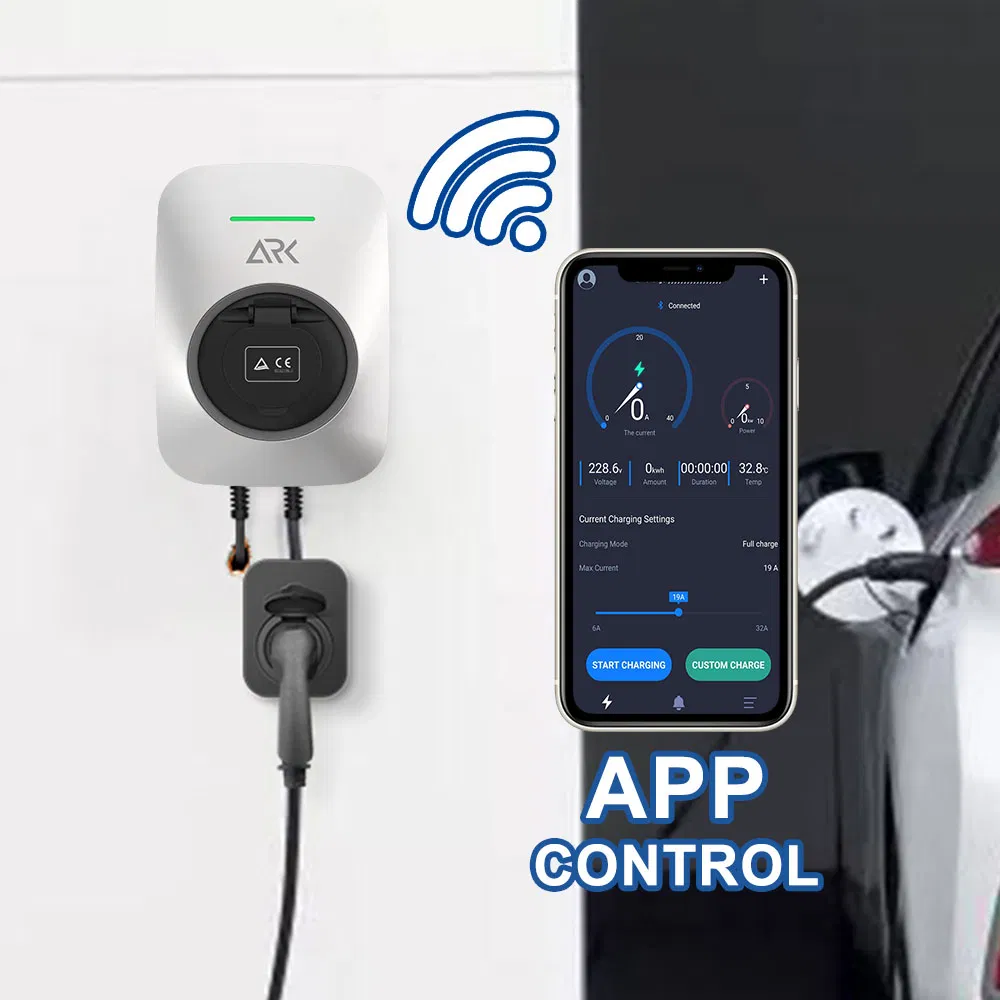

Interface: Wi-Fi, Blue Tooth
Type: Fast EV Charging Station
Warranty: 12 Months
Dimensions: 244 x 164 x 126.5mm
Capacity: 1000 Units / Month

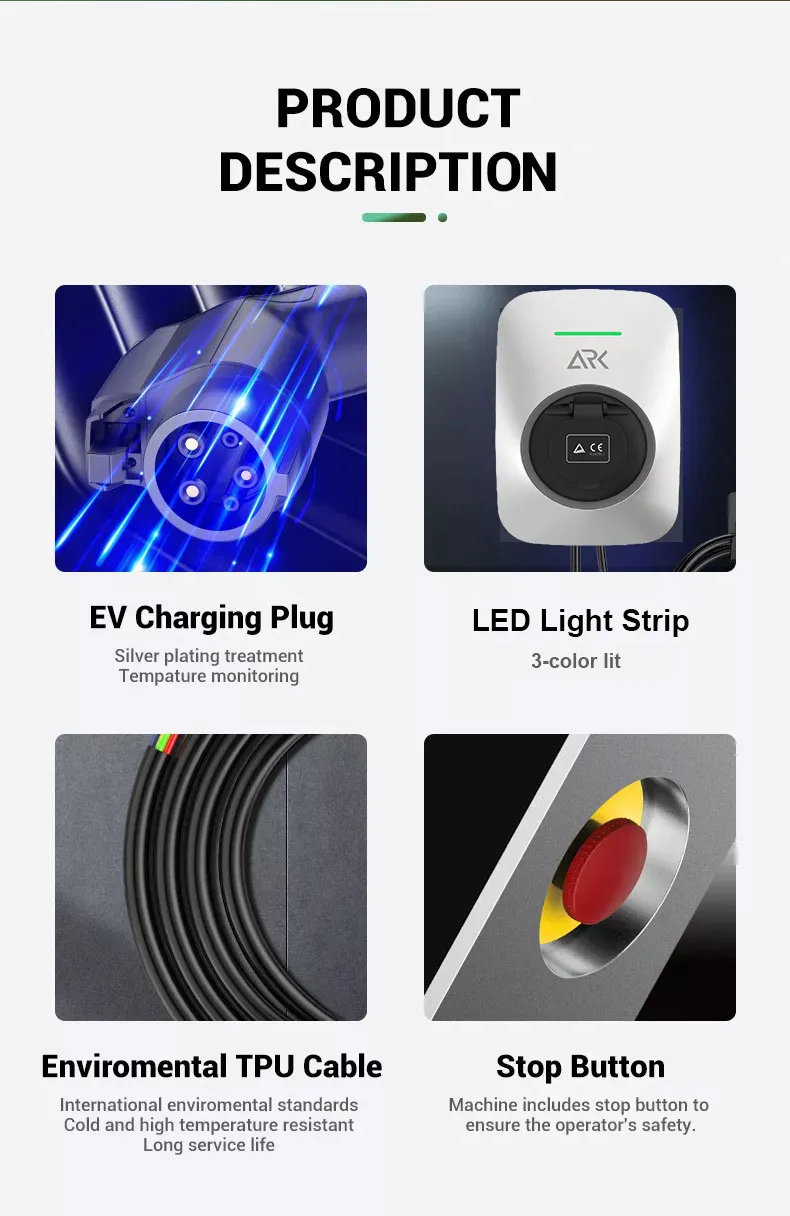

🚀 Product Description
⚙️ Technical Parameters
| Category |
Feature |
Parameter Details |
| System | Charging Type | Mode 3 |
| Protection Grade | IP54 |

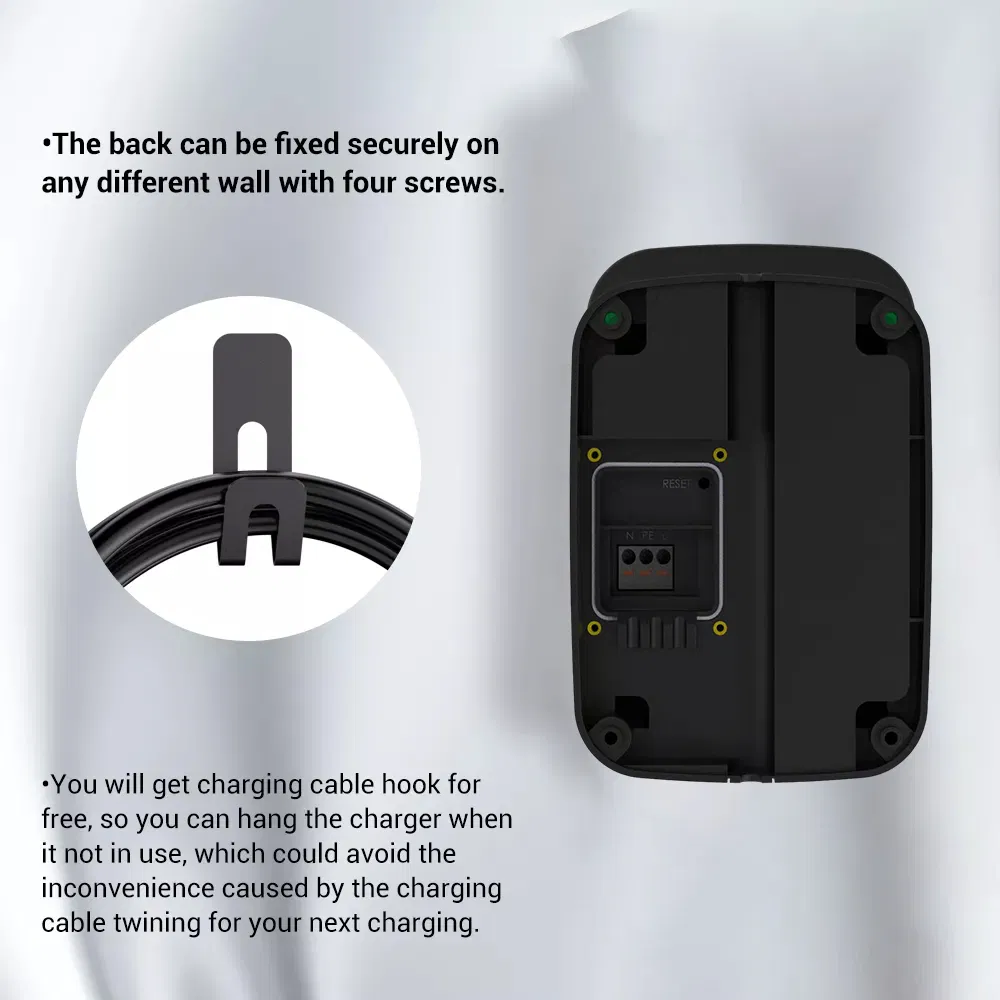

| Installation | Wall mounting / Pedestal mounting |
| Standard | IEC 61851-22 |
| Input | Voltage | 230Vac +/-10%, 50/60Hz, 1-phase |

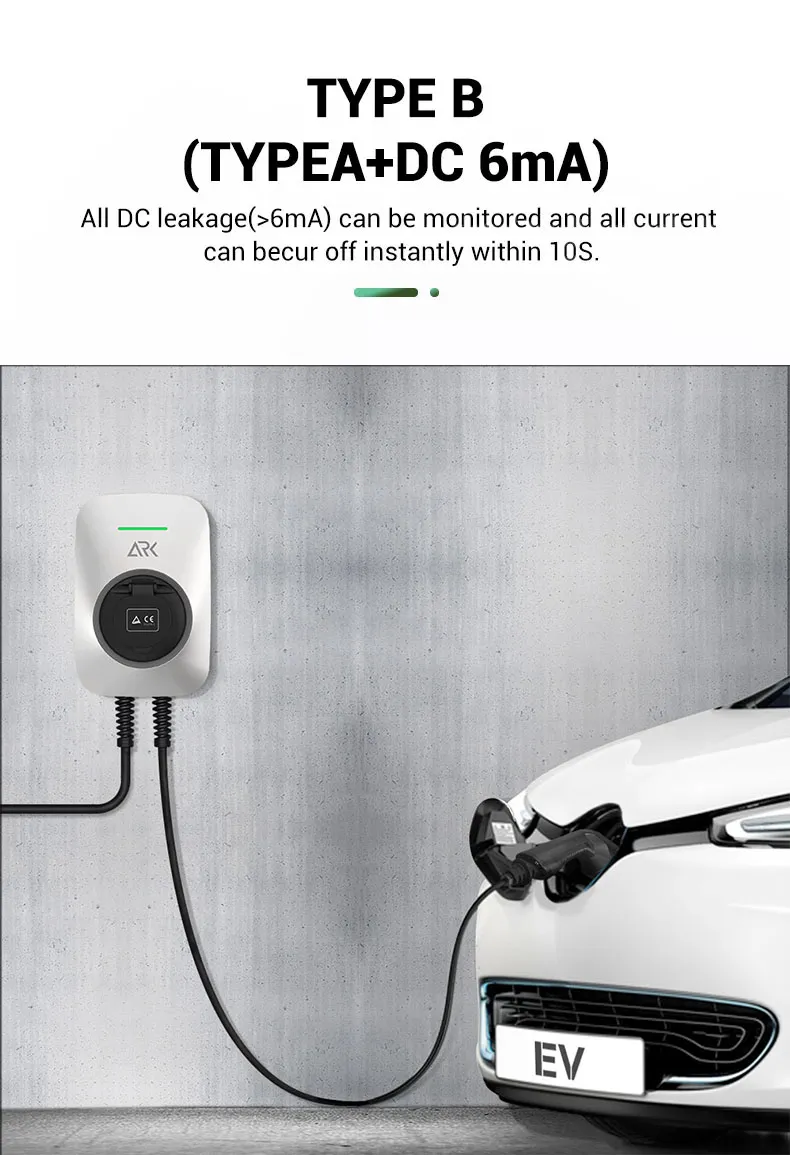

| RCCB | Type-A + 6mA DC |
| Output | Power | 7kW max |
| Outlet Type | IEC 62196 Type-2 |
| Current | 32A max |
| Environmental | Temperature | -25°C to +55°C |
| Protection | Over/under voltage, overload, leakage, grounding, surge protection |

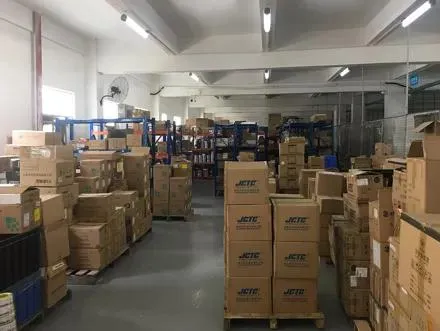

📦 Packaging & Shipping
❓ Frequently Asked Questions
Why choose our EV Chargers?
Our professional technical team ensures industry-leading designs with international standardization. We offer smart back-end services, and our products pass rigorous laboratory tests and various application scenarios for maximum reliability.
Do you have experience with international projects?
Yes, we are pioneers in overseas projects, including integrating chargers with PV systems in the UK and installing DC fast chargers across major US freeway routes from LA to San Francisco.
What charging standards are supported?
We support all major global standards including CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China), providing modular and advanced designs for any region.
Does higher output power always mean faster charging?
Not necessarily. Charging speed is often limited by the vehicle's battery. However, high-power chargers are future-proof and can support dual connectors to charge two vehicles simultaneously.
How is after-sales technical support handled?
We provide comprehensive technical training through manuals and videos to help customers master maintenance and parts replacement. Professional technicians are available for urgent on-site support if required.
What are the environmental protections of the product?
The chargers feature a natural cooling system, IP54 grade enclosure, and operating temperature range of -25°C to +55°C, along with comprehensive electrical safety protections.
