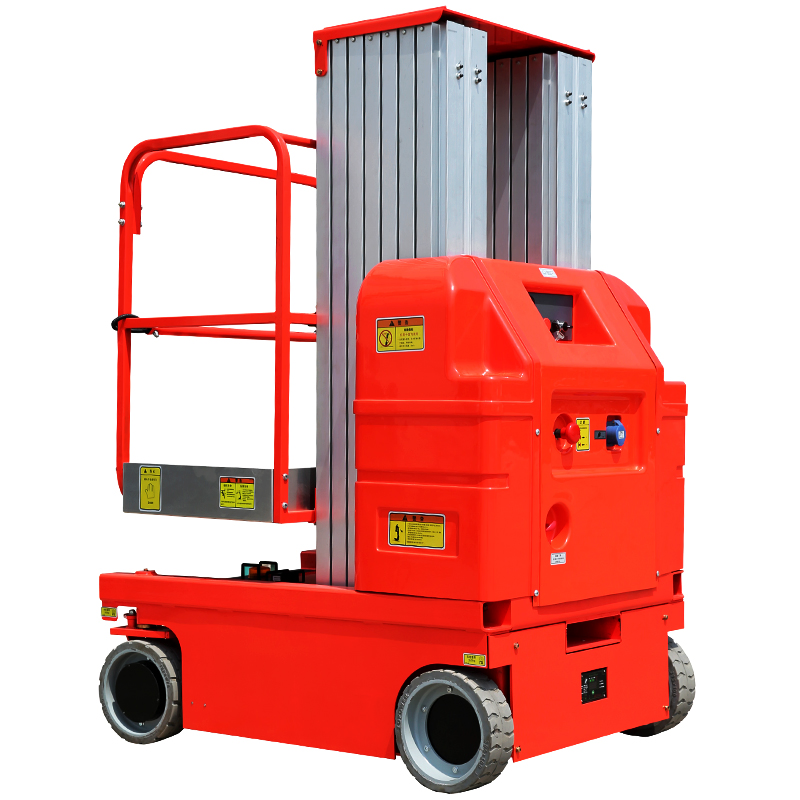

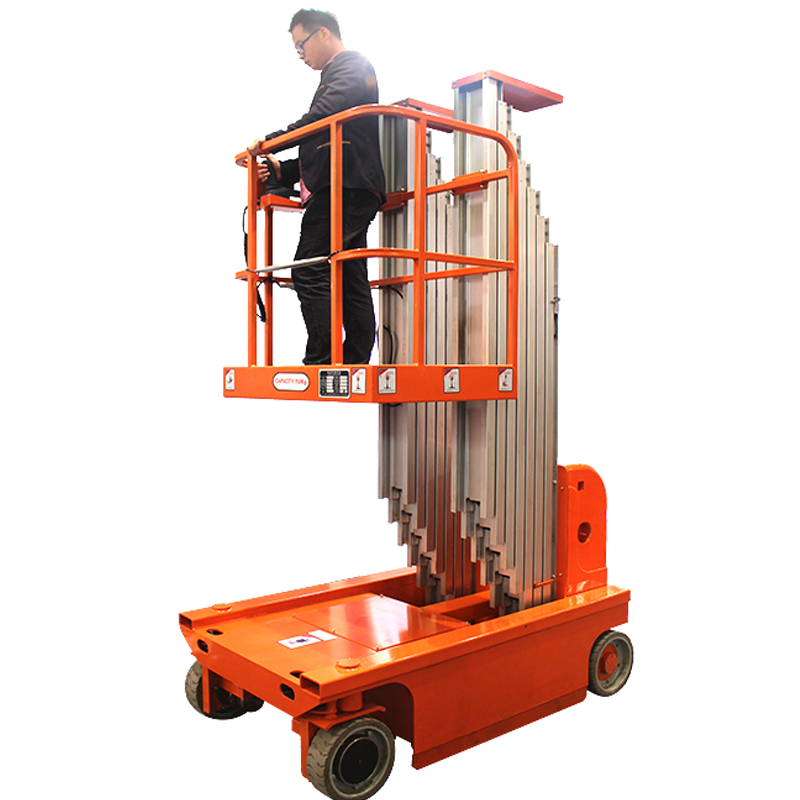

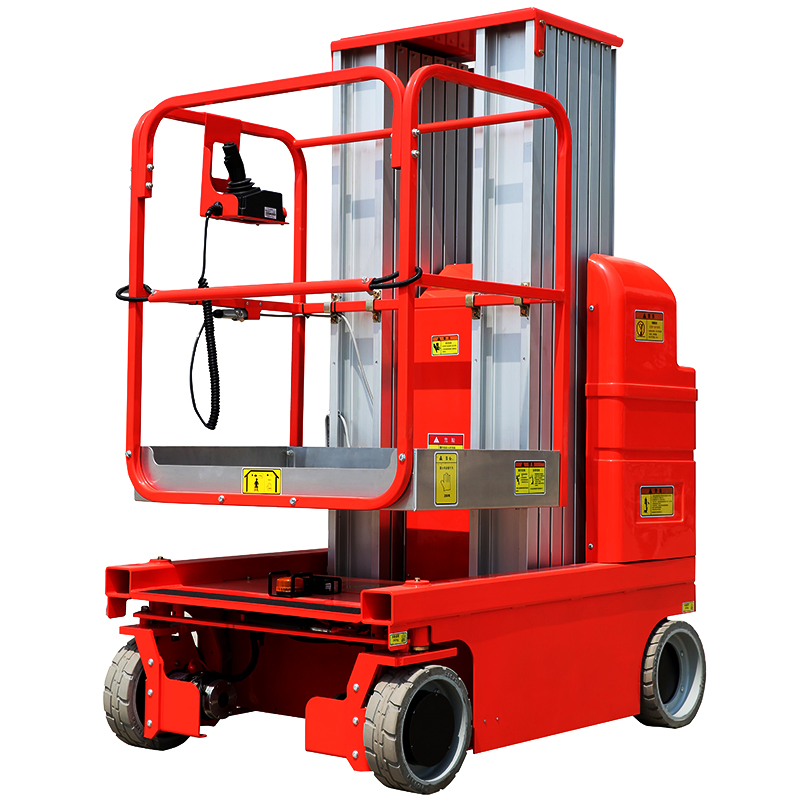

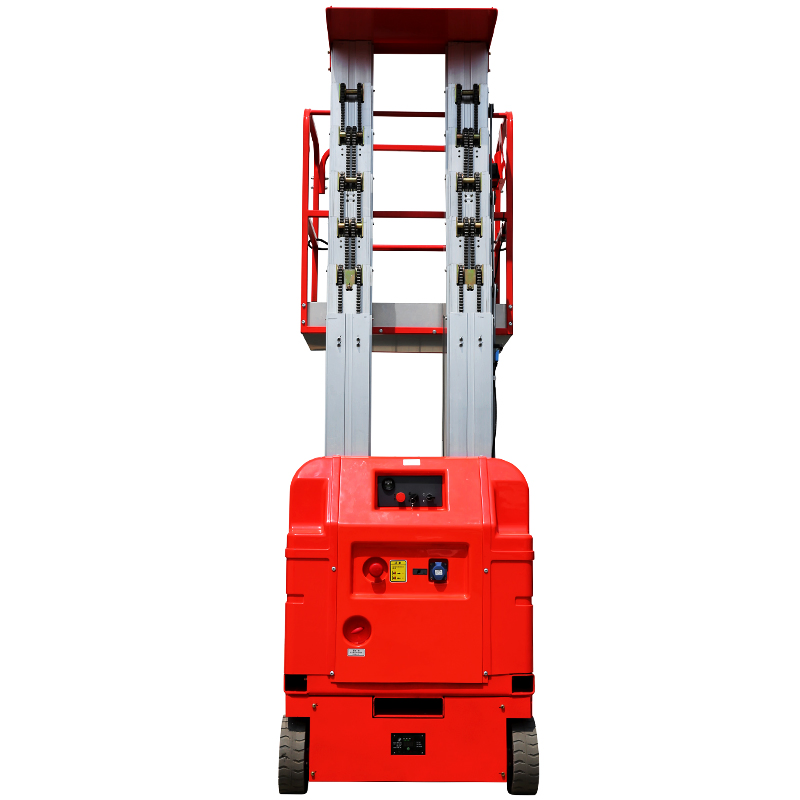

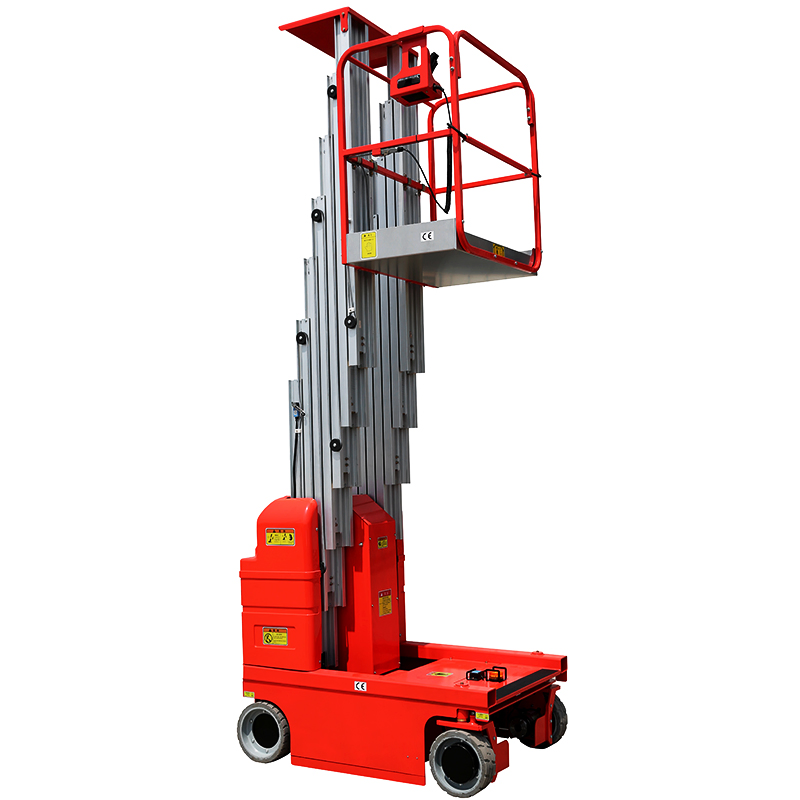

Sagafirst Max Working Height 9.5m-11m High End Self Propelled Hoist Dual Mast Aluminum Hydraulic Construction Lift

1 / 5

Sagafirst Max Working Height 9.5m-11m High End Self Propelled Hoist Dual Mast Aluminum Hydraulic Construction Lift

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Application:

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism:

Lift Chain

Carrying Capacity:

Light Level

Driven Type:

Certification:

GS, CE, ISO 9001

Max Platform Height:

7.5m, 9m

Load Capacity:

200kg, 150kg

Platform Size:

1000*650mm

Material:

Aluminum Alloy

Battery:

2*12V/100ah

Product Overview

Dual Mast Aluminum Lift Platform is famous for its light weight and high lift. It is made of aluminum alloy, making the product weight very light and allowing the operator to move it around easily. This lift is widely used in supermarkets, factories, hotels, restaurants, stations, theatres, exhibition halls, and for both indoor and outdoor maintenance.

Main Features & Advantages:

✓ Proportional controls

✓ Automatic pothole protection

✓ Drivable at full height

✓ Non-marking tyre

✓ Automatic brake system

✓ Emergency lowering system

✓ Emergency stop button

✓ Cylinder holding valve

✓ On board diagnostic system

Technical Specifications

Model No.	Unit	SPA-6	SPA-7.5
Max. Platform Height	mm	7500	9000
Max Working Height	mm	9500	11000
Load Capacity	kg	200Kg	150kg
Occupants	-	1	1
Overall Size	mm	146010101990	146010101990
Platform Size	mm	1000*650	1000*650
Wheel Base	mm	1140	1140
Max Drive Speed (Stowed)	Km/h	4	4
Min Turn Radius	mm	0	0
Battery	V/Ah	2X12V/100AH	2X12V/100AH
Lifting Motor	KW	24VDC/1.3KW	24VDC/1.3KW
Net Weight	kg	1270	1345

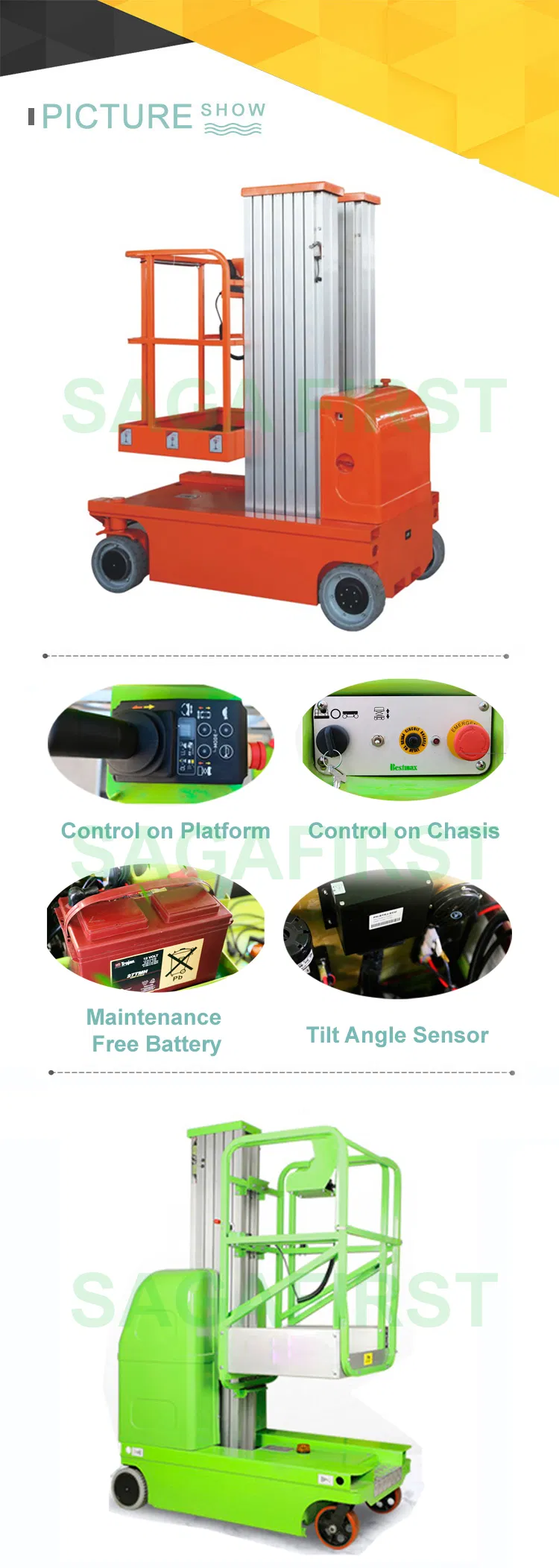

Product Details & Views

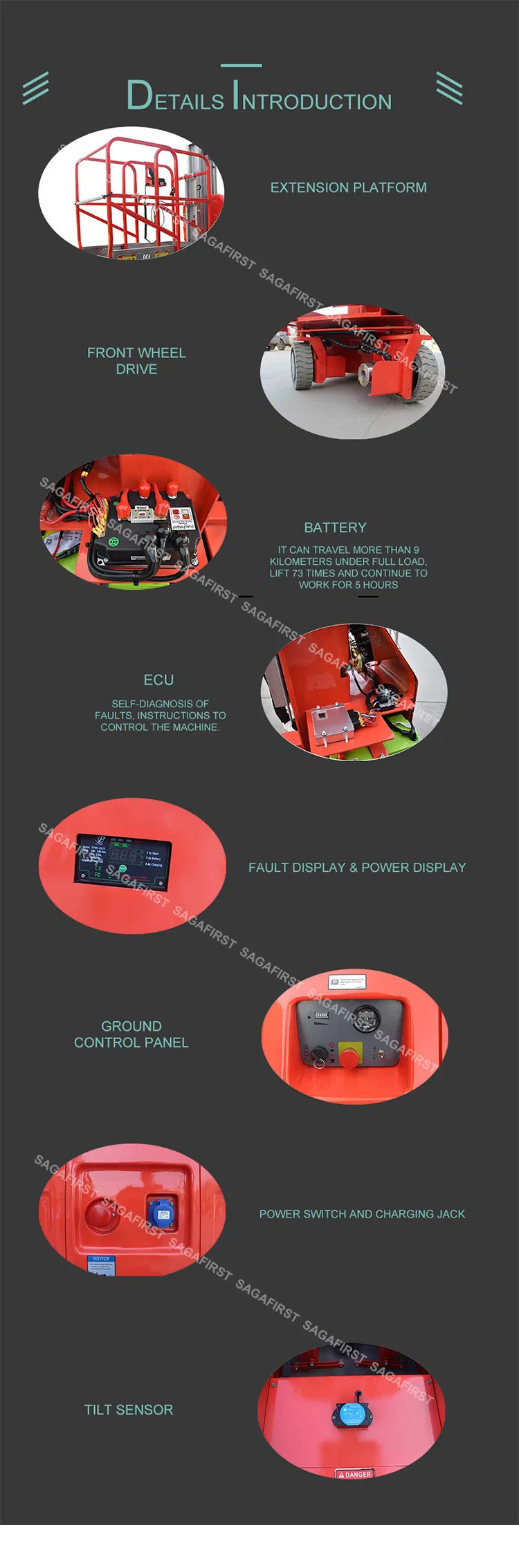

System Introduction

Walking motor consists of 2 built-in front-wheel motors (24VDC operating voltage).
Features two high-elastic rubber gray tires with a diameter of 305mm and width of 100mm.
The telescopic guardrail can extend 480mm longitudinally for better reach.
Safety sensors: Load detection, machine tilt sensing (activates after 2m), and pothole protection.
Anti-pinch function: Platform automatically stops at 2 meters during descent.
Equipped with buzzer, strobe light, horn, and emergency drop cable.

Our Service Capabilities

◈ Customized design for specific requirements.

◈ Expert model recommendations.

◈ Global shipment arrangement.

◈ Comprehensive operation and maintenance videos.

◈ Fast express delivery for replacement parts (within 7 days).

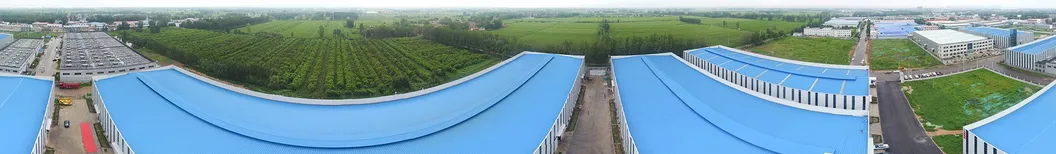

Global Presence

Frequently Asked Questions (FAQ)

Q1: What is the maximum working height of the aluminum lift?

The SPA-7.5 model can reach a maximum working height of up to 11 meters.

Q2: Can the lift platform be driven while fully extended?

Yes, one of the key features is that it is drivable at full height for increased efficiency.

Q3: What kind of power source does this aerial lift use?

It uses a DC power system with two 12V/100Ah batteries, making it suitable for locations without direct AC access.

Q4: Are there safety measures for uneven ground?

Yes, the machine includes a tilt sensing function. If the ground tilt is greater than 2 degrees after the platform rises to 2 meters, a signal is sent to restrict movement for safety.

Q5: Is the material durable for outdoor use?

The lift is constructed from high-strength aluminum alloy, which is both lightweight and corrosion-resistant, suitable for both indoor and outdoor maintenance.

Q6: What is the warranty period for this lift?

The product comes with a 12-month quality warranty covering major components.
