Orange Energy
1 / 5

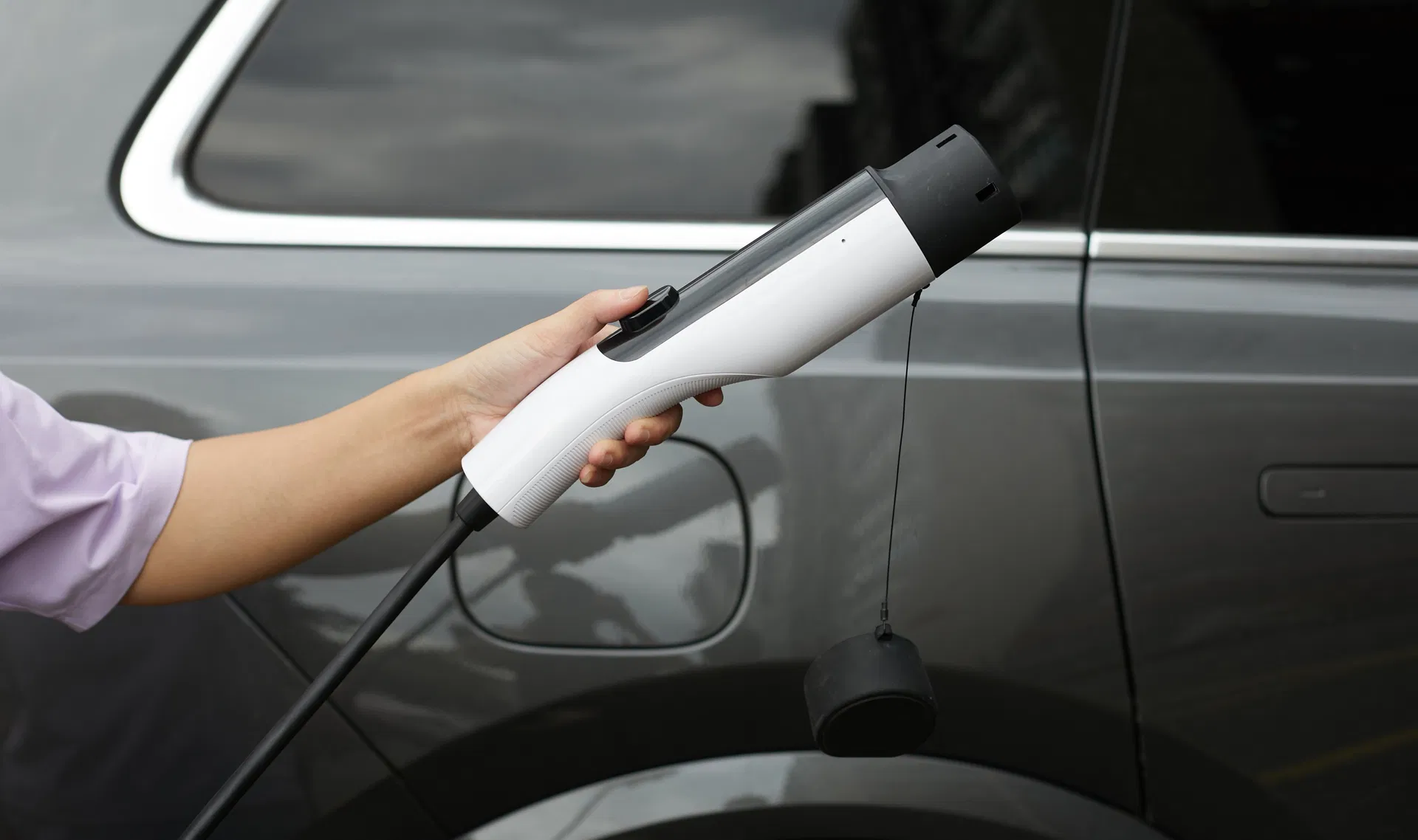

| Model NO. | QD10 |
| Delay Charging Time | 0~12 Hour |
| Rated Current | 16A/32A |
| Rated Voltage | 230V±10% |
| IP Grade | IP65 (Waterproof) |
| IK Level | IK10 (High Impact Resistance) |
| Plug Type | Type 2 / Type 1 / GBT |
| Standard | IEC 62196 / GBT 18487 / SAE J1772 |
| Cable Length | 5 Meters / OEM |
| Operating Temp | -20°C to 50°C |
Connect via WiFi/Bluetooth to schedule charging, modify power levels, and share access with family or friends for a convenient lifestyle.
| Electrical Specification | |
| Rated Power | 3.5kW / 7kW |
| Input Frequency | 47~63Hz |
| Standby Power | <8W |
| Functions & Accessories | |

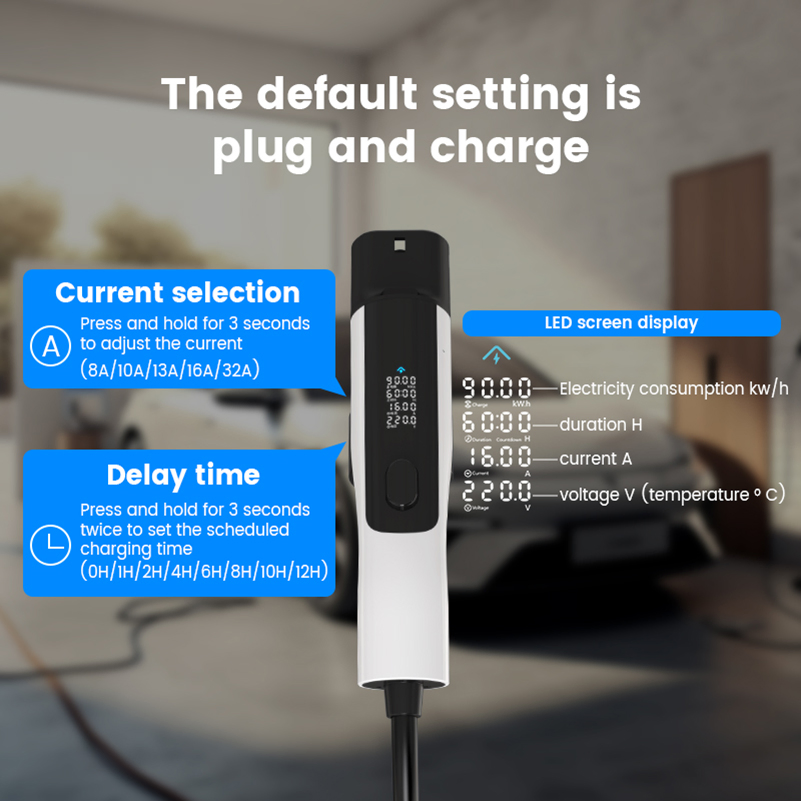

| Intelligent Adjustment | Yes (8A/10A/13A/16A/32A) |
| Environment Temp | -20ºC ~ +55ºC |
| Cooling | Natural Air Cooling |

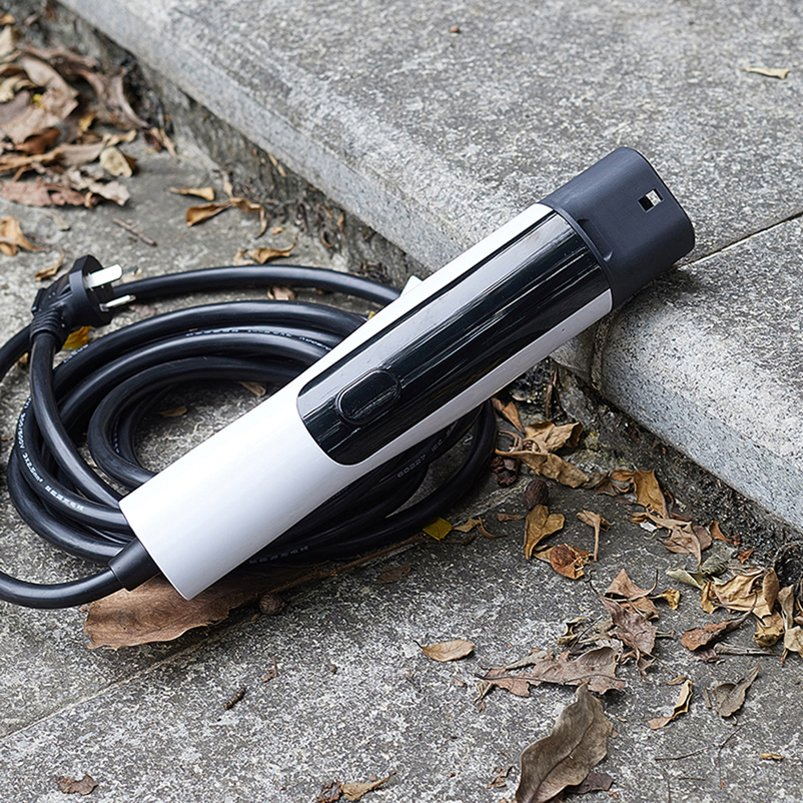

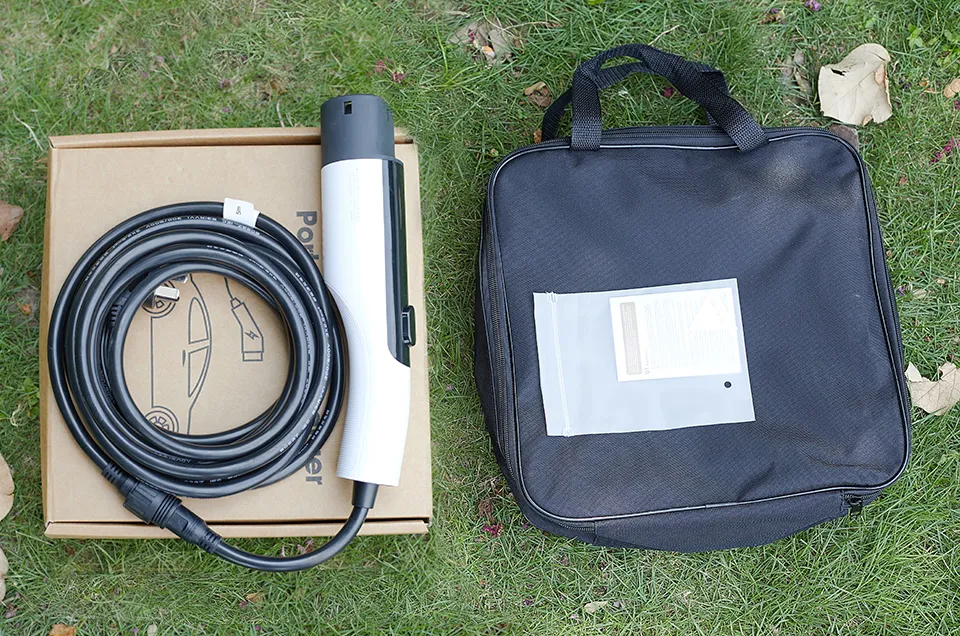

Portable charger, Storage bag, Manual, Airplane Box
Custom logo, private labels, cable length, and socket customization
24-month warranty and professional technical support
A high-tech enterprise focusing on R&D and production of NEV charging equipment. Our 4,400+ square meter factory ensures strict production control and holds 30+ technical patents.
