Universal CCS1 CCS2 EV Charger Global Market Charging Station

i

Basic Information

Model NO.	80KW-600KW
Location	Public Use
Charging Interfaces	One Pile with Multiple Charges
Connector Type	CCS1, CCS2, Chademo, GB/T
Rated Power	40kw To 600kw
Body Size	750X410X1700(mm)
HMI	7-Inch LCD Touch Screen + LED
Connection	4G / Ethernet
Protection	IP54 rated

✔

Product Description

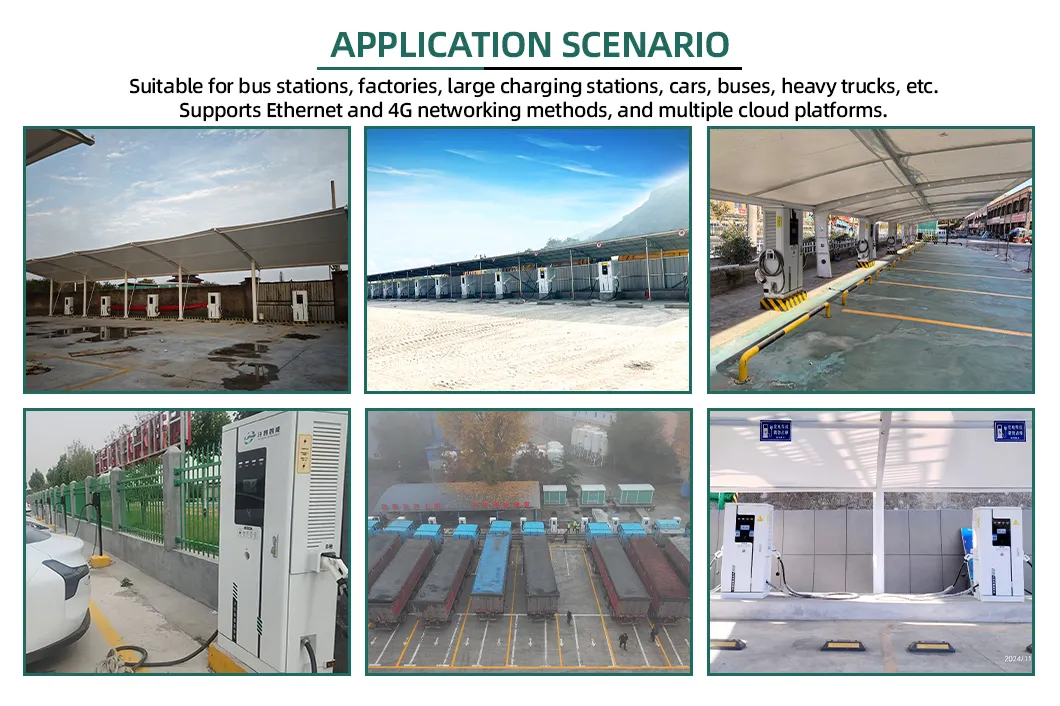

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection.

★

Company Profile

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights, certificates such as those for honest businesspeople, and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises.

✈

Packaging & Shipping

We adopt packaging methods that are sufficient to protect the equipment, and they support sea transportation, air transportation and land transportation.

?
